| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006478_52571cztM0_level2.fits | modeM0/AS1C09_011T06_9000006478_52571cztM0_level2_quad_clean.evt |
| Size (bytes) | 671,472,000 | 92,312,640 |
| Size | 640.4 MB | 88.0 MB |
| Events in quadrant A | 4,106,133 | 619,308 |
| Events in quadrant B | 7,832,466 | 627,698 |
| Events in quadrant C | 5,544,466 | 560,880 |
| Events in quadrant D | 6,853,528 | 519,269 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17280 | 1 |
| B | 0 | 27989 | 1 |
| C | 0 | 21395 | 1 |
| D | 0 | 24981 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6710 | 295 | 4.396423% |
| B | 6711 | 845 | 12.591268% |
| C | 6711 | 686 | 10.222024% |
| D | 6711 | 751 | 11.190583% |

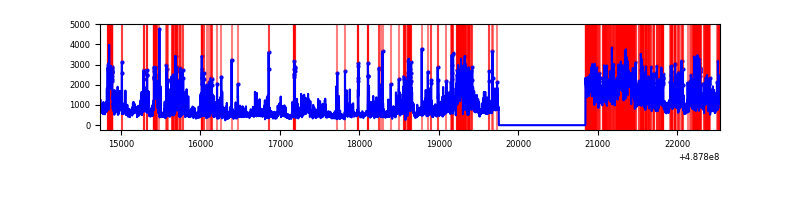

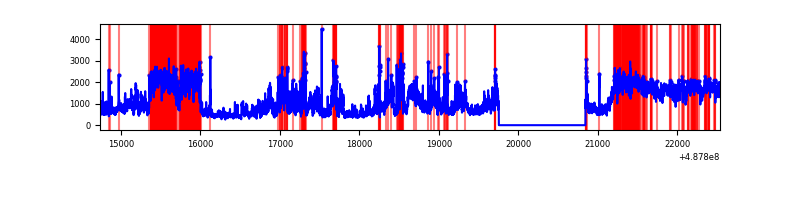

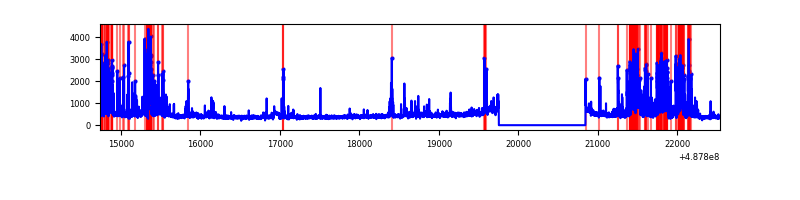

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

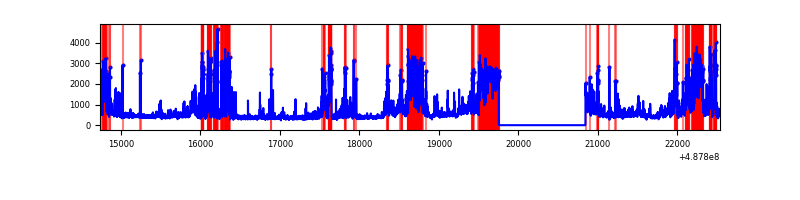

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7800 | 6711 | 246 | 246 | 3.15% | 3.67% |  |
| B | 7801 | 6712 | 720 | 720 | 9.23% | 10.73% |  |
| C | 7801 | 6711 | 643 | 643 | 8.24% | 9.58% |  |
| D | 7801 | 6712 | 695 | 695 | 8.91% | 10.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 248 | 738218 | 4301.28 | 677 | 660 | 171.5 |
| A | 5 | 243 | 420833 | 2450.36 | 677 | 660 | 171.5 |
| A | 4 | 95 | 64295 | 371.11 | 677 | 660 | 171.5 |
| B | 10 | 254 | 4250810 | 30019.34 | 667 | 643 | 141.6 |
| B | 10 | 44 | 219002 | 1542.29 | 667 | 643 | 141.6 |
| B | 4 | 81 | 200077 | 1408.62 | 667 | 643 | 141.6 |
| C | 15 | 248 | 2390925 | 13641.62 | 635 | 629 | 175.2 |
| C | 13 | 3 | 496311 | 2828.9 | 635 | 629 | 175.2 |
| C | 1 | 45 | 38029 | 213.44 | 635 | 629 | 175.2 |
| D | 2 | 62 | 1649858 | 8898.5 | 632 | 601 | 185.3 |
| D | 8 | 176 | 657060 | 3541.9 | 632 | 601 | 185.3 |
| D | 12 | 17 | 429225 | 2312.62 | 632 | 601 | 185.3 |

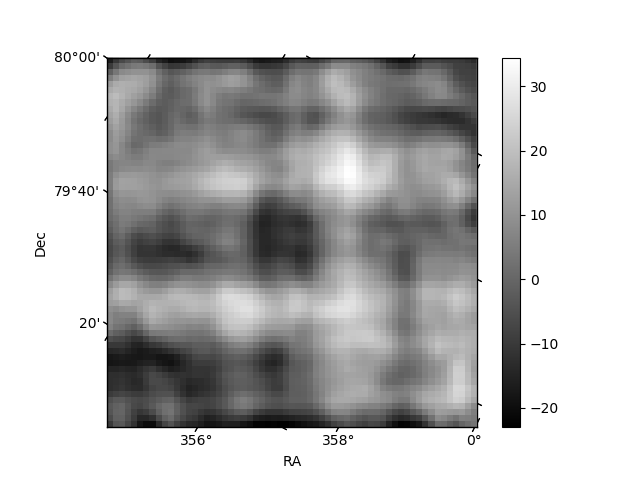

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

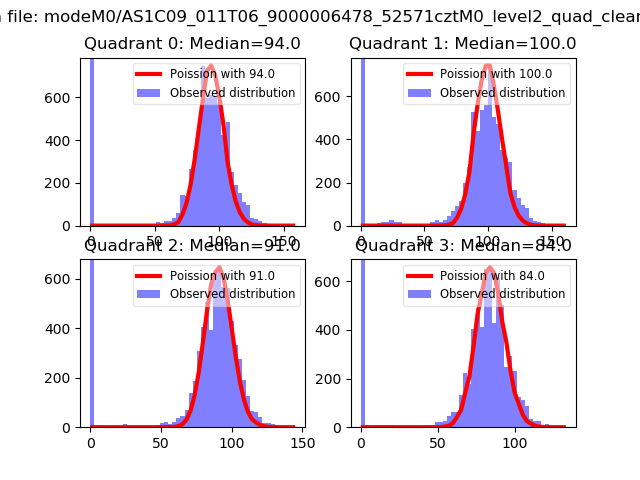

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

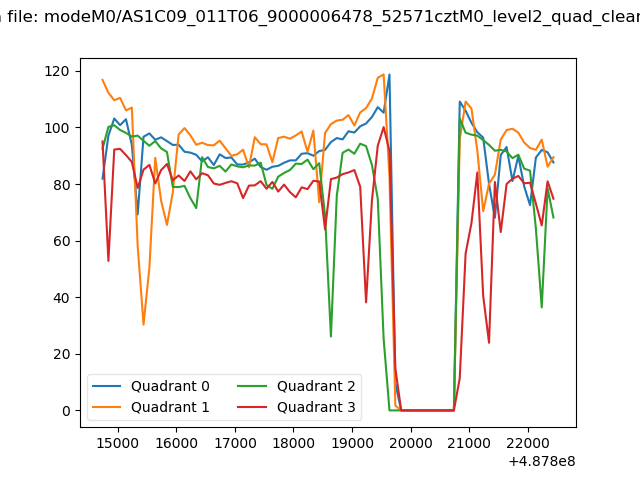

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

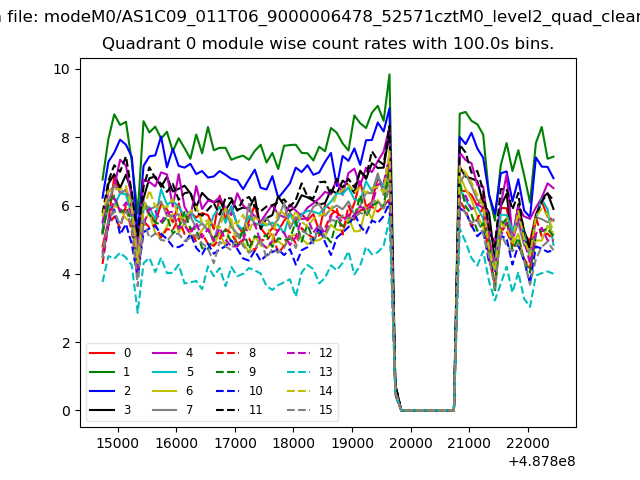

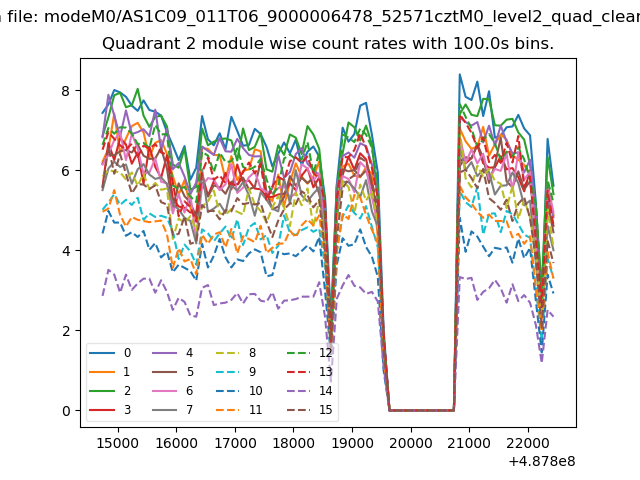

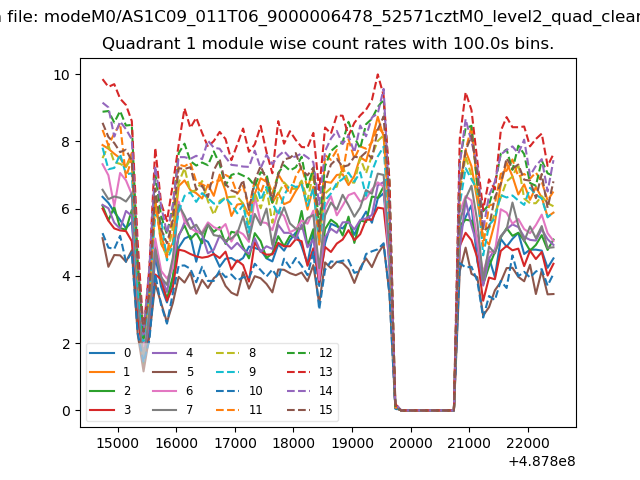

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

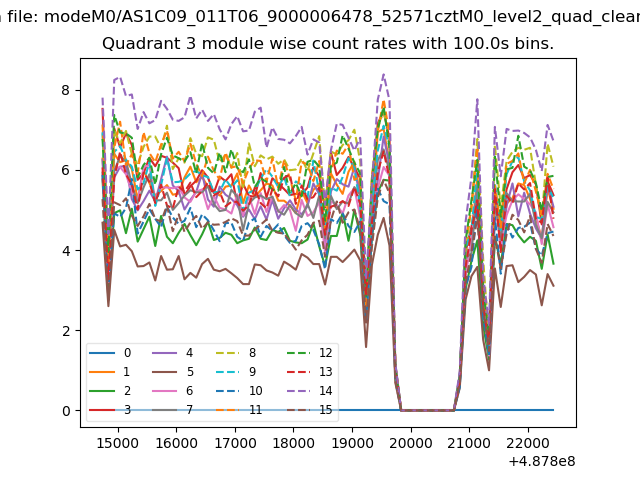

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

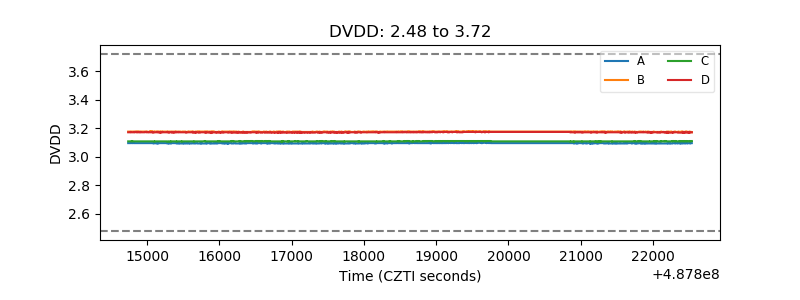

| D_VDD |  |

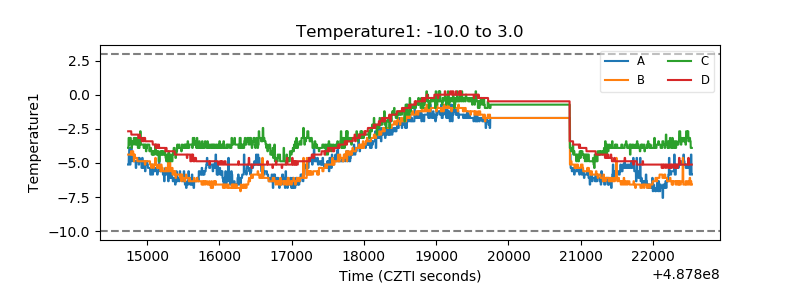

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

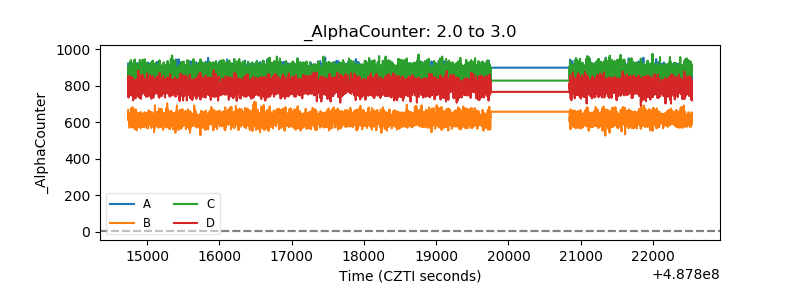

| Alpha Counter |  |

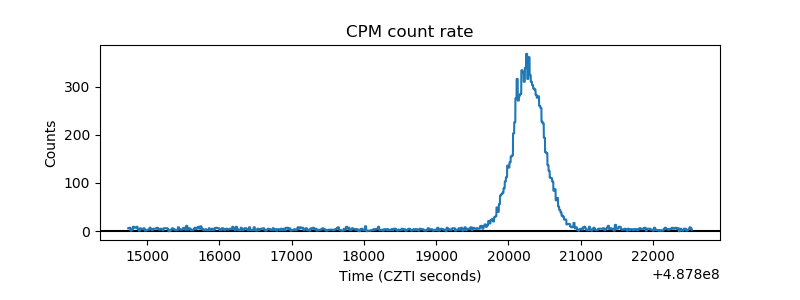

| _CPM_Rate |  |

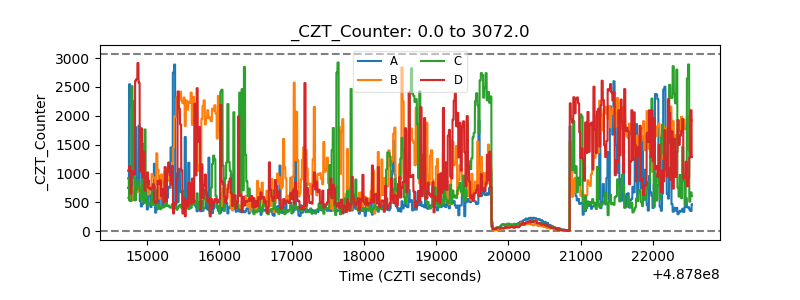

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

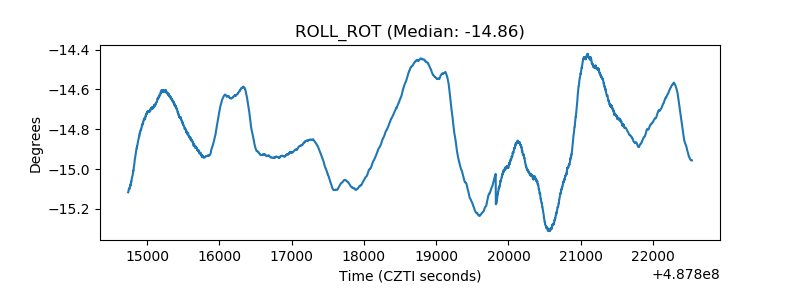

| _ROLL_ROT |  |

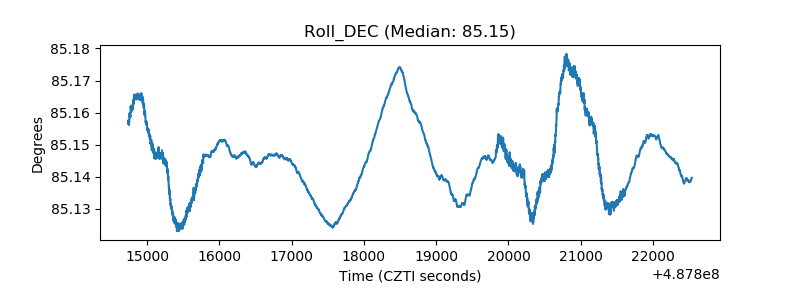

| _Roll_DEC |  |

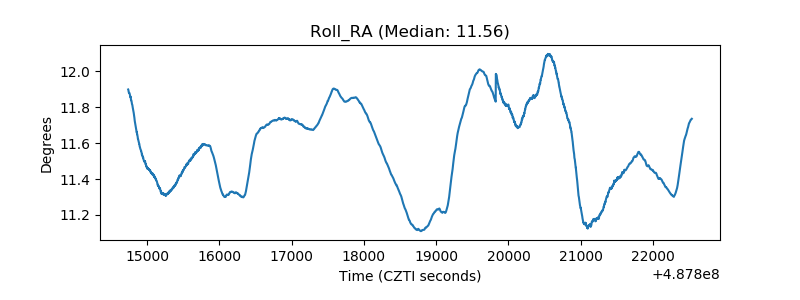

| _Roll_RA |  |

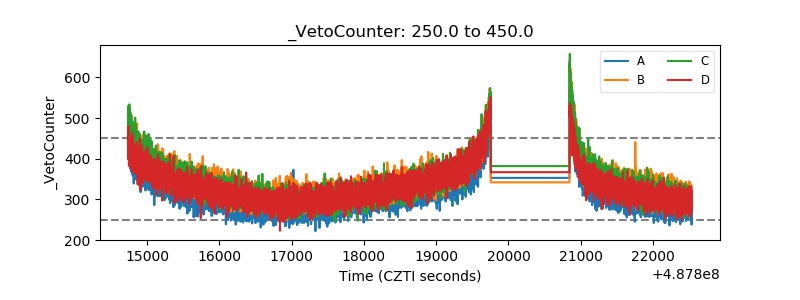

| Veto Counter |  |
