| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006478_52574cztM0_level2.fits | modeM0/AS1C09_011T06_9000006478_52574cztM0_level2_quad_clean.evt |
| Size (bytes) | 688,181,760 | 94,348,800 |
| Size | 656.3 MB | 90.0 MB |
| Events in quadrant A | 3,255,657 | 668,700 |
| Events in quadrant B | 5,394,141 | 687,315 |
| Events in quadrant C | 3,712,159 | 635,081 |
| Events in quadrant D | 12,548,765 | 359,501 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15361 | 0 |
| B | 0 | 21080 | 0 |
| C | 0 | 16474 | 0 |
| D | 0 | 42353 | 3 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7266 | 21 | 0.289017% |
| B | 7267 | 413 | 5.683226% |
| C | 7267 | 96 | 1.321040% |
| D | 7266 | 3187 | 43.861822% |

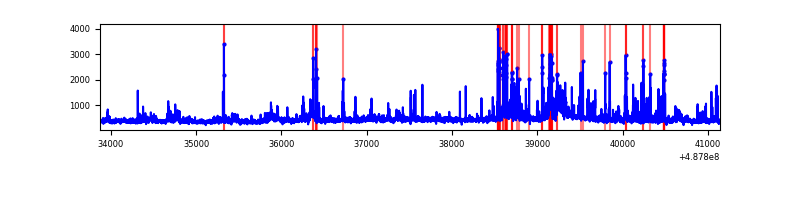

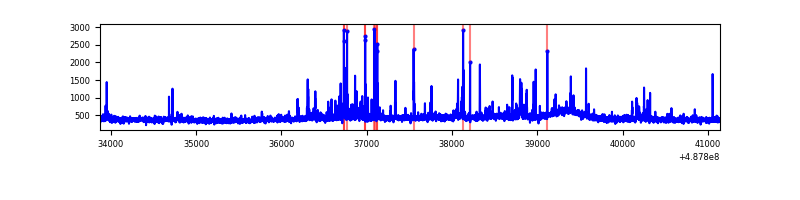

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7266 | 7266 | 13 | 13 | 0.18% | 0.18% |  |
| B | 7267 | 7267 | 295 | 295 | 4.06% | 4.06% |  |
| C | 7267 | 7267 | 81 | 81 | 1.11% | 1.11% |  |
| D | 7266 | 7266 | 3095 | 3095 | 42.60% | 42.60% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 249 | 87196 | 455.91 | 751 | 729 | 189.7 |
| A | 5 | 243 | 49207 | 255.61 | 751 | 729 | 189.7 |
| A | 13 | 248 | 26924 | 138.12 | 751 | 729 | 189.7 |
| B | 10 | 254 | 907048 | 5840.57 | 728 | 702 | 155.2 |
| B | 10 | 44 | 766705 | 4936.19 | 728 | 702 | 155.2 |
| B | 7 | 0 | 267672 | 1720.37 | 728 | 702 | 155.2 |
| C | 12 | 249 | 476721 | 2385.17 | 719 | 713 | 199.6 |
| C | 15 | 248 | 152164 | 758.89 | 719 | 713 | 199.6 |
| C | 13 | 3 | 135937 | 677.58 | 719 | 713 | 199.6 |
| D | 6 | 42 | 3630667 | 22822.17 | 563 | 537 | 159.1 |
| D | 8 | 176 | 1849850 | 11626.4 | 563 | 537 | 159.1 |
| D | 15 | 125 | 1785639 | 11222.71 | 563 | 537 | 159.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

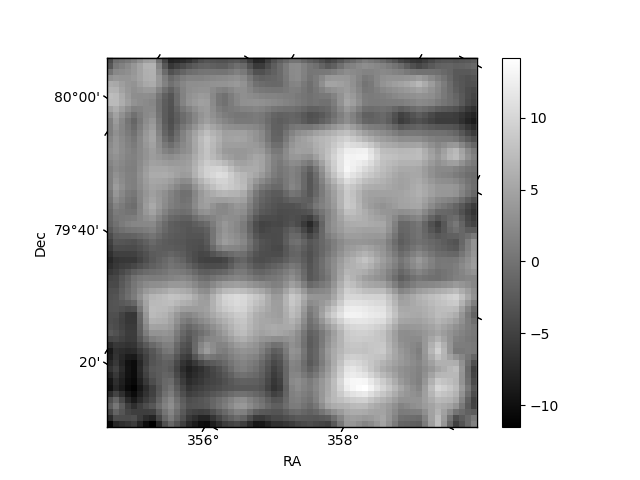

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

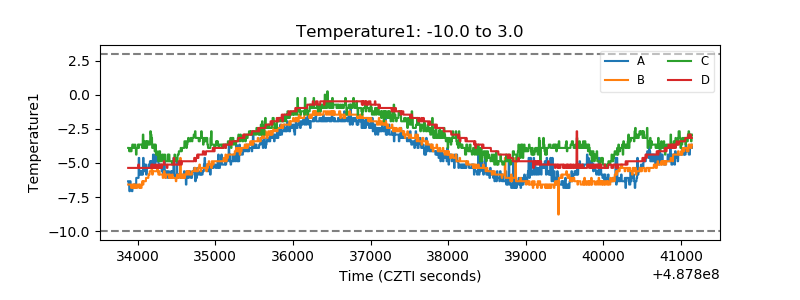

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

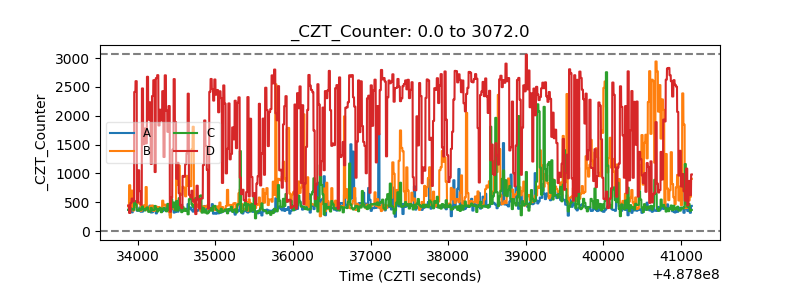

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

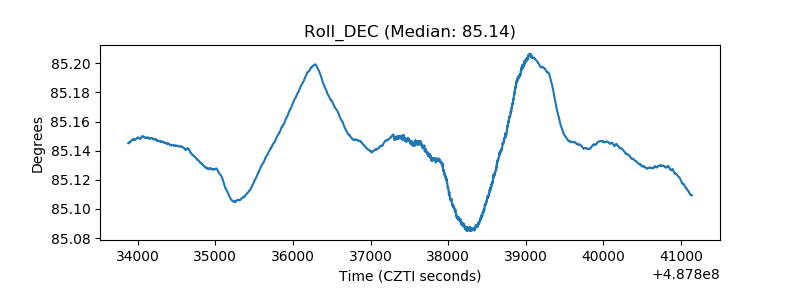

| _Roll_DEC |  |

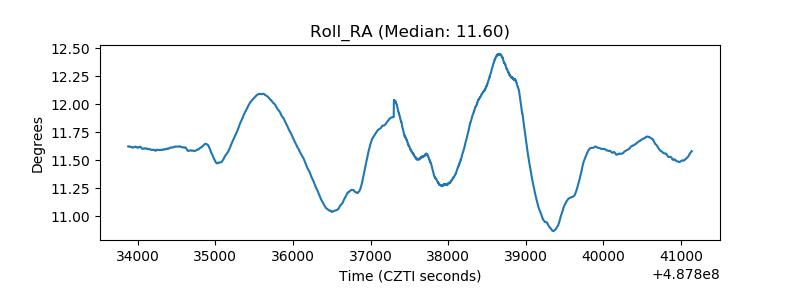

| _Roll_RA |  |

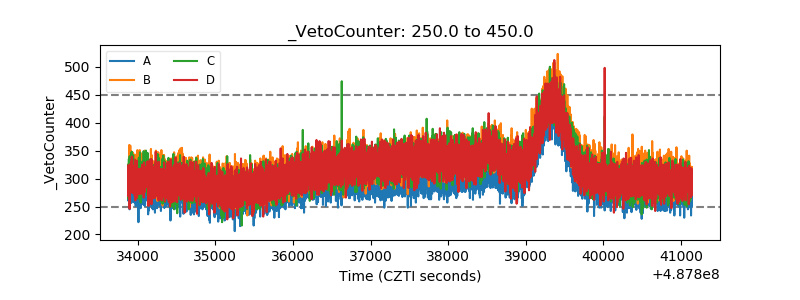

| Veto Counter |  |
