| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006478_52575cztM0_level2.fits | modeM0/AS1C09_011T06_9000006478_52575cztM0_level2_quad_clean.evt |
| Size (bytes) | 659,021,760 | 98,890,560 |
| Size | 628.5 MB | 94.3 MB |
| Events in quadrant A | 3,797,262 | 668,688 |
| Events in quadrant B | 6,416,054 | 691,953 |
| Events in quadrant C | 3,620,839 | 647,297 |
| Events in quadrant D | 9,989,258 | 473,258 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16767 | 0 |
| B | 0 | 24248 | 0 |
| C | 0 | 16268 | 0 |
| D | 0 | 34845 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7373 | 122 | 1.654686% |
| B | 7374 | 520 | 7.051804% |
| C | 7374 | 41 | 0.556008% |
| D | 7374 | 1866 | 25.305126% |

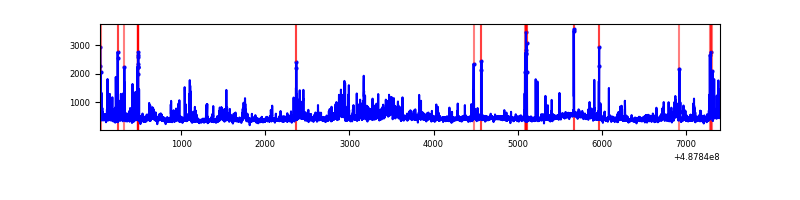

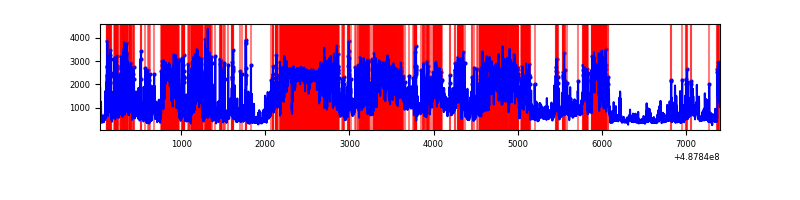

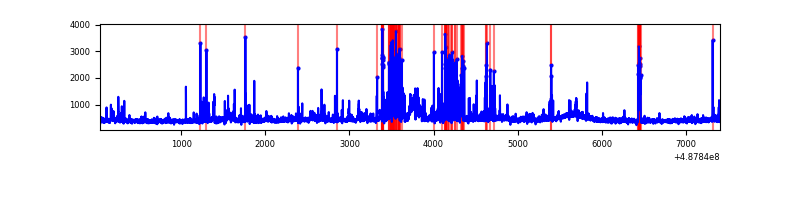

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7373 | 7373 | 106 | 106 | 1.44% | 1.44% |  |
| B | 7374 | 7374 | 349 | 349 | 4.73% | 4.73% |  |
| C | 7374 | 7374 | 35 | 35 | 0.47% | 0.47% |  |
| D | 7374 | 7374 | 1838 | 1838 | 24.93% | 24.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 114 | 337753 | 1799.17 | 752 | 734 | 187.3 |
| A | 5 | 243 | 110274 | 584.78 | 752 | 734 | 187.3 |
| A | 13 | 248 | 72375 | 382.45 | 752 | 734 | 187.3 |
| B | 10 | 254 | 1836708 | 11675.62 | 734 | 709 | 157.3 |
| B | 10 | 44 | 910541 | 5785.87 | 734 | 709 | 157.3 |
| B | 4 | 171 | 202971 | 1286.24 | 734 | 709 | 157.3 |
| C | 12 | 249 | 269747 | 1346.16 | 728 | 724 | 199.8 |
| C | 15 | 248 | 146599 | 729.94 | 728 | 724 | 199.8 |
| C | 15 | 158 | 117779 | 585.73 | 728 | 724 | 199.8 |
| D | 15 | 125 | 2422802 | 12952.15 | 646 | 616 | 187.0 |
| D | 8 | 176 | 2126701 | 11368.81 | 646 | 616 | 187.0 |
| D | 6 | 42 | 934048 | 4991.34 | 646 | 616 | 187.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

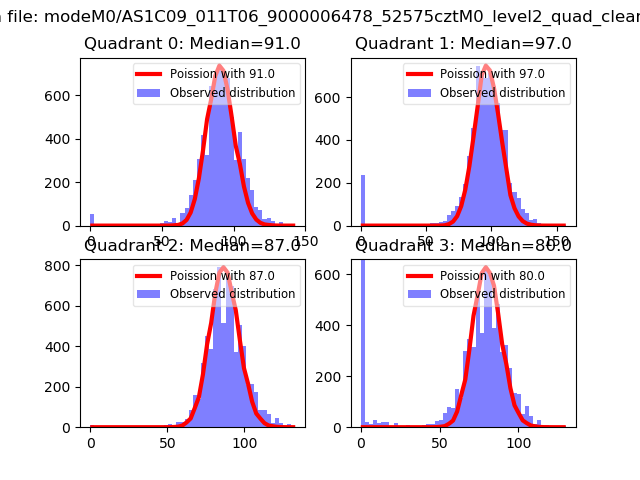

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

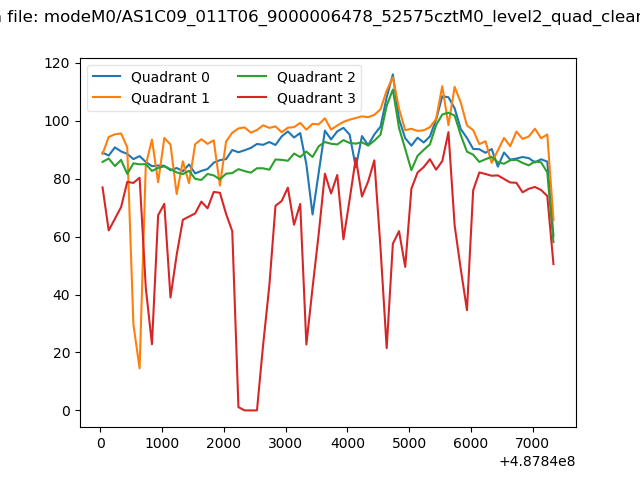

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

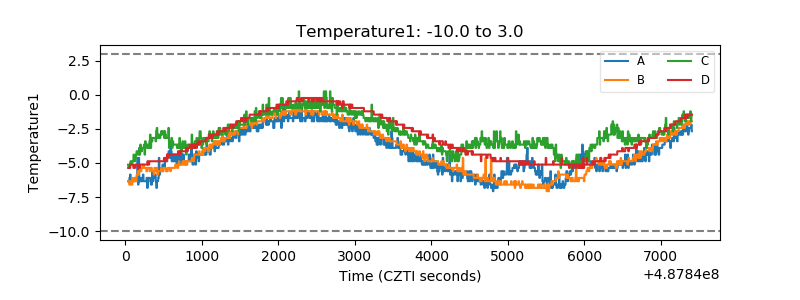

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

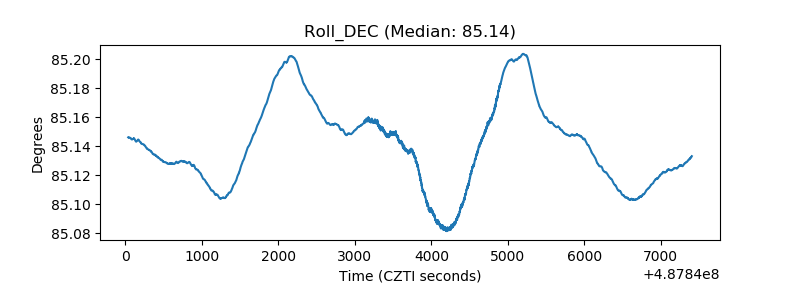

| _Roll_DEC |  |
