| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006478_52579cztM0_level2.fits | modeM0/AS1C09_011T06_9000006478_52579cztM0_level2_quad_clean.evt |
| Size (bytes) | 766,627,200 | 112,870,080 |
| Size | 731.1 MB | 107.6 MB |
| Events in quadrant A | 4,470,357 | 775,144 |
| Events in quadrant B | 6,144,129 | 803,211 |
| Events in quadrant C | 6,185,351 | 709,472 |
| Events in quadrant D | 10,940,038 | 556,309 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19083 | 2 |
| B | 0 | 24027 | 2 |
| C | 0 | 23991 | 7 |
| D | 0 | 38204 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8248 | 223 | 2.703686% |
| B | 8248 | 403 | 4.886033% |
| C | 8247 | 597 | 7.238996% |
| D | 8248 | 2061 | 24.987876% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9573 | 8249 | 114 | 114 | 1.19% | 1.38% |  |
| B | 9573 | 8249 | 172 | 172 | 1.80% | 2.09% |  |
| C | 9572 | 8248 | 460 | 460 | 4.81% | 5.58% |  |

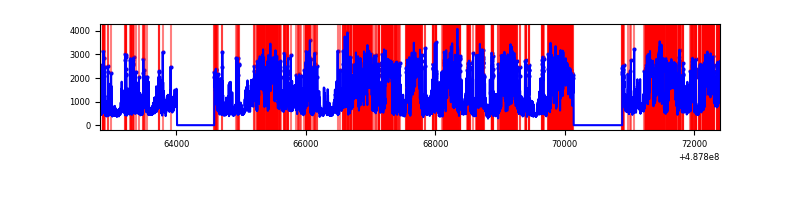

| D | 9573 | 8248 | 1947 | 1947 | 20.34% | 23.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 249 | 268980 | 1220.78 | 887 | 866 | 219.6 |
| A | 12 | 3 | 246200 | 1117.05 | 887 | 866 | 219.6 |
| A | 3 | 114 | 121637 | 549.89 | 887 | 866 | 219.6 |
| B | 7 | 0 | 1152135 | 6348.04 | 865 | 836 | 181.4 |
| B | 4 | 171 | 331901 | 1825.43 | 865 | 836 | 181.4 |
| B | 10 | 44 | 246855 | 1356.5 | 865 | 836 | 181.4 |
| C | 13 | 3 | 1590457 | 6841.07 | 842 | 836 | 232.4 |
| C | 15 | 248 | 480626 | 2064.82 | 842 | 836 | 232.4 |
| C | 15 | 224 | 227861 | 977.02 | 842 | 836 | 232.4 |
| D | 6 | 42 | 3314546 | 15023.22 | 769 | 734 | 220.6 |
| D | 15 | 125 | 1774341 | 8040.68 | 769 | 734 | 220.6 |
| D | 11 | 245 | 827519 | 3748.24 | 769 | 734 | 220.6 |

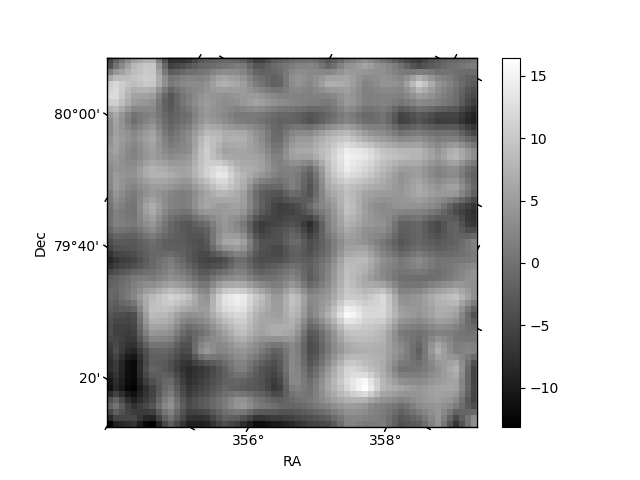

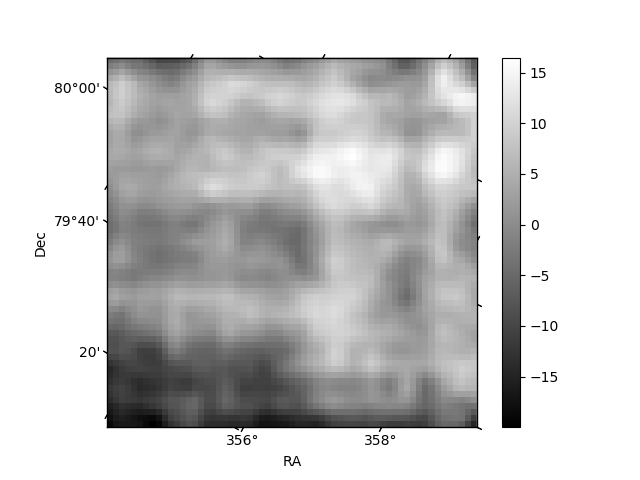

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

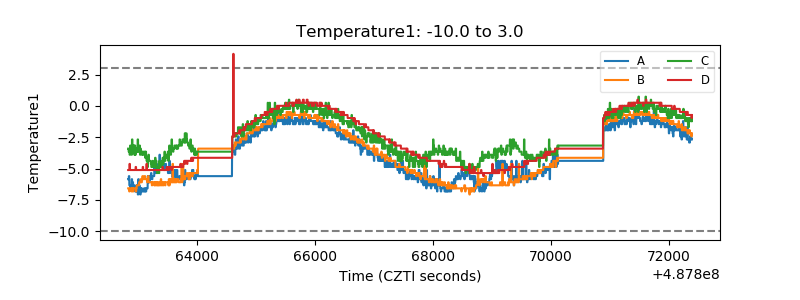

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

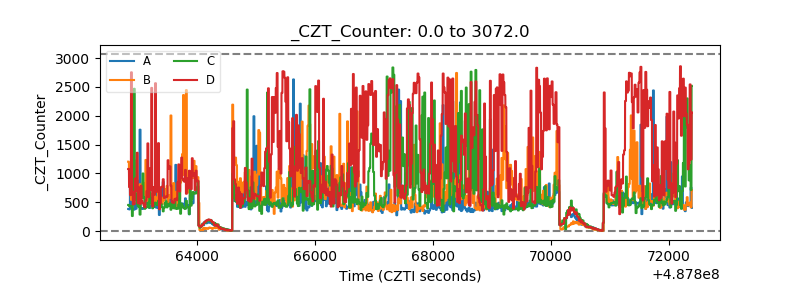

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

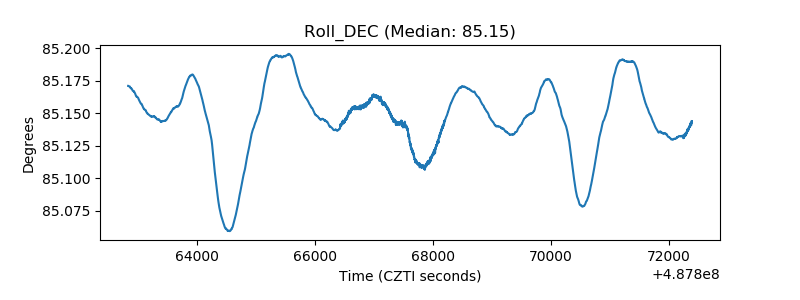

| _Roll_DEC |  |

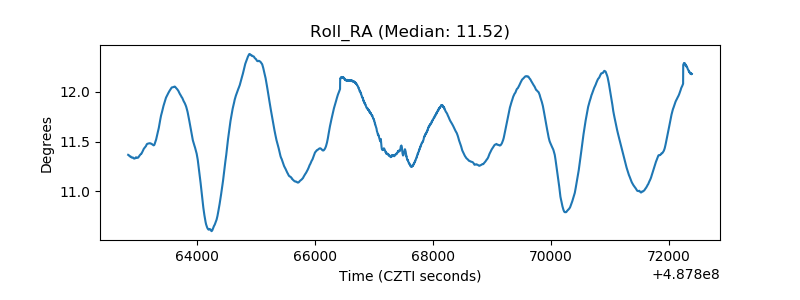

| _Roll_RA |  |

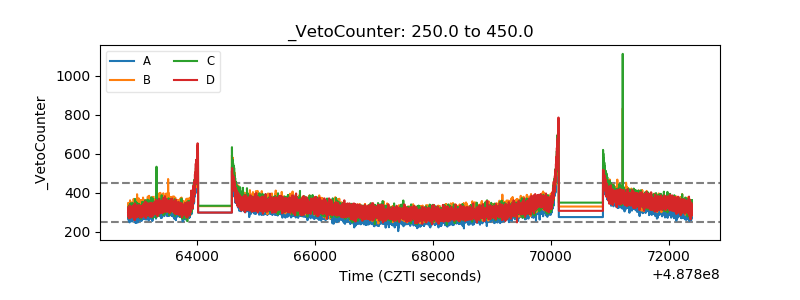

| Veto Counter |  |
