| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006478_52583cztM0_level2.fits | modeM0/AS1C09_011T06_9000006478_52583cztM0_level2_quad_clean.evt |
| Size (bytes) | 807,223,680 | 83,868,480 |
| Size | 769.8 MB | 80.0 MB |
| Events in quadrant A | 4,411,067 | 621,550 |
| Events in quadrant B | 6,182,128 | 632,760 |
| Events in quadrant C | 7,696,970 | 483,796 |
| Events in quadrant D | 11,097,180 | 355,029 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17611 | 2 |
| B | 0 | 22792 | 3 |
| C | 0 | 27341 | 2 |
| D | 0 | 37404 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6389 | 271 | 4.241665% |
| B | 6389 | 583 | 9.125059% |
| C | 6389 | 1507 | 23.587416% |
| D | 6389 | 2831 | 44.310534% |

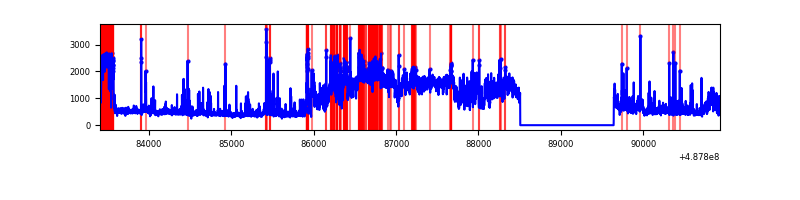

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7524 | 6390 | 230 | 230 | 3.06% | 3.60% |  |
| B | 7524 | 6389 | 366 | 366 | 4.86% | 5.73% |  |
| C | 7524 | 6389 | 1442 | 1442 | 19.17% | 22.57% |  |
| D | 7524 | 6389 | 2842 | 2842 | 37.77% | 44.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 80 | 811633 | 4692.22 | 679 | 662 | 172.8 |
| A | 4 | 249 | 456265 | 2636.08 | 679 | 662 | 172.8 |
| A | 5 | 243 | 108179 | 622.09 | 679 | 662 | 172.8 |
| B | 10 | 254 | 2566846 | 18451.31 | 656 | 637 | 139.1 |
| B | 1 | 238 | 318495 | 2285.43 | 656 | 637 | 139.1 |
| B | 4 | 81 | 196553 | 1408.66 | 656 | 637 | 139.1 |
| C | 15 | 248 | 4374653 | 26152.25 | 601 | 593 | 167.3 |
| C | 15 | 224 | 374314 | 2234.46 | 601 | 593 | 167.3 |
| C | 13 | 3 | 267024 | 1592.98 | 601 | 593 | 167.3 |
| D | 6 | 42 | 5060628 | 31845.63 | 546 | 519 | 158.9 |
| D | 8 | 176 | 1857241 | 11685.22 | 546 | 519 | 158.9 |
| D | 15 | 125 | 976210 | 6140.48 | 546 | 519 | 158.9 |

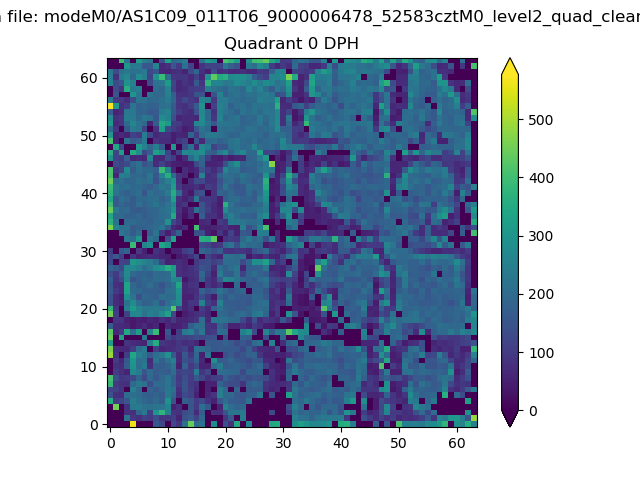

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

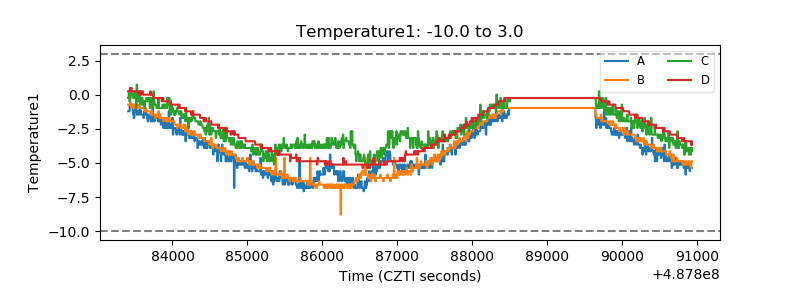

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

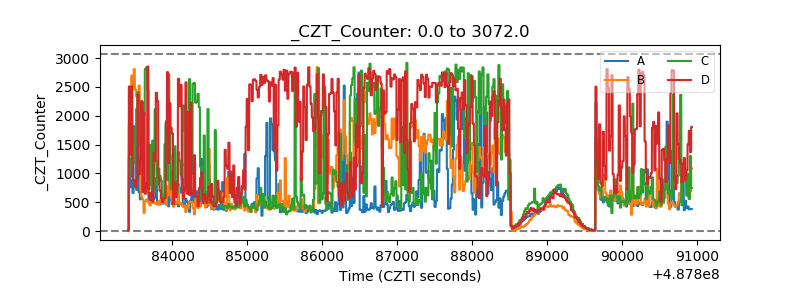

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

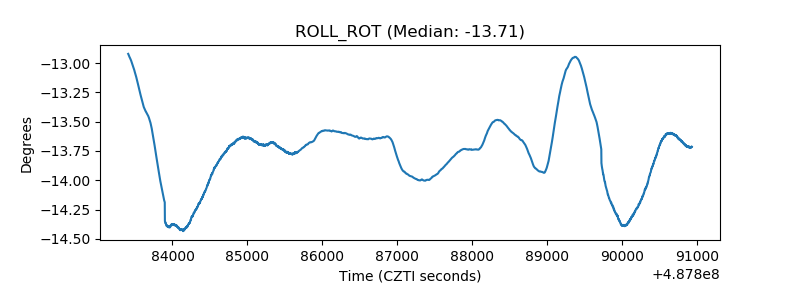

| _ROLL_ROT |  |

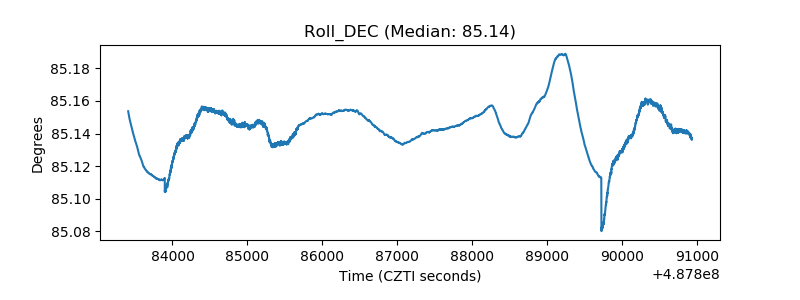

| _Roll_DEC |  |

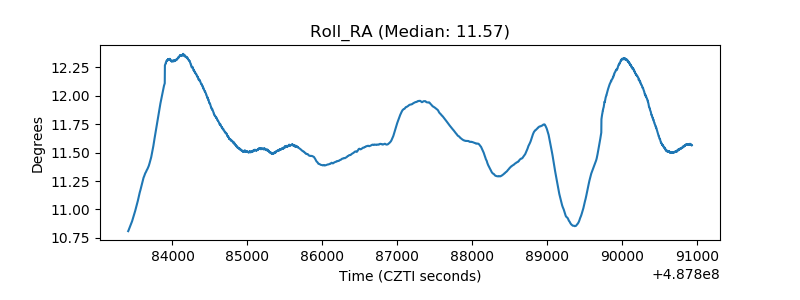

| _Roll_RA |  |
| Veto Counter |  |
