| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006478_52586cztM0_level2.fits | modeM0/AS1C09_011T06_9000006478_52586cztM0_level2_quad_clean.evt |
| Size (bytes) | 627,459,840 | 92,082,240 |
| Size | 598.4 MB | 87.8 MB |
| Events in quadrant A | 3,889,829 | 640,970 |
| Events in quadrant B | 6,037,367 | 594,828 |
| Events in quadrant C | 6,449,394 | 549,779 |
| Events in quadrant D | 6,313,616 | 520,996 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16963 | 2 |
| B | 0 | 22819 | 2 |
| C | 0 | 24000 | 6 |
| D | 0 | 23783 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 18 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 140 | 0 |
| B | 0 | 140 | 0 |
| C | 0 | 140 | 0 |
| D | 0 | 140 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6912 | 201 | 2.907986% |
| B | 6912 | 1107 | 16.015625% |
| C | 6911 | 970 | 14.035595% |
| D | 6911 | 860 | 12.443930% |

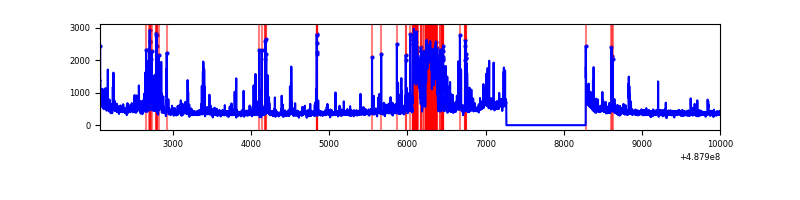

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7927 | 6912 | 181 | 181 | 2.28% | 2.62% |  |
| B | 7927 | 6912 | 1018 | 1018 | 12.84% | 14.73% |  |
| C | 7926 | 6911 | 822 | 822 | 10.37% | 11.89% |  |
| D | 7926 | 6911 | 760 | 760 | 9.59% | 11.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 80 | 520102 | 2951.9 | 702 | 684 | 176.0 |
| A | 4 | 249 | 317653 | 1801.36 | 702 | 684 | 176.0 |
| A | 5 | 243 | 81652 | 460.15 | 702 | 684 | 176.0 |
| B | 10 | 44 | 2190966 | 16211.01 | 643 | 619 | 135.1 |
| B | 1 | 238 | 646854 | 4782.86 | 643 | 619 | 135.1 |
| B | 10 | 254 | 182540 | 1346.42 | 643 | 619 | 135.1 |
| C | 15 | 248 | 1909950 | 10602.97 | 645 | 637 | 180.1 |
| C | 13 | 3 | 751136 | 4167.74 | 645 | 637 | 180.1 |
| C | 15 | 178 | 345146 | 1913.16 | 645 | 637 | 180.1 |
| D | 15 | 125 | 2468579 | 13187.86 | 643 | 614 | 187.1 |
| D | 8 | 176 | 297911 | 1588.64 | 643 | 614 | 187.1 |
| D | 3 | 224 | 267904 | 1428.3 | 643 | 614 | 187.1 |

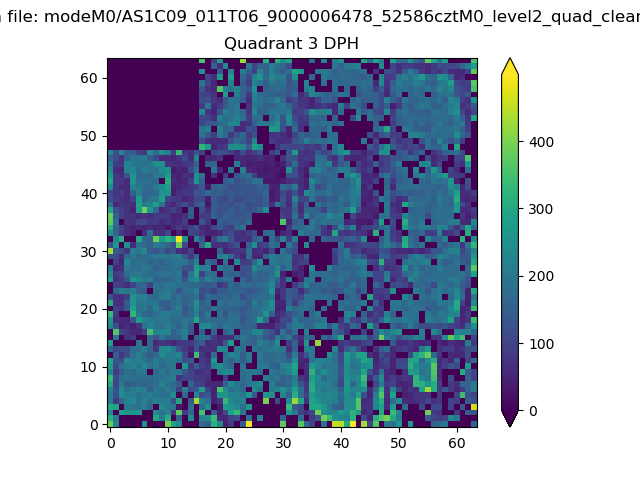

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

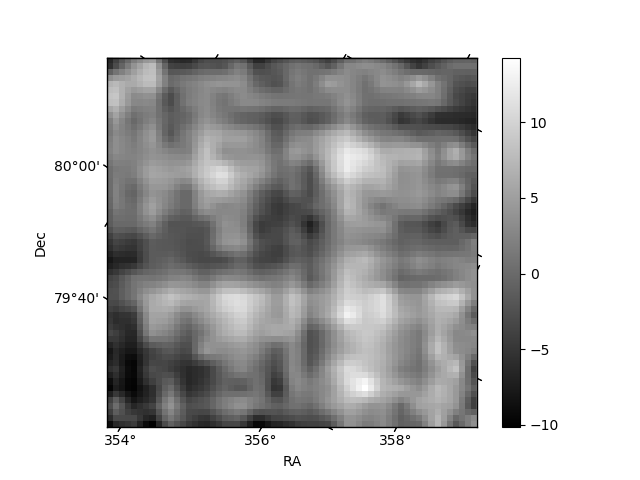

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

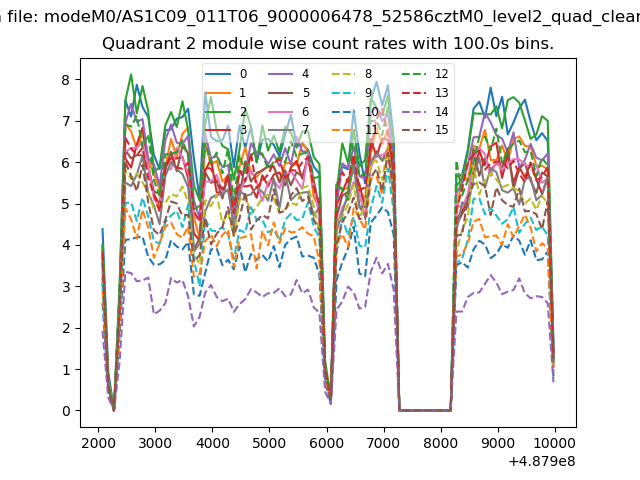

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

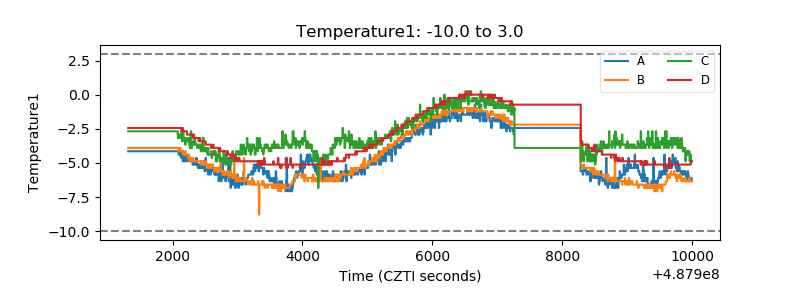

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

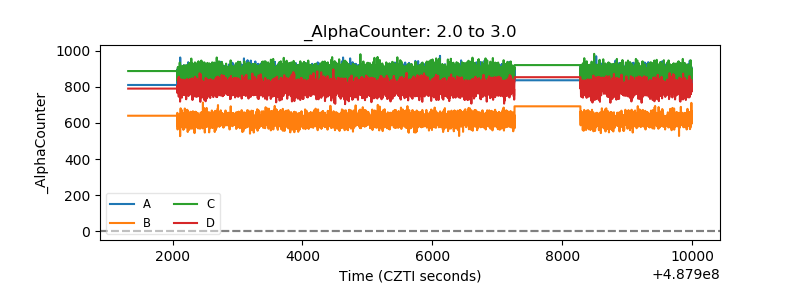

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

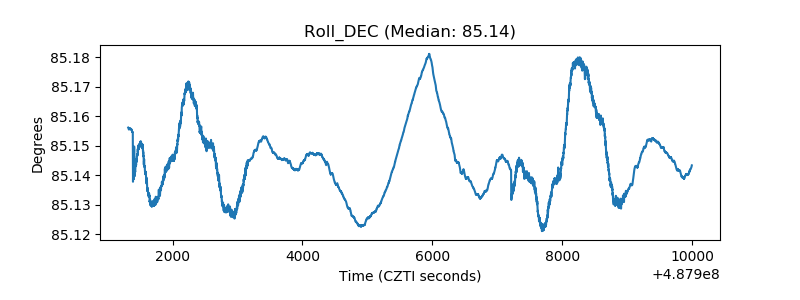

| _Roll_DEC |  |

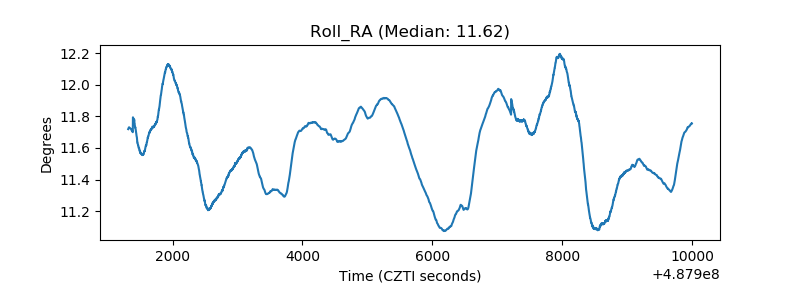

| _Roll_RA |  |
| Veto Counter |  |
