| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006478_52587cztM0_level2.fits | modeM0/AS1C09_011T06_9000006478_52587cztM0_level2_quad_clean.evt |
| Size (bytes) | 560,856,960 | 91,751,040 |
| Size | 534.9 MB | 87.5 MB |
| Events in quadrant A | 3,149,036 | 622,409 |
| Events in quadrant B | 5,680,669 | 617,375 |
| Events in quadrant C | 4,284,356 | 575,638 |
| Events in quadrant D | 7,126,643 | 494,585 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14654 | 1 |
| B | 0 | 21711 | 1 |
| C | 0 | 17765 | 1 |
| D | 0 | 25943 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6706 | 104 | 1.550850% |
| B | 6707 | 634 | 9.452810% |
| C | 6707 | 329 | 4.905323% |
| D | 6707 | 1025 | 15.282541% |

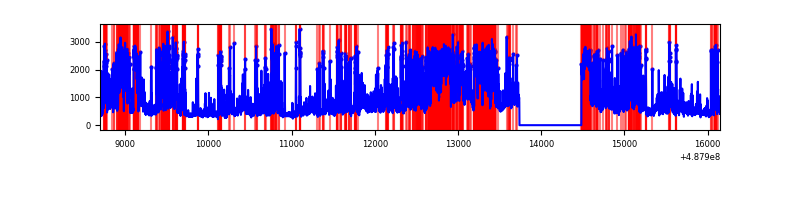

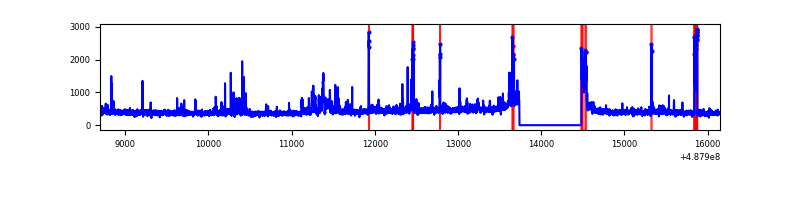

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7451 | 6707 | 60 | 60 | 0.81% | 0.89% |  |
| B | 7452 | 6708 | 529 | 529 | 7.10% | 7.89% |  |
| C | 7452 | 6708 | 290 | 290 | 3.89% | 4.32% |  |
| D | 7452 | 6708 | 1006 | 1006 | 13.50% | 15.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 249 | 148457 | 866.53 | 676 | 658 | 170.6 |
| A | 7 | 190 | 82000 | 476.9 | 676 | 658 | 170.6 |
| A | 12 | 80 | 75210 | 437.09 | 676 | 658 | 170.6 |
| B | 10 | 254 | 1517291 | 10955.23 | 651 | 628 | 138.4 |
| B | 10 | 44 | 706598 | 5099.39 | 651 | 628 | 138.4 |
| B | 4 | 171 | 170571 | 1227.54 | 651 | 628 | 138.4 |
| C | 15 | 248 | 1167757 | 6443.81 | 646 | 639 | 181.1 |
| C | 15 | 178 | 143310 | 787.71 | 646 | 639 | 181.1 |
| C | 12 | 254 | 137346 | 754.78 | 646 | 639 | 181.1 |
| D | 15 | 125 | 2247152 | 12826.33 | 608 | 581 | 175.2 |
| D | 8 | 176 | 556942 | 3176.43 | 608 | 581 | 175.2 |
| D | 12 | 6 | 406864 | 2319.59 | 608 | 581 | 175.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

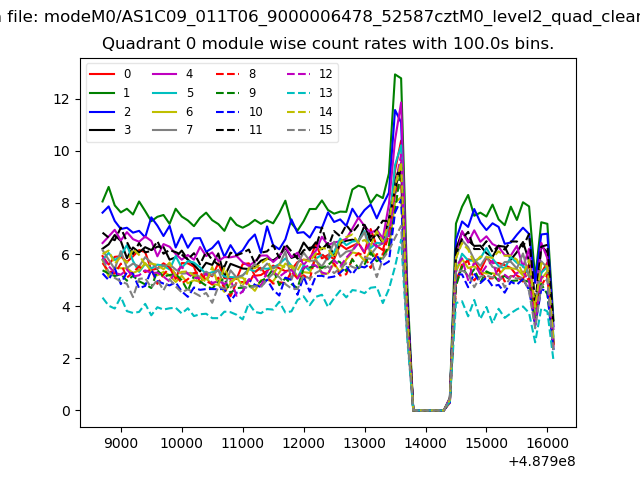

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

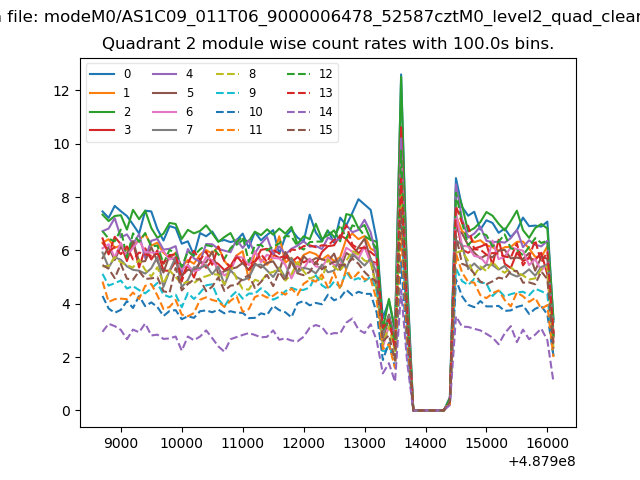

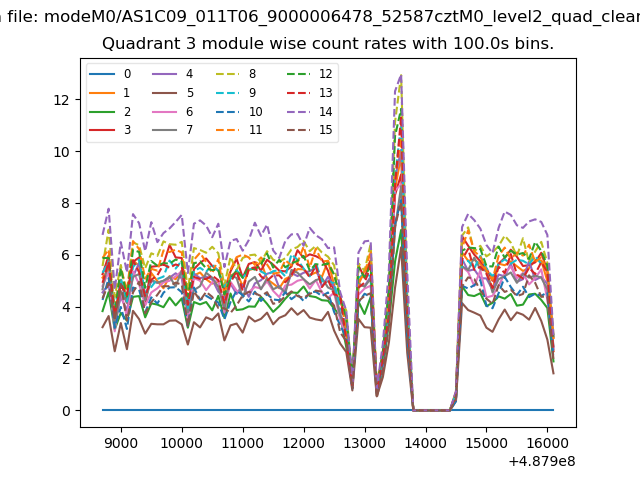

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

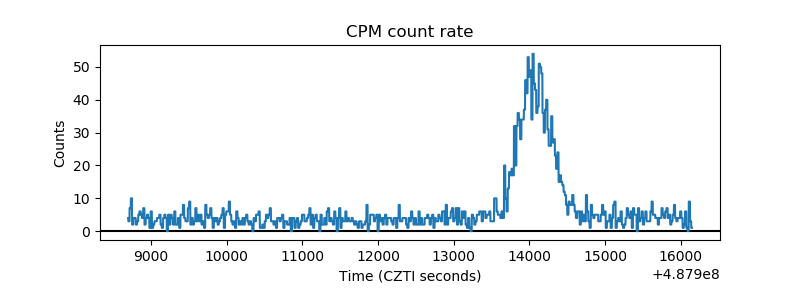

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

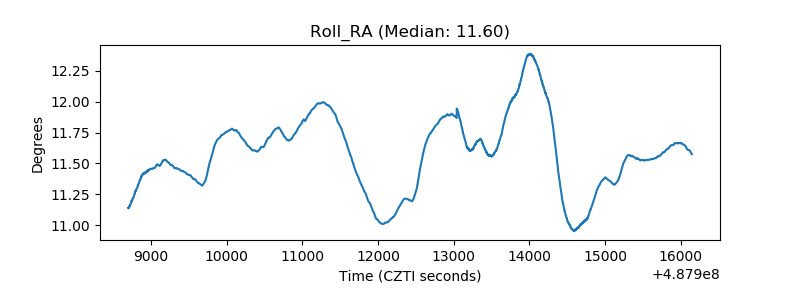

| _Roll_RA |  |

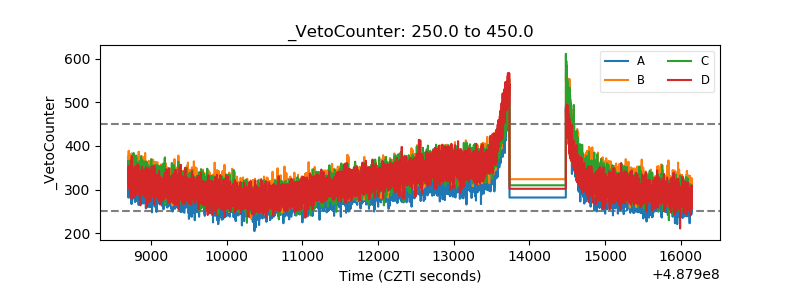

| Veto Counter |  |
