| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006478_52604cztM0_level2.fits | modeM0/AS1C09_011T06_9000006478_52604cztM0_level2_quad_clean.evt |
| Size (bytes) | 647,023,680 | 97,312,320 |
| Size | 617.0 MB | 92.8 MB |
| Events in quadrant A | 3,725,213 | 652,892 |
| Events in quadrant B | 6,450,229 | 667,865 |
| Events in quadrant C | 5,951,810 | 592,195 |
| Events in quadrant D | 7,267,907 | 533,369 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16400 | 0 |
| B | 0 | 24173 | 0 |
| C | 0 | 22865 | 0 |
| D | 0 | 26684 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 144 | 0 |
| B | 0 | 144 | 0 |
| C | 0 | 144 | 0 |
| D | 0 | 144 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7175 | 96 | 1.337979% |
| B | 7176 | 594 | 8.277592% |
| C | 7176 | 593 | 8.263657% |
| D | 7176 | 953 | 13.280379% |

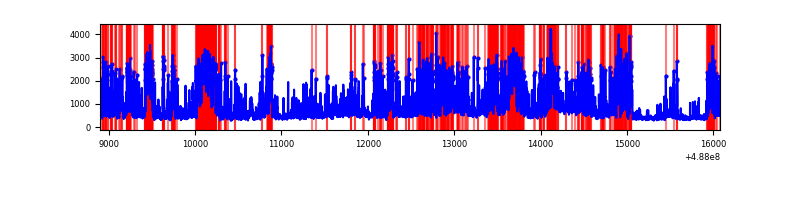

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7175 | 7175 | 60 | 60 | 0.84% | 0.84% |  |
| B | 7176 | 7176 | 527 | 527 | 7.34% | 7.34% |  |
| C | 7176 | 7176 | 612 | 612 | 8.53% | 8.53% |  |
| D | 7176 | 7176 | 944 | 944 | 13.15% | 13.15% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 80 | 208979 | 1129.68 | 733 | 714 | 184.4 |
| A | 3 | 114 | 151383 | 817.26 | 733 | 714 | 184.4 |
| A | 4 | 249 | 113877 | 613.82 | 733 | 714 | 184.4 |
| B | 10 | 128 | 2503113 | 16609.3 | 711 | 686 | 150.7 |
| B | 4 | 81 | 340794 | 2257.39 | 711 | 686 | 150.7 |
| B | 10 | 254 | 192690 | 1274.38 | 711 | 686 | 150.7 |
| C | 15 | 248 | 1598115 | 8371.22 | 688 | 681 | 190.8 |
| C | 4 | 5 | 568693 | 2976.62 | 688 | 681 | 190.8 |
| C | 12 | 252 | 344122 | 1799.77 | 688 | 681 | 190.8 |
| D | 6 | 42 | 1861109 | 9801.05 | 670 | 641 | 189.8 |
| D | 8 | 176 | 772193 | 4064.58 | 670 | 641 | 189.8 |
| D | 12 | 6 | 687486 | 3618.34 | 670 | 641 | 189.8 |

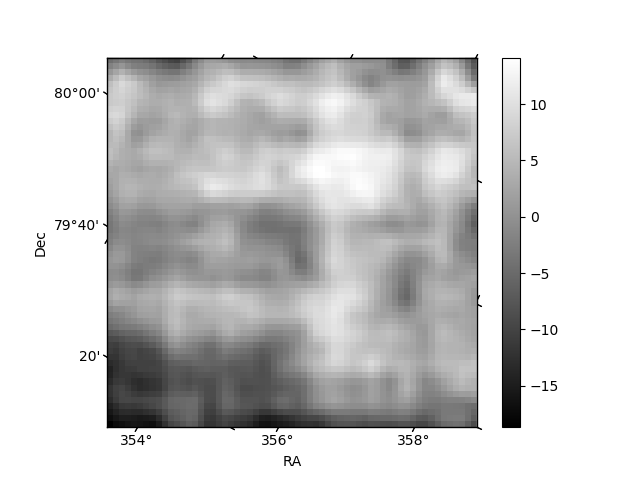

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

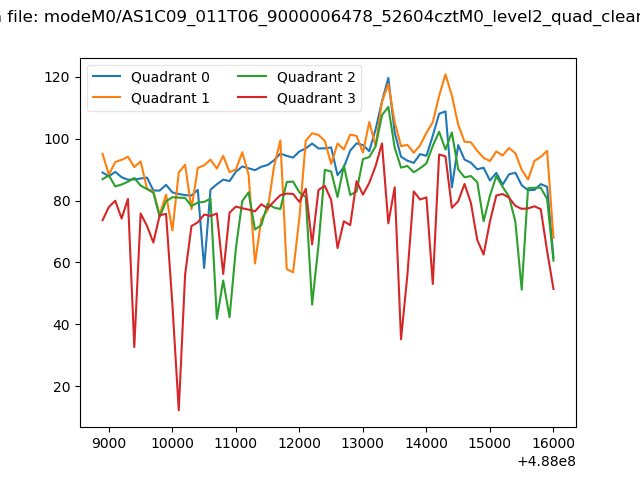

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

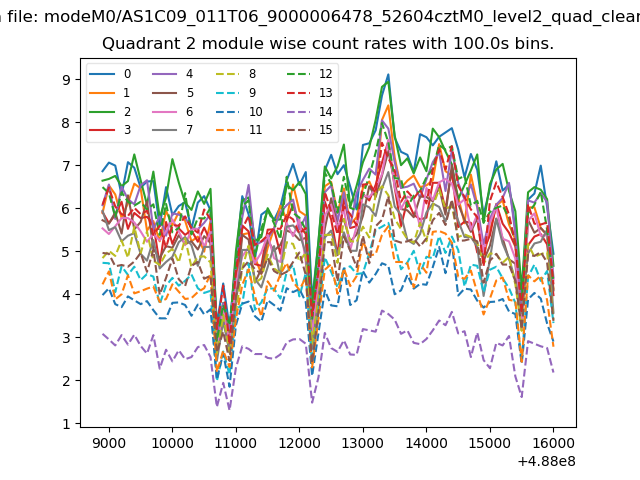

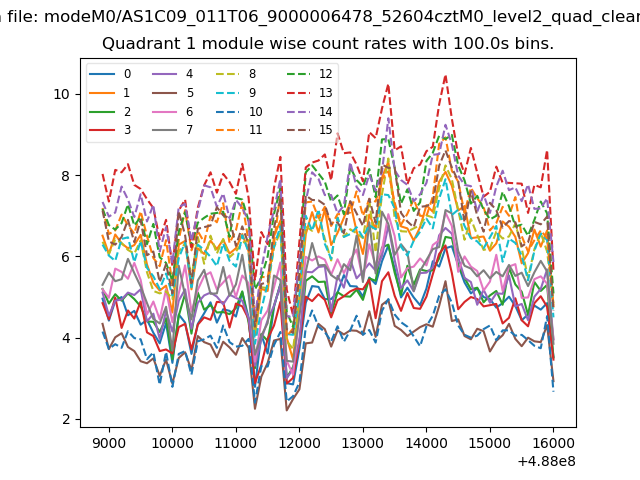

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

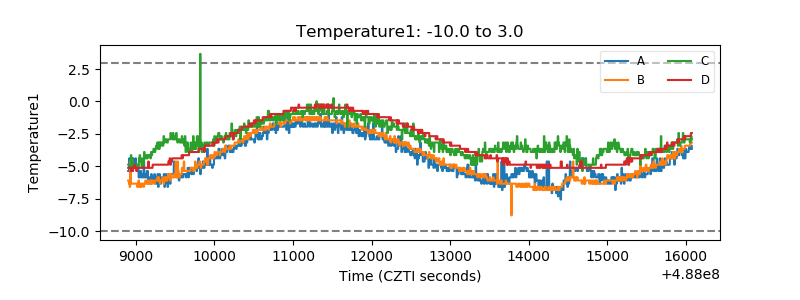

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

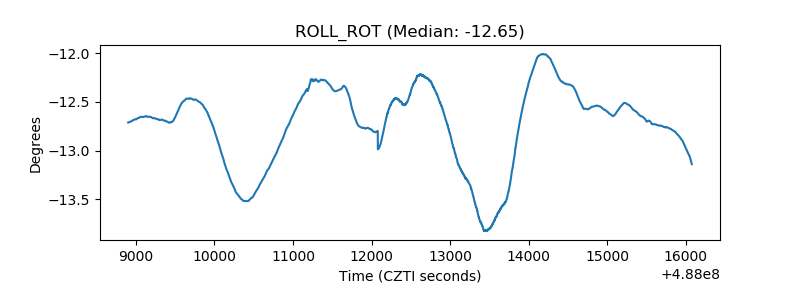

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

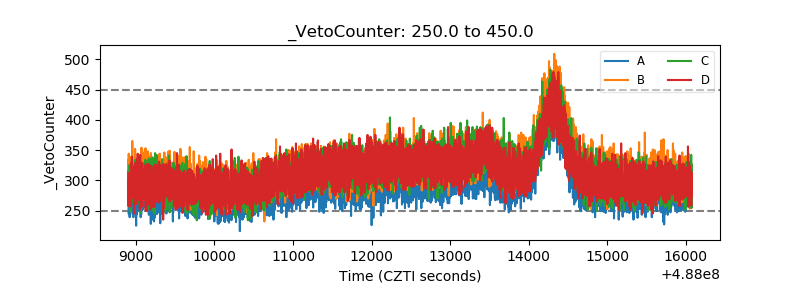

| Veto Counter |  |
