| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006478_52611cztM0_level2.fits | modeM0/AS1C09_011T06_9000006478_52611cztM0_level2_quad_clean.evt |
| Size (bytes) | 993,240,000 | 57,024,000 |
| Size | 947.2 MB | 54.4 MB |
| Events in quadrant A | 3,995,254 | 544,752 |
| Events in quadrant B | 13,892,944 | 107,760 |
| Events in quadrant C | 10,271,360 | 251,112 |
| Events in quadrant D | 8,156,399 | 413,997 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15876 | 1 |
| B | 0 | 45252 | 4 |
| C | 0 | 34624 | 1 |
| D | 0 | 28309 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5844 | 294 | 5.030801% |
| B | 5844 | 4986 | 85.318275% |
| C | 5844 | 3161 | 54.089665% |
| D | 5844 | 1321 | 22.604381% |

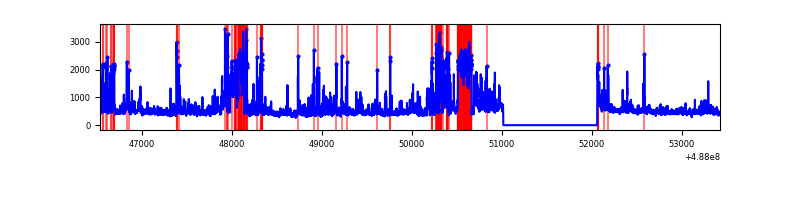

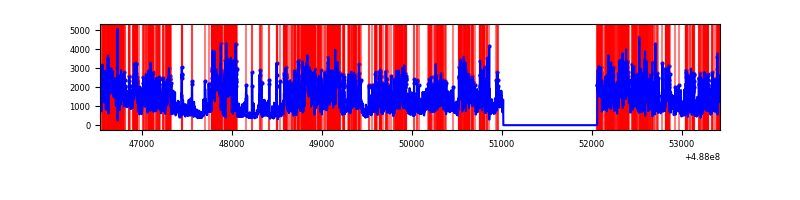

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6889 | 5845 | 257 | 257 | 3.73% | 4.40% |  |
| B | 6889 | 5845 | 4227 | 4227 | 61.36% | 72.32% |  |
| C | 6888 | 5844 | 2634 | 2634 | 38.24% | 45.07% |  |
| D | 6889 | 5845 | 1238 | 1238 | 17.97% | 21.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 4 | 249 | 842874 | 5587.42 | 602 | 589 | 150.7 |
| A | 12 | 80 | 175763 | 1162.04 | 602 | 589 | 150.7 |
| A | 3 | 14 | 135260 | 893.36 | 602 | 589 | 150.7 |
| B | 10 | 128 | 10918403 | 175081.43 | 290 | 282 | 62.4 |
| B | 10 | 254 | 1044657 | 16747.45 | 290 | 282 | 62.4 |
| B | 15 | 219 | 191008 | 3058.45 | 290 | 282 | 62.4 |
| C | 15 | 248 | 8039479 | 79597.09 | 356 | 352 | 101.0 |
| C | 12 | 252 | 346146 | 3423.78 | 356 | 352 | 101.0 |
| C | 12 | 2 | 114734 | 1132.52 | 356 | 352 | 101.0 |
| D | 6 | 42 | 1981344 | 12736.65 | 539 | 514 | 155.5 |
| D | 8 | 176 | 1041988 | 6696.63 | 539 | 514 | 155.5 |
| D | 2 | 37 | 755127 | 4852.13 | 539 | 514 | 155.5 |

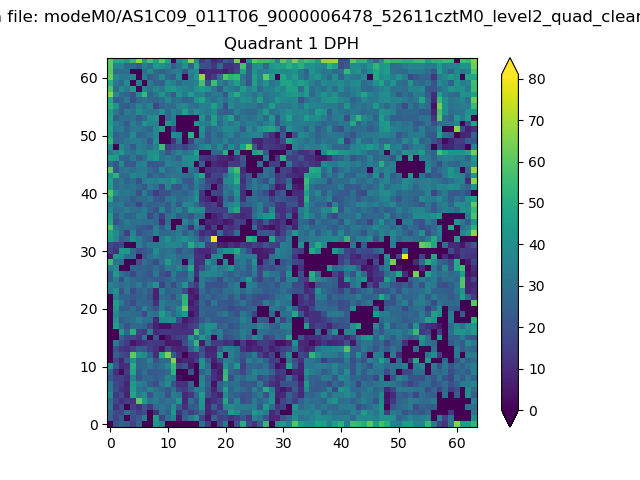

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

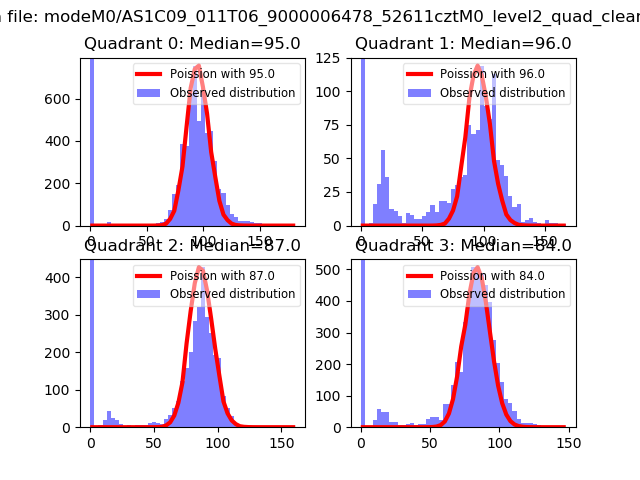

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

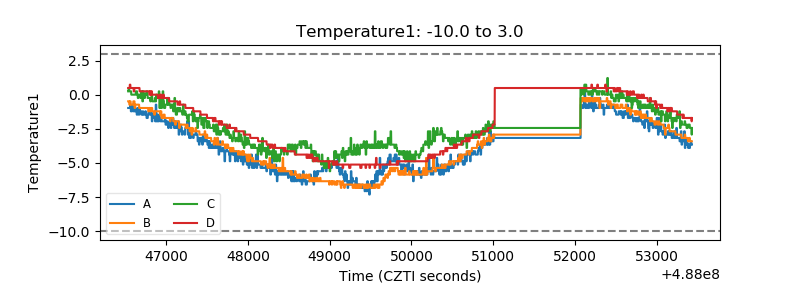

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

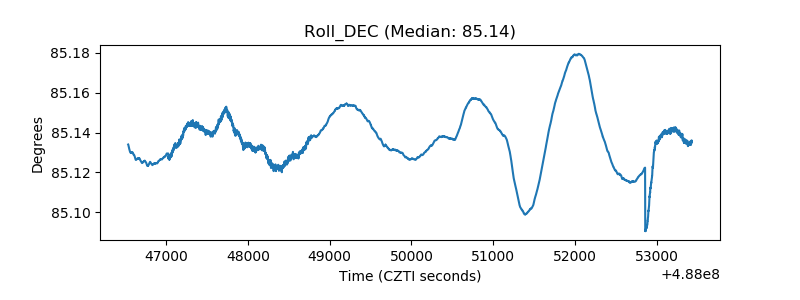

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
