| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006478_52623cztM0_level2.fits | modeM0/AS1C09_011T06_9000006478_52623cztM0_level2_quad_clean.evt |
| Size (bytes) | 965,113,920 | 73,267,200 |
| Size | 920.4 MB | 69.9 MB |
| Events in quadrant A | 3,919,652 | 595,081 |
| Events in quadrant B | 7,767,485 | 616,132 |
| Events in quadrant C | 15,970,355 | 83,911 |
| Events in quadrant D | 7,574,519 | 476,988 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15992 | 1 |
| B | 0 | 27607 | 1 |
| C | 0 | 51772 | 8 |
| D | 0 | 26998 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 9 | 0 |
| B | 0 | 9 | 0 |
| C | 0 | 9 | 0 |
| D | 0 | 9 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6397 | 248 | 3.876817% |
| B | 6397 | 445 | 6.956386% |
| C | 6396 | 5612 | 87.742339% |
| D | 6396 | 1066 | 16.666667% |

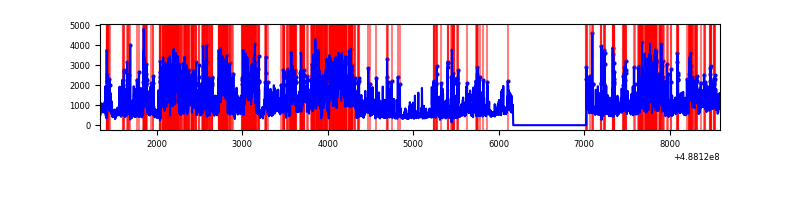

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7252 | 6398 | 156 | 156 | 2.15% | 2.44% |  |
| B | 7252 | 6398 | 248 | 248 | 3.42% | 3.88% |  |
| C | 7251 | 6396 | 5234 | 5234 | 72.18% | 81.83% |  |
| D | 7251 | 6397 | 911 | 911 | 12.56% | 14.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 246 | 290457 | 1745.78 | 661 | 645 | 166.0 |
| A | 12 | 3 | 175449 | 1052.99 | 661 | 645 | 166.0 |
| A | 3 | 110 | 159983 | 959.82 | 661 | 645 | 166.0 |
| B | 10 | 254 | 4417908 | 31837.48 | 647 | 624 | 138.7 |
| B | 10 | 247 | 227267 | 1633.52 | 647 | 624 | 138.7 |
| B | 0 | 213 | 99336 | 711.46 | 647 | 624 | 138.7 |
| C | 15 | 248 | 14742437 | 209841.92 | 244 | 241 | 70.3 |
| C | 1 | 44 | 89458 | 1269.92 | 244 | 241 | 70.3 |
| C | 15 | 224 | 43772 | 619.62 | 244 | 241 | 70.3 |
| D | 6 | 42 | 1443821 | 8102.06 | 613 | 584 | 178.1 |
| D | 2 | 37 | 944173 | 5297.13 | 613 | 584 | 178.1 |
| D | 8 | 176 | 816866 | 4582.45 | 613 | 584 | 178.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

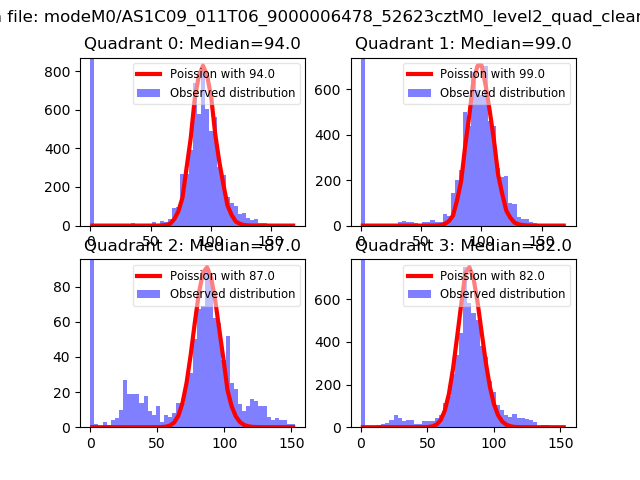

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

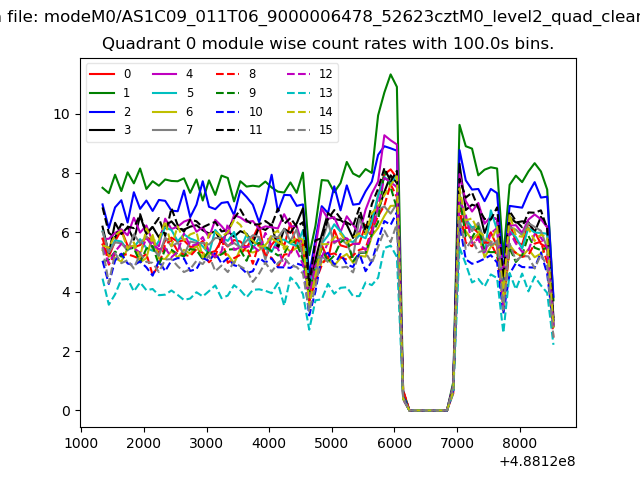

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

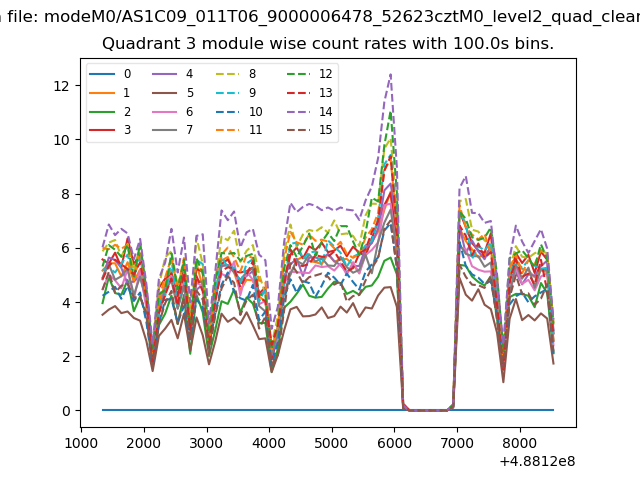

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

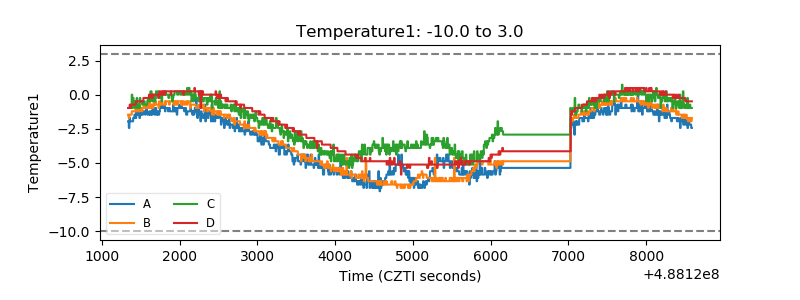

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

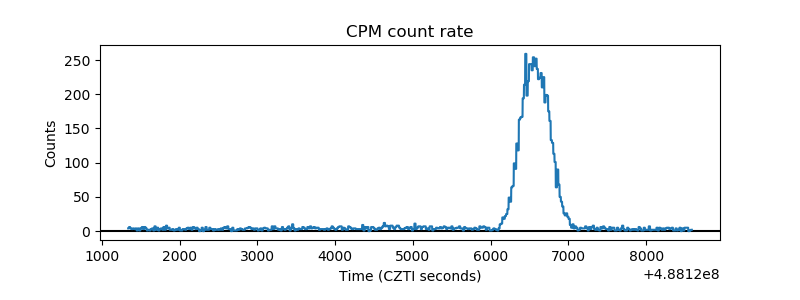

| _CPM_Rate |  |

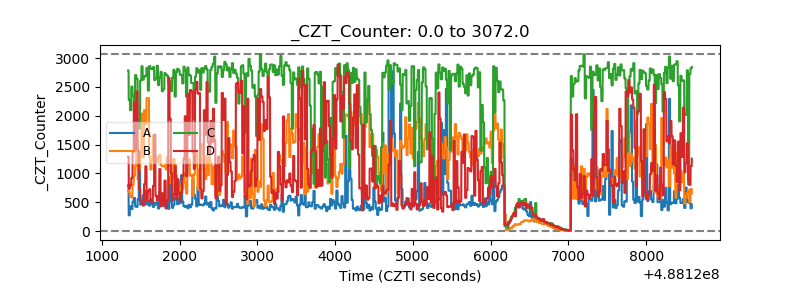

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
