| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006478_52633cztM0_level2.fits | modeM0/AS1C09_011T06_9000006478_52633cztM0_level2_quad_clean.evt |
| Size (bytes) | 644,477,760 | 92,773,440 |
| Size | 614.6 MB | 88.5 MB |
| Events in quadrant A | 3,575,633 | 628,433 |
| Events in quadrant B | 4,391,867 | 667,388 |
| Events in quadrant C | 8,410,236 | 518,609 |
| Events in quadrant D | 6,943,940 | 512,841 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15635 | 0 |
| B | 0 | 17942 | 0 |
| C | 0 | 29796 | 0 |
| D | 0 | 25532 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6913 | 67 | 0.969188% |
| B | 6913 | 181 | 2.618255% |
| C | 6913 | 1160 | 16.779980% |
| D | 6912 | 803 | 11.617477% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6913 | 6913 | 59 | 59 | 0.85% | 0.85% |  |
| B | 6913 | 6913 | 72 | 72 | 1.04% | 1.04% |  |
| C | 6913 | 6913 | 1209 | 1209 | 17.49% | 17.49% |  |
| D | 6912 | 6912 | 732 | 732 | 10.59% | 10.59% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 46 | 255856 | 1423.78 | 703 | 684 | 179.2 |
| A | 4 | 249 | 140474 | 779.98 | 703 | 684 | 179.2 |
| A | 14 | 239 | 101558 | 562.85 | 703 | 684 | 179.2 |
| B | 10 | 254 | 625439 | 4223.8 | 692 | 667 | 147.9 |
| B | 8 | 234 | 297069 | 2003.84 | 692 | 667 | 147.9 |
| B | 10 | 44 | 194998 | 1313.78 | 692 | 667 | 147.9 |
| C | 15 | 248 | 4874000 | 27728.07 | 637 | 632 | 175.8 |
| C | 15 | 144 | 268938 | 1526.58 | 637 | 632 | 175.8 |
| C | 15 | 147 | 241522 | 1370.59 | 637 | 632 | 175.8 |
| D | 8 | 176 | 1764132 | 9483.28 | 649 | 621 | 186.0 |
| D | 6 | 42 | 1672687 | 8991.54 | 649 | 621 | 186.0 |
| D | 2 | 153 | 242781 | 1302.22 | 649 | 621 | 186.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

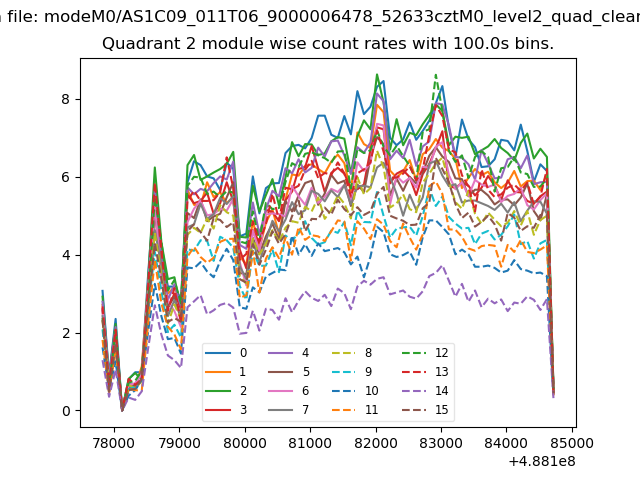

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

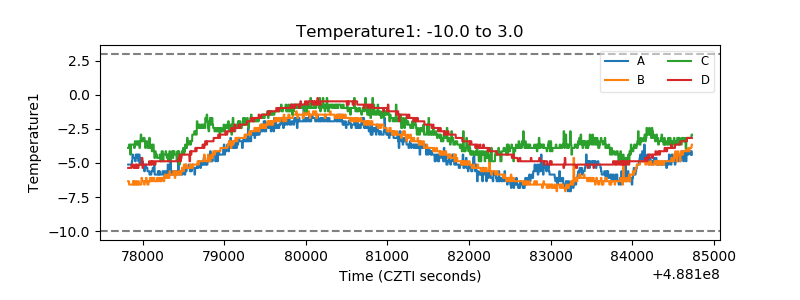

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

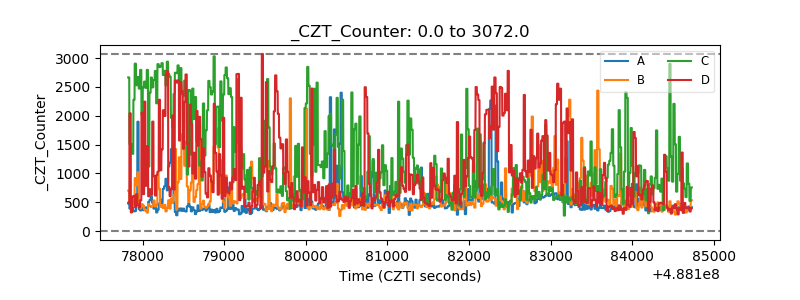

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

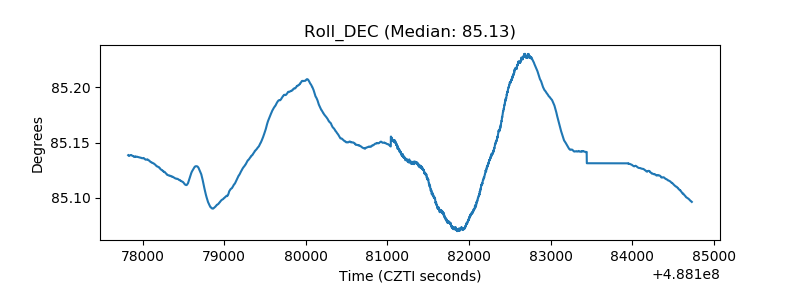

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
