| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006478_52641cztM0_level2.fits | modeM0/AS1C09_011T06_9000006478_52641cztM0_level2_quad_clean.evt |
| Size (bytes) | 853,848,000 | 79,871,040 |
| Size | 814.3 MB | 76.2 MB |
| Events in quadrant A | 3,997,221 | 610,506 |
| Events in quadrant B | 6,387,421 | 584,662 |
| Events in quadrant C | 10,670,590 | 406,374 |
| Events in quadrant D | 10,061,477 | 373,240 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16316 | 2 |
| B | 0 | 23383 | 8 |
| C | 0 | 36122 | 2 |
| D | 0 | 34344 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6348 | 266 | 4.190296% |
| B | 6347 | 938 | 14.778636% |
| C | 6347 | 2403 | 37.860406% |
| D | 6347 | 2384 | 37.561052% |

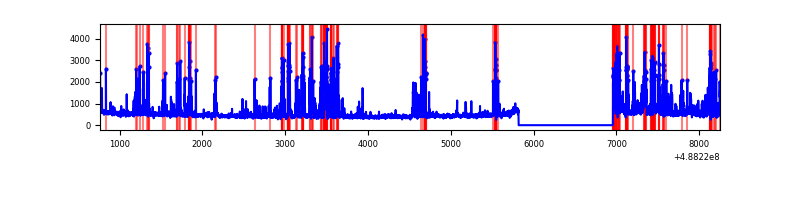

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7488 | 6349 | 204 | 204 | 2.72% | 3.21% |  |
| B | 7487 | 6348 | 656 | 656 | 8.76% | 10.33% |  |
| C | 7487 | 6347 | 2314 | 2314 | 30.91% | 36.46% |  |
| D | 7487 | 6348 | 2112 | 2112 | 28.21% | 33.27% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 206 | 306391 | 1870.13 | 662 | 646 | 163.5 |
| A | 5 | 246 | 303437 | 1852.06 | 662 | 646 | 163.5 |
| A | 5 | 243 | 196371 | 1197.18 | 662 | 646 | 163.5 |
| B | 4 | 158 | 1745843 | 13000.18 | 634 | 612 | 134.2 |
| B | 10 | 128 | 736925 | 5484.77 | 634 | 612 | 134.2 |
| B | 5 | 185 | 642671 | 4782.68 | 634 | 612 | 134.2 |
| C | 15 | 248 | 7581735 | 48844.44 | 564 | 559 | 155.2 |
| C | 13 | 3 | 374799 | 2411.18 | 564 | 559 | 155.2 |
| C | 12 | 252 | 157677 | 1012.29 | 564 | 559 | 155.2 |
| D | 8 | 176 | 5073498 | 33260.15 | 526 | 502 | 152.5 |
| D | 15 | 93 | 956547 | 6268.13 | 526 | 502 | 152.5 |
| D | 9 | 19 | 585768 | 3837.19 | 526 | 502 | 152.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

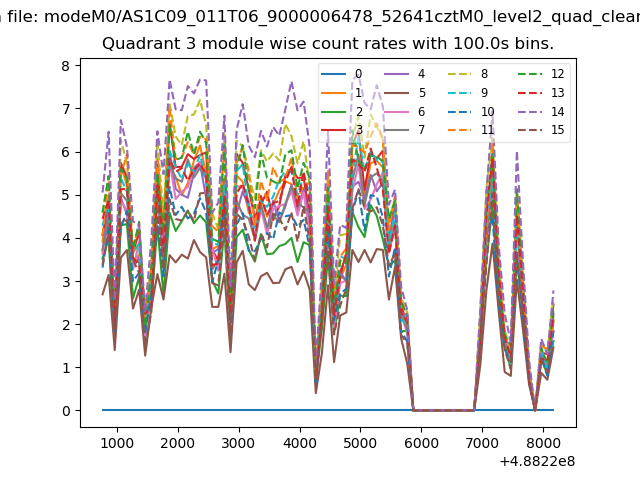

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

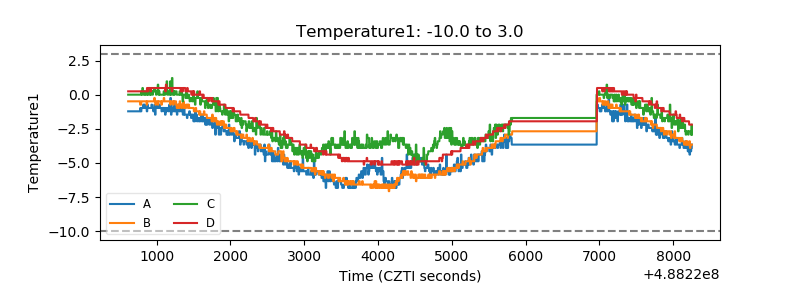

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

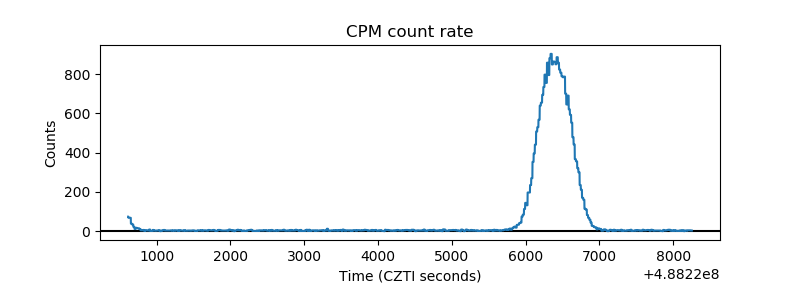

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

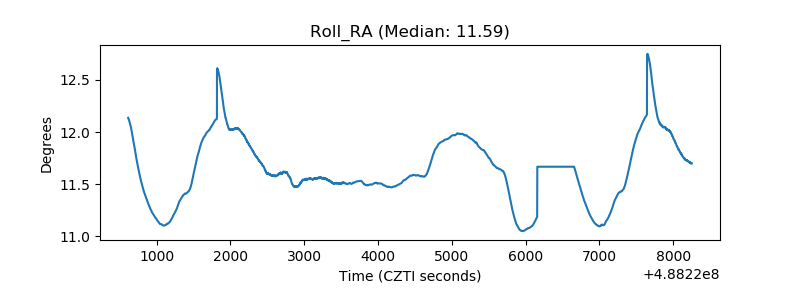

| _Roll_RA |  |
| Veto Counter |  |
