| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006478_52642cztM0_level2.fits | modeM0/AS1C09_011T06_9000006478_52642cztM0_level2_quad_clean.evt |
| Size (bytes) | 714,493,440 | 82,889,280 |
| Size | 681.4 MB | 79.0 MB |
| Events in quadrant A | 4,231,652 | 599,766 |
| Events in quadrant B | 5,982,989 | 578,450 |
| Events in quadrant C | 7,056,940 | 512,406 |
| Events in quadrant D | 8,691,285 | 380,877 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16888 | 2 |
| B | 0 | 22127 | 2 |
| C | 0 | 25412 | 4 |
| D | 0 | 30221 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6273 | 293 | 4.670811% |
| B | 6273 | 1000 | 15.941336% |
| C | 6272 | 1076 | 17.155612% |
| D | 6272 | 2118 | 33.769133% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7473 | 6274 | 199 | 199 | 2.66% | 3.17% |  |
| B | 7473 | 6274 | 737 | 737 | 9.86% | 11.75% |  |
| C | 7472 | 6273 | 960 | 960 | 12.85% | 15.30% |  |
| D | 7472 | 6273 | 1845 | 1845 | 24.69% | 29.41% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 243 | 301873 | 1850.28 | 650 | 634 | 162.8 |
| A | 3 | 14 | 284501 | 1743.58 | 650 | 634 | 162.8 |
| A | 4 | 95 | 230878 | 1414.22 | 650 | 634 | 162.8 |
| B | 4 | 158 | 2083586 | 15995.94 | 626 | 607 | 130.2 |
| B | 10 | 128 | 596893 | 4579.09 | 626 | 607 | 130.2 |
| B | 5 | 185 | 384053 | 2944.62 | 626 | 607 | 130.2 |
| C | 15 | 248 | 3374774 | 19930.72 | 608 | 602 | 169.3 |
| C | 12 | 252 | 380697 | 2245.16 | 608 | 602 | 169.3 |
| C | 15 | 178 | 374996 | 2211.49 | 608 | 602 | 169.3 |
| D | 15 | 93 | 3057380 | 19961.63 | 521 | 496 | 153.1 |
| D | 8 | 176 | 1815734 | 11853.61 | 521 | 496 | 153.1 |
| D | 1 | 7 | 273229 | 1780.96 | 521 | 496 | 153.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

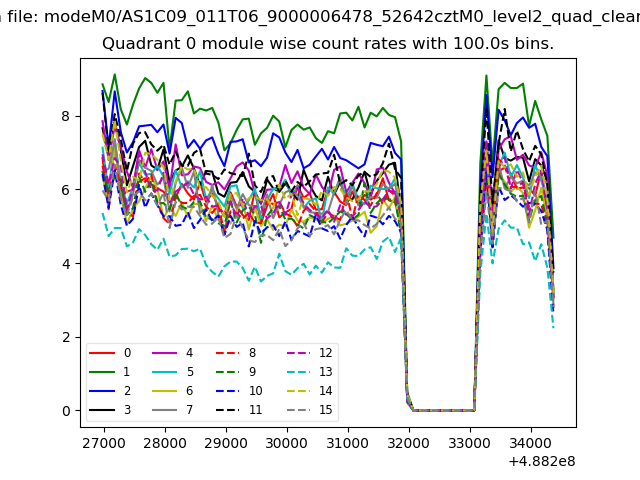

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

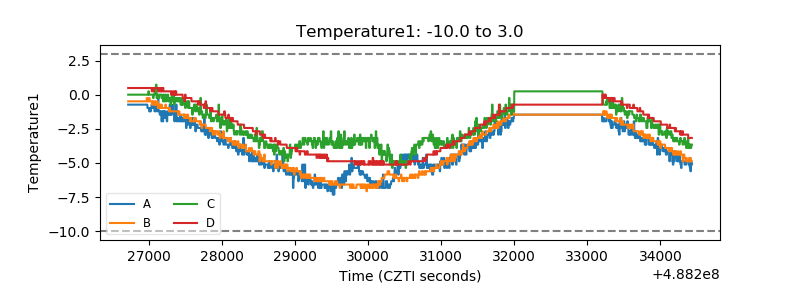

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

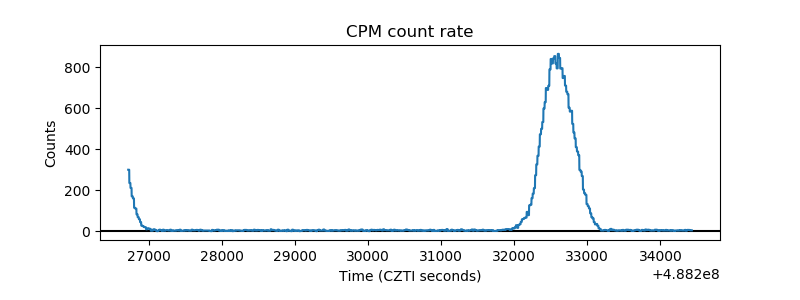

| _CPM_Rate |  |

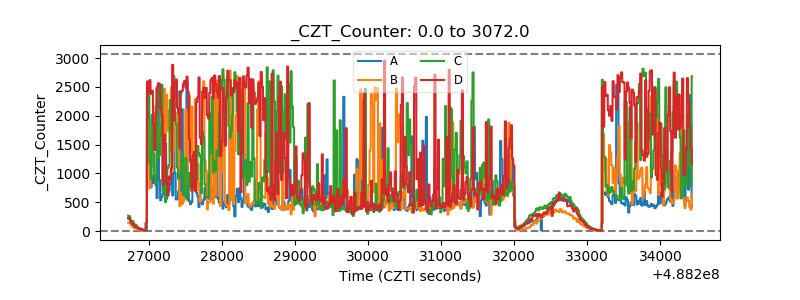

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

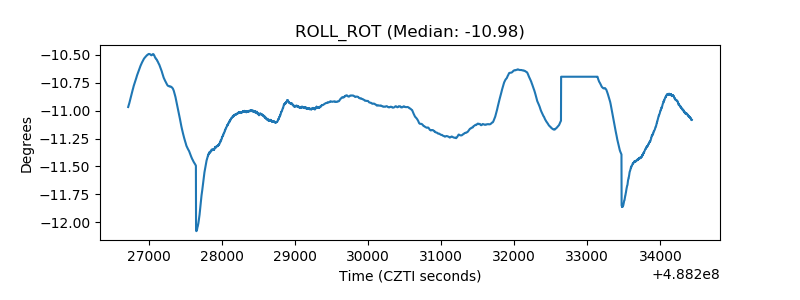

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
