| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T06_9000006478_52643cztM0_level2.fits | modeM0/AS1C09_011T06_9000006478_52643cztM0_level2_quad_clean.evt |
| Size (bytes) | 734,371,200 | 83,327,040 |
| Size | 700.4 MB | 79.5 MB |
| Events in quadrant A | 4,284,233 | 603,374 |
| Events in quadrant B | 4,659,942 | 643,313 |
| Events in quadrant C | 9,533,693 | 396,190 |
| Events in quadrant D | 8,208,833 | 431,379 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17256 | 2 |
| B | 0 | 18545 | 2 |
| C | 0 | 32796 | 2 |
| D | 0 | 28884 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6423 | 288 | 4.483886% |
| B | 6424 | 388 | 6.039851% |
| C | 6424 | 2494 | 38.823163% |
| D | 6424 | 1599 | 24.891034% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

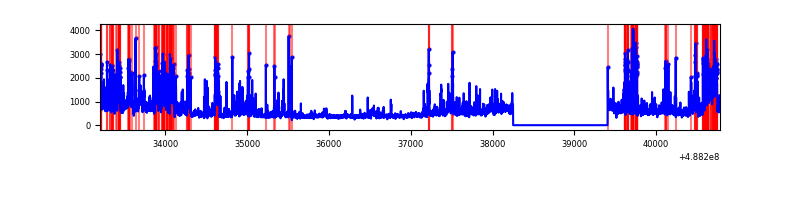

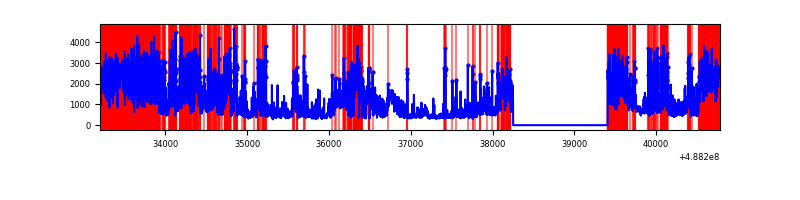

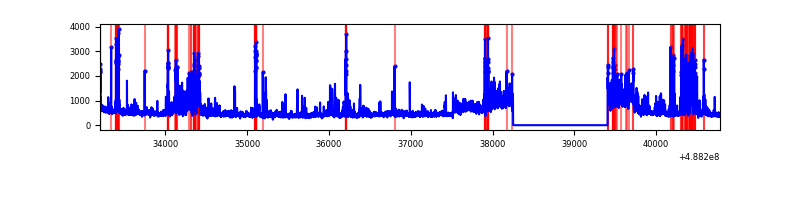

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7578 | 6424 | 185 | 185 | 2.44% | 2.88% |  |
| B | 7579 | 6425 | 271 | 271 | 3.58% | 4.22% |  |
| C | 7579 | 6424 | 2074 | 2074 | 27.37% | 32.29% |  |
| D | 7578 | 6424 | 1417 | 1417 | 18.70% | 22.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 505859 | 3076.56 | 655 | 638 | 164.2 |
| A | 5 | 243 | 300525 | 1826.17 | 655 | 638 | 164.2 |
| A | 4 | 95 | 265505 | 1612.92 | 655 | 638 | 164.2 |
| B | 10 | 128 | 924277 | 6698.43 | 655 | 633 | 137.9 |
| B | 4 | 158 | 535482 | 3878.82 | 655 | 633 | 137.9 |
| B | 10 | 247 | 98030 | 706.34 | 655 | 633 | 137.9 |
| C | 15 | 178 | 5364775 | 36602.49 | 526 | 521 | 146.6 |
| C | 15 | 248 | 1634830 | 11151.56 | 526 | 521 | 146.6 |
| C | 13 | 3 | 185676 | 1263.39 | 526 | 521 | 146.6 |
| D | 15 | 93 | 1805810 | 11065.63 | 565 | 539 | 163.1 |
| D | 8 | 176 | 1180012 | 7229.73 | 565 | 539 | 163.1 |
| D | 12 | 17 | 945317 | 5791.14 | 565 | 539 | 163.1 |

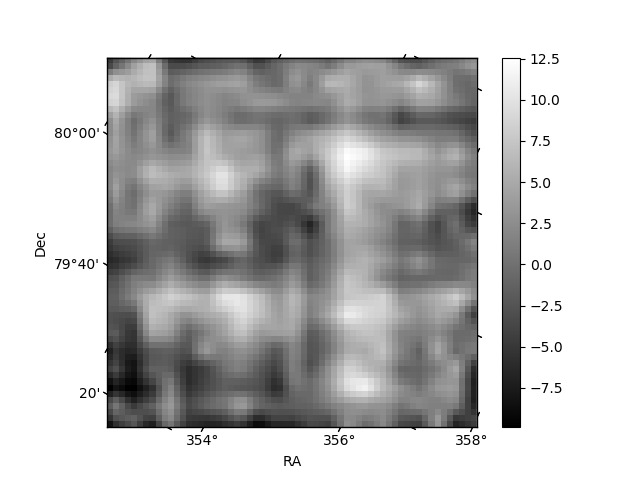

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

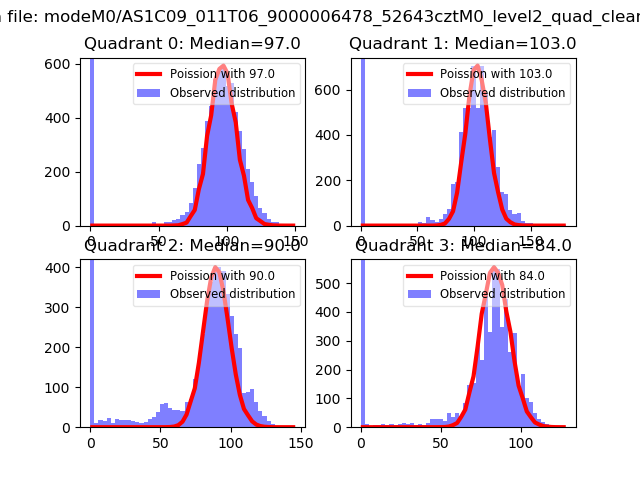

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

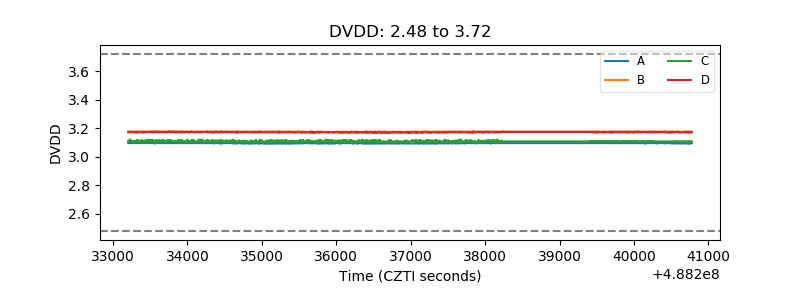

| D_VDD |  |

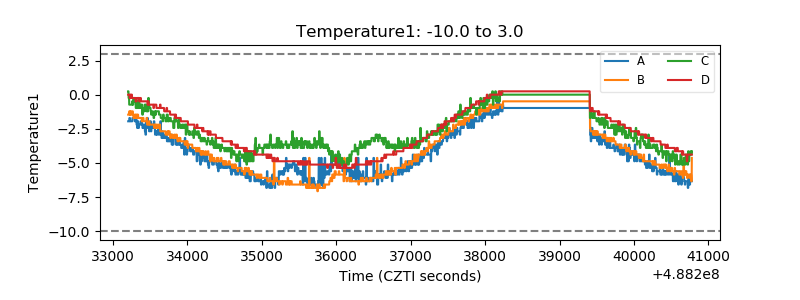

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

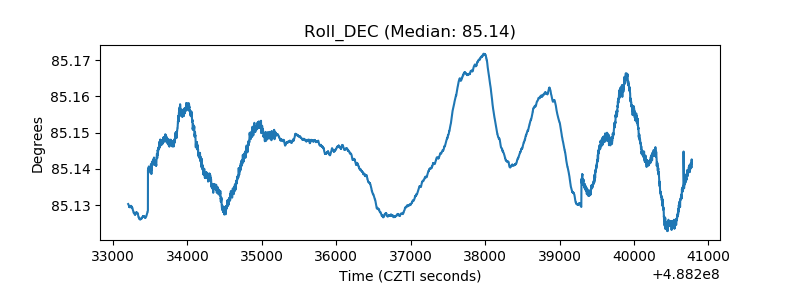

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
