| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T07_9000006480_52645cztM0_level2.fits | modeM0/AS1C09_011T07_9000006480_52645cztM0_level2_quad_clean.evt |
| Size (bytes) | 786,407,040 | 72,979,200 |
| Size | 750.0 MB | 69.6 MB |
| Events in quadrant A | 4,640,121 | 538,752 |
| Events in quadrant B | 3,880,454 | 621,726 |
| Events in quadrant C | 14,327,865 | 101,120 |
| Events in quadrant D | 5,764,595 | 500,733 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 7 | 0 |
| B | 0 | 7 | 0 |
| C | 0 | 7 | 0 |
| D | 0 | 7 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 132 | 0 |
| B | 0 | 132 | 0 |
| C | 0 | 132 | 0 |
| D | 0 | 132 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18331 | 1 |
| B | 0 | 16040 | 1 |
| C | 0 | 46927 | 1 |
| D | 0 | 21603 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6404 | 580 | 9.056839% |
| B | 6404 | 156 | 2.435978% |
| C | 6404 | 5454 | 85.165522% |
| D | 6404 | 538 | 8.400999% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7159 | 6404 | 493 | 493 | 6.89% | 7.70% |  |
| B | 7159 | 6405 | 83 | 83 | 1.16% | 1.30% |  |
| C | 7158 | 6404 | 4915 | 4915 | 68.66% | 76.75% |  |
| D | 7159 | 6405 | 488 | 488 | 6.82% | 7.62% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 9 | 1081034 | 7145.82 | 602 | 586 | 151.2 |
| A | 3 | 14 | 351386 | 2320.11 | 602 | 586 | 151.2 |
| A | 4 | 249 | 220174 | 1452.3 | 602 | 586 | 151.2 |
| B | 10 | 128 | 661969 | 4921.04 | 629 | 607 | 134.4 |
| B | 5 | 185 | 222507 | 1651.11 | 629 | 607 | 134.4 |
| B | 10 | 247 | 131362 | 972.92 | 629 | 607 | 134.4 |
| C | 15 | 178 | 10139036 | 128778.87 | 279 | 276 | 78.7 |
| C | 15 | 248 | 2432113 | 30888.32 | 279 | 276 | 78.7 |
| C | 13 | 3 | 212957 | 2701.4 | 279 | 276 | 78.7 |
| D | 8 | 176 | 800063 | 4642.85 | 593 | 567 | 172.2 |
| D | 2 | 153 | 513619 | 2979.41 | 593 | 567 | 172.2 |
| D | 6 | 42 | 450108 | 2610.58 | 593 | 567 | 172.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

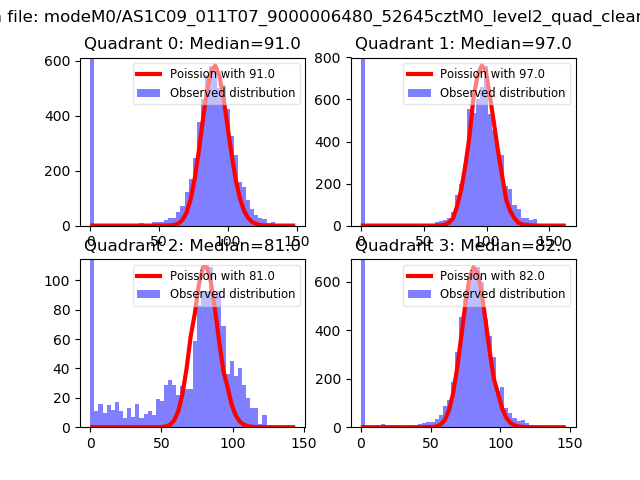

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

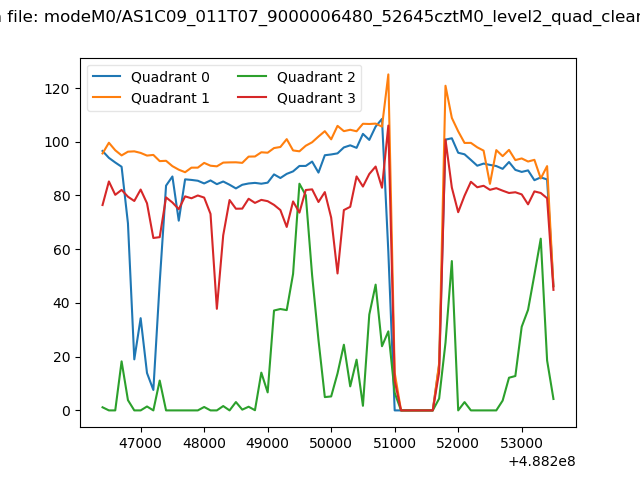

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

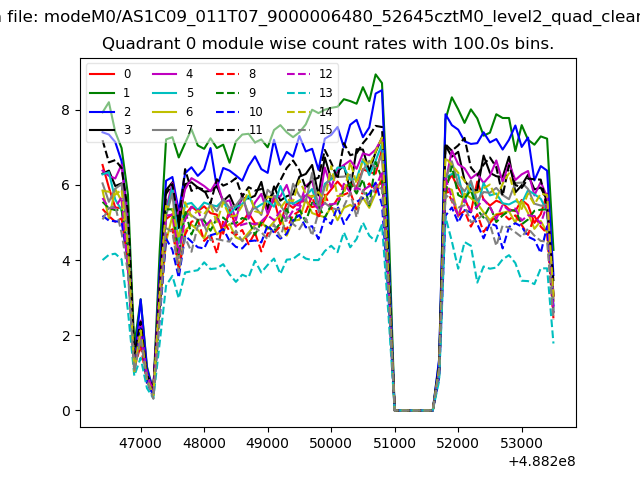

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

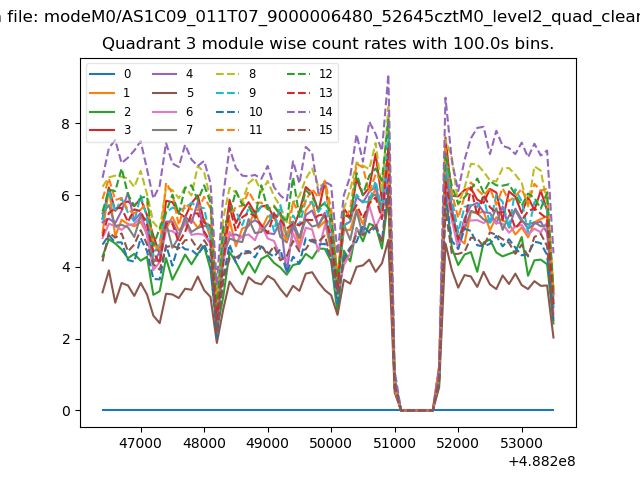

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

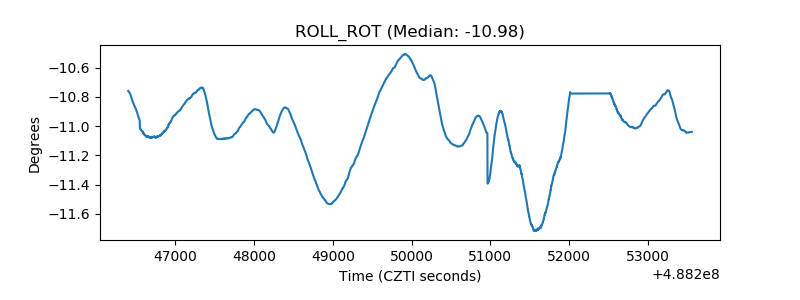

| _ROLL_ROT |  |

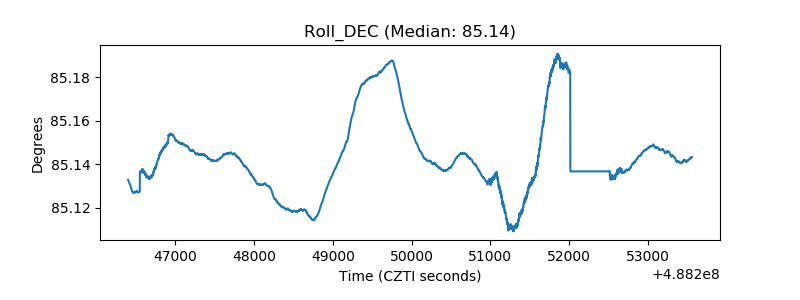

| _Roll_DEC |  |

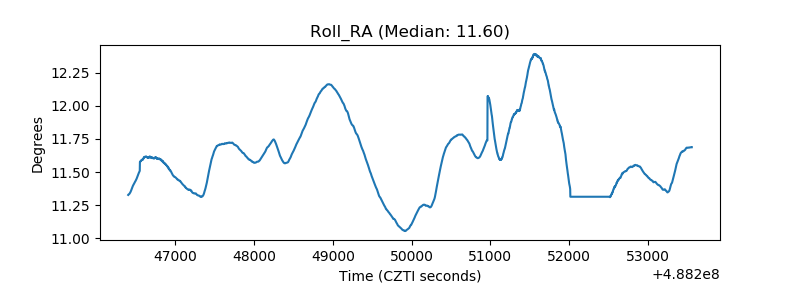

| _Roll_RA |  |

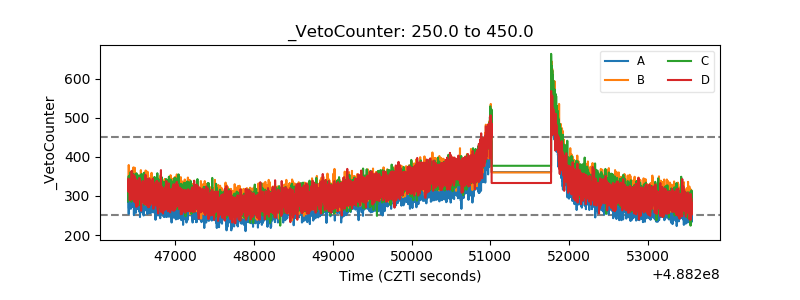

| Veto Counter |  |
