| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T07_9000006480_52646cztM0_level2.fits | modeM0/AS1C09_011T07_9000006480_52646cztM0_level2_quad_clean.evt |
| Size (bytes) | 700,280,640 | 93,772,800 |
| Size | 667.8 MB | 89.4 MB |
| Events in quadrant A | 3,752,468 | 666,473 |
| Events in quadrant B | 4,364,663 | 689,362 |
| Events in quadrant C | 11,197,502 | 418,229 |
| Events in quadrant D | 6,061,840 | 574,144 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 2 | 0 |
| B | 0 | 2 | 0 |
| C | 0 | 2 | 0 |
| D | 0 | 2 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 146 | 0 |
| B | 0 | 146 | 0 |
| C | 0 | 146 | 0 |
| D | 0 | 146 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16367 | 1 |
| B | 0 | 18028 | 2 |
| C | 0 | 38172 | 1 |
| D | 0 | 23031 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7046 | 94 | 1.334090% |
| B | 7045 | 280 | 3.974450% |
| C | 7045 | 2732 | 38.779276% |
| D | 7045 | 437 | 6.202981% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7206 | 7048 | 72 | 72 | 1.00% | 1.02% |  |
| B | 7205 | 7047 | 135 | 135 | 1.87% | 1.92% |  |
| C | 7205 | 7047 | 2486 | 2486 | 34.50% | 35.28% |  |
| D | 7205 | 7046 | 411 | 411 | 5.70% | 5.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 206 | 295741 | 1629.47 | 722 | 702 | 181.1 |
| A | 3 | 14 | 145604 | 800.28 | 722 | 702 | 181.1 |
| A | 5 | 240 | 60040 | 327.72 | 722 | 702 | 181.1 |
| B | 5 | 185 | 491774 | 3268.73 | 710 | 685 | 150.2 |
| B | 8 | 234 | 271704 | 1803.93 | 710 | 685 | 150.2 |
| B | 12 | 32 | 221502 | 1469.78 | 710 | 685 | 150.2 |
| C | 15 | 248 | 4204852 | 26235.63 | 580 | 574 | 160.3 |
| C | 15 | 178 | 3556842 | 22191.9 | 580 | 574 | 160.3 |
| C | 13 | 3 | 698352 | 4354.29 | 580 | 574 | 160.3 |
| D | 6 | 42 | 1153324 | 5890.1 | 678 | 645 | 195.7 |
| D | 8 | 176 | 623695 | 3183.74 | 678 | 645 | 195.7 |
| D | 2 | 153 | 411387 | 2098.86 | 678 | 645 | 195.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

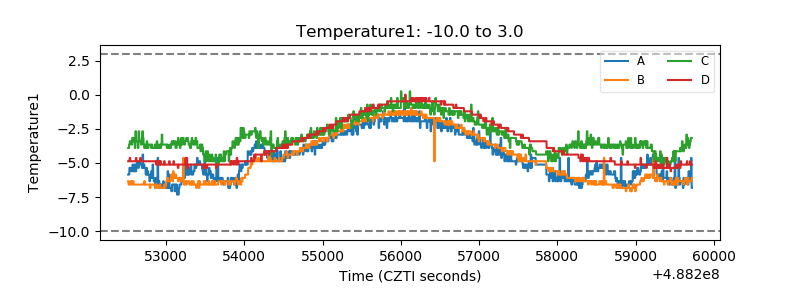

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

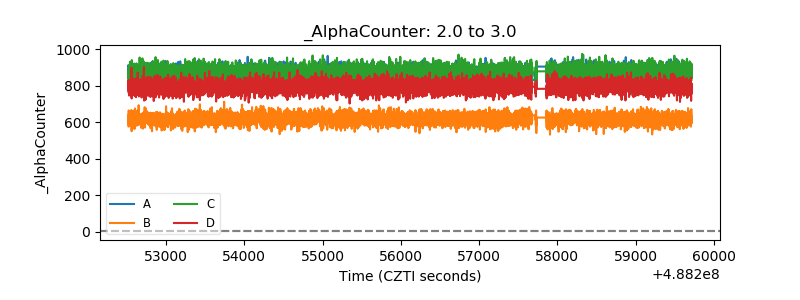

| Alpha Counter |  |
| _CPM_Rate |  |

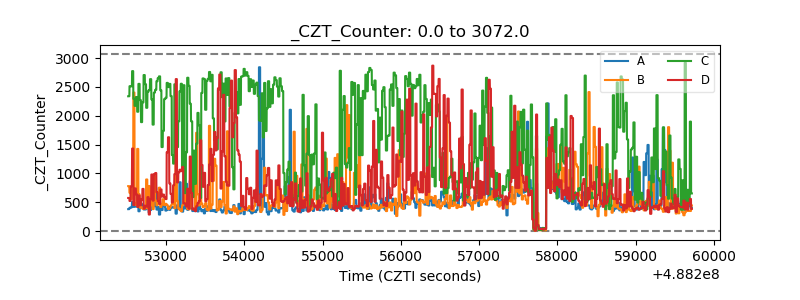

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
