| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T07_9000006480_52647cztM0_level2.fits | modeM0/AS1C09_011T07_9000006480_52647cztM0_level2_quad_clean.evt |
| Size (bytes) | 571,314,240 | 98,677,440 |
| Size | 544.8 MB | 94.1 MB |
| Events in quadrant A | 3,826,012 | 659,609 |
| Events in quadrant B | 4,747,733 | 677,710 |
| Events in quadrant C | 7,071,584 | 567,758 |
| Events in quadrant D | 4,947,799 | 584,362 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 142 | 0 |
| B | 0 | 142 | 0 |
| C | 0 | 142 | 0 |
| D | 0 | 142 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16408 | 0 |
| B | 0 | 19194 | 0 |
| C | 0 | 25846 | 0 |
| D | 0 | 19765 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7158 | 75 | 1.047779% |
| B | 7159 | 380 | 5.308004% |
| C | 7159 | 881 | 12.306188% |
| D | 7159 | 228 | 3.184802% |

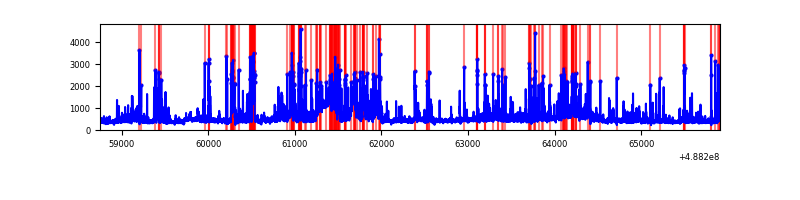

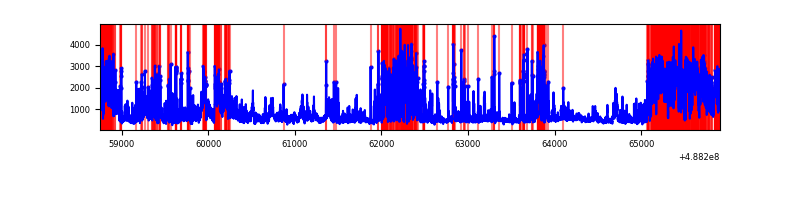

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7158 | 7158 | 73 | 73 | 1.02% | 1.02% |  |
| B | 7159 | 7159 | 241 | 241 | 3.37% | 3.37% |  |
| C | 7159 | 7159 | 891 | 891 | 12.45% | 12.45% |  |
| D | 7159 | 7159 | 228 | 228 | 3.18% | 3.18% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 206 | 311797 | 1707.96 | 721 | 703 | 182.1 |
| A | 3 | 14 | 209547 | 1146.59 | 721 | 703 | 182.1 |
| A | 14 | 239 | 146200 | 798.81 | 721 | 703 | 182.1 |
| B | 5 | 185 | 700483 | 4658.47 | 708 | 684 | 150.2 |
| B | 4 | 173 | 404525 | 2688.32 | 708 | 684 | 150.2 |
| B | 12 | 32 | 297829 | 1978.06 | 708 | 684 | 150.2 |
| C | 15 | 248 | 1769470 | 9535.23 | 671 | 665 | 185.5 |
| C | 1 | 3 | 977555 | 5266.19 | 671 | 665 | 185.5 |
| C | 13 | 3 | 919200 | 4951.61 | 671 | 665 | 185.5 |
| D | 8 | 176 | 567174 | 2886.06 | 691 | 661 | 196.3 |
| D | 2 | 153 | 517760 | 2634.32 | 691 | 661 | 196.3 |
| D | 12 | 2 | 274204 | 1393.54 | 691 | 661 | 196.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

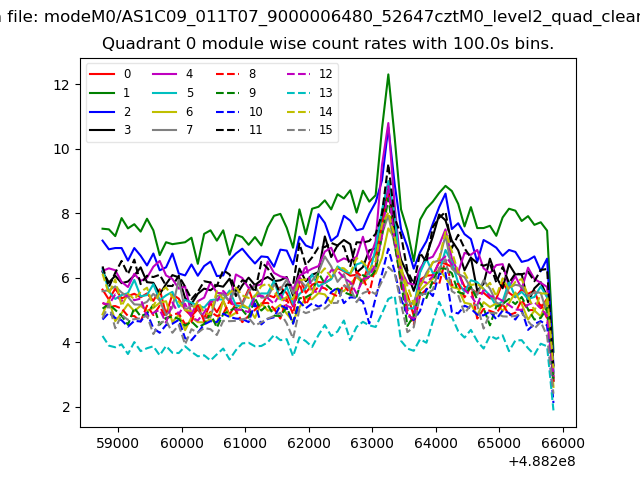

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

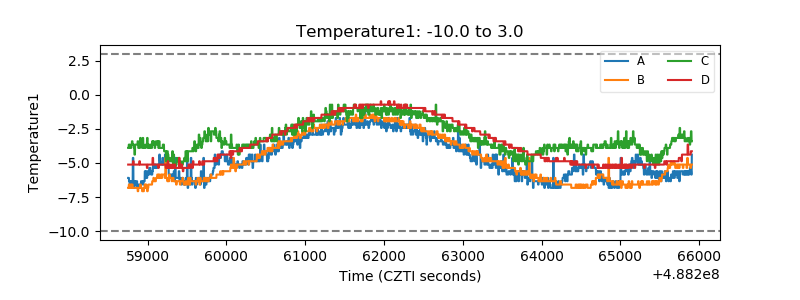

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

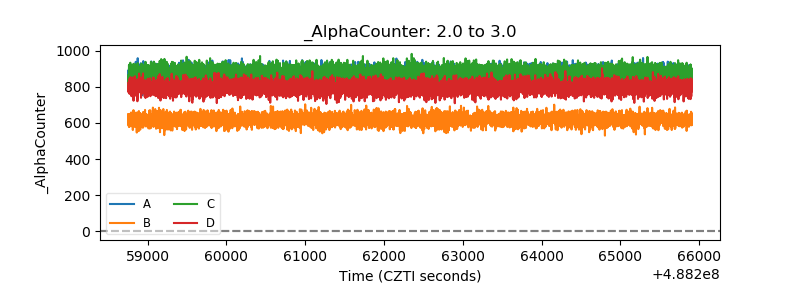

| Alpha Counter |  |

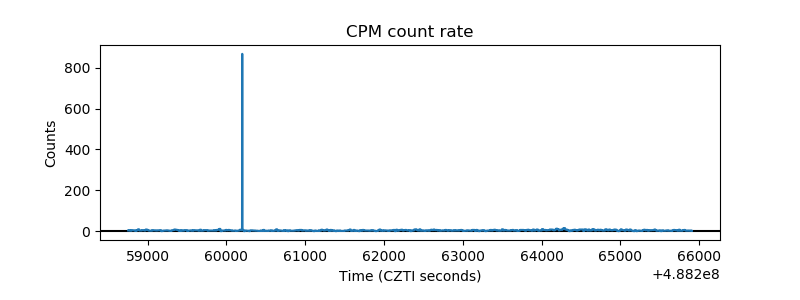

| _CPM_Rate |  |

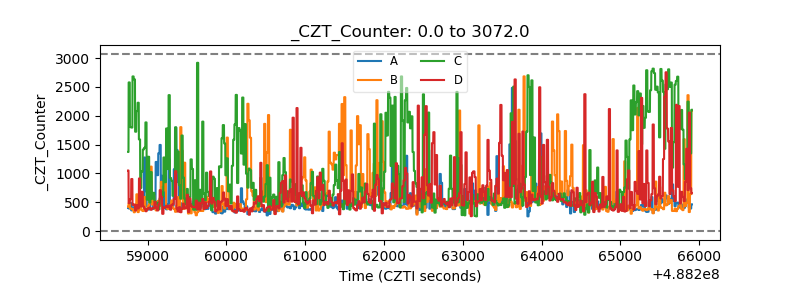

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

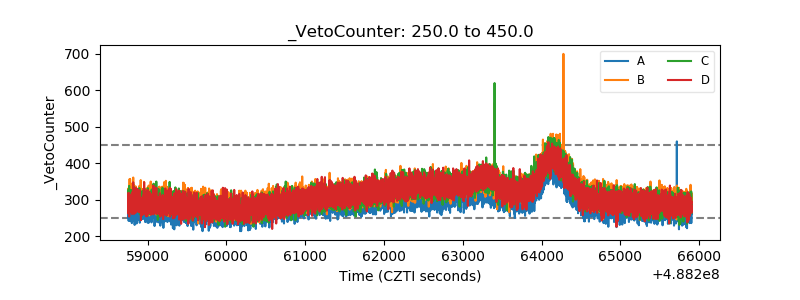

| Veto Counter |  |
