| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T07_9000006480_52651cztM0_level2.fits | modeM0/AS1C09_011T07_9000006480_52651cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,448,314,560 | 222,246,720 |
| Size | 1.3 GB | 212.0 MB |
| Events in quadrant A | 10,177,624 | 1,488,378 |
| Events in quadrant B | 12,852,872 | 1,498,648 |
| Events in quadrant C | 11,812,028 | 1,404,042 |
| Events in quadrant D | 17,465,142 | 1,171,793 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 346 | 0 |
| B | 0 | 346 | 0 |
| C | 0 | 346 | 0 |
| D | 0 | 346 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 41741 | 3 |
| B | 0 | 49921 | 3 |
| C | 0 | 47167 | 3 |
| D | 0 | 63684 | 3 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 16883 | 743 | 4.400877% |
| B | 16884 | 1776 | 10.518834% |
| C | 16884 | 928 | 5.496328% |
| D | 16884 | 2508 | 14.854300% |

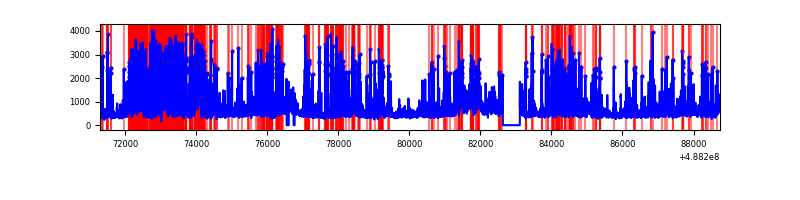

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 17452 | 16885 | 325 | 325 | 1.86% | 1.92% |  |
| B | 17453 | 16884 | 1127 | 1127 | 6.46% | 6.67% |  |
| C | 17453 | 16886 | 678 | 678 | 3.88% | 4.02% |  |
| D | 17453 | 16884 | 2164 | 2164 | 12.40% | 12.82% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 47 | 452387 | 1043.86 | 1734 | 1690 | 431.8 |
| A | 14 | 239 | 436421 | 1006.88 | 1734 | 1690 | 431.8 |
| A | 3 | 114 | 334268 | 770.28 | 1734 | 1690 | 431.8 |
| B | 12 | 32 | 2634194 | 7598.93 | 1656 | 1601 | 346.4 |
| B | 10 | 254 | 737024 | 2122.78 | 1656 | 1601 | 346.4 |
| B | 10 | 247 | 644280 | 1855.08 | 1656 | 1601 | 346.4 |
| C | 15 | 144 | 1264170 | 2751.71 | 1666 | 1649 | 458.8 |
| C | 13 | 3 | 976748 | 2125.26 | 1666 | 1649 | 458.8 |
| C | 15 | 248 | 926156 | 2015.0 | 1666 | 1649 | 458.8 |
| D | 1 | 7 | 2618405 | 5699.56 | 1603 | 1531 | 459.1 |
| D | 6 | 42 | 2082432 | 4532.21 | 1603 | 1531 | 459.1 |
| D | 8 | 176 | 1899298 | 4133.34 | 1603 | 1531 | 459.1 |

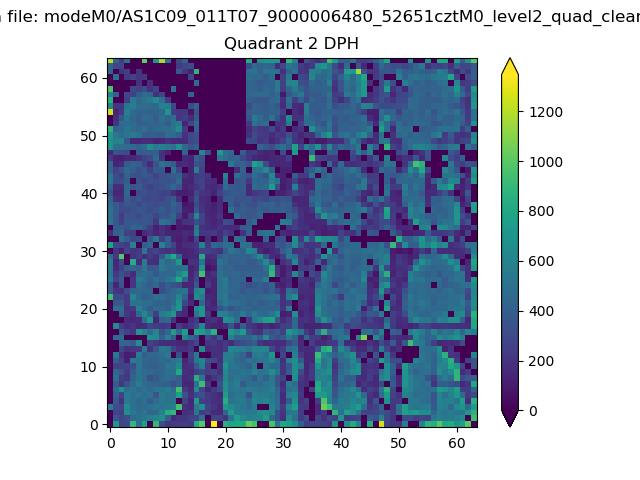

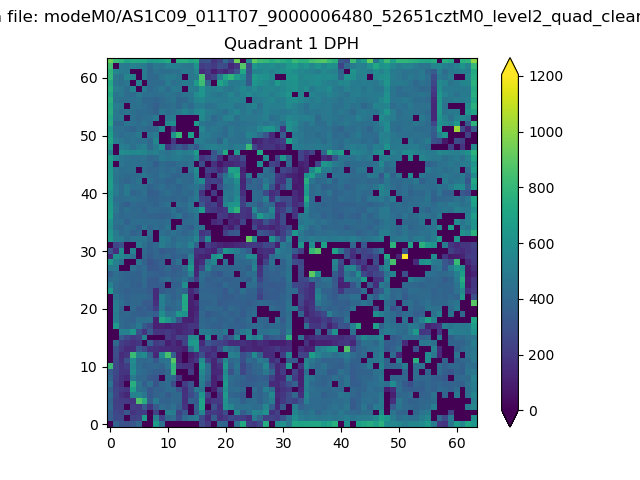

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

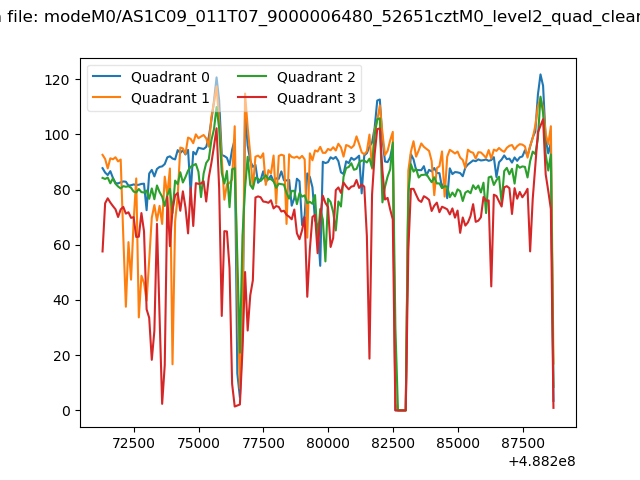

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

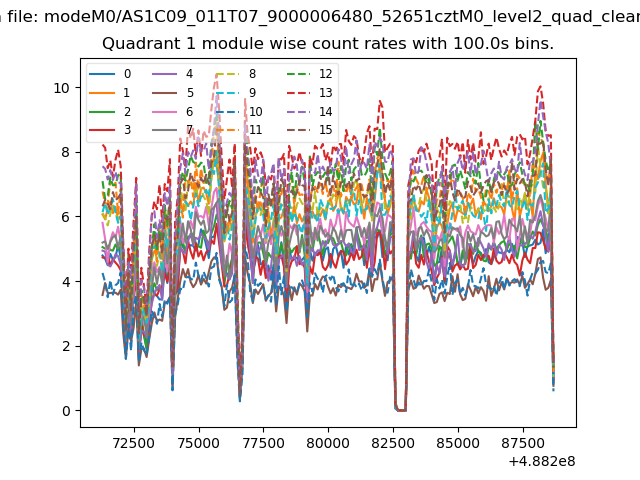

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

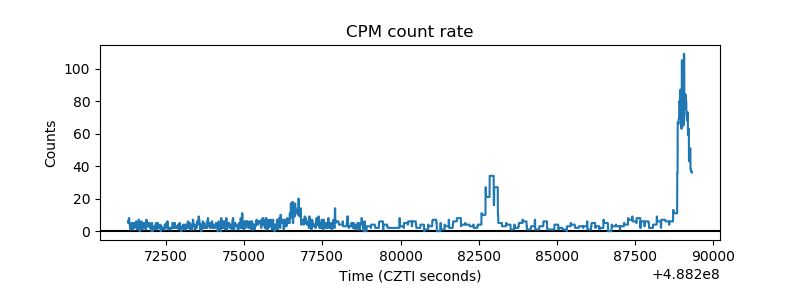

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

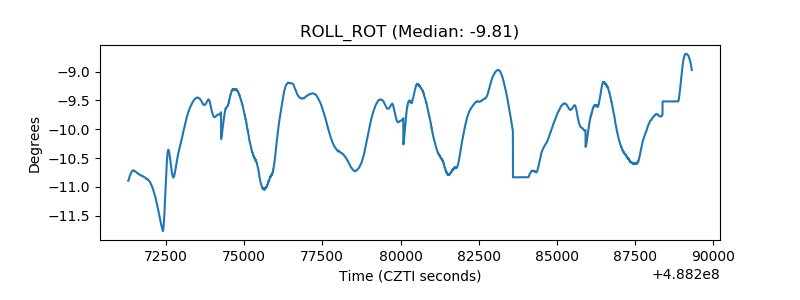

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
