| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T07_9000006480_52656cztM0_level2.fits | modeM0/AS1C09_011T07_9000006480_52656cztM0_level2_quad_clean.evt |
| Size (bytes) | 962,772,480 | 67,196,160 |
| Size | 918.2 MB | 64.1 MB |
| Events in quadrant A | 3,390,884 | 603,798 |
| Events in quadrant B | 12,103,611 | 303,903 |
| Events in quadrant C | 12,034,158 | 231,350 |
| Events in quadrant D | 7,634,500 | 464,240 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 11 | 0 |
| B | 0 | 11 | 0 |
| C | 0 | 11 | 0 |
| D | 0 | 11 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 128 | 0 |
| B | 0 | 128 | 0 |
| C | 0 | 128 | 0 |
| D | 0 | 128 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14276 | 1 |
| B | 0 | 40253 | 2 |
| C | 0 | 40008 | 1 |
| D | 0 | 26987 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6162 | 141 | 2.288218% |
| B | 6162 | 3612 | 58.617332% |
| C | 6162 | 3912 | 63.485881% |
| D | 6162 | 1206 | 19.571568% |

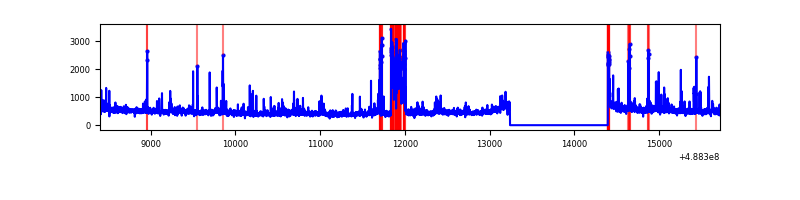

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

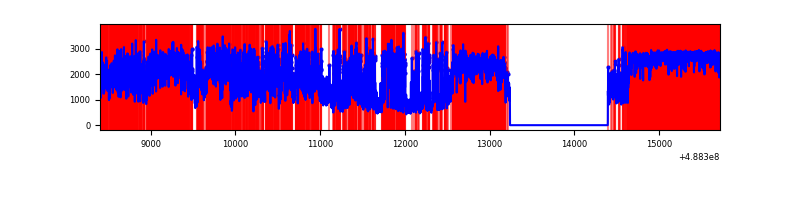

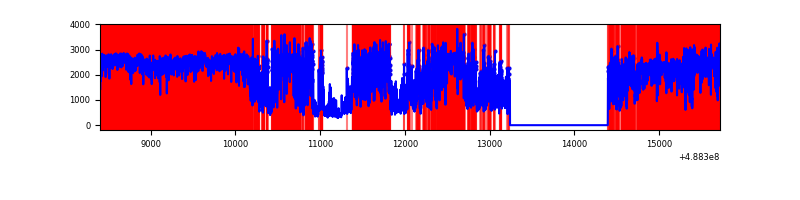

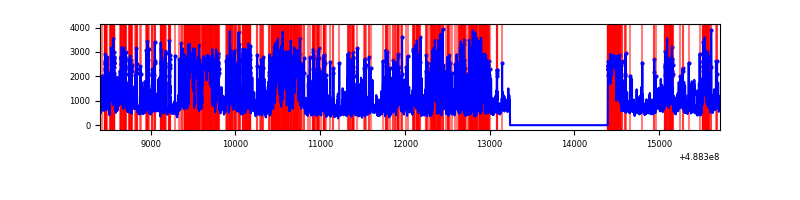

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7317 | 6163 | 95 | 95 | 1.30% | 1.54% |  |
| B | 7316 | 6161 | 3246 | 3246 | 44.37% | 52.69% |  |
| C | 7316 | 6161 | 3651 | 3651 | 49.90% | 59.26% |  |
| D | 7317 | 6163 | 1171 | 1171 | 16.00% | 19.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 43 | 258948 | 1596.99 | 648 | 633 | 161.8 |
| A | 3 | 14 | 220059 | 1356.56 | 648 | 633 | 161.8 |
| A | 5 | 246 | 75052 | 460.08 | 648 | 633 | 161.8 |
| B | 10 | 128 | 6780832 | 68689.97 | 469 | 455 | 98.7 |
| B | 12 | 32 | 2145884 | 21734.7 | 469 | 455 | 98.7 |
| B | 10 | 254 | 742089 | 7513.27 | 469 | 455 | 98.7 |
| C | 15 | 233 | 5741485 | 48630.86 | 421 | 416 | 118.1 |
| C | 15 | 158 | 3257629 | 27590.87 | 421 | 416 | 118.1 |
| C | 2 | 12 | 284533 | 2406.67 | 421 | 416 | 118.1 |
| D | 8 | 176 | 2572816 | 15421.38 | 578 | 553 | 166.8 |
| D | 12 | 3 | 874609 | 5240.19 | 578 | 553 | 166.8 |
| D | 1 | 7 | 541231 | 3241.5 | 578 | 553 | 166.8 |

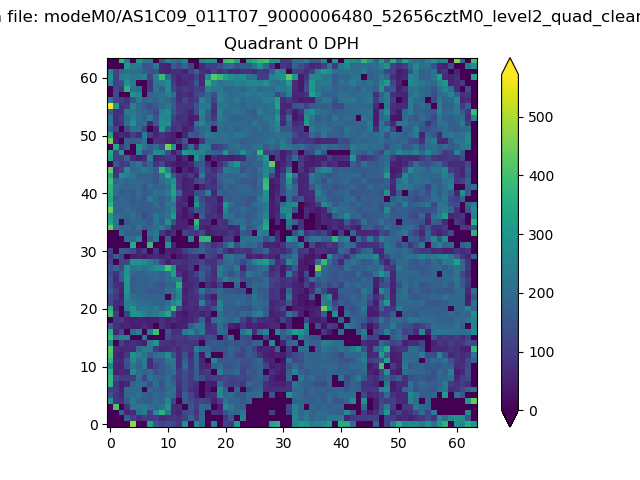

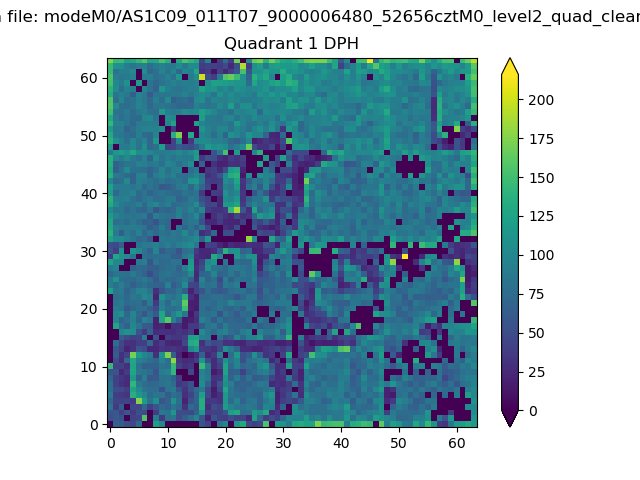

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

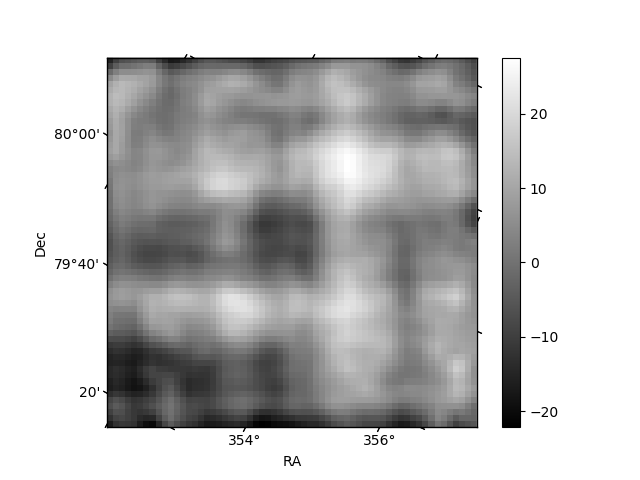

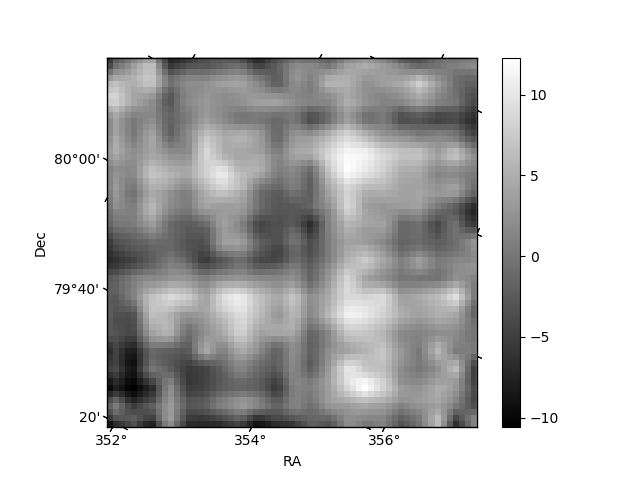

| Plot type | Count rate plots | Images |
|---|---|---|

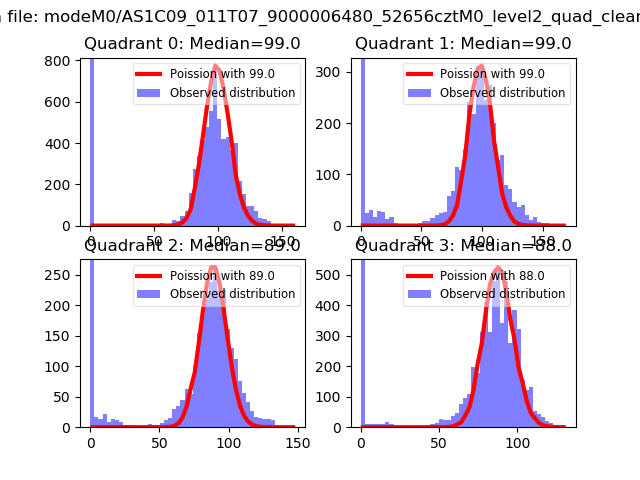

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

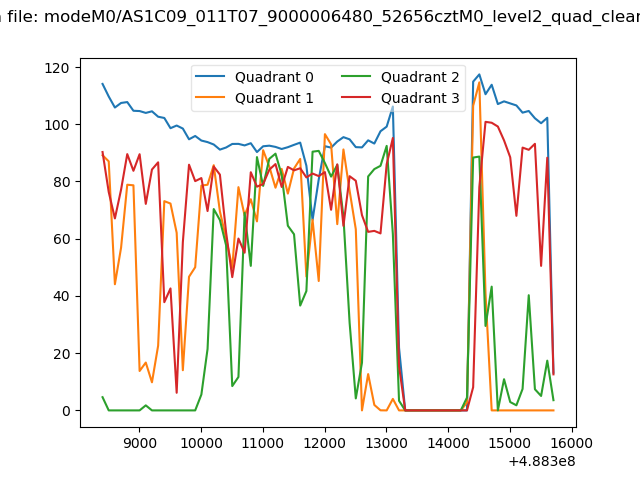

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

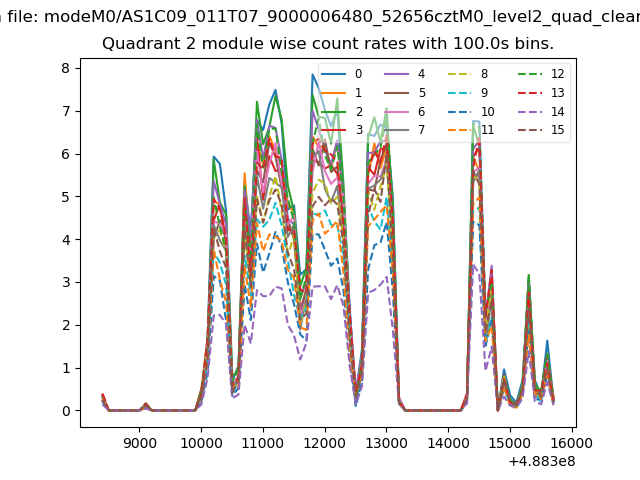

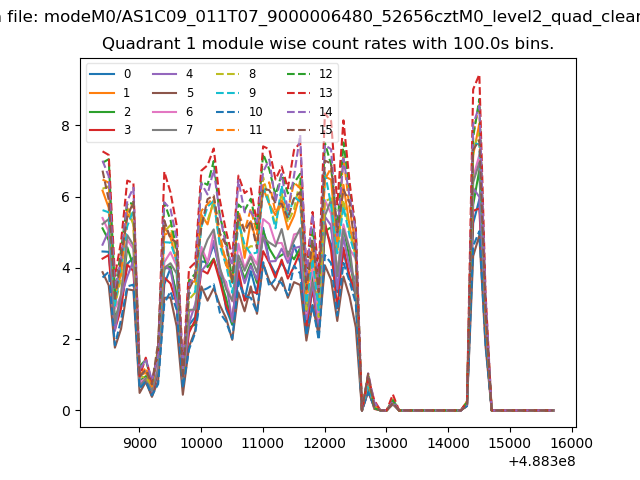

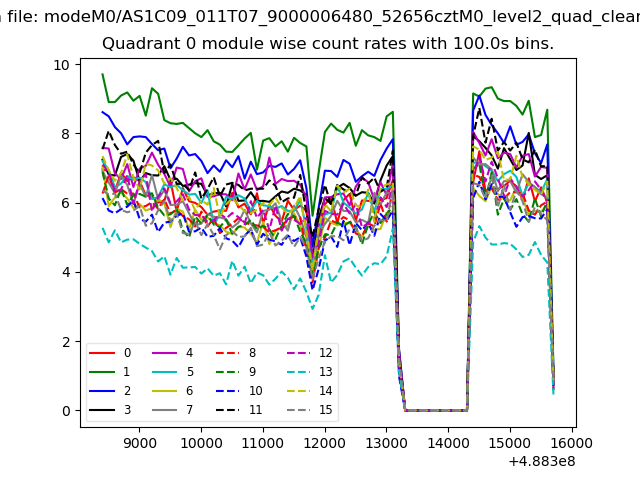

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

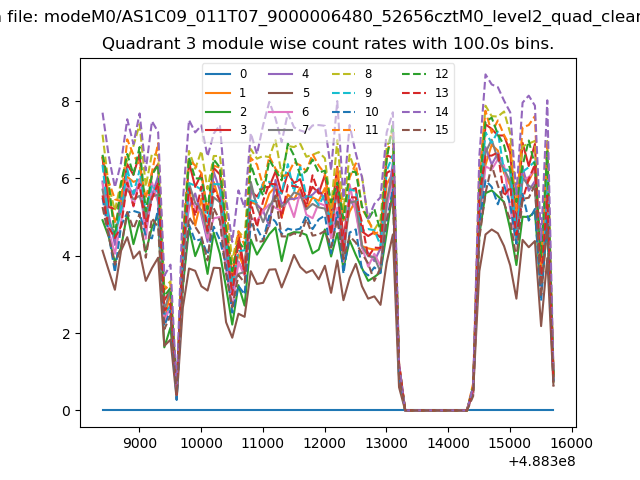

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

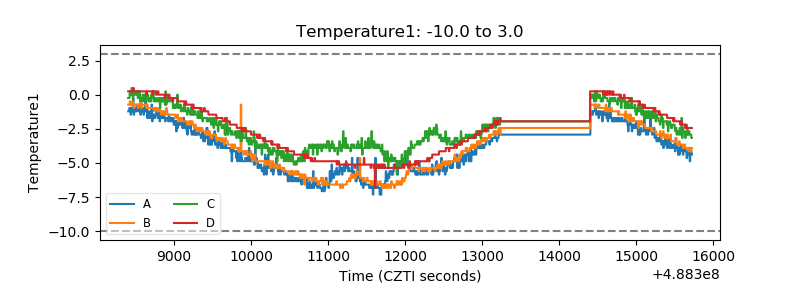

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

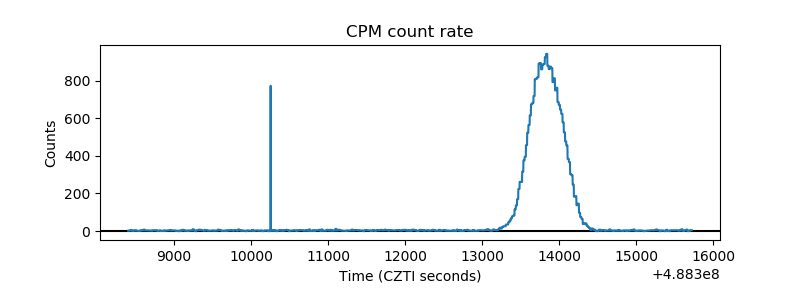

| _CPM_Rate |  |

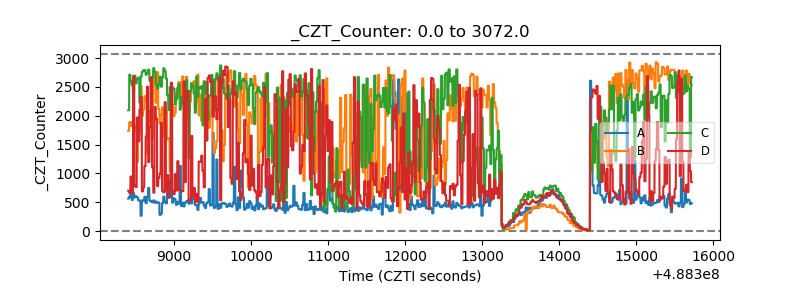

| CZT Counter |  |
| +2.5 Volts monitor |  |

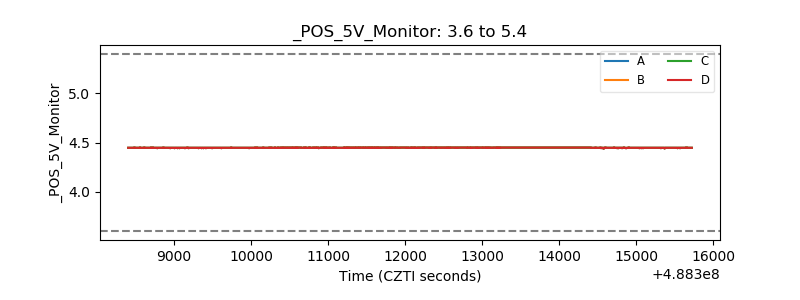

| +5 Volts monitor |  |

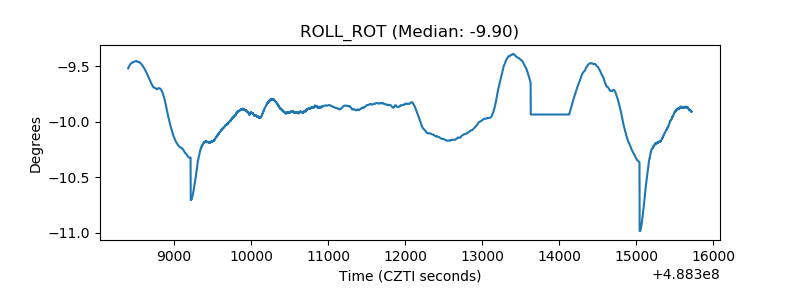

| _ROLL_ROT |  |

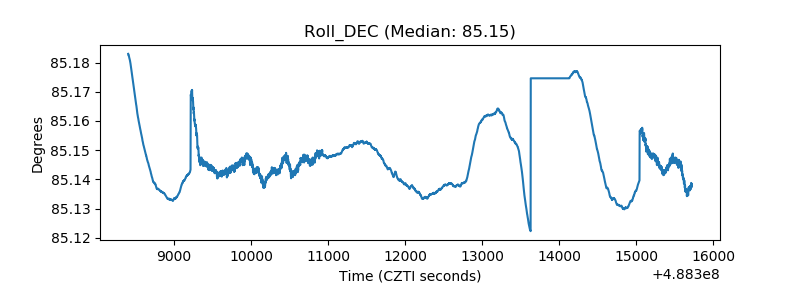

| _Roll_DEC |  |

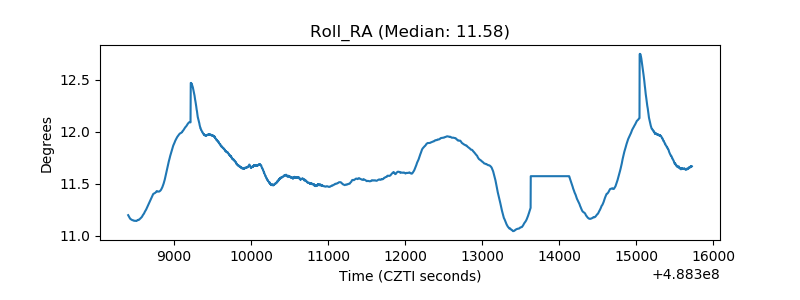

| _Roll_RA |  |

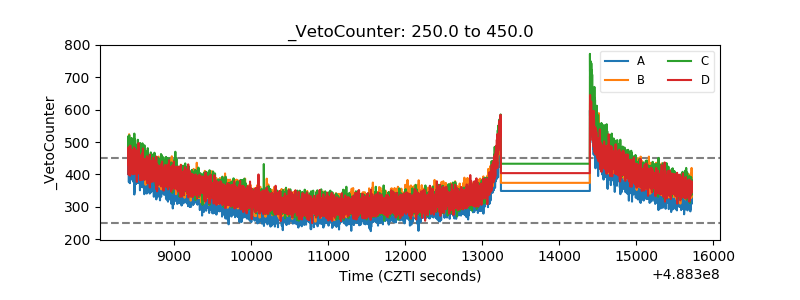

| Veto Counter |  |
