| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T07_9000006480_52657cztM0_level2.fits | modeM0/AS1C09_011T07_9000006480_52657cztM0_level2_quad_clean.evt |
| Size (bytes) | 970,983,360 | 69,687,360 |
| Size | 926.0 MB | 66.5 MB |
| Events in quadrant A | 3,306,181 | 626,337 |
| Events in quadrant B | 14,561,531 | 159,431 |
| Events in quadrant C | 9,724,989 | 396,138 |
| Events in quadrant D | 7,859,625 | 484,529 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 13 | 0 |
| B | 0 | 14 | 0 |
| C | 0 | 14 | 0 |
| D | 0 | 14 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 14283 | 2 |
| B | 0 | 47607 | 2 |
| C | 0 | 33332 | 2 |
| D | 0 | 27780 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6351 | 93 | 1.464336% |
| B | 6351 | 5135 | 80.853409% |
| C | 6350 | 2439 | 38.409449% |
| D | 6350 | 1120 | 17.637795% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7556 | 6352 | 45 | 45 | 0.60% | 0.71% |  |
| B | 7556 | 6351 | 4744 | 4744 | 62.78% | 74.70% |  |
| C | 7554 | 6349 | 2174 | 2174 | 28.78% | 34.24% |  |
| D | 7554 | 6349 | 1137 | 1137 | 15.05% | 17.91% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 293979 | 1766.73 | 666 | 650 | 166.0 |
| A | 4 | 249 | 65250 | 389.09 | 666 | 650 | 166.0 |
| A | 5 | 246 | 50578 | 300.72 | 666 | 650 | 166.0 |
| B | 10 | 128 | 11109721 | 124672.32 | 418 | 404 | 89.1 |
| B | 12 | 32 | 936695 | 10507.36 | 418 | 404 | 89.1 |
| B | 10 | 254 | 260513 | 2919.03 | 418 | 404 | 89.1 |
| C | 15 | 233 | 4088671 | 26476.42 | 550 | 545 | 154.4 |
| C | 15 | 158 | 2184274 | 14142.74 | 550 | 545 | 154.4 |
| C | 1 | 45 | 343838 | 2223.31 | 550 | 545 | 154.4 |
| D | 8 | 176 | 2274214 | 13069.33 | 604 | 577 | 174.0 |
| D | 1 | 7 | 833000 | 4784.94 | 604 | 577 | 174.0 |
| D | 6 | 42 | 591824 | 3398.61 | 604 | 577 | 174.0 |

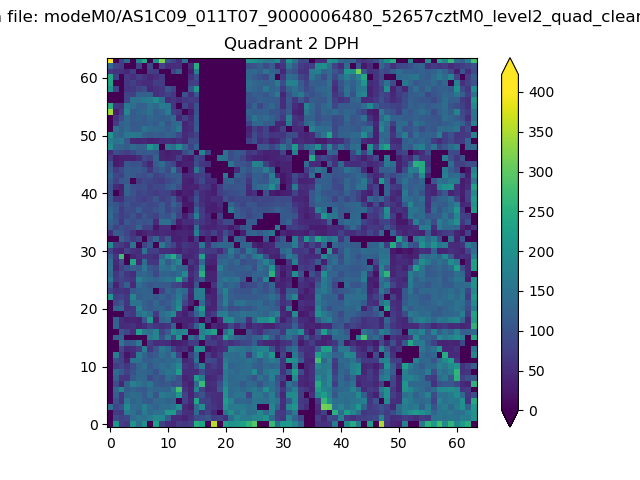

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

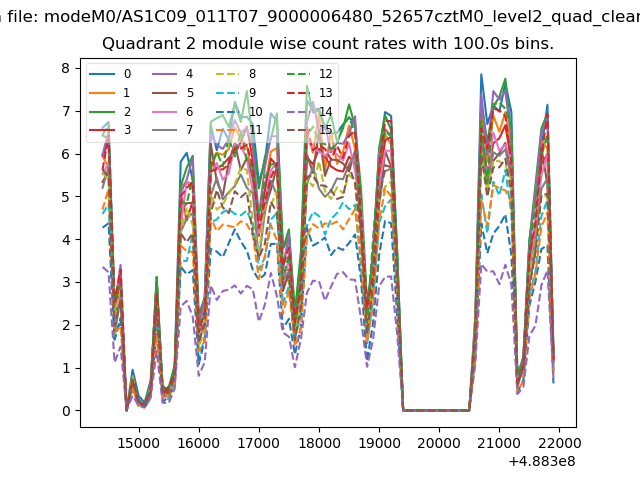

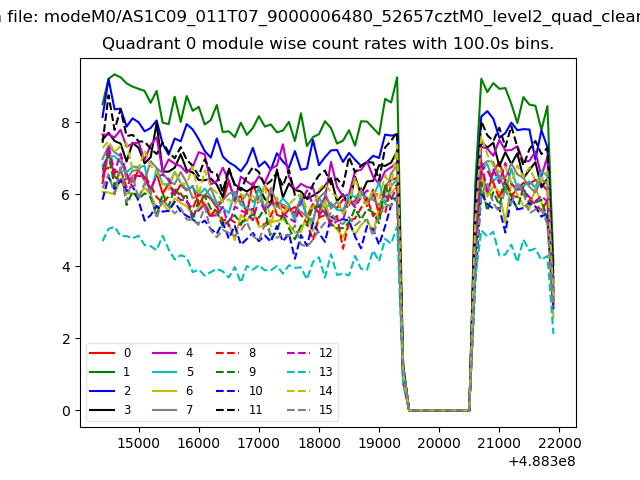

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
