| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T07_9000006480_52661cztM0_level2.fits | modeM0/AS1C09_011T07_9000006480_52661cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,065,942,720 | 72,207,360 |
| Size | 1016.6 MB | 68.9 MB |
| Events in quadrant A | 4,855,146 | 636,809 |
| Events in quadrant B | 7,217,430 | 613,642 |
| Events in quadrant C | 13,919,752 | 262,644 |
| Events in quadrant D | 12,941,669 | 199,193 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 136 | 0 |
| B | 0 | 136 | 0 |
| C | 0 | 136 | 0 |
| D | 0 | 136 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19464 | 0 |
| B | 0 | 26175 | 0 |
| C | 0 | 46045 | 0 |
| D | 0 | 43147 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6794 | 69 | 1.015602% |
| B | 6794 | 823 | 12.113630% |
| C | 6794 | 4254 | 62.614071% |
| D | 6793 | 4432 | 65.243633% |

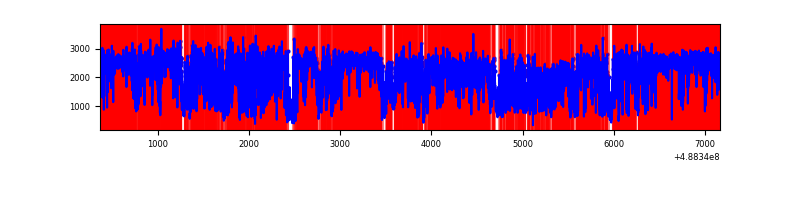

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6794 | 6794 | 49 | 49 | 0.72% | 0.72% |  |
| B | 6794 | 6794 | 513 | 513 | 7.55% | 7.55% |  |
| C | 6793 | 6793 | 4156 | 4156 | 61.18% | 61.18% |  |
| D | 6793 | 6793 | 3963 | 3963 | 58.34% | 58.34% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 1747485 | 9940.63 | 694 | 674 | 175.7 |
| A | 3 | 62 | 110115 | 622.8 | 694 | 674 | 175.7 |
| A | 5 | 240 | 53481 | 300.51 | 694 | 674 | 175.7 |
| B | 10 | 128 | 3091352 | 21968.87 | 664 | 641 | 140.7 |
| B | 5 | 185 | 514496 | 3652.5 | 664 | 641 | 140.7 |
| B | 10 | 254 | 247657 | 1755.8 | 664 | 641 | 140.7 |
| C | 15 | 233 | 7208031 | 53870.68 | 489 | 485 | 133.8 |
| C | 15 | 224 | 2228820 | 16655.03 | 489 | 485 | 133.8 |
| C | 15 | 248 | 952592 | 7116.24 | 489 | 485 | 133.8 |
| D | 12 | 3 | 8856807 | 88605.55 | 331 | 315 | 100.0 |
| D | 1 | 7 | 1361402 | 13617.11 | 331 | 315 | 100.0 |
| D | 8 | 176 | 664188 | 6641.78 | 331 | 315 | 100.0 |

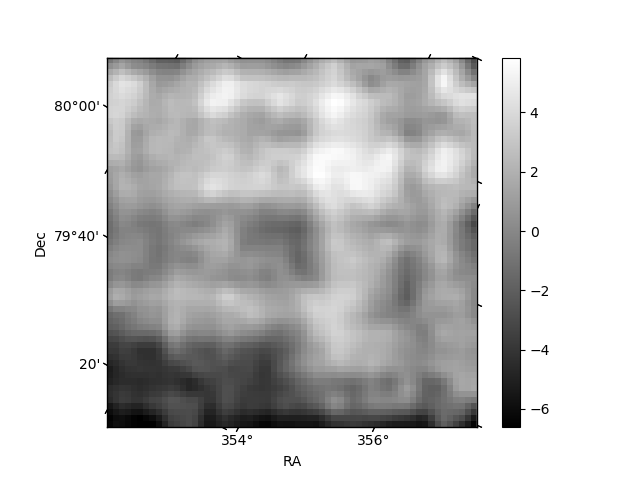

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

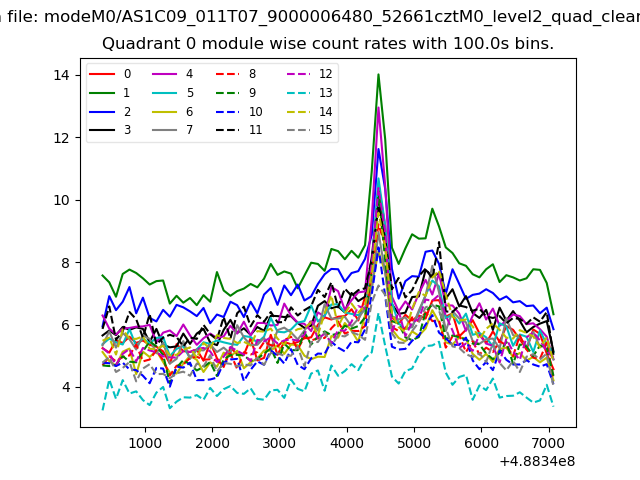

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

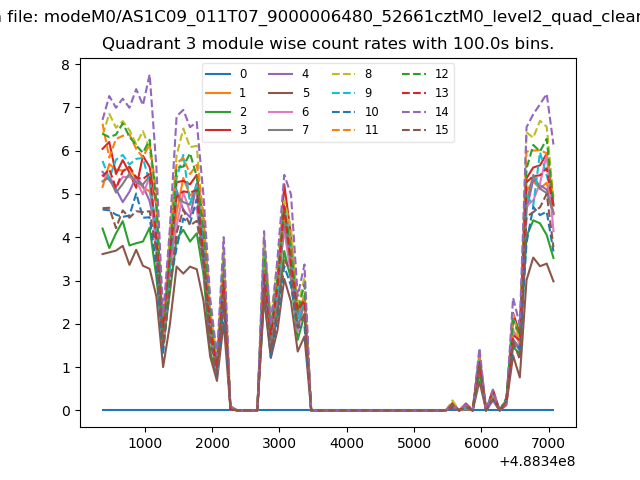

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

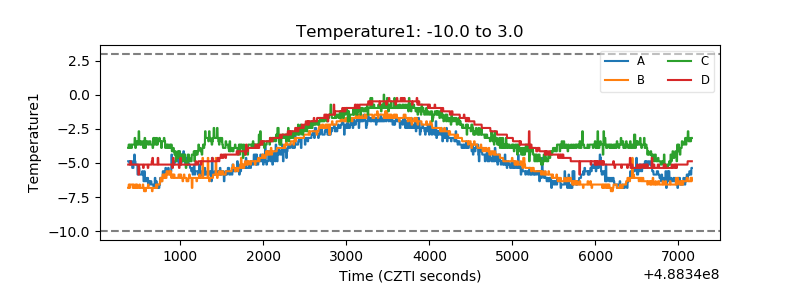

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

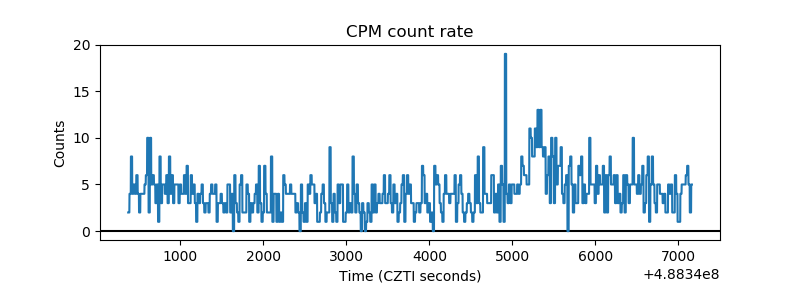

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

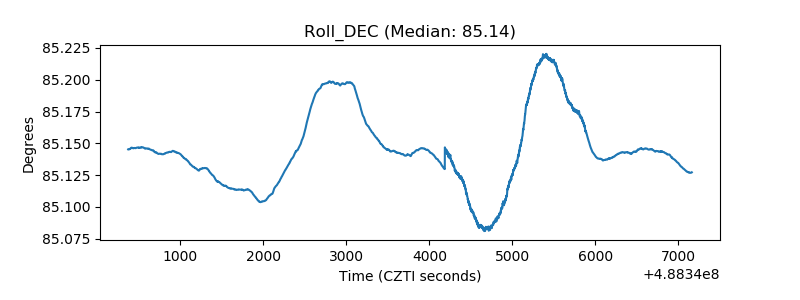

| _Roll_DEC |  |

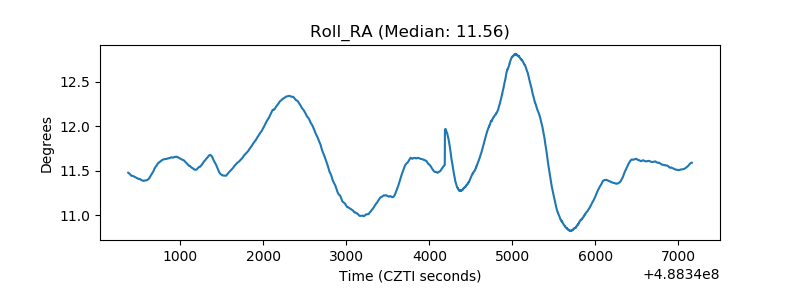

| _Roll_RA |  |
| Veto Counter |  |
