| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T07_9000006480_52667cztM0_level2.fits | modeM0/AS1C09_011T07_9000006480_52667cztM0_level2_quad_clean.evt |
| Size (bytes) | 910,840,320 | 107,974,080 |
| Size | 868.6 MB | 103.0 MB |
| Events in quadrant A | 7,456,376 | 709,061 |
| Events in quadrant B | 6,456,201 | 806,411 |
| Events in quadrant C | 11,833,949 | 555,474 |
| Events in quadrant D | 7,339,933 | 630,336 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 168 | 0 |
| B | 0 | 168 | 0 |
| C | 0 | 168 | 0 |
| D | 0 | 168 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 27713 | 2 |
| B | 0 | 24779 | 2 |
| C | 0 | 40791 | 2 |
| D | 0 | 27486 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 8163 | 845 | 10.351586% |
| B | 8164 | 330 | 4.042136% |
| C | 8164 | 2365 | 28.968643% |
| D | 8164 | 887 | 10.864772% |

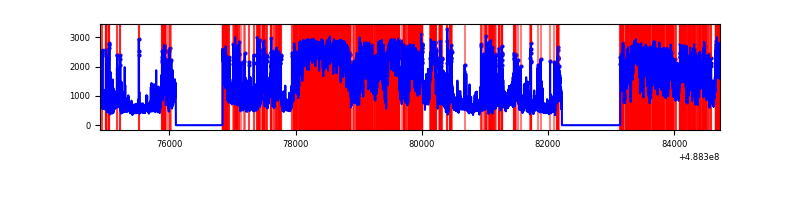

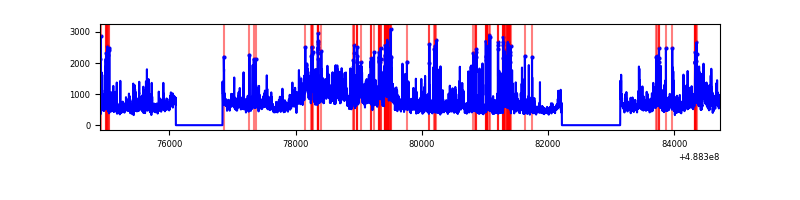

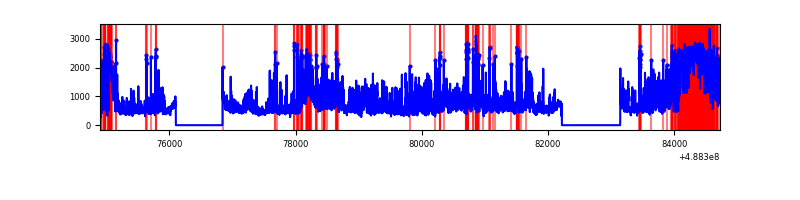

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 9828 | 8163 | 632 | 632 | 6.43% | 7.74% |  |
| B | 9829 | 8164 | 170 | 170 | 1.73% | 2.08% |  |
| C | 9828 | 8163 | 2355 | 2355 | 23.96% | 28.85% |  |
| D | 9829 | 8164 | 836 | 836 | 8.51% | 10.24% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 1716091 | 8107.64 | 840 | 816 | 211.6 |
| A | 14 | 254 | 1228839 | 5804.53 | 840 | 816 | 211.6 |
| A | 15 | 174 | 354313 | 1670.88 | 840 | 816 | 211.6 |
| B | 10 | 128 | 1843134 | 10187.21 | 846 | 816 | 180.8 |
| B | 2 | 249 | 283077 | 1560.78 | 846 | 816 | 180.8 |
| B | 5 | 185 | 191050 | 1051.91 | 846 | 816 | 180.8 |
| C | 15 | 248 | 7561077 | 36935.46 | 745 | 739 | 204.7 |
| C | 13 | 3 | 785612 | 3834.44 | 745 | 739 | 204.7 |
| C | 15 | 233 | 252040 | 1227.71 | 745 | 739 | 204.7 |
| D | 8 | 176 | 2024235 | 8700.59 | 800 | 763 | 232.6 |
| D | 1 | 7 | 700772 | 3009.92 | 800 | 763 | 232.6 |
| D | 3 | 12 | 692812 | 2975.69 | 800 | 763 | 232.6 |

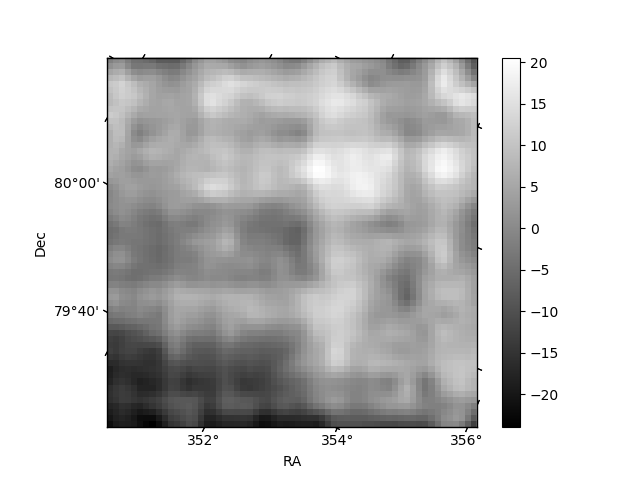

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

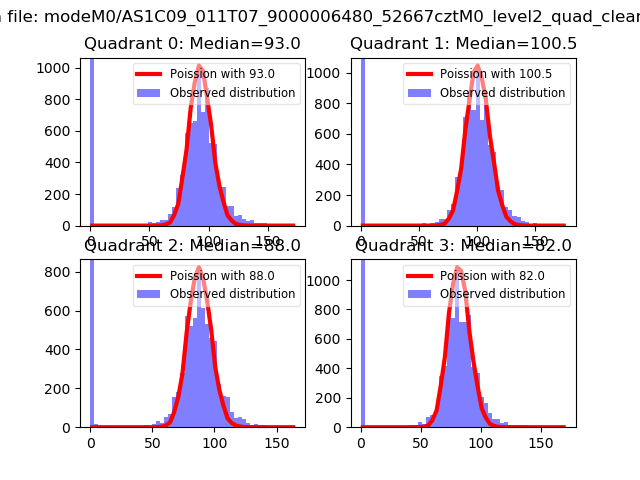

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

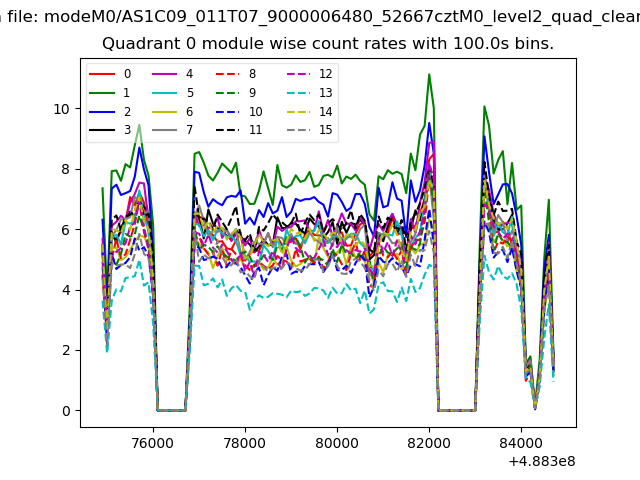

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

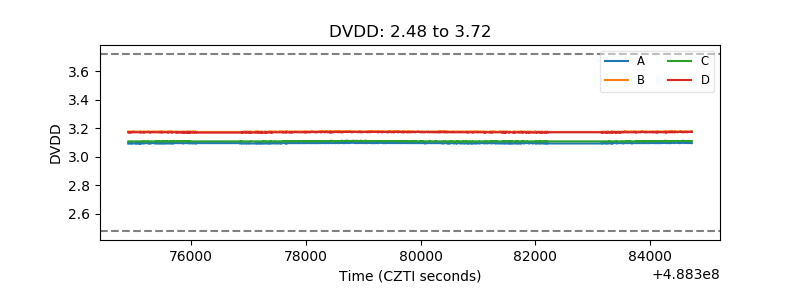

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

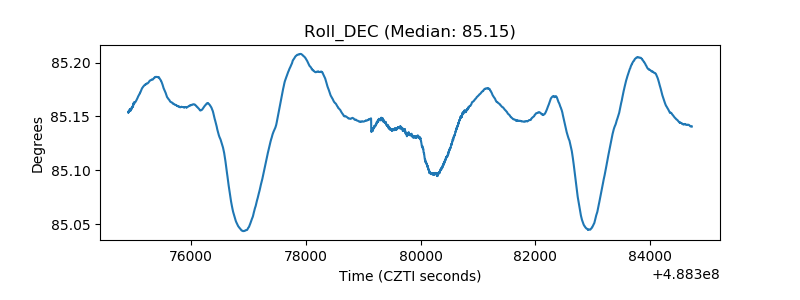

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
