| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T07_9000006480_52671cztM0_level2.fits | modeM0/AS1C09_011T07_9000006480_52671cztM0_level2_quad_clean.evt |
| Size (bytes) | 614,390,400 | 85,158,720 |
| Size | 585.9 MB | 81.2 MB |
| Events in quadrant A | 4,497,238 | 591,025 |
| Events in quadrant B | 6,982,419 | 538,362 |
| Events in quadrant C | 3,987,476 | 552,625 |
| Events in quadrant D | 6,810,877 | 476,562 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 12 | 0 |
| C | 0 | 12 | 0 |
| D | 0 | 12 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 122 | 0 |
| B | 0 | 122 | 0 |
| C | 0 | 122 | 0 |
| D | 0 | 122 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17430 | 1 |
| B | 0 | 24882 | 1 |
| C | 0 | 16174 | 1 |
| D | 0 | 24409 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6007 | 103 | 1.714666% |
| B | 6008 | 1062 | 17.676431% |
| C | 6008 | 277 | 4.610519% |
| D | 6008 | 816 | 13.581891% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

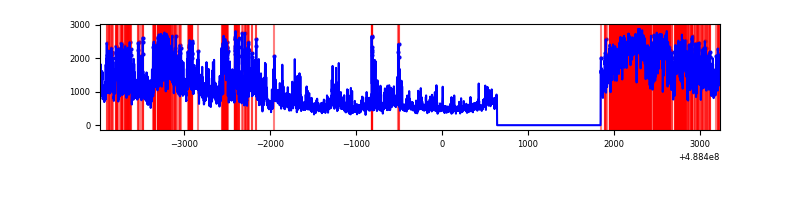

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7212 | 6007 | 48 | 48 | 0.67% | 0.80% |  |
| B | 7213 | 6009 | 901 | 901 | 12.49% | 14.99% |  |
| C | 7213 | 6008 | 213 | 213 | 2.95% | 3.55% |  |
| D | 7213 | 6008 | 878 | 878 | 12.17% | 14.61% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 1525003 | 9689.25 | 628 | 612 | 157.3 |
| A | 15 | 239 | 151693 | 960.29 | 628 | 612 | 157.3 |
| A | 12 | 80 | 63930 | 402.46 | 628 | 612 | 157.3 |
| B | 10 | 128 | 3642038 | 29663.03 | 591 | 571 | 122.8 |
| B | 2 | 249 | 368894 | 3000.32 | 591 | 571 | 122.8 |
| B | 1 | 255 | 102674 | 831.72 | 591 | 571 | 122.8 |
| C | 2 | 12 | 360172 | 2129.65 | 611 | 607 | 168.8 |
| C | 13 | 3 | 241814 | 1428.63 | 611 | 607 | 168.8 |
| C | 12 | 252 | 206138 | 1217.33 | 611 | 607 | 168.8 |
| D | 1 | 7 | 1497076 | 8732.58 | 589 | 561 | 171.4 |
| D | 6 | 42 | 1128886 | 6584.09 | 589 | 561 | 171.4 |
| D | 8 | 176 | 549489 | 3203.15 | 589 | 561 | 171.4 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

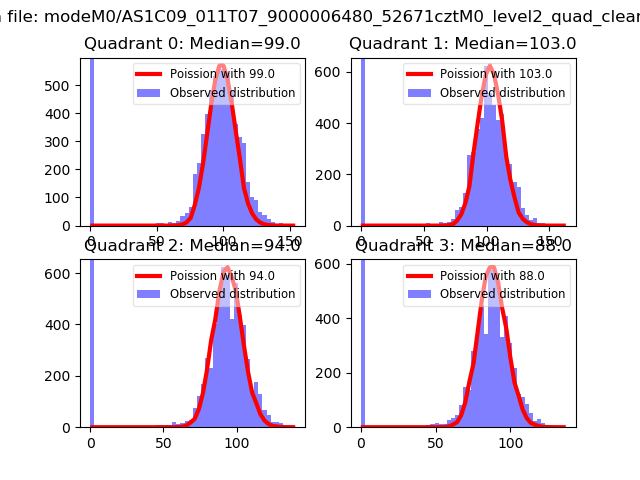

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

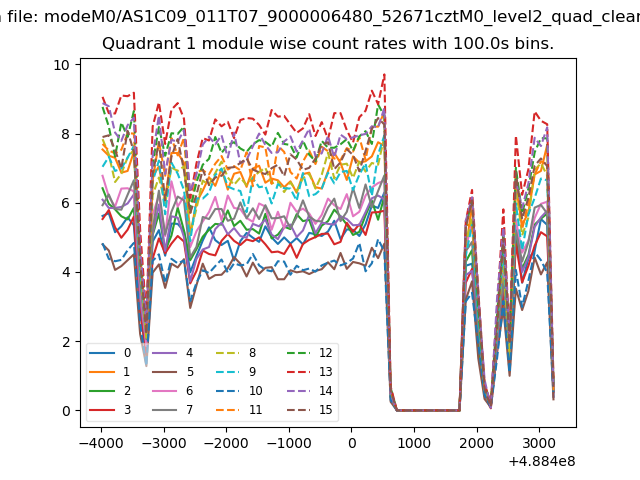

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

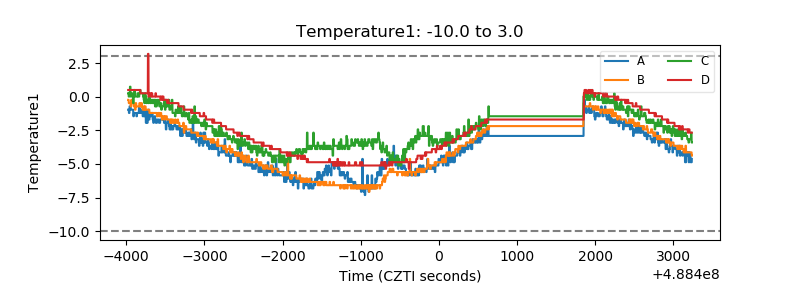

| Temperature 1 |  |

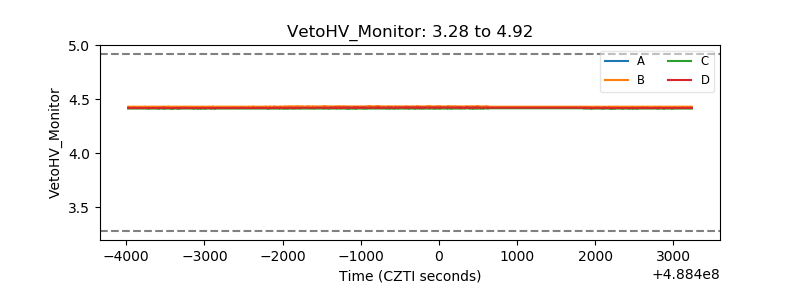

| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

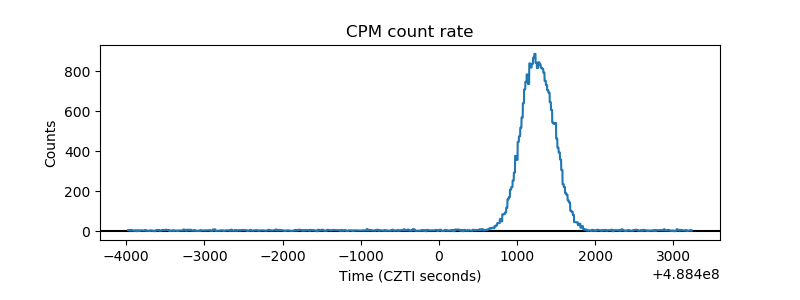

| _CPM_Rate |  |

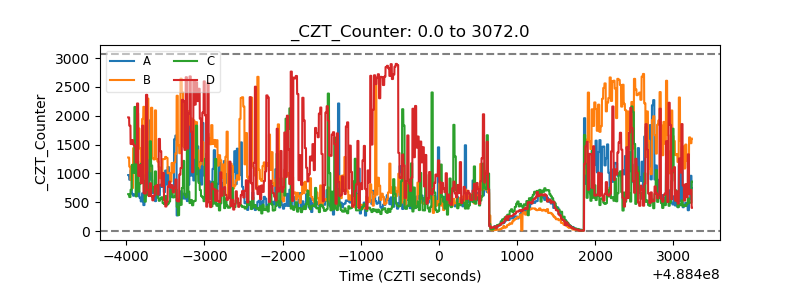

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

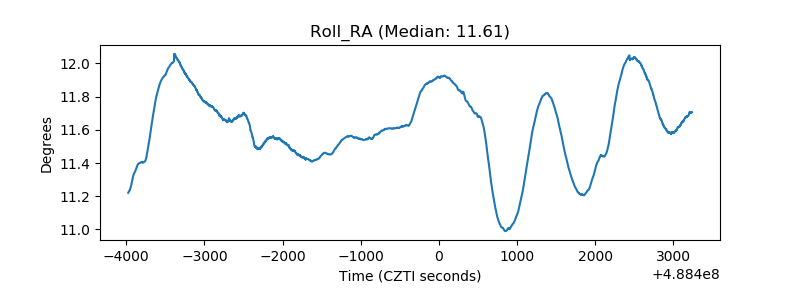

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
