| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T07_9000006480_52672cztM0_level2.fits | modeM0/AS1C09_011T07_9000006480_52672cztM0_level2_quad_clean.evt |
| Size (bytes) | 785,917,440 | 83,577,600 |
| Size | 749.5 MB | 79.7 MB |
| Events in quadrant A | 4,200,122 | 622,197 |
| Events in quadrant B | 9,888,253 | 493,645 |
| Events in quadrant C | 6,352,887 | 538,667 |
| Events in quadrant D | 8,156,189 | 429,159 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 12 | 0 |
| B | 0 | 13 | 0 |
| C | 0 | 13 | 0 |
| D | 0 | 13 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 130 | 0 |
| B | 0 | 130 | 0 |
| C | 0 | 130 | 0 |
| D | 0 | 130 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16933 | 2 |
| B | 0 | 33860 | 2 |
| C | 0 | 23306 | 2 |
| D | 0 | 28714 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6401 | 135 | 2.109045% |
| B | 6401 | 2026 | 31.651304% |
| C | 6401 | 859 | 13.419778% |
| D | 6401 | 1712 | 26.745821% |

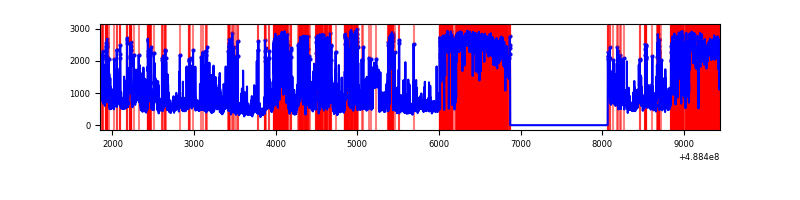

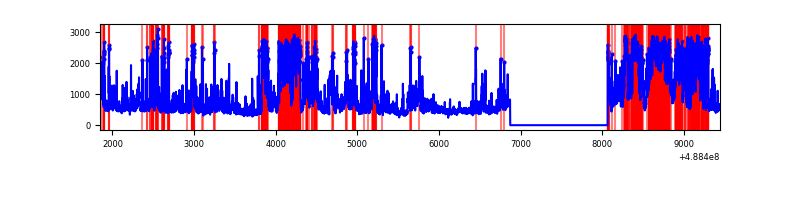

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7596 | 6402 | 44 | 44 | 0.58% | 0.69% |  |
| B | 7596 | 6401 | 1665 | 1665 | 21.92% | 26.01% |  |
| C | 7596 | 6401 | 905 | 905 | 11.91% | 14.14% |  |
| D | 7596 | 6401 | 1677 | 1677 | 22.08% | 26.20% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 1035303 | 6143.39 | 668 | 653 | 168.4 |
| A | 15 | 239 | 148707 | 879.09 | 668 | 653 | 168.4 |
| A | 13 | 248 | 64091 | 376.67 | 668 | 653 | 168.4 |
| B | 10 | 128 | 4909069 | 38706.52 | 605 | 586 | 126.8 |
| B | 10 | 254 | 950599 | 7491.46 | 605 | 586 | 126.8 |
| B | 12 | 32 | 629062 | 4955.93 | 605 | 586 | 126.8 |
| C | 15 | 248 | 2928048 | 16992.09 | 629 | 626 | 172.3 |
| C | 2 | 12 | 197913 | 1145.14 | 629 | 626 | 172.3 |
| C | 13 | 3 | 184652 | 1068.17 | 629 | 626 | 172.3 |
| D | 8 | 176 | 2451380 | 14913.93 | 560 | 533 | 164.3 |
| D | 1 | 7 | 1892431 | 11512.6 | 560 | 533 | 164.3 |
| D | 3 | 12 | 428465 | 2604.06 | 560 | 533 | 164.3 |

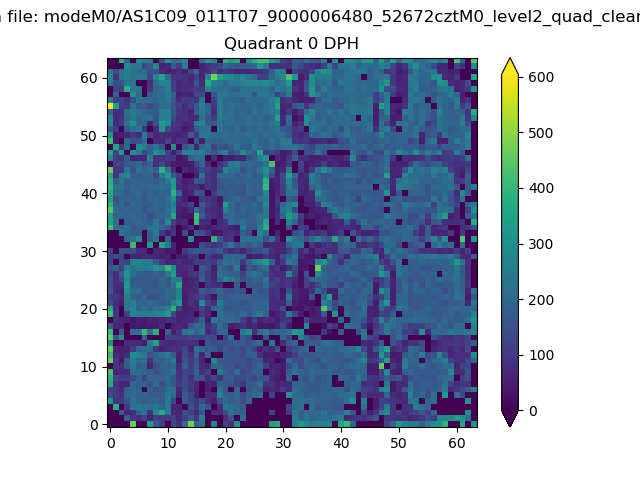

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

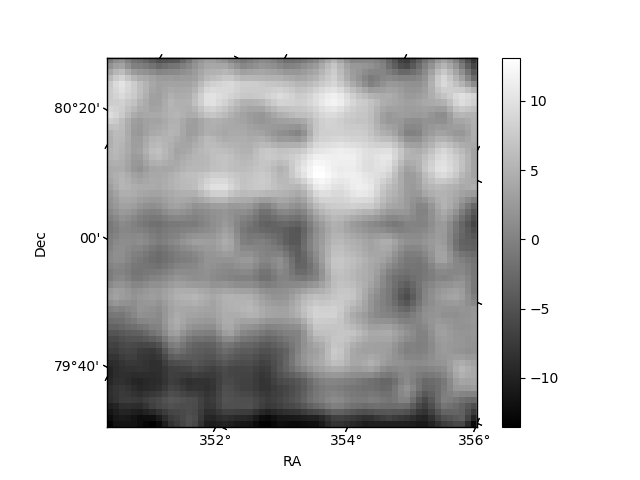

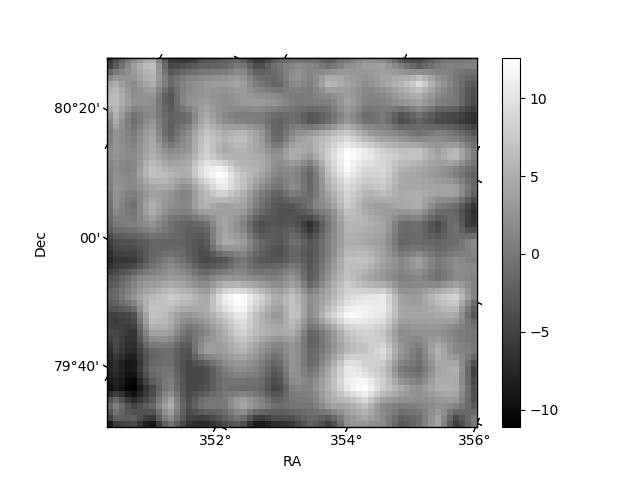

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

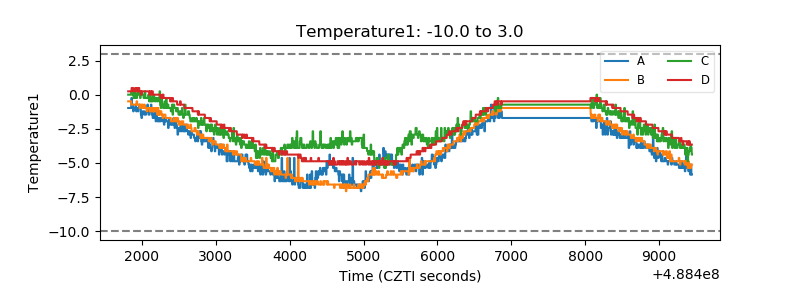

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

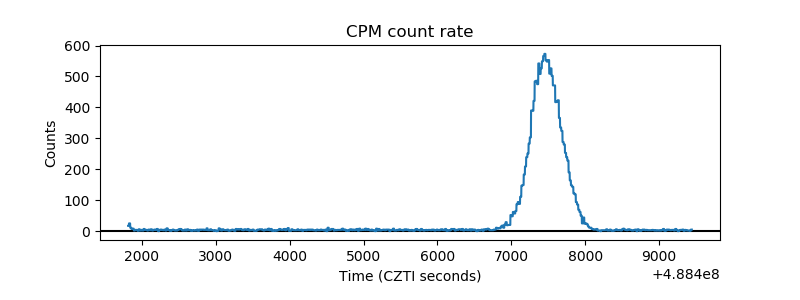

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

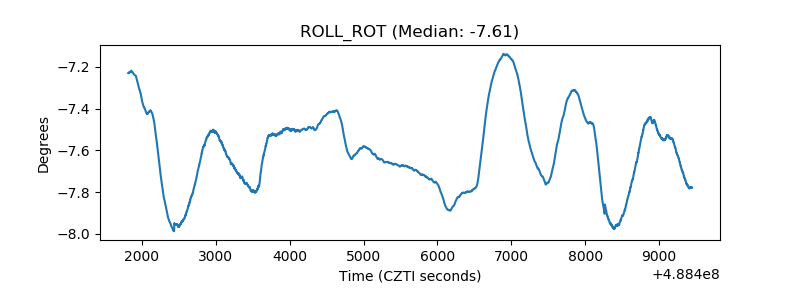

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
