| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T07_9000006480_52676cztM0_level2.fits | modeM0/AS1C09_011T07_9000006480_52676cztM0_level2_quad_clean.evt |
| Size (bytes) | 873,930,240 | 81,717,120 |
| Size | 833.4 MB | 77.9 MB |
| Events in quadrant A | 3,605,097 | 632,112 |
| Events in quadrant B | 4,734,551 | 649,503 |
| Events in quadrant C | 10,287,967 | 473,033 |
| Events in quadrant D | 13,190,736 | 239,893 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 138 | 0 |
| B | 0 | 138 | 0 |
| C | 0 | 138 | 0 |
| D | 0 | 138 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15467 | 0 |
| B | 0 | 18977 | 0 |
| C | 0 | 35380 | 0 |
| D | 0 | 43905 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6879 | 37 | 0.537869% |
| B | 6879 | 328 | 4.768135% |
| C | 6880 | 1732 | 25.174419% |
| D | 6879 | 4040 | 58.729466% |

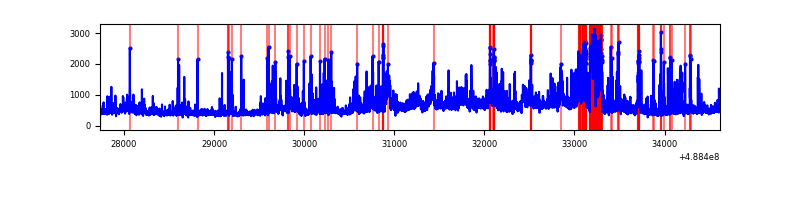

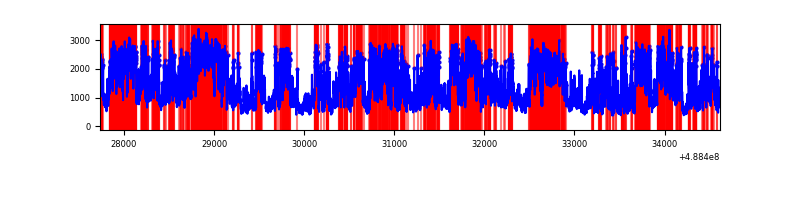

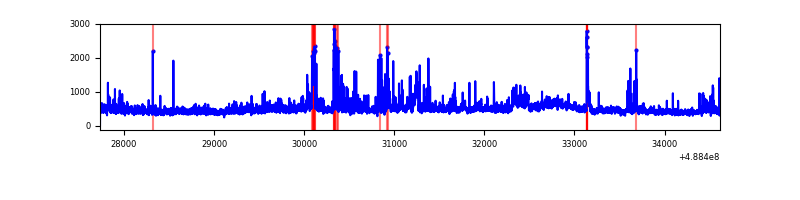

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6879 | 6879 | 27 | 27 | 0.39% | 0.39% |  |
| B | 6879 | 6879 | 195 | 195 | 2.83% | 2.83% |  |
| C | 6880 | 6880 | 1943 | 1943 | 28.24% | 28.24% |  |
| D | 6879 | 6879 | 3941 | 3941 | 57.29% | 57.29% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 418246 | 2395.74 | 694 | 674 | 174.3 |
| A | 5 | 240 | 76669 | 436.01 | 694 | 674 | 174.3 |
| A | 14 | 239 | 68169 | 387.24 | 694 | 674 | 174.3 |
| B | 10 | 128 | 589025 | 4094.63 | 678 | 653 | 143.7 |
| B | 2 | 249 | 488370 | 3394.14 | 678 | 653 | 143.7 |
| B | 12 | 32 | 334376 | 2322.46 | 678 | 653 | 143.7 |
| C | 15 | 248 | 6803255 | 39817.98 | 617 | 613 | 170.8 |
| C | 13 | 3 | 347882 | 2032.67 | 617 | 613 | 170.8 |
| C | 12 | 252 | 263112 | 1536.49 | 617 | 613 | 170.8 |
| D | 8 | 176 | 8856039 | 78357.26 | 384 | 364 | 113.0 |
| D | 2 | 62 | 1543905 | 13657.64 | 384 | 364 | 113.0 |
| D | 6 | 42 | 653346 | 5777.75 | 384 | 364 | 113.0 |

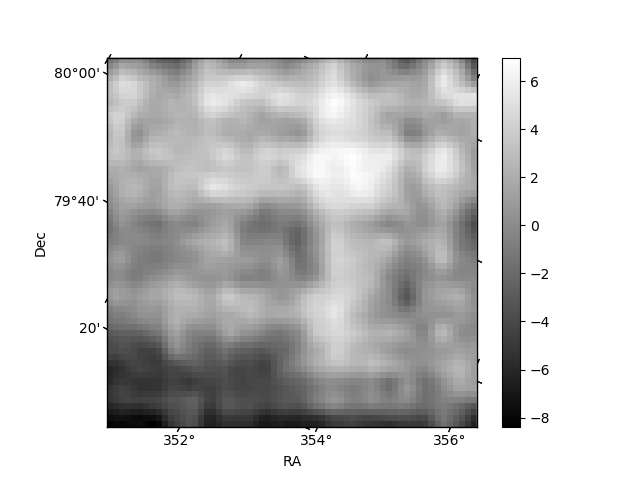

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

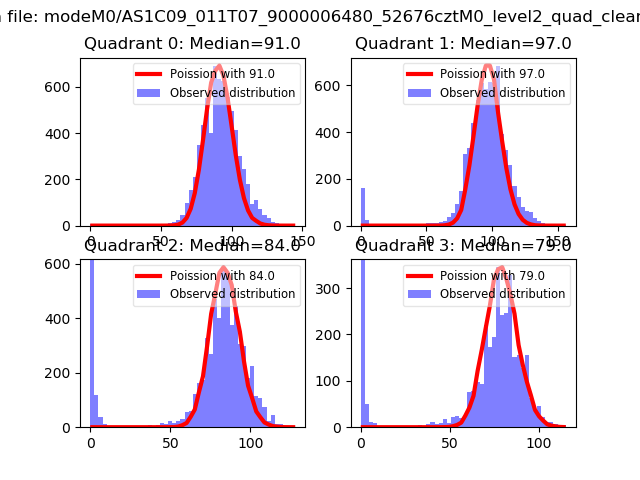

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

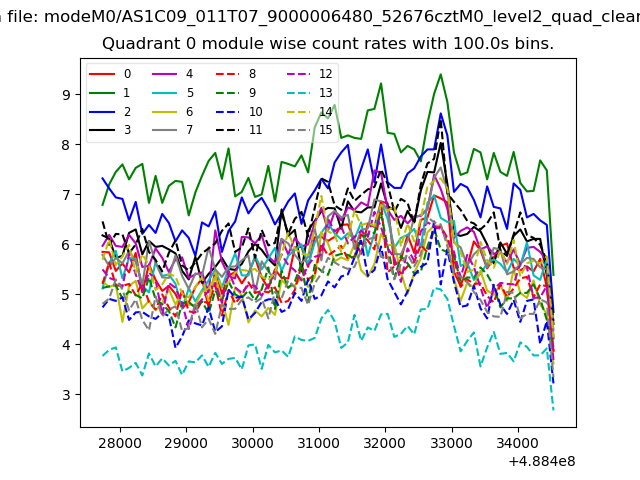

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

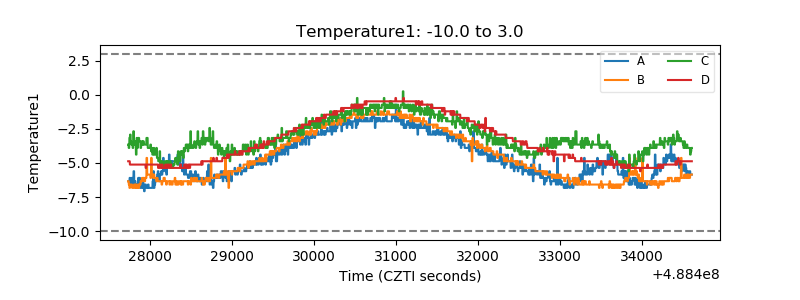

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
