| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T07_9000006480_52677cztM0_level2.fits | modeM0/AS1C09_011T07_9000006480_52677cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,095,888,960 | 82,137,600 |
| Size | 1.0 GB | 78.3 MB |
| Events in quadrant A | 4,072,477 | 675,517 |
| Events in quadrant B | 6,833,409 | 698,890 |
| Events in quadrant C | 11,547,529 | 439,894 |
| Events in quadrant D | 17,536,824 | 152,430 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 150 | 0 |
| B | 0 | 150 | 0 |
| C | 0 | 150 | 0 |
| D | 0 | 150 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17253 | 0 |
| B | 0 | 25511 | 0 |
| C | 0 | 39527 | 0 |
| D | 0 | 57110 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 7465 | 83 | 1.111855% |
| B | 7465 | 516 | 6.912257% |
| C | 7465 | 2638 | 35.338245% |
| D | 7465 | 5833 | 78.137977% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7465 | 7465 | 74 | 74 | 0.99% | 0.99% |  |
| B | 7465 | 7465 | 331 | 331 | 4.43% | 4.43% |  |
| C | 7465 | 7465 | 2690 | 2690 | 36.03% | 36.03% |  |
| D | 7465 | 7465 | 5840 | 5840 | 78.23% | 78.23% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 397576 | 2098.33 | 754 | 734 | 189.1 |
| A | 14 | 239 | 123611 | 649.72 | 754 | 734 | 189.1 |
| A | 12 | 80 | 88172 | 462.33 | 754 | 734 | 189.1 |
| B | 10 | 128 | 935709 | 5899.9 | 736 | 708 | 158.5 |
| B | 12 | 32 | 722103 | 4552.04 | 736 | 708 | 158.5 |
| B | 7 | 0 | 680057 | 4286.72 | 736 | 708 | 158.5 |
| C | 15 | 248 | 5963402 | 35516.87 | 608 | 602 | 167.9 |
| C | 15 | 157 | 1559988 | 9288.34 | 608 | 602 | 167.9 |
| C | 9 | 38 | 415619 | 2472.01 | 608 | 602 | 167.9 |
| D | 8 | 176 | 9971375 | 89210.85 | 379 | 360 | 111.8 |
| D | 2 | 62 | 3262600 | 29187.32 | 379 | 360 | 111.8 |
| D | 6 | 42 | 1853304 | 16578.32 | 379 | 360 | 111.8 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

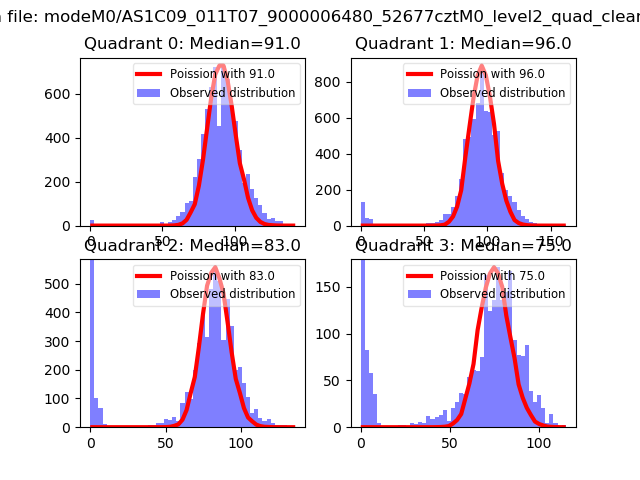

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

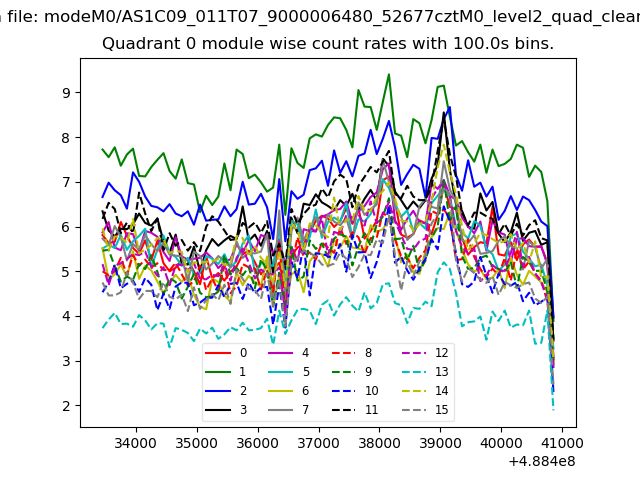

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

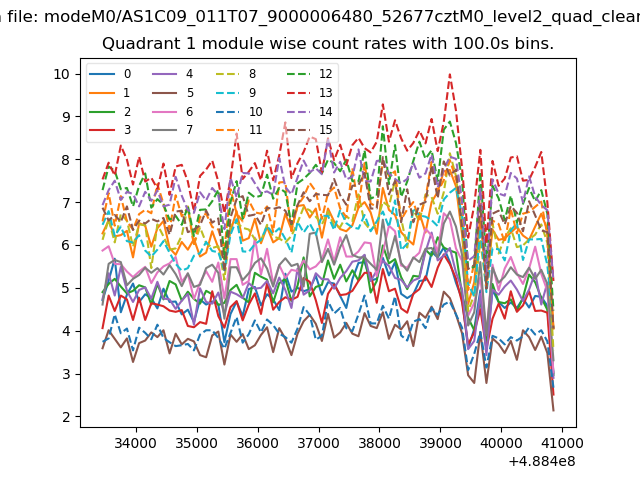

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

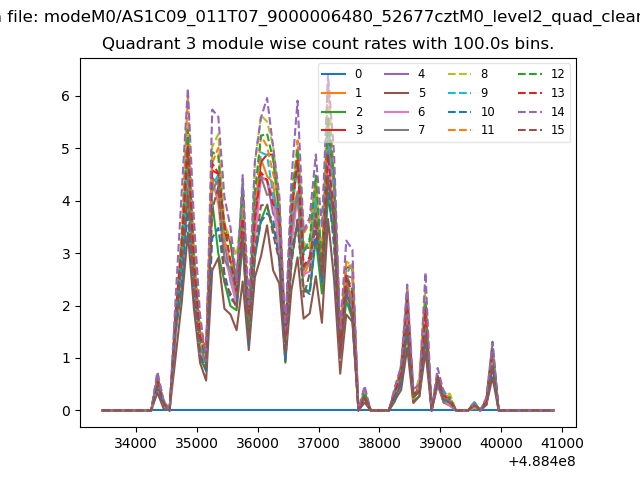

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

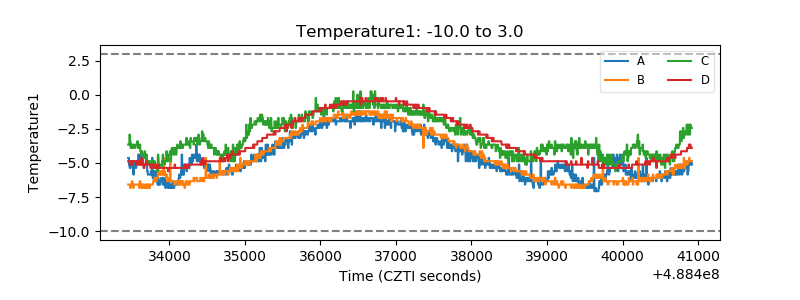

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

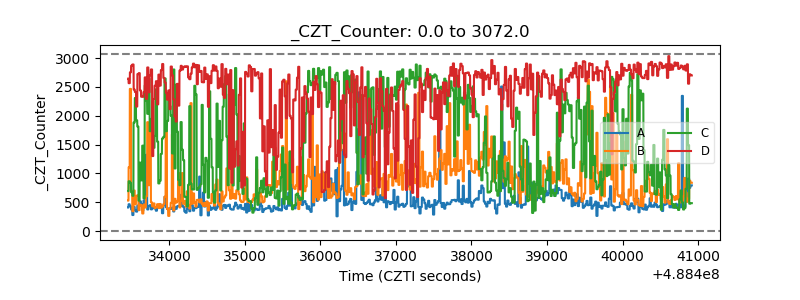

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
