| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1C09_011T07_9000006480_52683cztM0_level2.fits | modeM0/AS1C09_011T07_9000006480_52683cztM0_level2_quad_clean.evt |
| Size (bytes) | 899,835,840 | 73,451,520 |
| Size | 858.2 MB | 70.0 MB |
| Events in quadrant A | 4,042,660 | 577,103 |
| Events in quadrant B | 8,851,140 | 491,616 |
| Events in quadrant C | 11,360,631 | 317,719 |
| Events in quadrant D | 8,580,687 | 407,651 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 10 | 0 |
| B | 0 | 10 | 0 |
| C | 0 | 10 | 0 |
| D | 0 | 10 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 124 | 0 |
| B | 0 | 124 | 0 |
| C | 0 | 124 | 0 |
| D | 0 | 124 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16106 | 1 |
| B | 0 | 30624 | 1 |
| C | 0 | 38072 | 1 |
| D | 0 | 29750 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6149 | 153 | 2.488209% |
| B | 6150 | 1687 | 27.430894% |
| C | 6150 | 2957 | 48.081301% |
| D | 6149 | 1619 | 26.329484% |

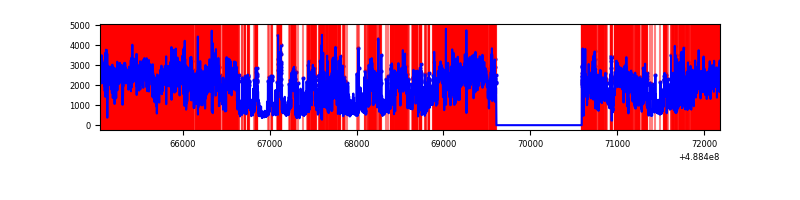

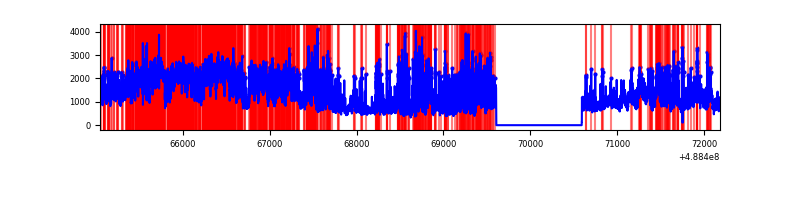

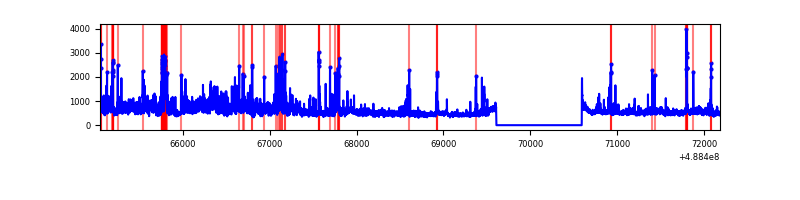

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7134 | 6150 | 101 | 101 | 1.42% | 1.64% |  |
| B | 7135 | 6151 | 1396 | 1396 | 19.57% | 22.70% |  |
| C | 7135 | 6151 | 2957 | 2957 | 41.44% | 48.07% |  |
| D | 7134 | 6150 | 1585 | 1585 | 22.22% | 25.77% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 3 | 14 | 813366 | 5081.25 | 637 | 620 | 160.0 |
| A | 3 | 62 | 130457 | 811.73 | 637 | 620 | 160.0 |
| A | 3 | 46 | 116255 | 722.94 | 637 | 620 | 160.0 |
| B | 10 | 128 | 4126486 | 33471.83 | 583 | 563 | 123.3 |
| B | 12 | 32 | 967678 | 7845.79 | 583 | 563 | 123.3 |
| B | 4 | 171 | 446586 | 3618.39 | 583 | 563 | 123.3 |
| C | 15 | 248 | 5180074 | 37794.16 | 492 | 487 | 137.0 |
| C | 14 | 96 | 1591485 | 11609.12 | 492 | 487 | 137.0 |
| C | 9 | 38 | 915149 | 6674.06 | 492 | 487 | 137.0 |
| D | 8 | 176 | 2359673 | 14755.94 | 554 | 527 | 159.9 |
| D | 1 | 7 | 1728566 | 10808.51 | 554 | 527 | 159.9 |
| D | 12 | 33 | 1176036 | 7352.55 | 554 | 527 | 159.9 |

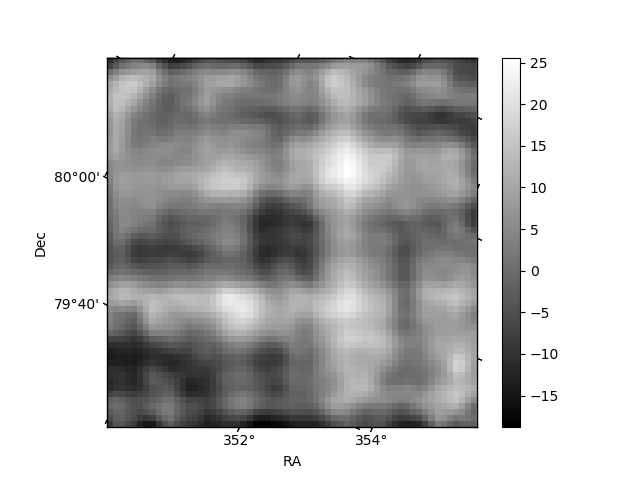

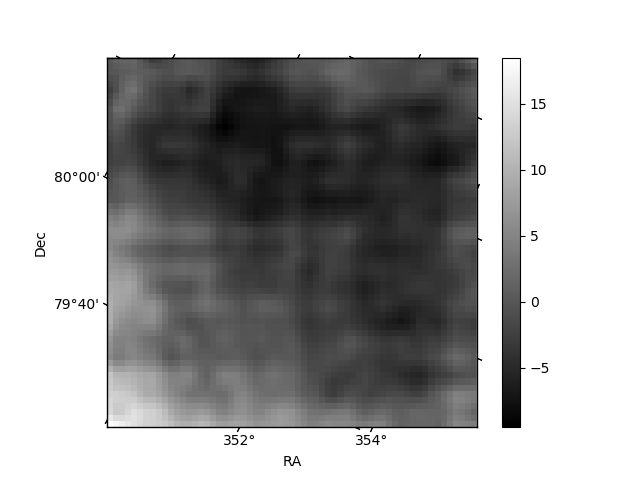

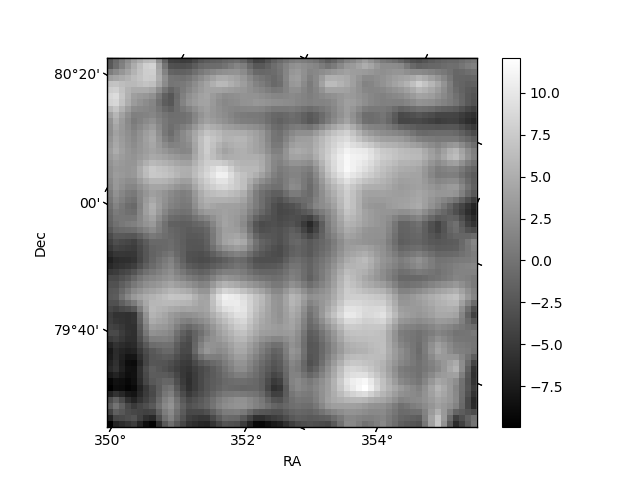

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

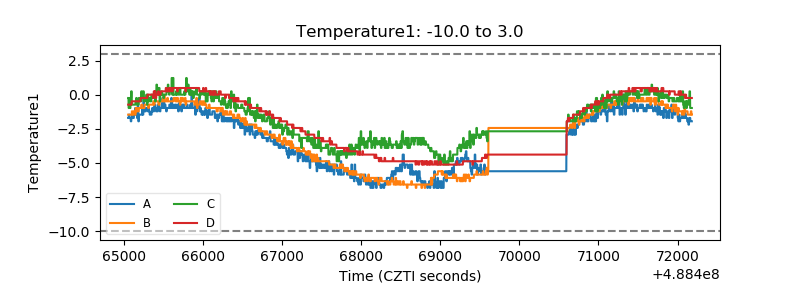

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

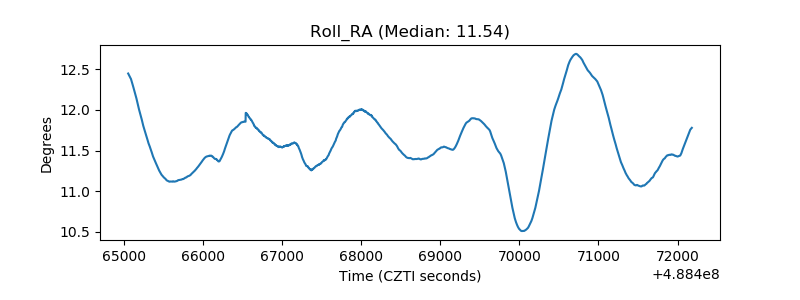

| _Roll_RA |  |
| Veto Counter |  |
