| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_140T01_9000000004_00139cztM0_level2.evt | modeM0/AS1P01_140T01_9000000004_00139cztM0_level2_quad_clean.evt |
| Size (bytes) | 853,824,960 | 73,595,520 |
| Size | 814.3 MB | 70.2 MB |
| Events in quadrant A | 6,236,426 | 474,316 |
| Events in quadrant B | 6,475,134 | 482,205 |
| Events in quadrant C | 5,711,119 | 470,199 |
| Events in quadrant D | 7,097,009 | 444,440 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 6 |
| B | 0 | 112 | 10 |
| C | 0 | 112 | 4 |
| D | 0 | 112 | 6 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 1 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 1 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23966 | 1821 |
| B | 0 | 24613 | 1790 |
| C | 0 | 22231 | 1632 |
| D | 0 | 27308 | 2610 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5087 | 15 | 0.294869% |
| B | 5099 | 13 | 0.254952% |
| C | 5106 | 7 | 0.137094% |
| D | 5064 | 116 | 2.290679% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7118 | 5246 | 168 | 168 | 2.36% | 3.20% |  |
| B | 7110 | 5236 | 167 | 167 | 2.35% | 3.19% |  |
| C | 7112 | 5245 | 58 | 58 | 0.82% | 1.11% |  |
| D | 7119 | 5218 | 385 | 385 | 5.41% | 7.38% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 14 | 171 | 25026 | 90.79 | 1586 | 1549 | 258.6 |
| A | 0 | 86 | 21995 | 79.07 | 1586 | 1549 | 258.6 |
| A | 0 | 166 | 12564 | 42.6 | 1586 | 1549 | 258.6 |
| B | 2 | 2 | 196113 | 568.65 | 1549 | 1552 | 342.1 |
| B | 8 | 236 | 97613 | 280.76 | 1549 | 1552 | 342.1 |
| B | 8 | 5 | 46617 | 131.71 | 1549 | 1552 | 342.1 |
| C | 3 | 0 | 40165 | 96.54 | 1420 | 1472 | 400.8 |
| C | 0 | 186 | 22545 | 52.58 | 1420 | 1472 | 400.8 |
| C | 3 | 32 | 15201 | 34.25 | 1420 | 1472 | 400.8 |
| D | 1 | 70 | 281963 | 769.4 | 1497 | 1494 | 364.5 |
| D | 10 | 171 | 179202 | 487.5 | 1497 | 1494 | 364.5 |
| D | 5 | 254 | 133412 | 361.89 | 1497 | 1494 | 364.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

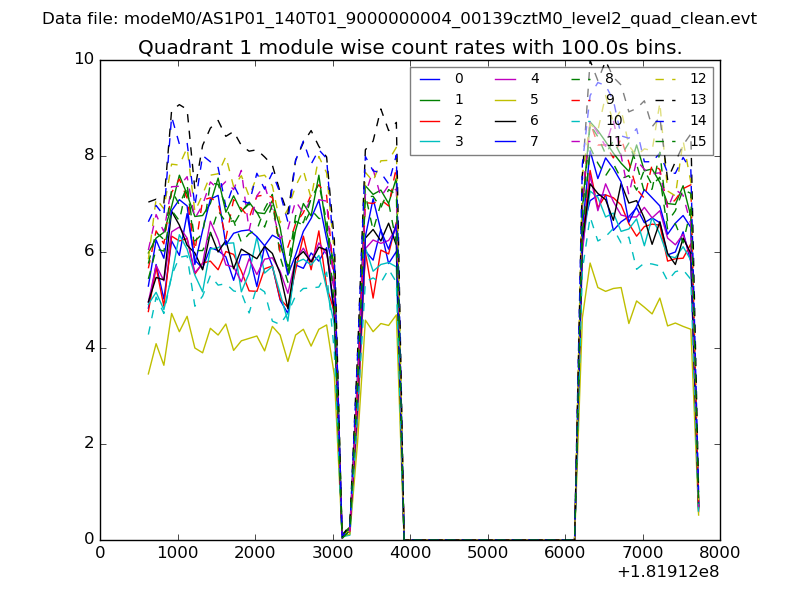

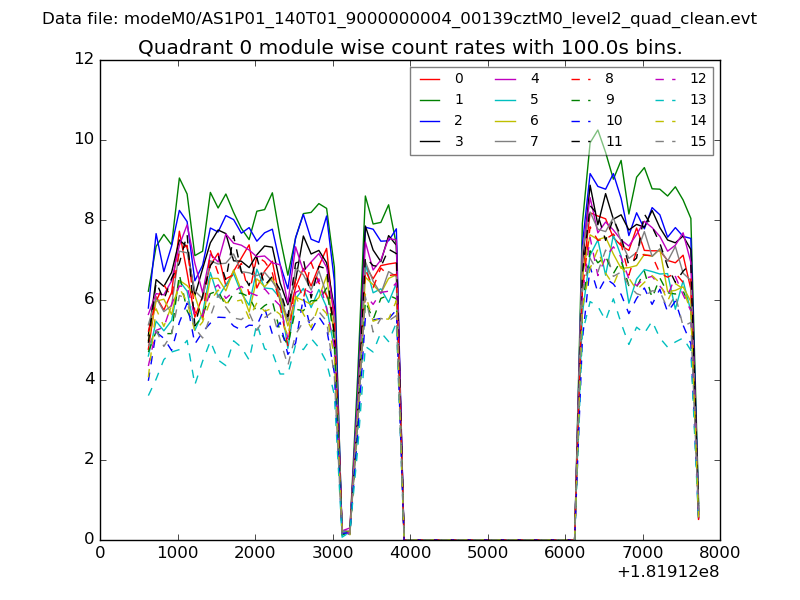

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

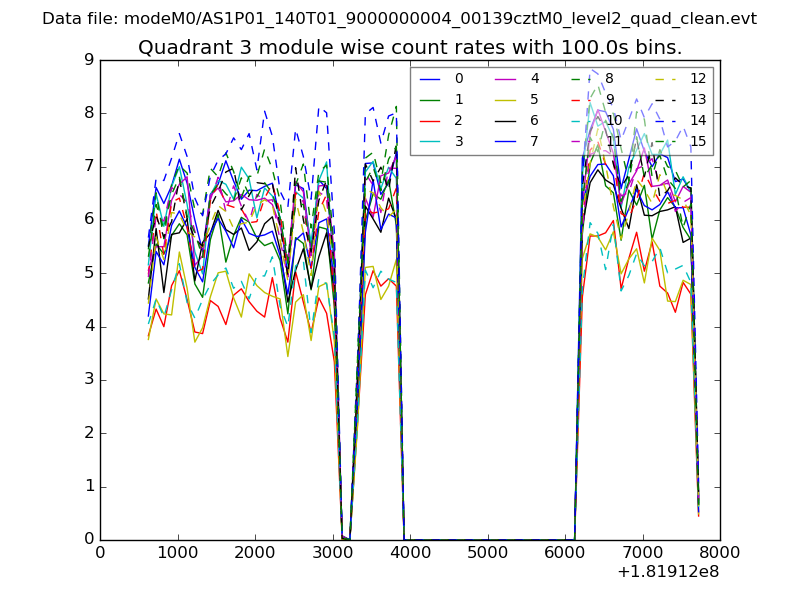

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
