| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_120T01_9000000006_00153cztM0_level2.evt | modeM0/AS1P01_120T01_9000000006_00153cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,016,873,280 | 44,778,240 |
| Size | 969.8 MB | 42.7 MB |
| Events in quadrant A | 7,327,222 | 244,613 |
| Events in quadrant B | 7,487,055 | 250,740 |
| Events in quadrant C | 6,426,891 | 245,397 |
| Events in quadrant D | 9,189,568 | 227,636 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25662 | 2 |
| B | 0 | 26164 | 1 |
| C | 0 | 22982 | 1 |
| D | 0 | 31235 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5522 | 20 | 0.362188% |
| B | 5522 | 31 | 0.561391% |
| C | 5522 | 4 | 0.072438% |
| D | 5522 | 553 | 10.014488% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7114 | 5524 | 267 | 267 | 3.75% | 4.83% |  |
| B | 7114 | 5524 | 322 | 322 | 4.53% | 5.83% |  |
| C | 7114 | 5524 | 59 | 59 | 0.83% | 1.07% |  |
| D | 7114 | 5524 | 1124 | 1124 | 15.80% | 20.35% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 146 | 83733 | 275.61 | 1814 | 1769 | 297.4 |
| A | 14 | 10 | 67961 | 222.58 | 1814 | 1769 | 297.4 |
| A | 0 | 86 | 48764 | 158.03 | 1814 | 1769 | 297.4 |
| B | 10 | 199 | 253892 | 634.35 | 1761 | 1766 | 397.5 |
| B | 5 | 216 | 192863 | 480.8 | 1761 | 1766 | 397.5 |
| B | 8 | 236 | 113561 | 281.28 | 1761 | 1766 | 397.5 |
| C | 0 | 218 | 63205 | 136.19 | 1605 | 1662 | 451.9 |
| C | 10 | 17 | 12982 | 25.05 | 1605 | 1662 | 451.9 |
| C | 9 | 231 | 11835 | 22.51 | 1605 | 1662 | 451.9 |
| D | 13 | 169 | 1325730 | 3094.5 | 1624 | 1636 | 427.9 |
| D | 13 | 222 | 454650 | 1058.72 | 1624 | 1636 | 427.9 |
| D | 0 | 243 | 229850 | 533.35 | 1624 | 1636 | 427.9 |

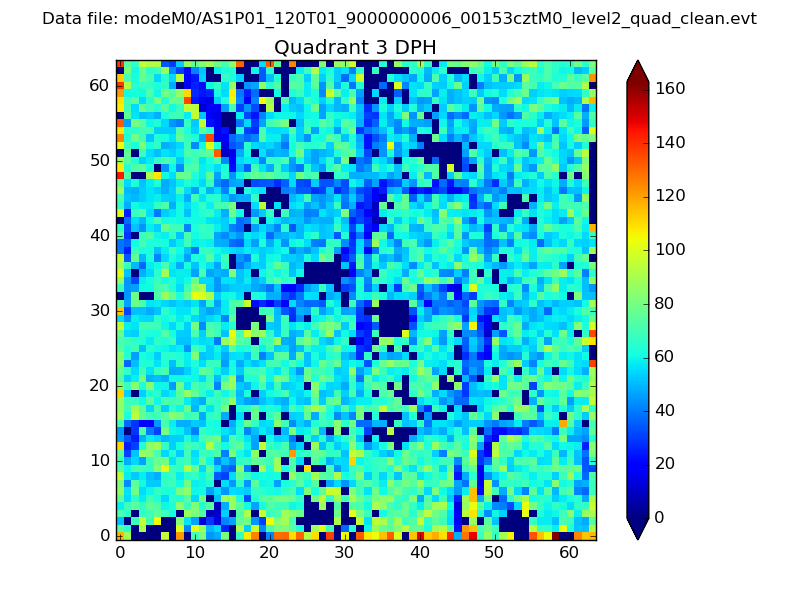

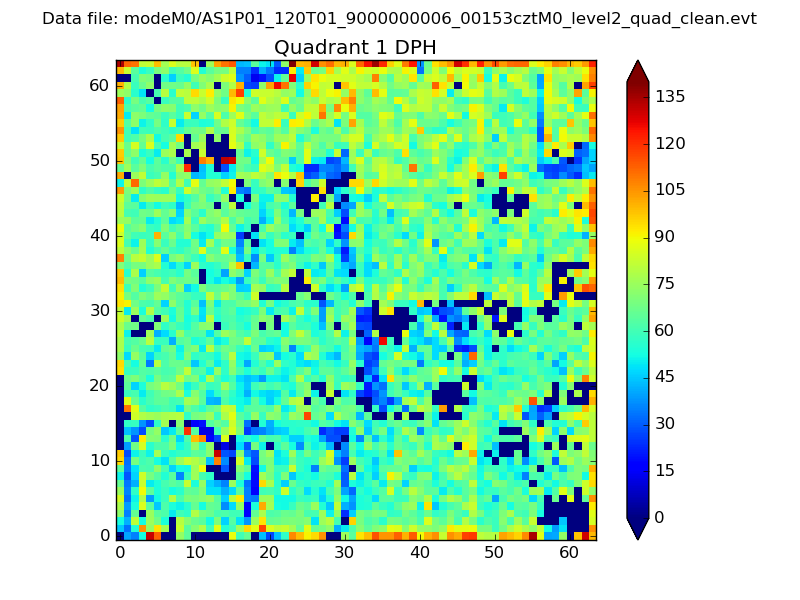

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

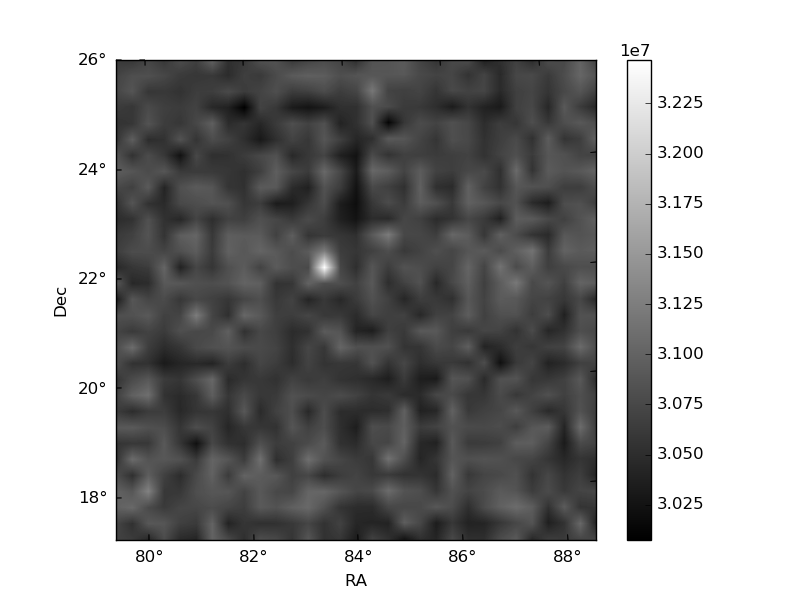

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

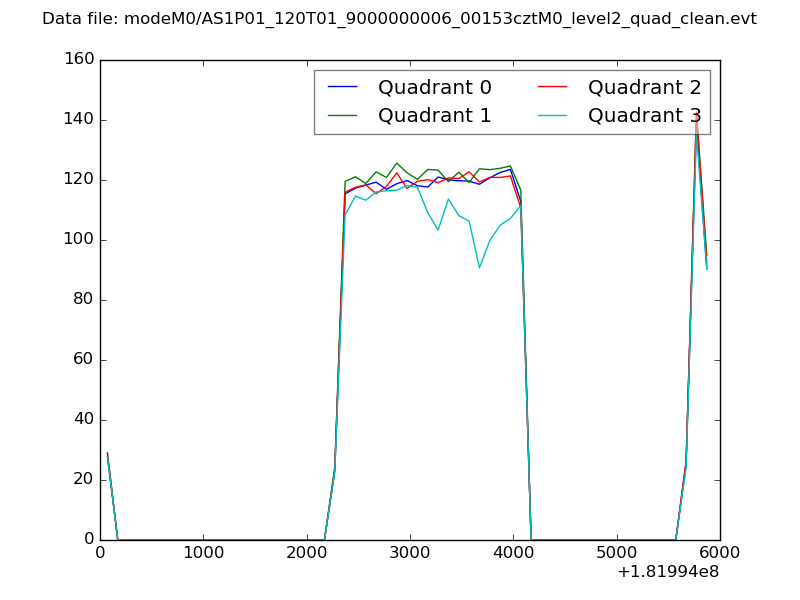

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

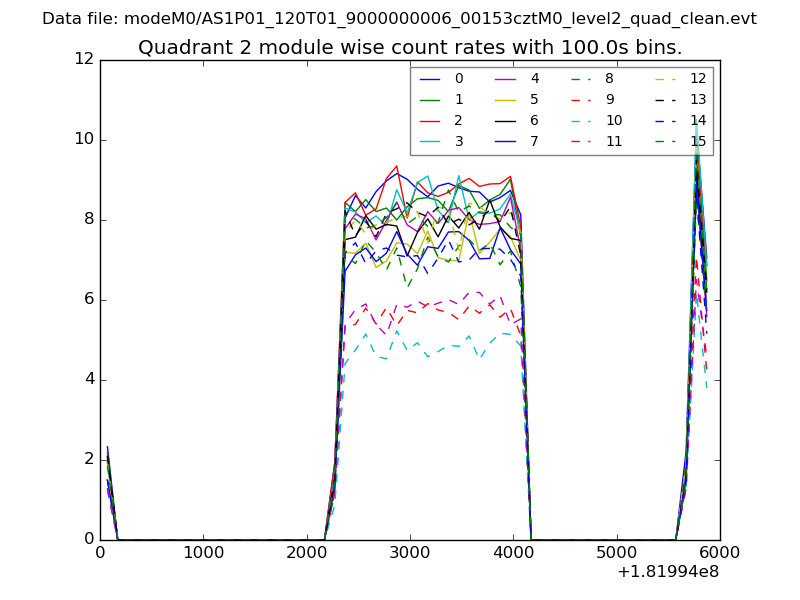

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

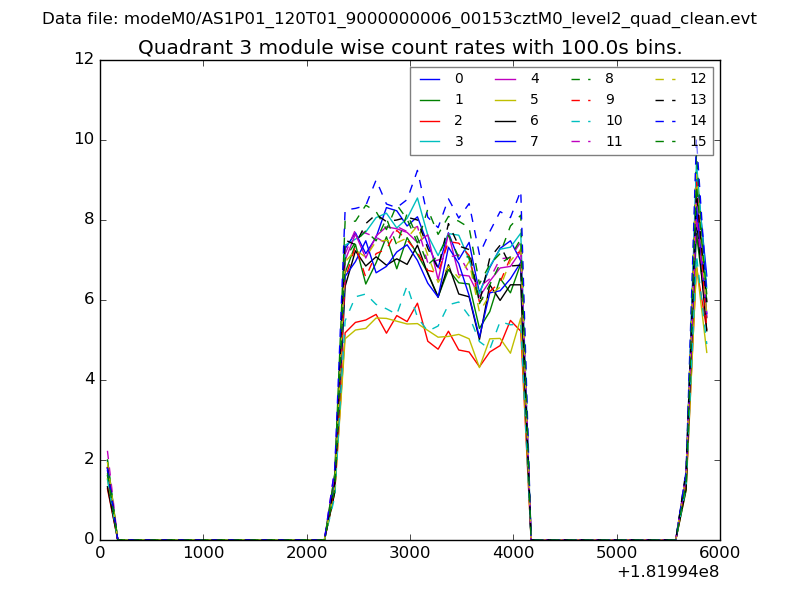

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

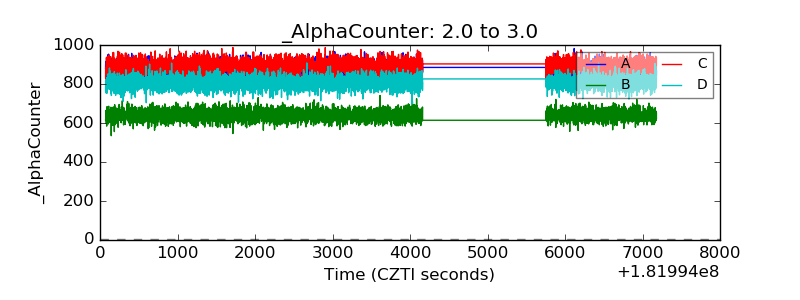

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

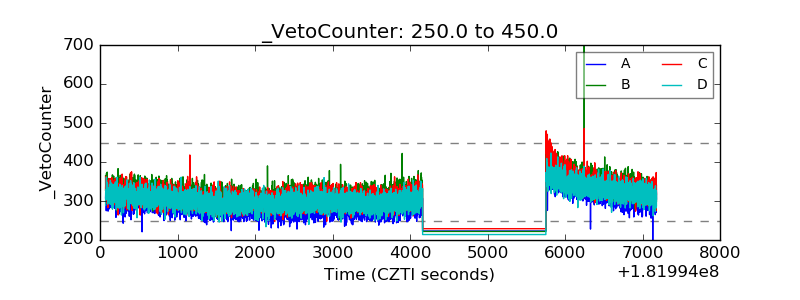

| Veto Counter |  |
