| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_120T01_9000000006_00159cztM0_level2.evt | modeM0/AS1P01_120T01_9000000006_00159cztM0_level2_quad_clean.evt |
| Size (bytes) | 913,302,720 | 88,680,960 |
| Size | 871.0 MB | 84.6 MB |
| Events in quadrant A | 6,743,259 | 570,672 |
| Events in quadrant B | 6,831,956 | 592,129 |
| Events in quadrant C | 6,357,432 | 584,462 |
| Events in quadrant D | 7,359,268 | 550,731 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23954 | 2 |
| B | 0 | 24215 | 1 |
| C | 0 | 22858 | 1 |
| D | 0 | 25848 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5544 | 15 | 0.270563% |
| B | 5544 | 5 | 0.090188% |
| C | 5544 | 2 | 0.036075% |
| D | 5544 | 90 | 1.623377% |

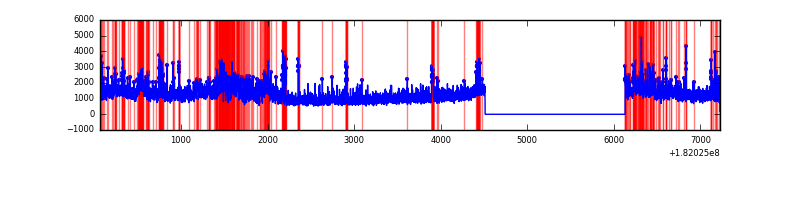

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7164 | 5546 | 167 | 167 | 2.33% | 3.01% |  |
| B | 7164 | 5546 | 150 | 150 | 2.09% | 2.70% |  |
| C | 7164 | 5546 | 77 | 77 | 1.07% | 1.39% |  |
| D | 7164 | 5546 | 521 | 521 | 7.27% | 9.39% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 106 | 28753 | 72.98 | 1705 | 1697 | 370.8 |
| A | 0 | 86 | 28581 | 72.51 | 1705 | 1697 | 370.8 |
| A | 15 | 184 | 26416 | 66.67 | 1705 | 1697 | 370.8 |
| B | 10 | 199 | 108575 | 266.95 | 1729 | 1744 | 400.2 |
| B | 5 | 216 | 37141 | 88.45 | 1729 | 1744 | 400.2 |
| B | 0 | 212 | 23731 | 54.94 | 1729 | 1744 | 400.2 |
| C | 0 | 188 | 21428 | 44.34 | 1598 | 1664 | 445.7 |
| C | 0 | 202 | 12495 | 24.3 | 1598 | 1664 | 445.7 |
| C | 9 | 185 | 11499 | 22.06 | 1598 | 1664 | 445.7 |
| D | 14 | 53 | 816502 | 1763.85 | 1552 | 1603 | 462.0 |
| D | 10 | 202 | 158956 | 340.59 | 1552 | 1603 | 462.0 |
| D | 7 | 67 | 133726 | 285.98 | 1552 | 1603 | 462.0 |

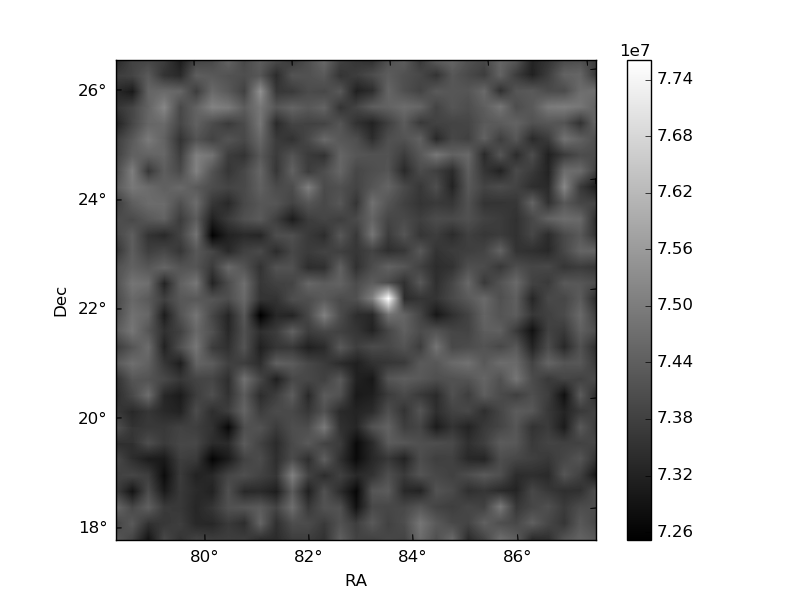

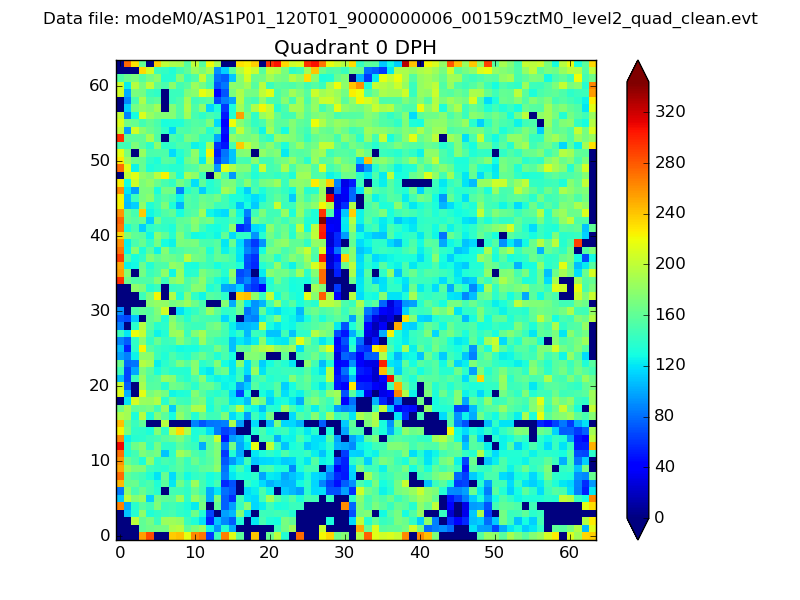

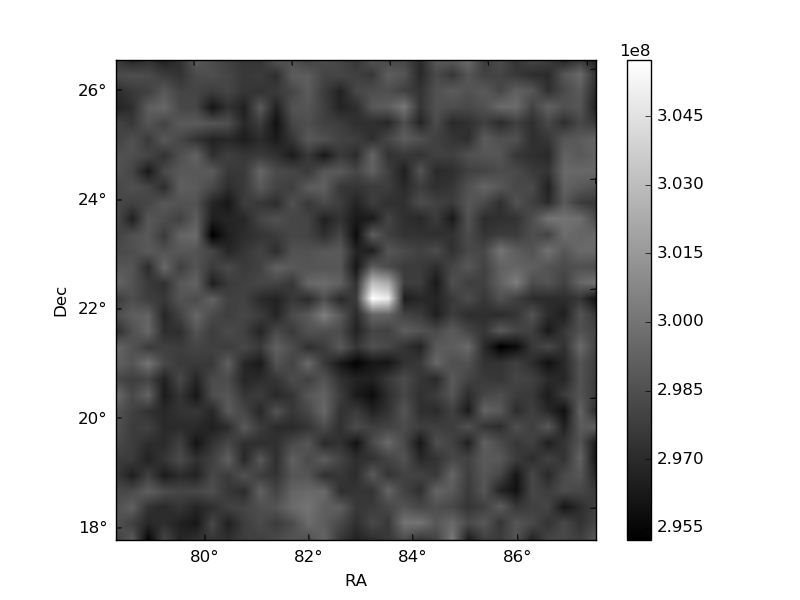

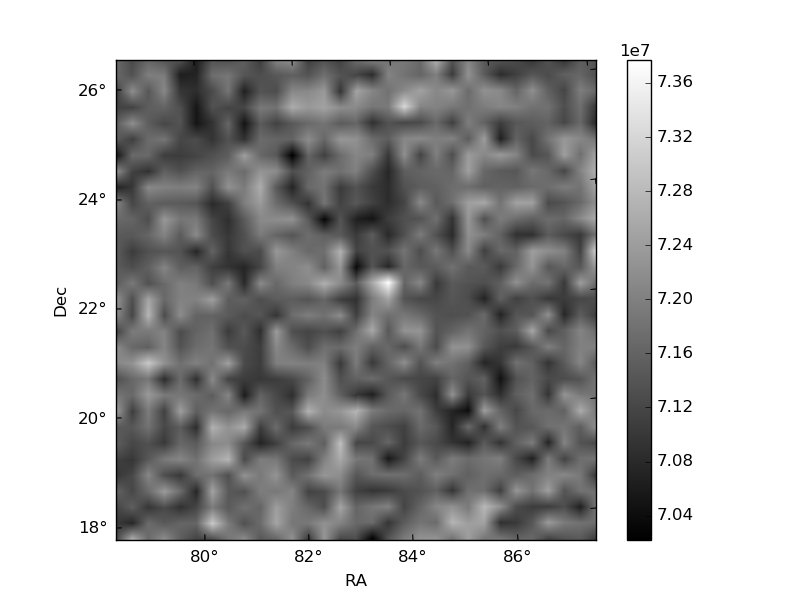

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

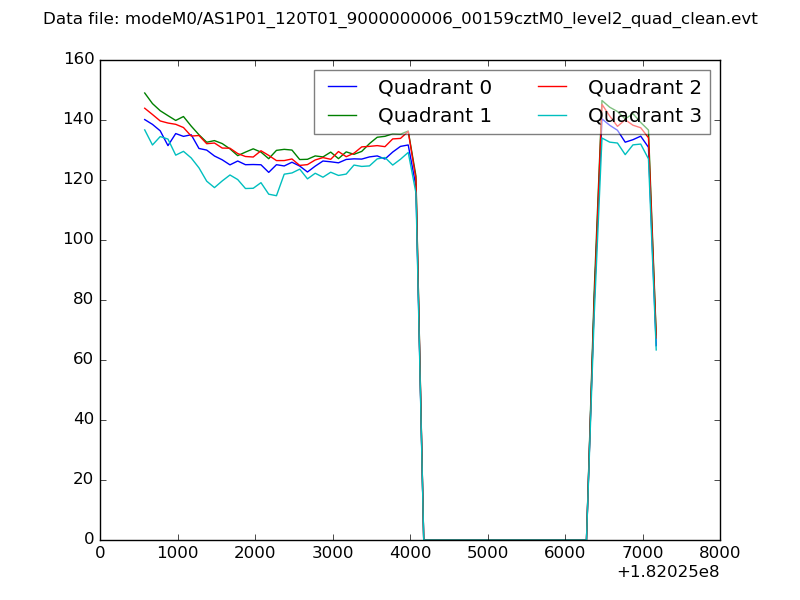

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

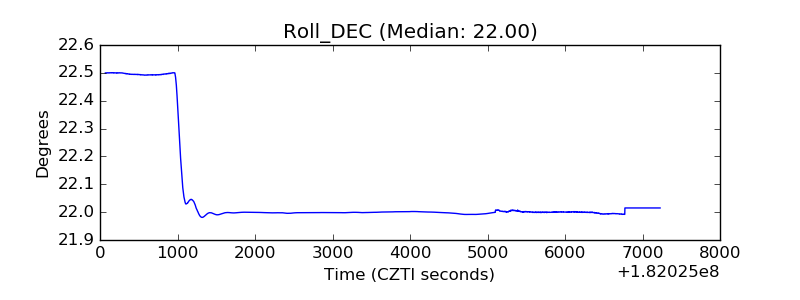

| _Roll_DEC |  |
| _Roll_RA |  |

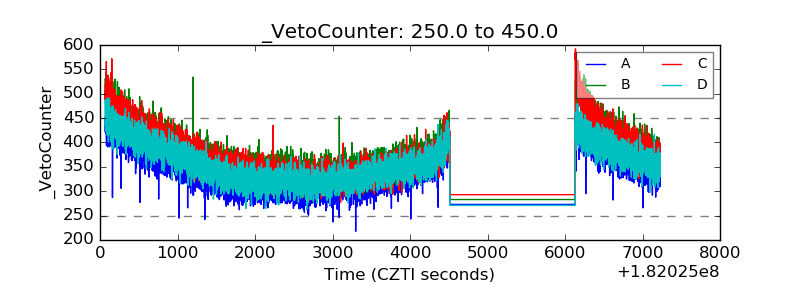

| Veto Counter |  |
