| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_120T01_9000000006_00163cztM0_level2.evt | modeM0/AS1P01_120T01_9000000006_00163cztM0_level2_quad_clean.evt |
| Size (bytes) | 939,470,400 | 69,022,080 |
| Size | 895.9 MB | 65.8 MB |
| Events in quadrant A | 7,219,968 | 415,297 |
| Events in quadrant B | 7,541,708 | 417,985 |
| Events in quadrant C | 6,518,331 | 417,907 |
| Events in quadrant D | 6,759,441 | 406,438 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 126 | 0 |
| B | 0 | 126 | 0 |
| C | 0 | 126 | 0 |
| D | 0 | 127 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25875 | 2 |
| B | 0 | 26783 | 1 |
| C | 0 | 23820 | 1 |
| D | 0 | 24544 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 6205 | 13 | 0.209508% |
| B | 6205 | 22 | 0.354553% |
| C | 6205 | 4 | 0.064464% |
| D | 6205 | 37 | 0.596293% |

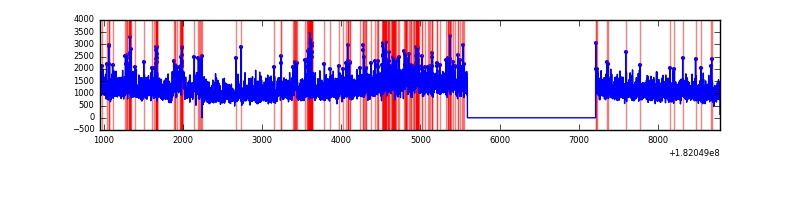

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

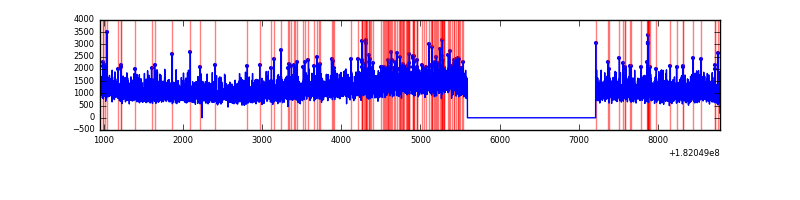

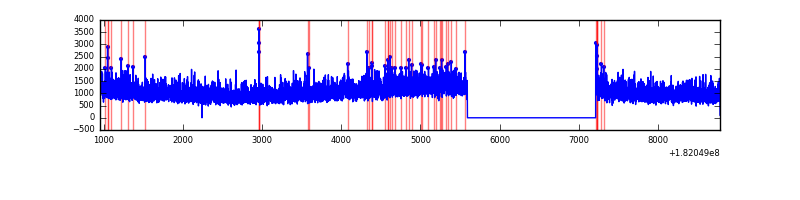

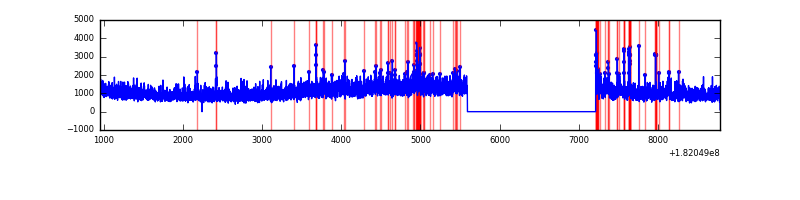

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7828 | 6208 | 158 | 158 | 2.02% | 2.55% |  |
| B | 7828 | 6208 | 250 | 250 | 3.19% | 4.03% |  |
| C | 7828 | 6208 | 47 | 47 | 0.60% | 0.76% |  |
| D | 7828 | 6208 | 117 | 117 | 1.49% | 1.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 17 | 32106 | 74.95 | 1824 | 1816 | 404.1 |
| A | 14 | 10 | 30436 | 70.82 | 1824 | 1816 | 404.1 |
| A | 0 | 86 | 26700 | 61.57 | 1824 | 1816 | 404.1 |
| B | 10 | 199 | 259336 | 604.15 | 1813 | 1823 | 426.2 |
| B | 0 | 164 | 127745 | 295.42 | 1813 | 1823 | 426.2 |
| B | 5 | 85 | 107291 | 247.44 | 1813 | 1823 | 426.2 |
| C | 10 | 33 | 14035 | 27.17 | 1633 | 1692 | 454.4 |
| C | 0 | 188 | 13390 | 25.75 | 1633 | 1692 | 454.4 |
| C | 1 | 1 | 11692 | 22.01 | 1633 | 1692 | 454.4 |
| D | 14 | 53 | 209947 | 417.98 | 1618 | 1675 | 498.3 |
| D | 13 | 28 | 65681 | 128.45 | 1618 | 1675 | 498.3 |
| D | 1 | 70 | 49377 | 95.73 | 1618 | 1675 | 498.3 |

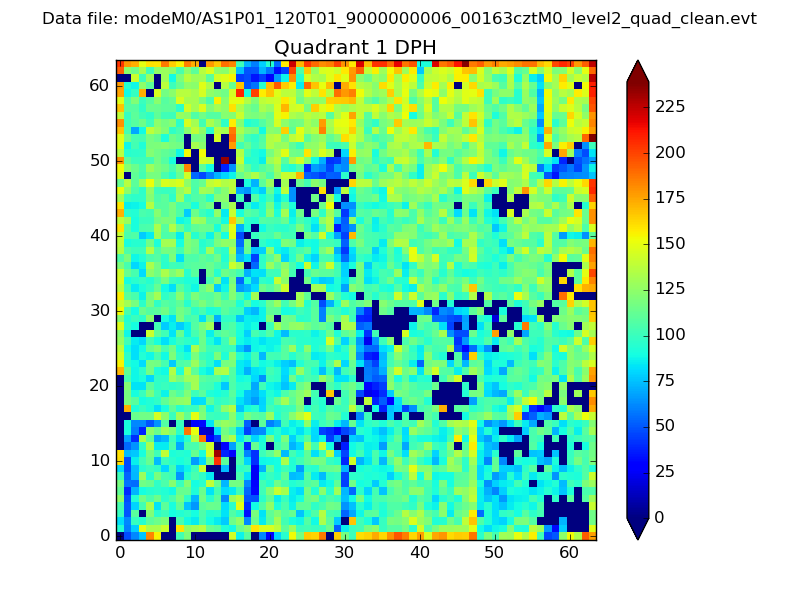

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |

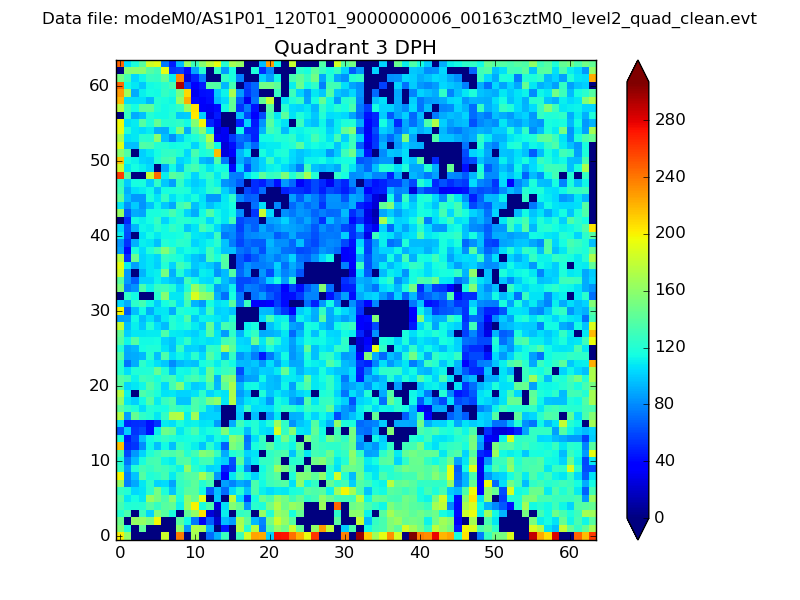

|---|---|---|---|
| Quadrant D |  |
 |

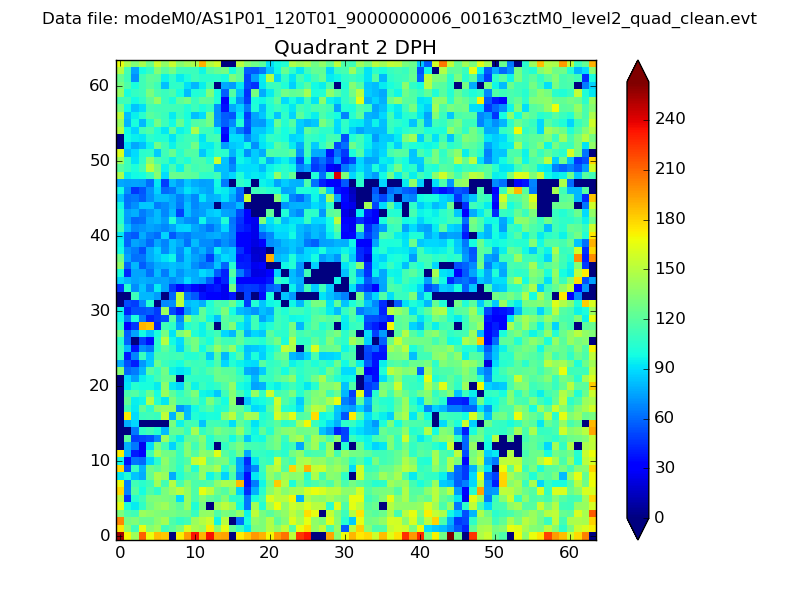

Quadrant C |

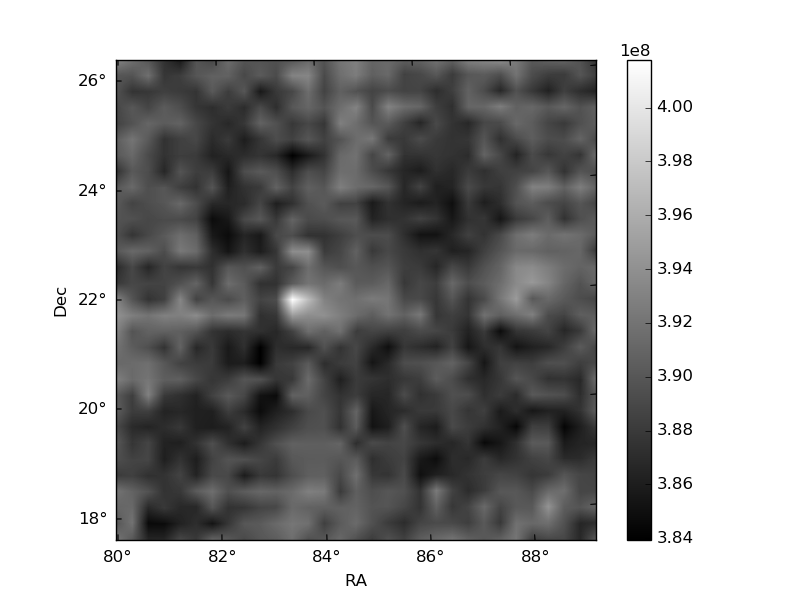

| Plot type | Count rate plots | Images |
|---|---|---|

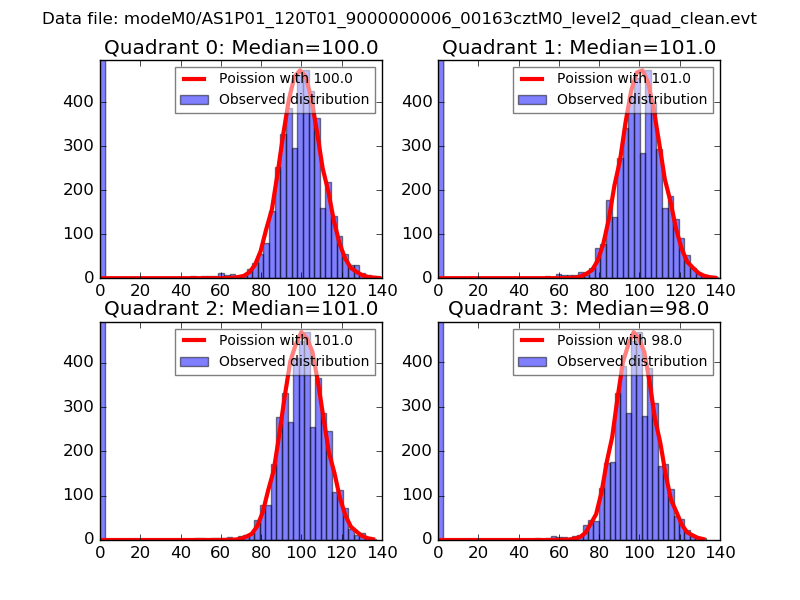

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

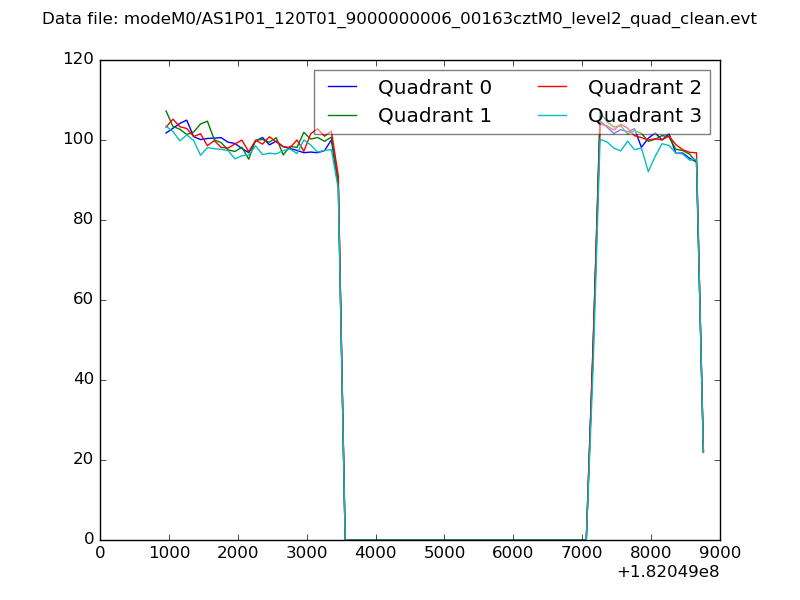

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

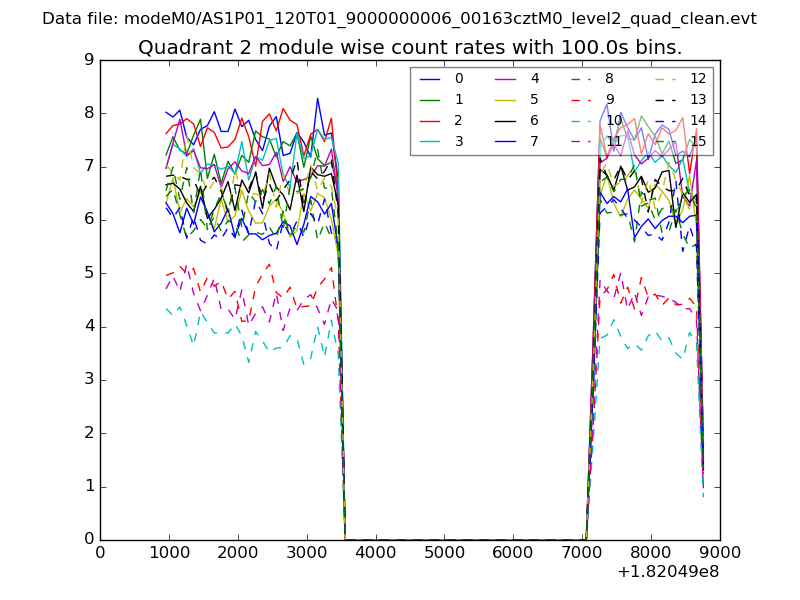

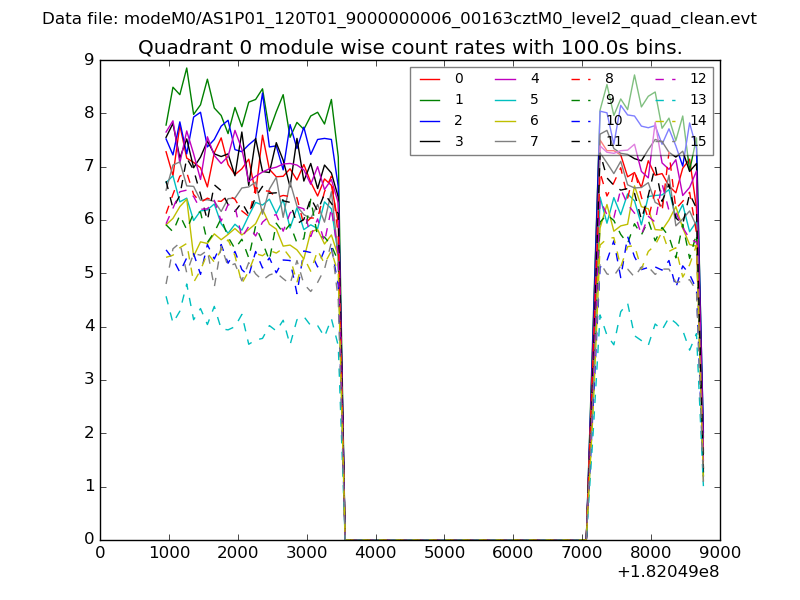

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

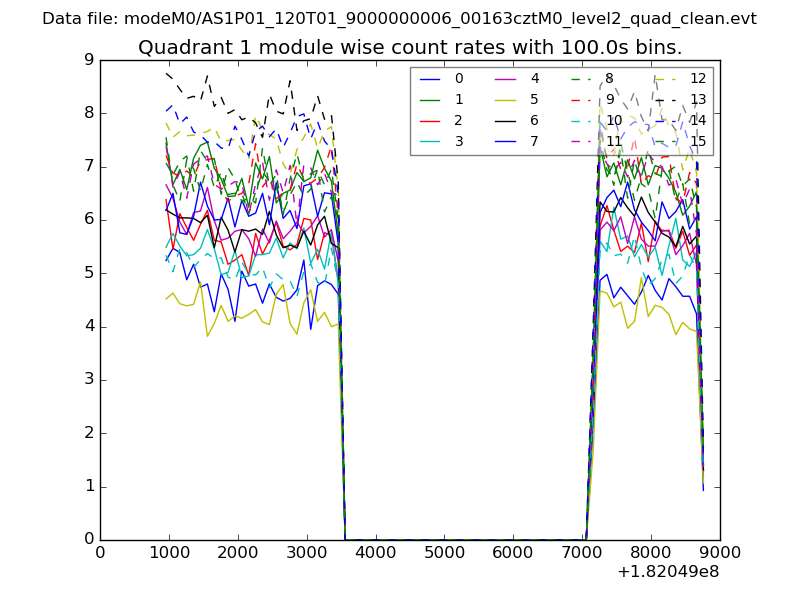

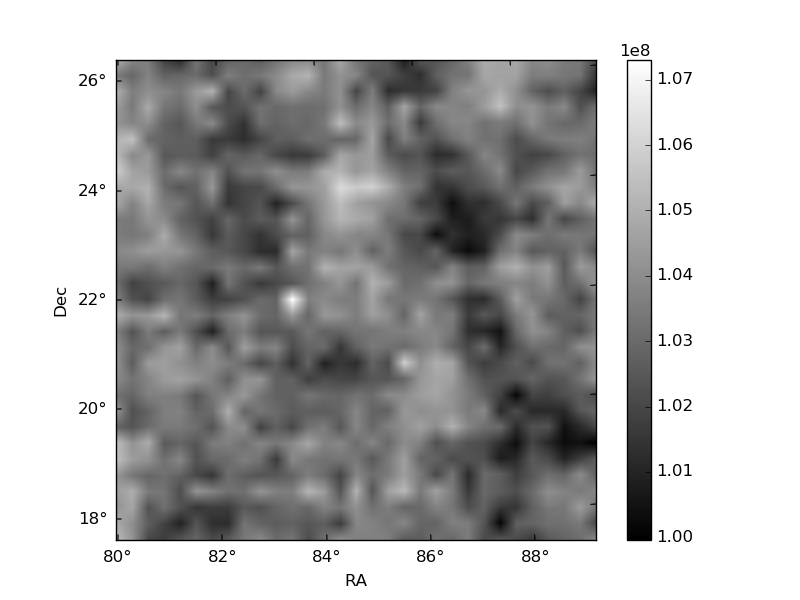

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

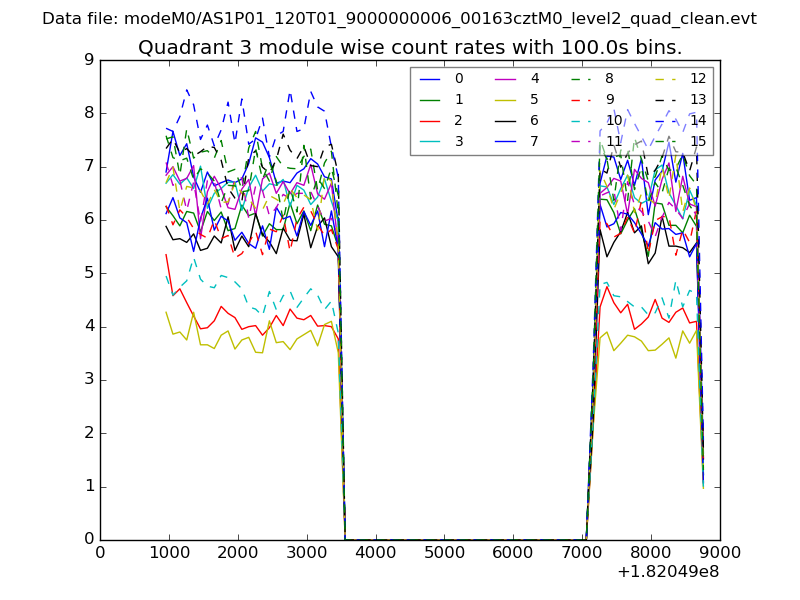

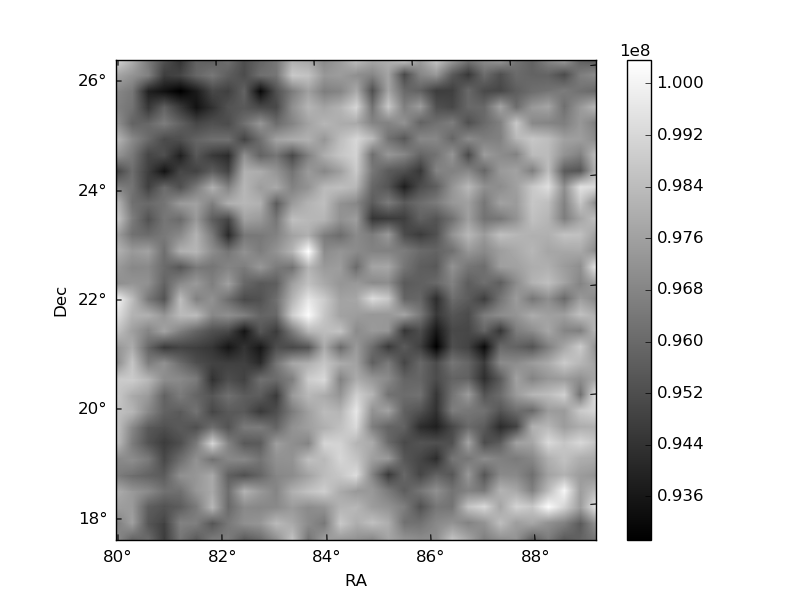

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |

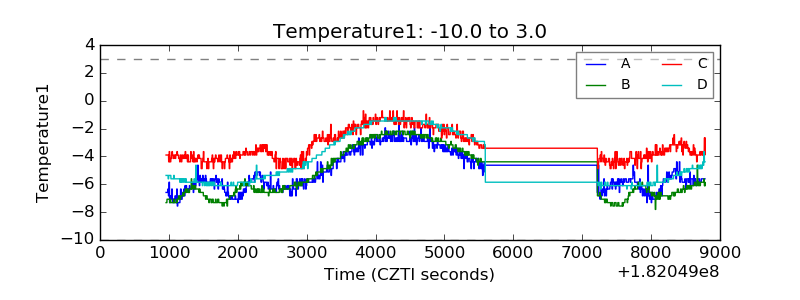

| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

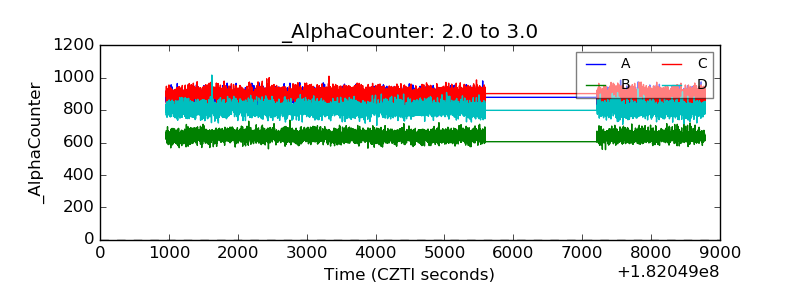

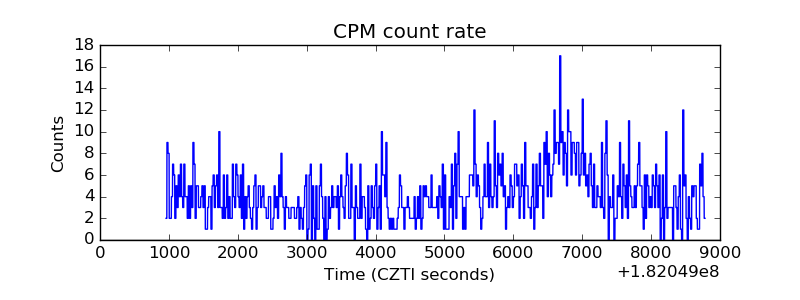

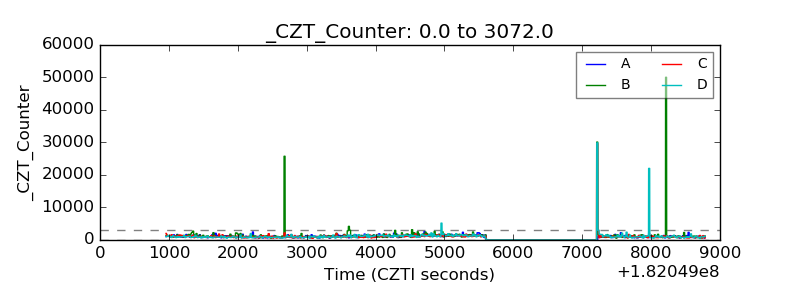

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

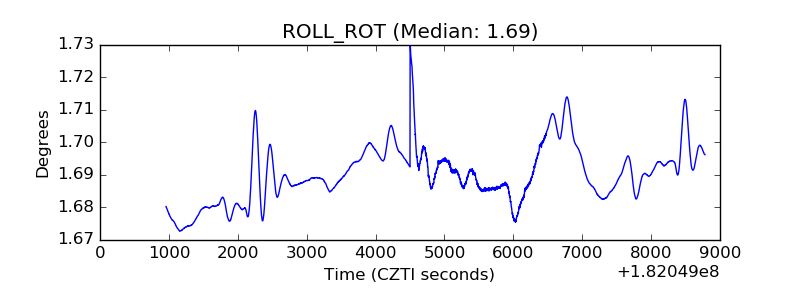

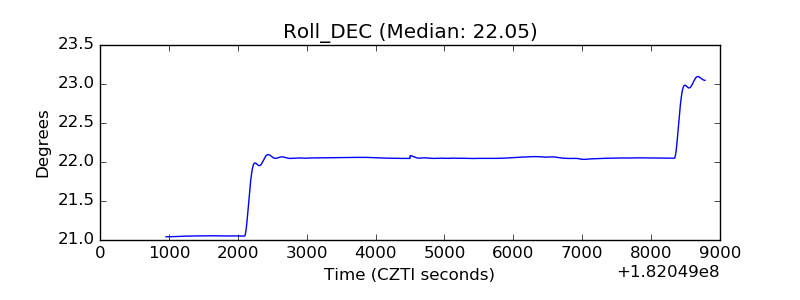

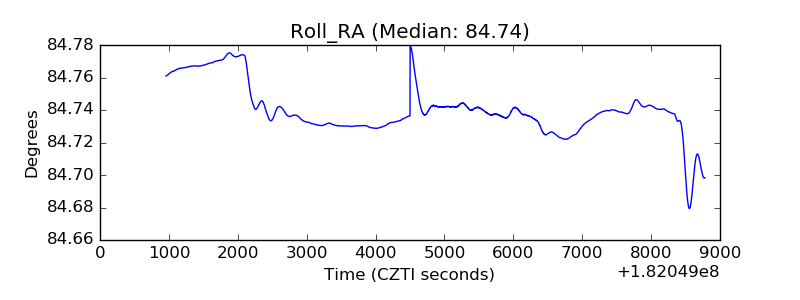

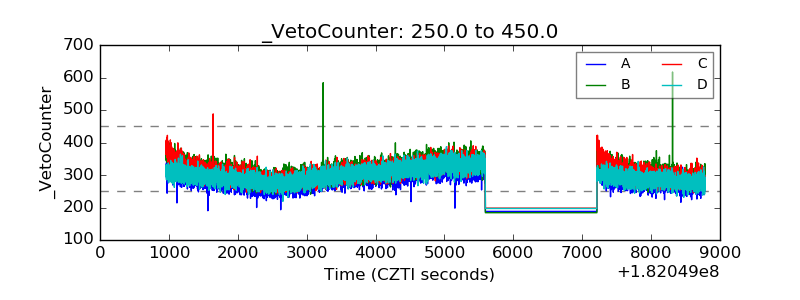

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
