| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_134T01_9000000008_00169cztM0_level2.evt | modeM0/AS1P01_134T01_9000000008_00169cztM0_level2_quad_clean.evt |
| Size (bytes) | 948,107,520 | 46,889,280 |
| Size | 904.2 MB | 44.7 MB |
| Events in quadrant A | 7,158,210 | 255,513 |
| Events in quadrant B | 7,626,609 | 261,689 |
| Events in quadrant C | 6,440,892 | 258,323 |
| Events in quadrant D | 7,116,963 | 252,504 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 25254 | 2 |
| B | 0 | 26627 | 1 |
| C | 0 | 23118 | 1 |
| D | 0 | 25147 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5592 | 38 | 0.679542% |
| B | 5592 | 125 | 2.235336% |
| C | 5592 | 10 | 0.178827% |
| D | 5592 | 219 | 3.916309% |

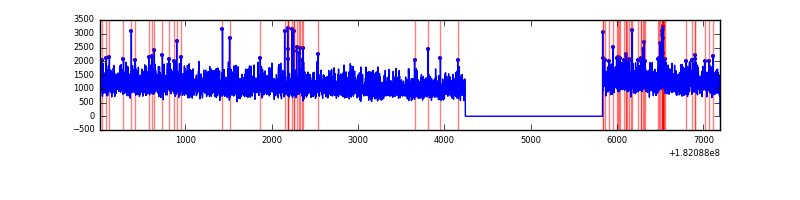

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7184 | 5594 | 261 | 261 | 3.63% | 4.67% |  |
| B | 7184 | 5594 | 387 | 387 | 5.39% | 6.92% |  |
| C | 7184 | 5594 | 77 | 77 | 1.07% | 1.38% |  |
| D | 7184 | 5594 | 437 | 437 | 6.08% | 7.81% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 96 | 177582 | 440.72 | 1783 | 1766 | 398.9 |
| A | 13 | 17 | 30574 | 72.21 | 1783 | 1766 | 398.9 |
| A | 14 | 10 | 18519 | 41.99 | 1783 | 1766 | 398.9 |
| B | 10 | 199 | 324050 | 777.53 | 1763 | 1773 | 414.5 |
| B | 8 | 5 | 318427 | 763.96 | 1763 | 1773 | 414.5 |
| B | 5 | 216 | 118235 | 280.98 | 1763 | 1773 | 414.5 |
| C | 0 | 186 | 20002 | 40.03 | 1619 | 1672 | 457.9 |
| C | 0 | 188 | 11758 | 22.02 | 1619 | 1672 | 457.9 |
| C | 10 | 33 | 10113 | 18.43 | 1619 | 1672 | 457.9 |
| D | 2 | 121 | 600147 | 1220.64 | 1595 | 1646 | 490.3 |
| D | 13 | 223 | 152294 | 307.25 | 1595 | 1646 | 490.3 |
| D | 1 | 2 | 46058 | 90.58 | 1595 | 1646 | 490.3 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

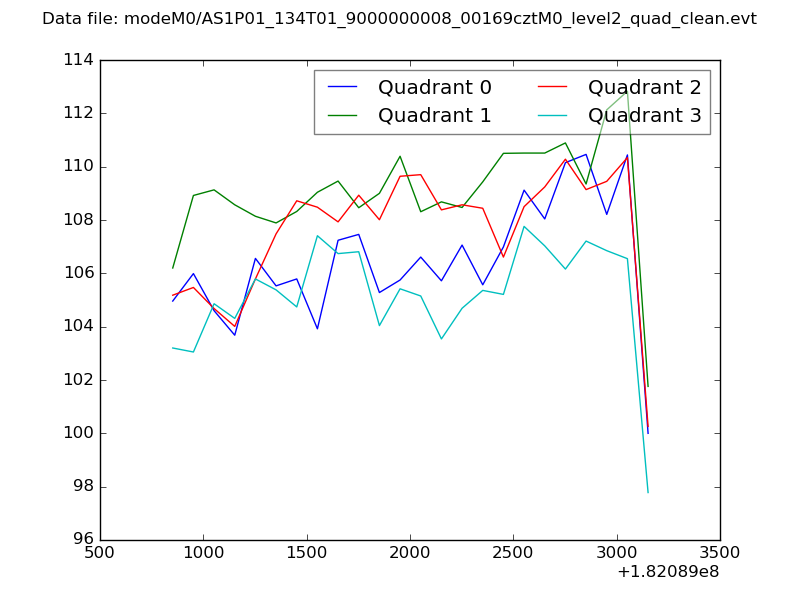

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

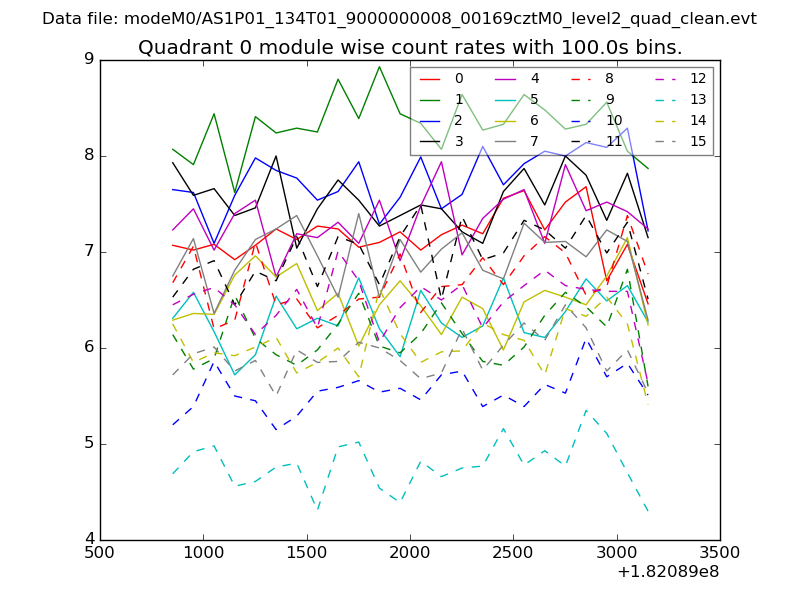

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

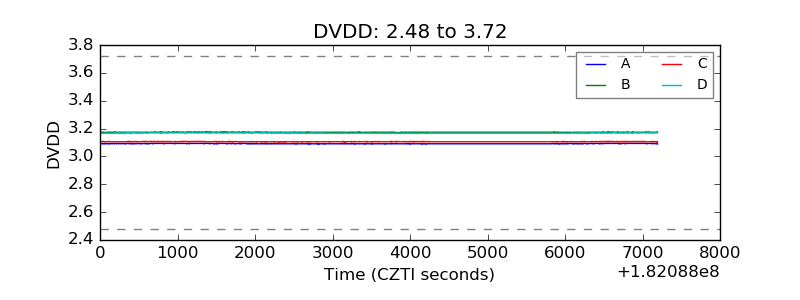

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

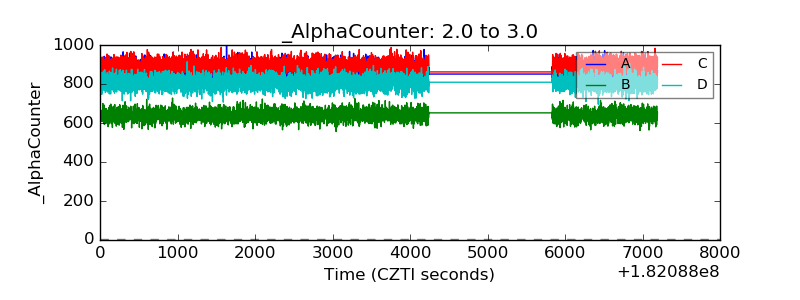

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
