| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_120T01_9000000016_00189cztM0_level2.evt | modeM0/AS1P01_120T01_9000000016_00189cztM0_level2_quad_clean.evt |
| Size (bytes) | 872,496,000 | 90,504,000 |
| Size | 832.1 MB | 86.3 MB |
| Events in quadrant A | 6,465,412 | 588,837 |
| Events in quadrant B | 7,501,622 | 592,899 |
| Events in quadrant C | 6,090,416 | 600,635 |
| Events in quadrant D | 6,003,203 | 576,193 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23081 | 2 |
| B | 0 | 26167 | 1 |
| C | 0 | 21979 | 1 |
| D | 0 | 21745 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5457 | 2 | 0.036650% |
| B | 5457 | 225 | 4.123145% |
| C | 5457 | 4 | 0.073300% |
| D | 5457 | 6 | 0.109951% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7048 | 5459 | 128 | 128 | 1.82% | 2.34% |  |
| B | 7048 | 5459 | 598 | 598 | 8.48% | 10.95% |  |
| C | 7048 | 5459 | 57 | 57 | 0.81% | 1.04% |  |
| D | 7048 | 5459 | 81 | 81 | 1.15% | 1.48% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 13 | 145 | 99851 | 273.28 | 1639 | 1627 | 359.4 |
| A | 13 | 239 | 8048 | 17.86 | 1639 | 1627 | 359.4 |
| A | 0 | 253 | 7295 | 15.77 | 1639 | 1627 | 359.4 |
| B | 0 | 247 | 1091232 | 2846.58 | 1648 | 1660 | 382.8 |
| B | 8 | 5 | 20734 | 49.83 | 1648 | 1660 | 382.8 |
| B | 14 | 50 | 20086 | 48.14 | 1648 | 1660 | 382.8 |
| C | 10 | 33 | 15549 | 32.9 | 1532 | 1594 | 424.2 |
| C | 0 | 202 | 11251 | 22.76 | 1532 | 1594 | 424.2 |
| C | 1 | 192 | 9301 | 18.17 | 1532 | 1594 | 424.2 |
| D | 1 | 4 | 86298 | 187.11 | 1490 | 1541 | 453.0 |
| D | 10 | 182 | 62421 | 134.4 | 1490 | 1541 | 453.0 |
| D | 2 | 237 | 19651 | 39.98 | 1490 | 1541 | 453.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

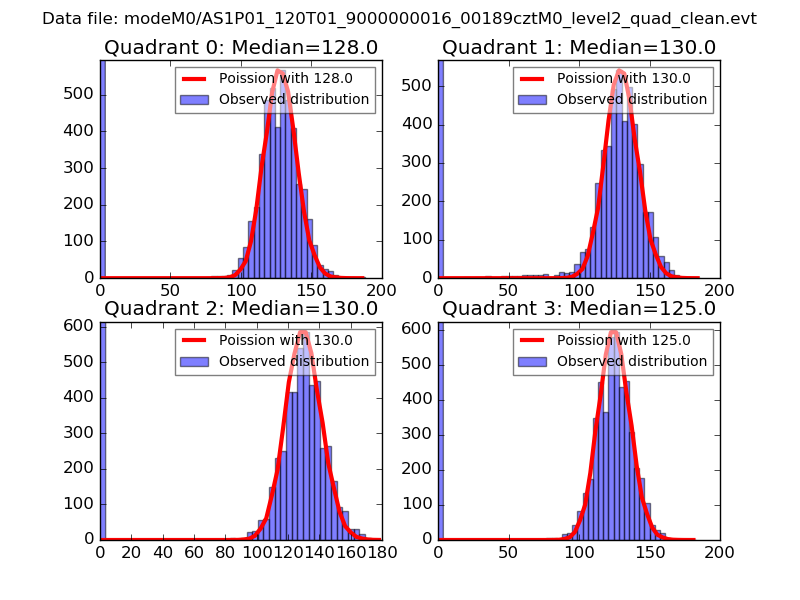

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

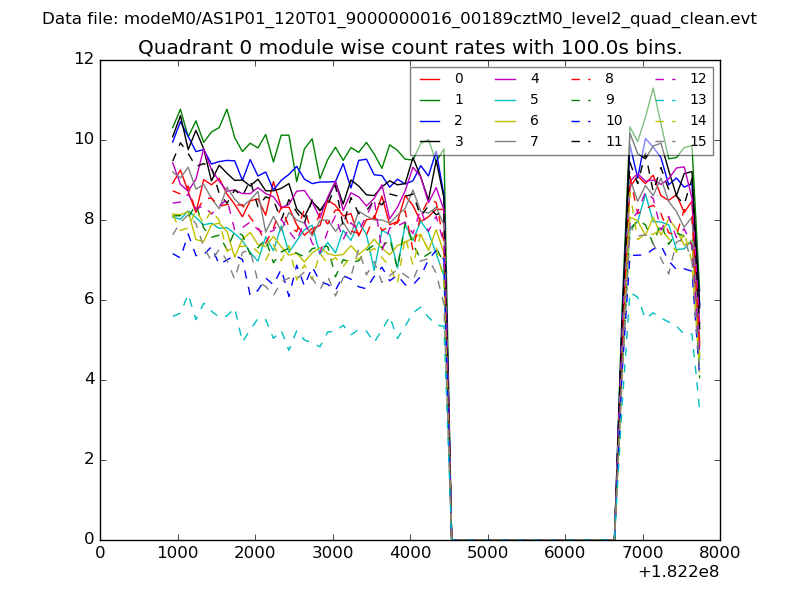

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

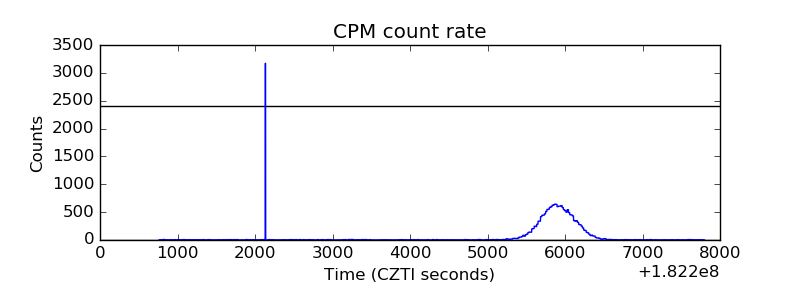

| _CPM_Rate |  |

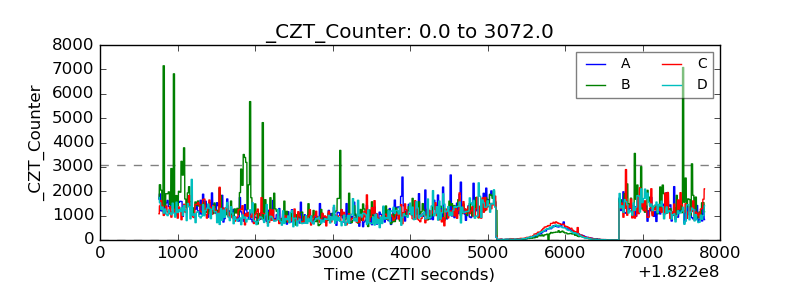

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
