| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_120T01_9000000016_00190cztM0_level2.evt | modeM0/AS1P01_120T01_9000000016_00190cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,006,122,240 | 88,712,640 |
| Size | 959.5 MB | 84.6 MB |
| Events in quadrant A | 6,789,515 | 580,826 |
| Events in quadrant B | 10,506,144 | 537,800 |
| Events in quadrant C | 6,330,778 | 593,000 |
| Events in quadrant D | 6,458,835 | 568,718 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24273 | 3 |
| B | 0 | 35535 | 2 |
| C | 0 | 22926 | 2 |
| D | 0 | 23330 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 22 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5806 | 3 | 0.051671% |
| B | 5806 | 1312 | 22.597313% |
| C | 5806 | 4 | 0.068894% |
| D | 5806 | 5 | 0.086118% |

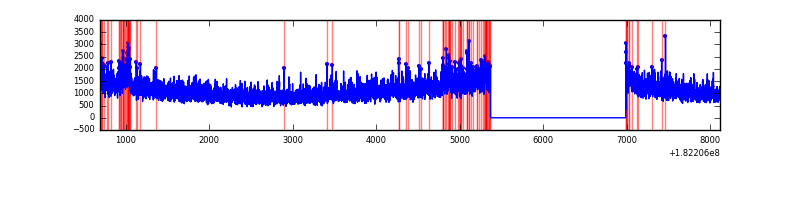

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7428 | 5808 | 118 | 118 | 1.59% | 2.03% |  |
| B | 7428 | 5808 | 1954 | 1954 | 26.31% | 33.64% |  |
| C | 7428 | 5808 | 54 | 54 | 0.73% | 0.93% |  |
| D | 7428 | 5808 | 109 | 109 | 1.47% | 1.88% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 5 | 244 | 69894 | 179.39 | 1728 | 1719 | 380.0 |
| A | 0 | 253 | 9876 | 21.46 | 1728 | 1719 | 380.0 |
| A | 13 | 239 | 8589 | 18.08 | 1728 | 1719 | 380.0 |
| B | 0 | 247 | 4169893 | 11030.48 | 1630 | 1642 | 377.9 |
| B | 0 | 217 | 28679 | 71.55 | 1630 | 1642 | 377.9 |
| B | 14 | 50 | 25250 | 62.47 | 1630 | 1642 | 377.9 |
| C | 0 | 188 | 10710 | 20.33 | 1602 | 1660 | 445.2 |
| C | 0 | 202 | 8989 | 16.46 | 1602 | 1660 | 445.2 |
| C | 14 | 254 | 5281 | 8.13 | 1602 | 1660 | 445.2 |
| D | 10 | 182 | 135650 | 281.02 | 1565 | 1616 | 477.0 |
| D | 1 | 4 | 118221 | 244.48 | 1565 | 1616 | 477.0 |
| D | 6 | 212 | 41299 | 83.2 | 1565 | 1616 | 477.0 |

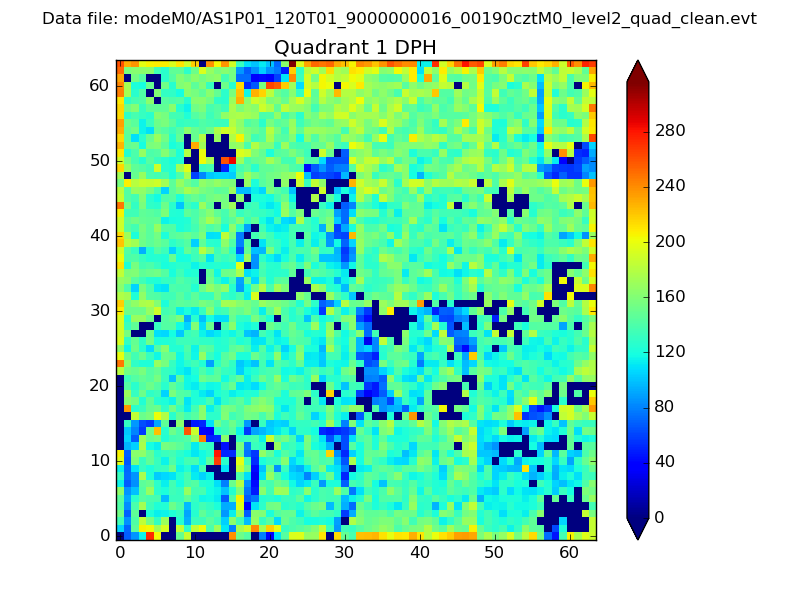

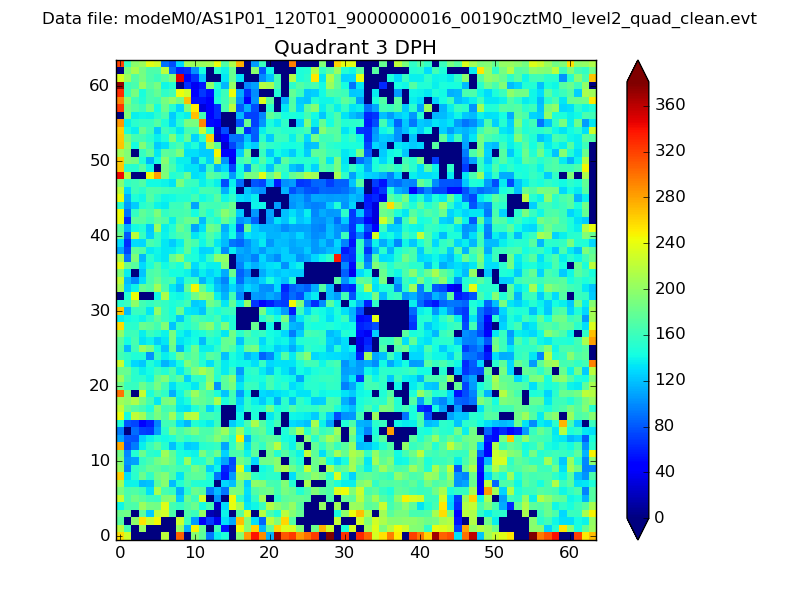

Histogram calculated using DETX and DETY for each event in the final _common_clean file

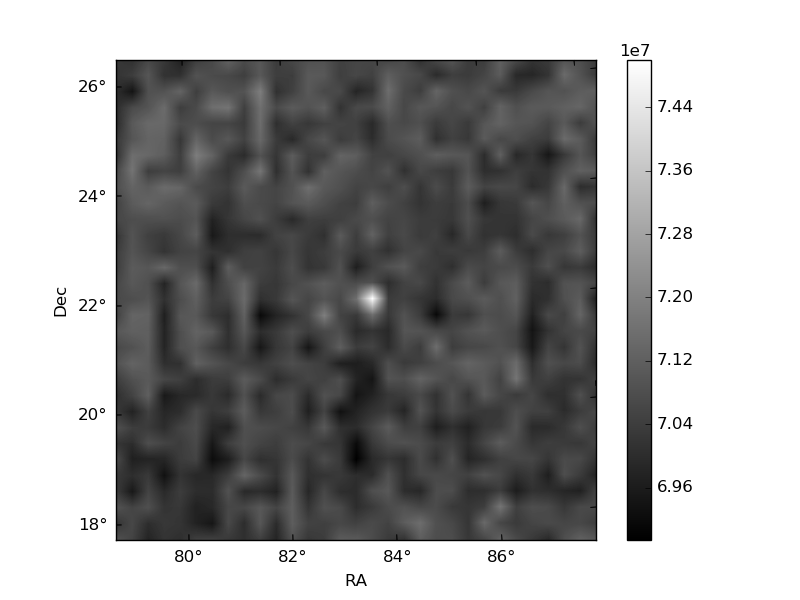

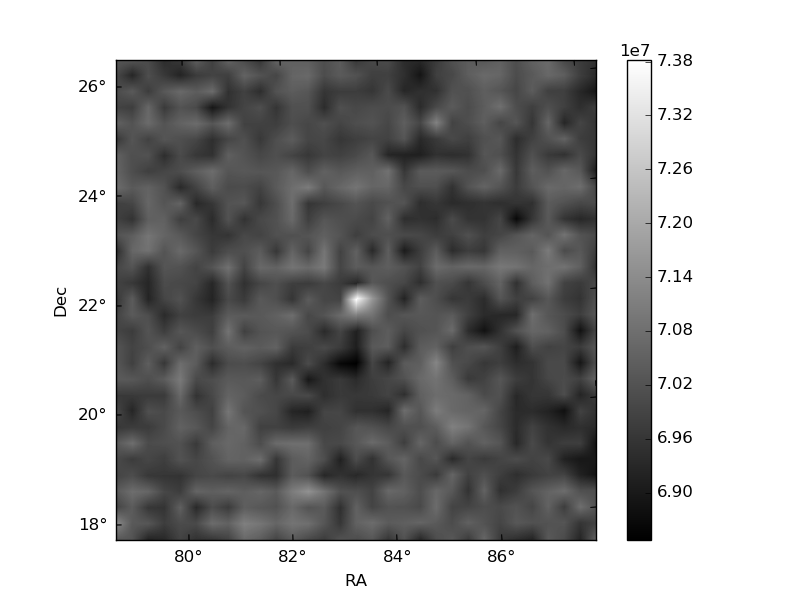

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

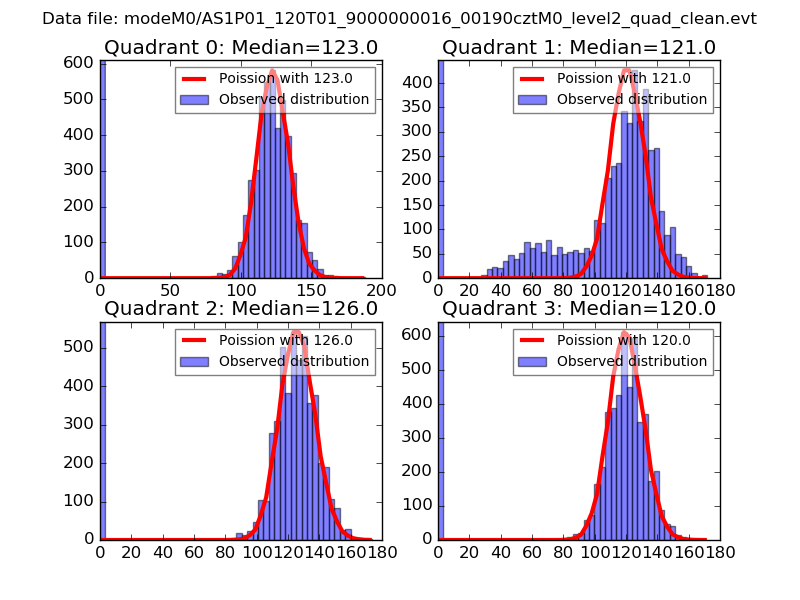

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

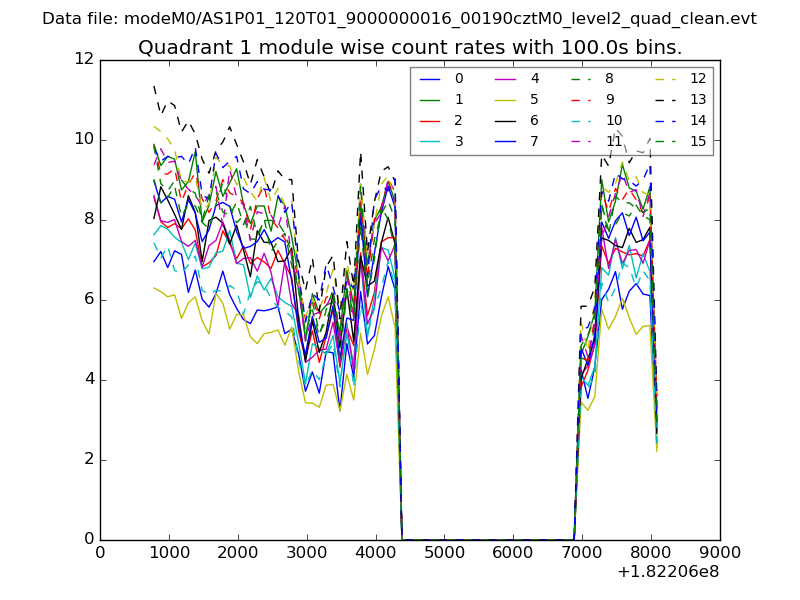

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

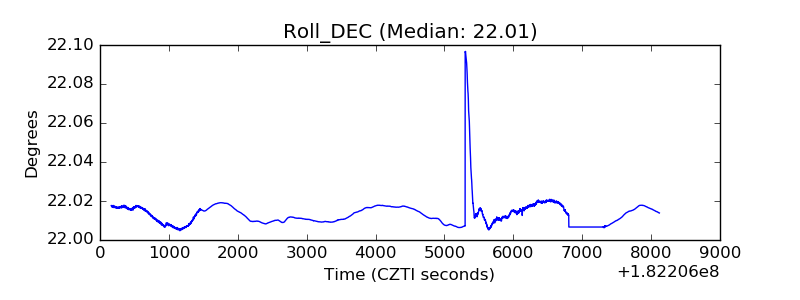

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
