| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_136T01_9000000014_00180cztM0_level2.evt | modeM0/AS1P01_136T01_9000000014_00180cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,065,879,360 | 51,903,360 |
| Size | 1016.5 MB | 49.5 MB |
| Events in quadrant A | 9,857,835 | 279,905 |
| Events in quadrant B | 8,254,428 | 304,320 |
| Events in quadrant C | 6,154,507 | 311,023 |
| Events in quadrant D | 7,650,378 | 290,893 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33292 | 2 |
| B | 0 | 28484 | 1 |
| C | 0 | 22191 | 1 |
| D | 0 | 26618 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5499 | 843 | 15.330060% |
| B | 5499 | 334 | 6.073832% |
| C | 5499 | 2 | 0.036370% |
| D | 5499 | 122 | 2.218585% |

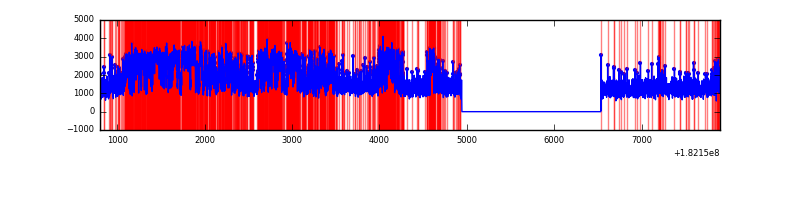

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7092 | 5501 | 1759 | 1759 | 24.80% | 31.98% |  |
| B | 7092 | 5501 | 941 | 941 | 13.27% | 17.11% |  |
| C | 7092 | 5501 | 60 | 60 | 0.85% | 1.09% |  |
| D | 7092 | 5501 | 515 | 515 | 7.26% | 9.36% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 128 | 3020175 | 8432.74 | 1632 | 1615 | 358.0 |
| A | 14 | 10 | 297845 | 827.56 | 1632 | 1615 | 358.0 |
| A | 5 | 244 | 113391 | 312.26 | 1632 | 1615 | 358.0 |
| B | 10 | 199 | 844548 | 2139.17 | 1665 | 1675 | 394.0 |
| B | 0 | 217 | 757604 | 1918.51 | 1665 | 1675 | 394.0 |
| B | 5 | 216 | 140858 | 353.24 | 1665 | 1675 | 394.0 |
| C | 9 | 201 | 66314 | 149.78 | 1533 | 1588 | 432.1 |
| C | 0 | 188 | 14902 | 30.81 | 1533 | 1588 | 432.1 |
| C | 10 | 33 | 13373 | 27.27 | 1533 | 1588 | 432.1 |
| D | 13 | 139 | 588097 | 1221.22 | 1541 | 1594 | 480.3 |
| D | 13 | 89 | 264878 | 548.21 | 1541 | 1594 | 480.3 |
| D | 13 | 255 | 195490 | 403.73 | 1541 | 1594 | 480.3 |

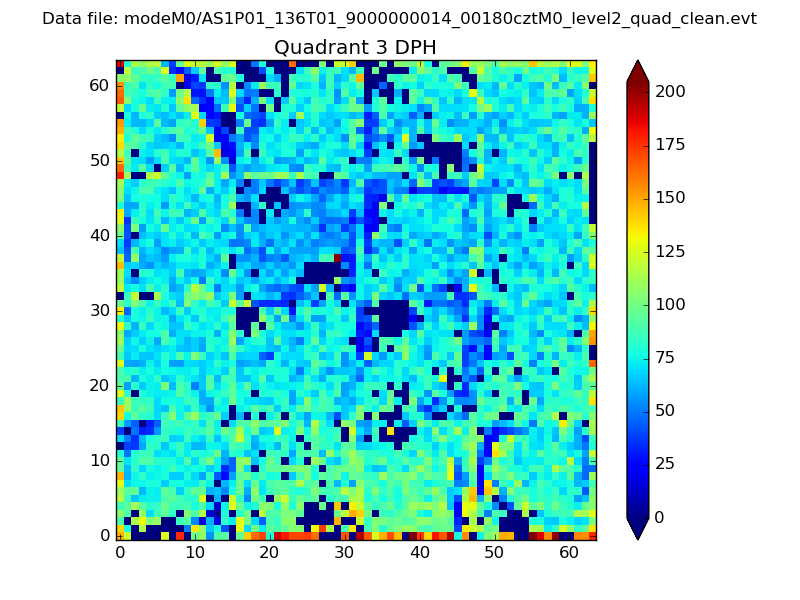

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

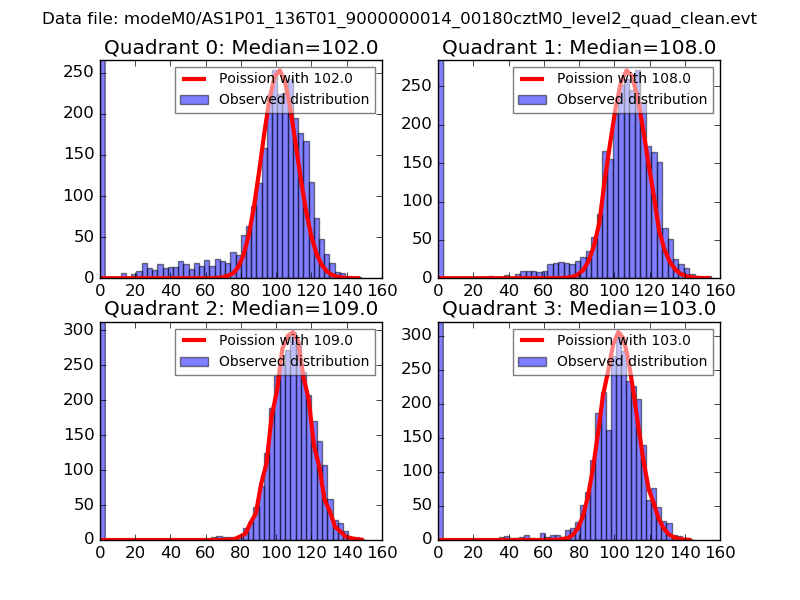

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

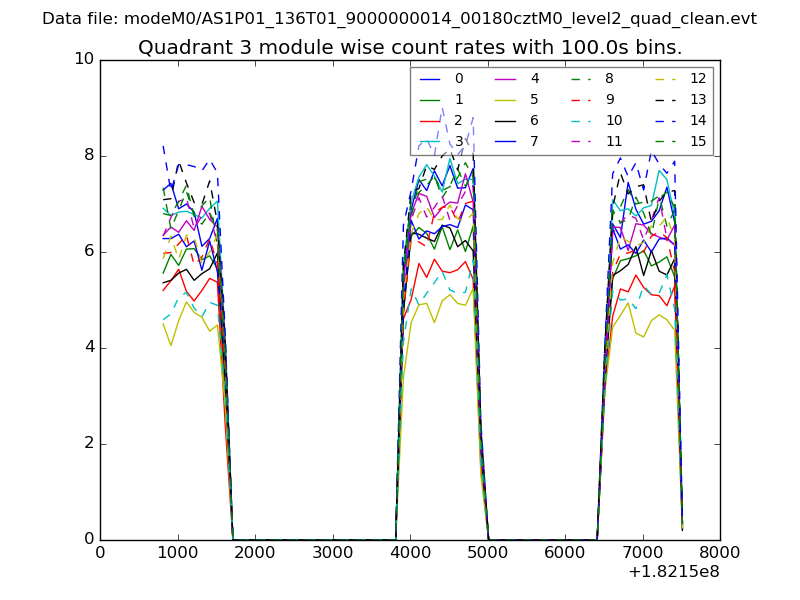

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

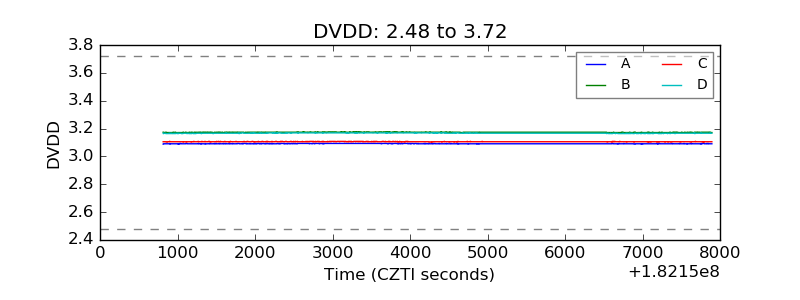

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |

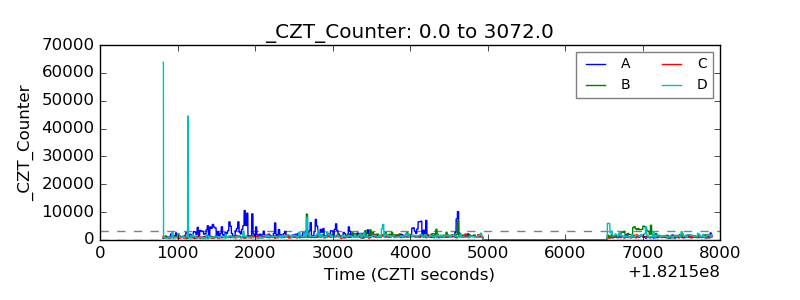

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

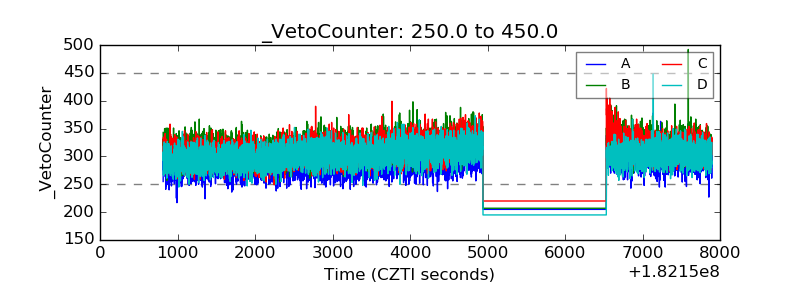

| Veto Counter |  |
