| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_136T01_9000000014_00181cztM0_level2.evt | modeM0/AS1P01_136T01_9000000014_00181cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,144,013,760 | 40,564,800 |
| Size | 1.1 GB | 38.7 MB |
| Events in quadrant A | 8,518,722 | 214,963 |
| Events in quadrant B | 8,759,376 | 219,602 |
| Events in quadrant C | 6,531,281 | 218,150 |
| Events in quadrant D | 10,475,255 | 189,851 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 29271 | 2 |
| B | 0 | 29933 | 1 |
| C | 0 | 23339 | 1 |
| D | 0 | 35204 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16 | 0 |
| B | 0 | 16 | 0 |
| C | 0 | 16 | 0 |
| D | 0 | 16 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5496 | 282 | 5.131004% |
| B | 5496 | 160 | 2.911208% |
| C | 5496 | 48 | 0.873362% |
| D | 5496 | 1233 | 22.434498% |

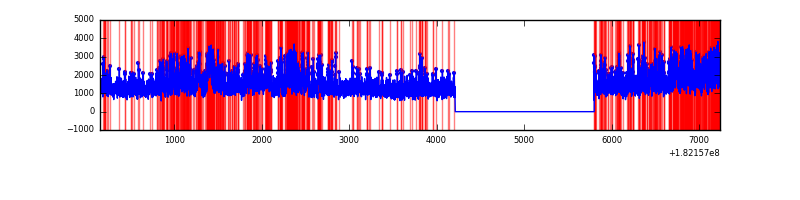

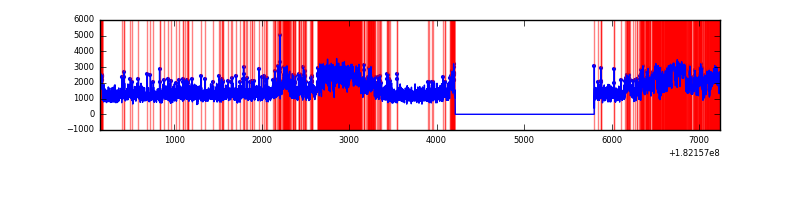

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7088 | 5498 | 993 | 993 | 14.01% | 18.06% |  |
| B | 7088 | 5498 | 1212 | 1212 | 17.10% | 22.04% |  |
| C | 7088 | 5498 | 177 | 177 | 2.50% | 3.22% |  |
| D | 7088 | 5498 | 2073 | 2073 | 29.25% | 37.70% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 7 | 128 | 1366664 | 3554.38 | 1726 | 1710 | 384.0 |
| A | 14 | 10 | 334511 | 866.62 | 1726 | 1710 | 384.0 |
| A | 14 | 201 | 30122 | 73.99 | 1726 | 1710 | 384.0 |
| B | 0 | 247 | 1817757 | 4459.59 | 1717 | 1728 | 407.2 |
| B | 10 | 199 | 174753 | 424.89 | 1717 | 1728 | 407.2 |
| B | 5 | 216 | 98662 | 238.04 | 1717 | 1728 | 407.2 |
| C | 0 | 202 | 245574 | 544.61 | 1576 | 1635 | 447.9 |
| C | 9 | 201 | 55161 | 119.5 | 1576 | 1635 | 447.9 |
| C | 12 | 48 | 20424 | 41.95 | 1576 | 1635 | 447.9 |
| D | 13 | 139 | 3248863 | 7033.96 | 1502 | 1554 | 461.7 |
| D | 13 | 89 | 519546 | 1122.02 | 1502 | 1554 | 461.7 |
| D | 13 | 255 | 175545 | 376.88 | 1502 | 1554 | 461.7 |

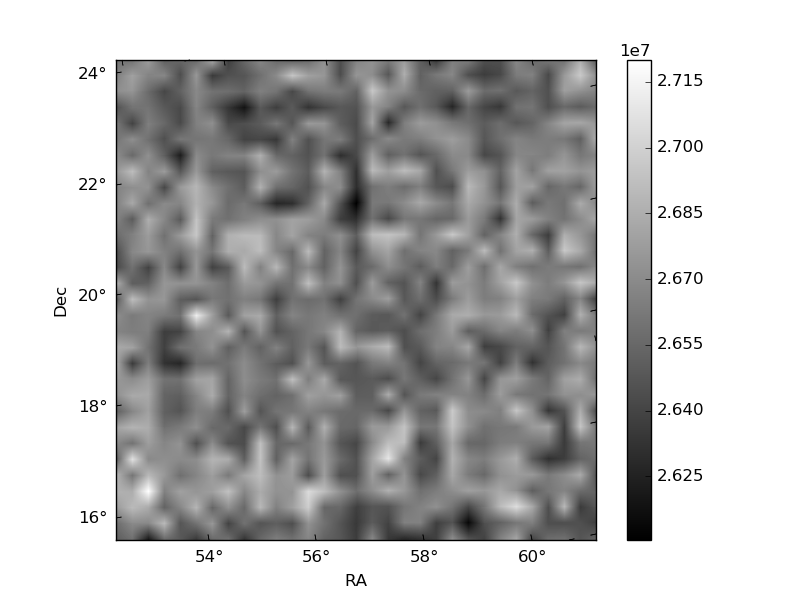

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

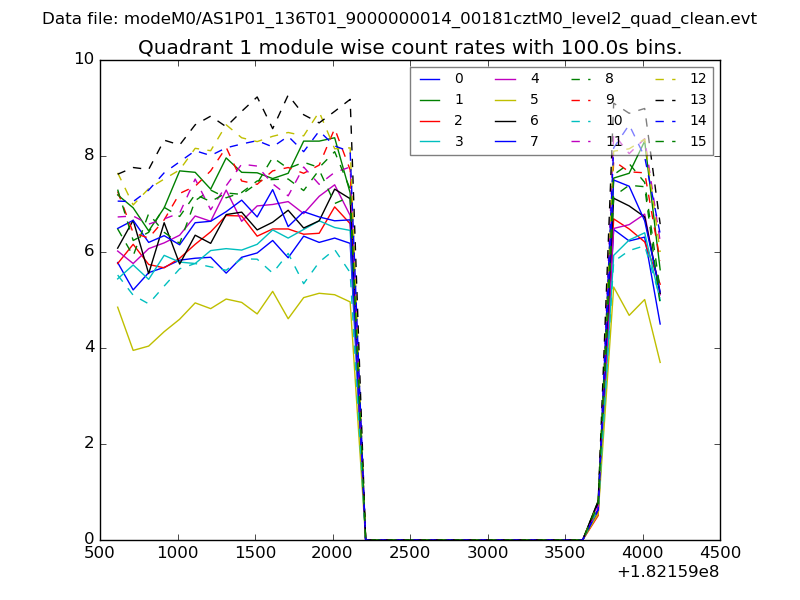

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

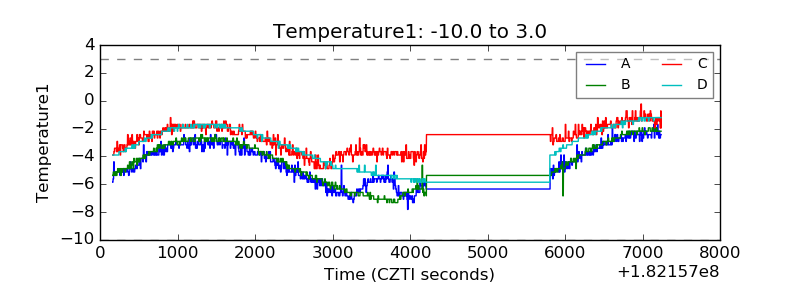

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

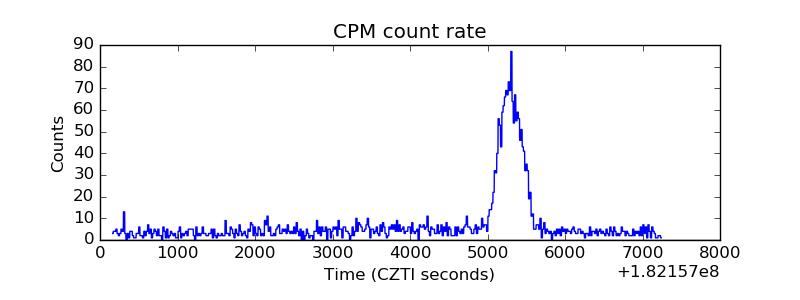

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

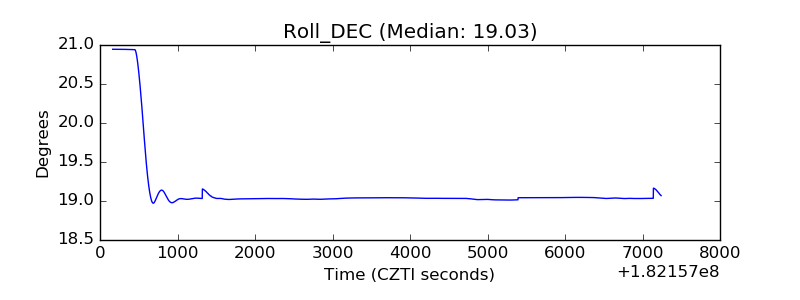

| _Roll_DEC |  |
| _Roll_RA |  |

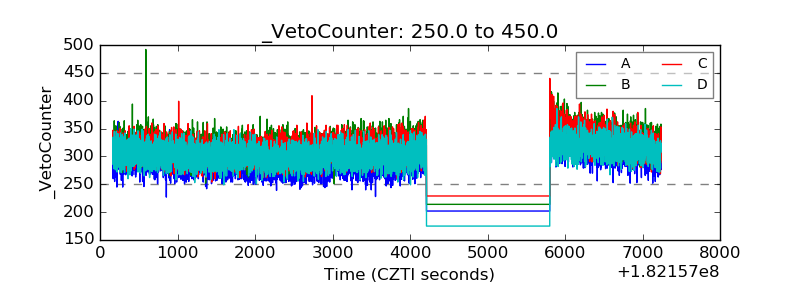

| Veto Counter |  |
