| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_118T01_9000000020_00209cztM0_level2.evt | modeM0/AS1P01_118T01_9000000020_00209cztM0_level2_quad_clean.evt |
| Size (bytes) | 590,794,560 | 38,309,760 |
| Size | 563.4 MB | 36.5 MB |
| Events in quadrant A | 4,615,916 | 223,425 |
| Events in quadrant B | 4,504,705 | 226,181 |
| Events in quadrant C | 4,118,090 | 225,575 |
| Events in quadrant D | 4,403,469 | 219,625 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 78 | 0 |
| B | 0 | 78 | 0 |
| C | 0 | 78 | 0 |
| D | 0 | 78 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 16350 | 2 |
| B | 0 | 16029 | 1 |
| C | 0 | 14865 | 1 |
| D | 0 | 15756 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 15 | 0 |
| B | 0 | 15 | 0 |
| C | 0 | 15 | 0 |
| D | 0 | 15 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 3739 | 1 | 0.026745% |
| B | 3739 | 3 | 0.080235% |
| C | 3739 | 1 | 0.026745% |
| D | 3739 | 16 | 0.427922% |

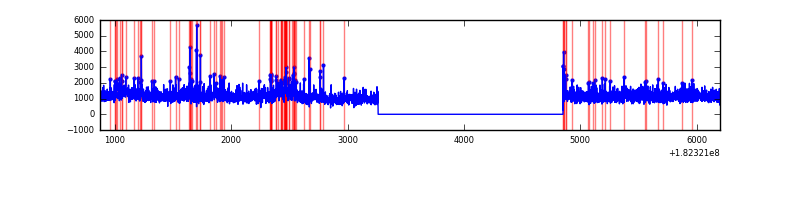

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 5330 | 3740 | 84 | 84 | 1.58% | 2.25% |  |
| B | 5330 | 3740 | 57 | 57 | 1.07% | 1.52% |  |
| C | 5330 | 3740 | 35 | 35 | 0.66% | 0.94% |  |
| D | 5330 | 3740 | 104 | 104 | 1.95% | 2.78% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 253 | 24828 | 89.82 | 1176 | 1168 | 263.4 |
| A | 13 | 17 | 17478 | 61.92 | 1176 | 1168 | 263.4 |
| A | 12 | 189 | 8804 | 28.99 | 1176 | 1168 | 263.4 |
| B | 2 | 2 | 18853 | 63.72 | 1159 | 1163 | 277.6 |
| B | 0 | 190 | 15118 | 50.27 | 1159 | 1163 | 277.6 |
| B | 3 | 32 | 11509 | 37.27 | 1159 | 1163 | 277.6 |
| C | 1 | 1 | 18454 | 58.94 | 1041 | 1076 | 294.8 |
| C | 0 | 186 | 3995 | 9.9 | 1041 | 1076 | 294.8 |
| C | 15 | 208 | 3727 | 8.99 | 1041 | 1076 | 294.8 |
| D | 7 | 53 | 84565 | 266.01 | 1032 | 1066 | 313.9 |
| D | 9 | 53 | 76800 | 241.27 | 1032 | 1066 | 313.9 |
| D | 14 | 23 | 71338 | 223.87 | 1032 | 1066 | 313.9 |

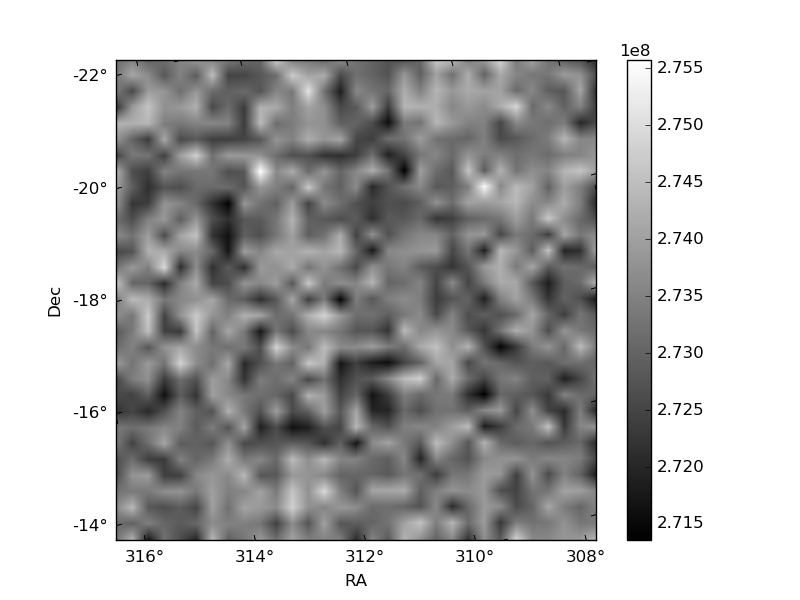

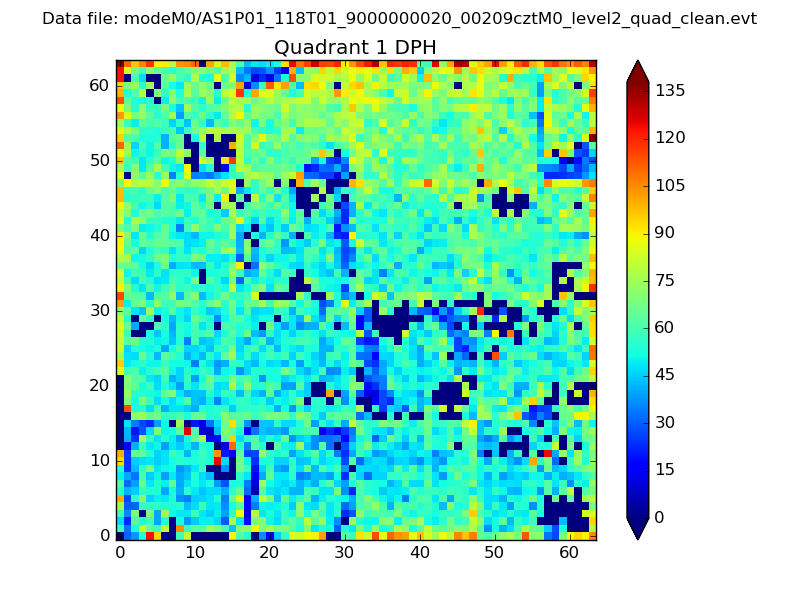

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

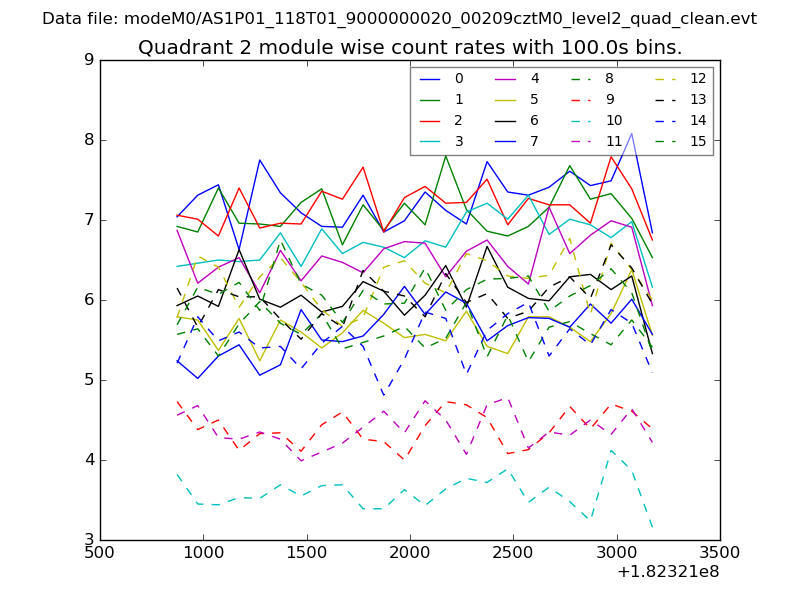

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

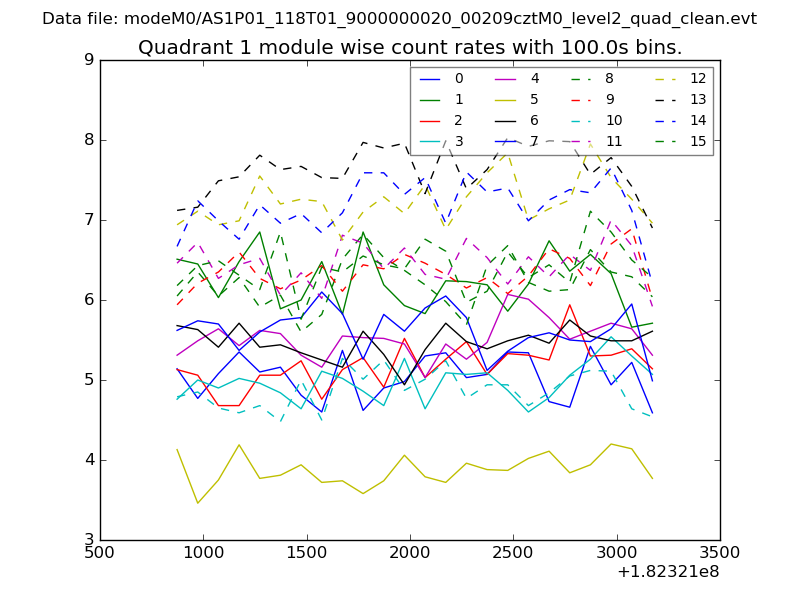

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

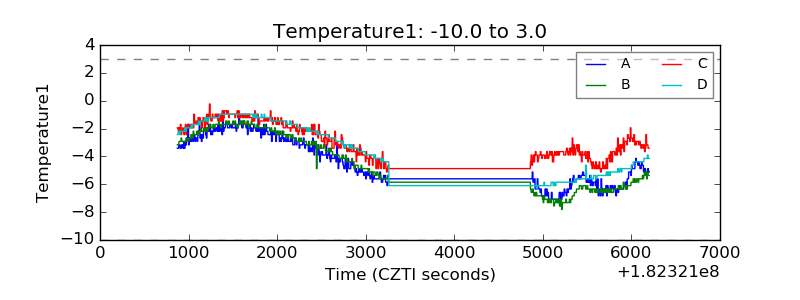

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

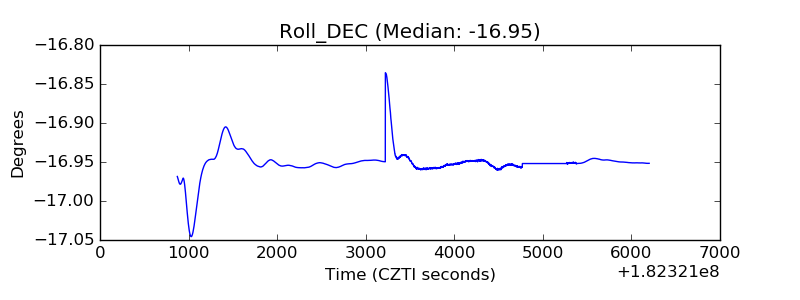

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
