| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_118T01_9000000020_00210cztM0_level2.evt | modeM0/AS1P01_118T01_9000000020_00210cztM0_level2_quad_clean.evt |
| Size (bytes) | 816,258,240 | 47,695,680 |
| Size | 778.4 MB | 45.5 MB |
| Events in quadrant A | 6,352,246 | 271,934 |
| Events in quadrant B | 6,169,212 | 274,716 |
| Events in quadrant C | 5,773,489 | 273,422 |
| Events in quadrant D | 6,087,023 | 266,861 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 106 | 0 |
| B | 0 | 106 | 0 |
| C | 0 | 106 | 0 |
| D | 0 | 106 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22501 | 3 |
| B | 0 | 21966 | 2 |
| C | 0 | 20768 | 2 |
| D | 0 | 21736 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21 | 0 |
| B | 0 | 21 | 0 |
| C | 0 | 21 | 0 |
| D | 0 | 21 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5091 | 6 | 0.117855% |
| B | 5091 | 5 | 0.098213% |
| C | 5091 | 2 | 0.039285% |
| D | 5091 | 18 | 0.353565% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7224 | 5093 | 154 | 154 | 2.13% | 3.02% |  |
| B | 7224 | 5093 | 84 | 84 | 1.16% | 1.65% |  |
| C | 7224 | 5093 | 53 | 53 | 0.73% | 1.04% |  |
| D | 7224 | 5093 | 88 | 88 | 1.22% | 1.73% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 253 | 39351 | 103.29 | 1622 | 1603 | 365.5 |
| A | 13 | 17 | 12445 | 29.67 | 1622 | 1603 | 365.5 |
| A | 12 | 189 | 9806 | 22.45 | 1622 | 1603 | 365.5 |
| B | 3 | 32 | 13043 | 30.3 | 1600 | 1606 | 377.5 |
| B | 8 | 5 | 11667 | 26.65 | 1600 | 1606 | 377.5 |
| B | 5 | 156 | 11609 | 26.5 | 1600 | 1606 | 377.5 |
| C | 3 | 159 | 26012 | 59.77 | 1458 | 1506 | 410.0 |
| C | 1 | 1 | 14961 | 32.82 | 1458 | 1506 | 410.0 |
| C | 0 | 186 | 5224 | 9.07 | 1458 | 1506 | 410.0 |
| D | 1 | 4 | 268347 | 603.68 | 1444 | 1492 | 442.0 |
| D | 9 | 51 | 53974 | 118.73 | 1444 | 1492 | 442.0 |
| D | 13 | 223 | 37751 | 82.03 | 1444 | 1492 | 442.0 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |

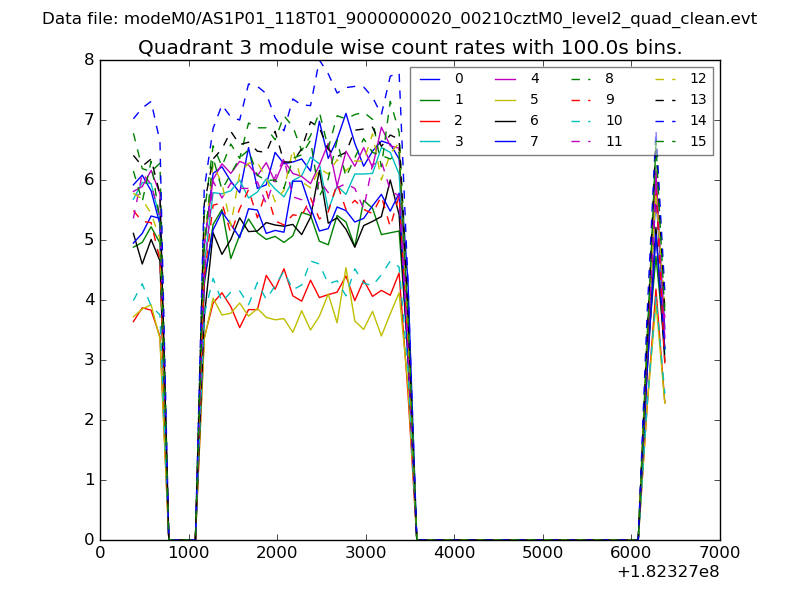

| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

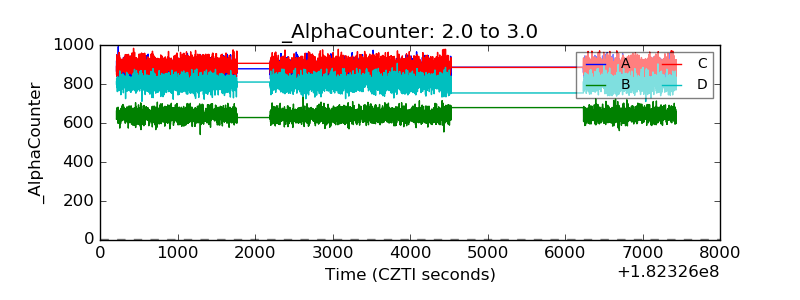

| Alpha Counter |  |

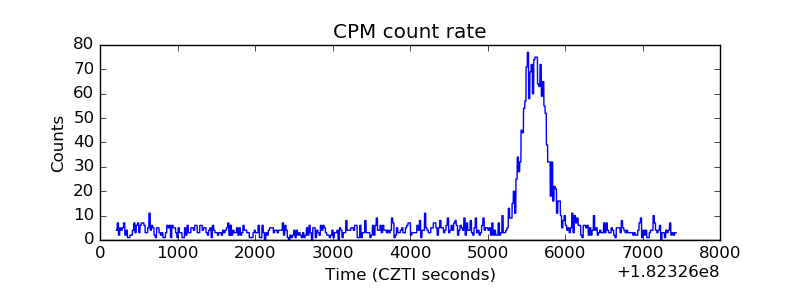

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

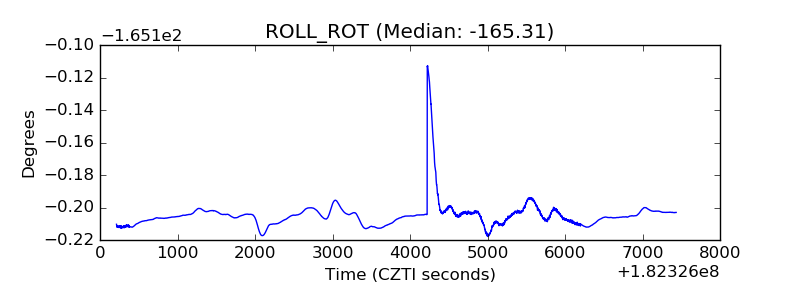

| _ROLL_ROT |  |

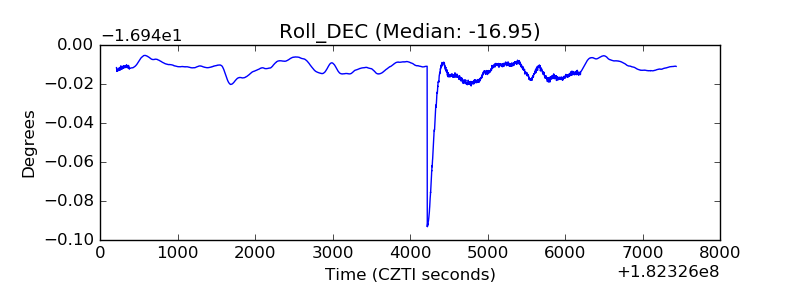

| _Roll_DEC |  |

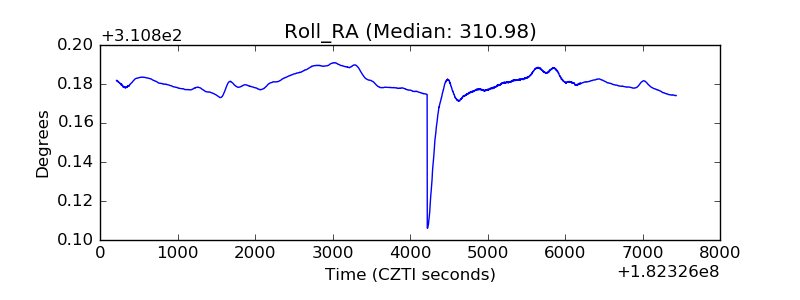

| _Roll_RA |  |
| Veto Counter |  |
