| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_123T01_9000000024_00224cztM0_level2.evt | modeM0/AS1P01_123T01_9000000024_00224cztM0_level2_quad_clean.evt |
| Size (bytes) | 926,542,080 | 82,356,480 |
| Size | 883.6 MB | 78.5 MB |
| Events in quadrant A | 6,885,873 | 522,802 |
| Events in quadrant B | 7,282,181 | 528,080 |
| Events in quadrant C | 6,394,792 | 531,058 |
| Events in quadrant D | 7,113,600 | 507,726 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24535 | 3 |
| B | 0 | 25744 | 2 |
| C | 0 | 23107 | 2 |
| D | 0 | 25242 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5782 | 5 | 0.086475% |
| B | 5782 | 12 | 0.207541% |
| C | 5782 | 4 | 0.069180% |
| D | 5782 | 113 | 1.954341% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7488 | 5783 | 107 | 107 | 1.43% | 1.85% |  |
| B | 7488 | 5783 | 186 | 186 | 2.48% | 3.22% |  |
| C | 7488 | 5783 | 89 | 89 | 1.19% | 1.54% |  |
| D | 7488 | 5783 | 411 | 411 | 5.49% | 7.11% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 150 | 34718 | 84.47 | 1763 | 1746 | 390.3 |
| A | 0 | 6 | 18054 | 41.78 | 1763 | 1746 | 390.3 |
| A | 0 | 253 | 9974 | 21.08 | 1763 | 1746 | 390.3 |
| B | 5 | 46 | 463672 | 1121.24 | 1742 | 1751 | 412.0 |
| B | 8 | 54 | 55619 | 130.76 | 1742 | 1751 | 412.0 |
| B | 5 | 176 | 42327 | 98.49 | 1742 | 1751 | 412.0 |
| C | 1 | 1 | 265380 | 601.7 | 1558 | 1607 | 438.4 |
| C | 10 | 17 | 5128 | 8.03 | 1558 | 1607 | 438.4 |
| C | 7 | 223 | 4285 | 6.11 | 1558 | 1607 | 438.4 |
| D | 1 | 4 | 1068417 | 2209.33 | 1516 | 1572 | 482.9 |
| D | 13 | 223 | 47989 | 96.12 | 1516 | 1572 | 482.9 |
| D | 2 | 85 | 44262 | 88.41 | 1516 | 1572 | 482.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

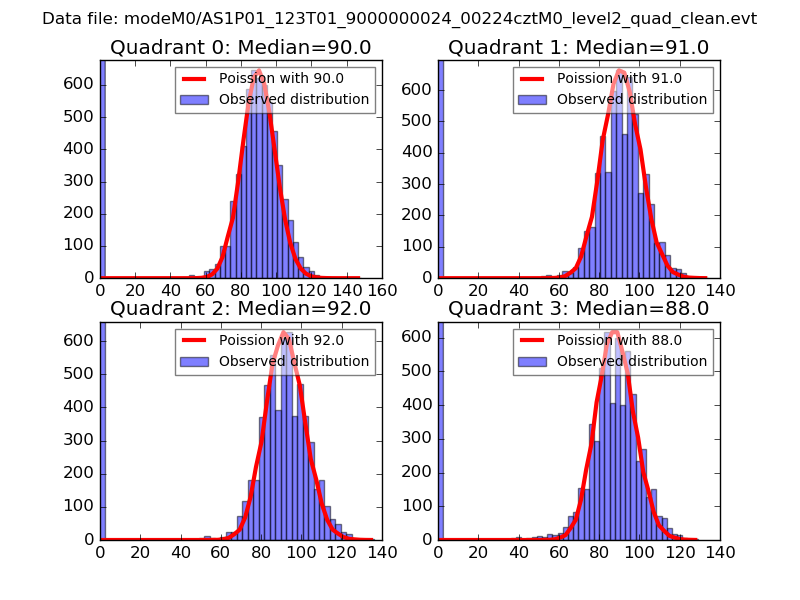

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

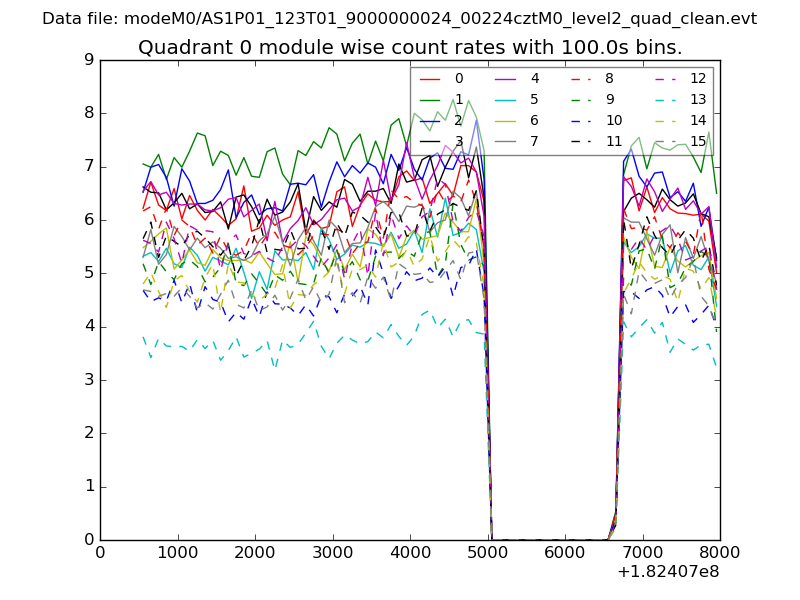

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

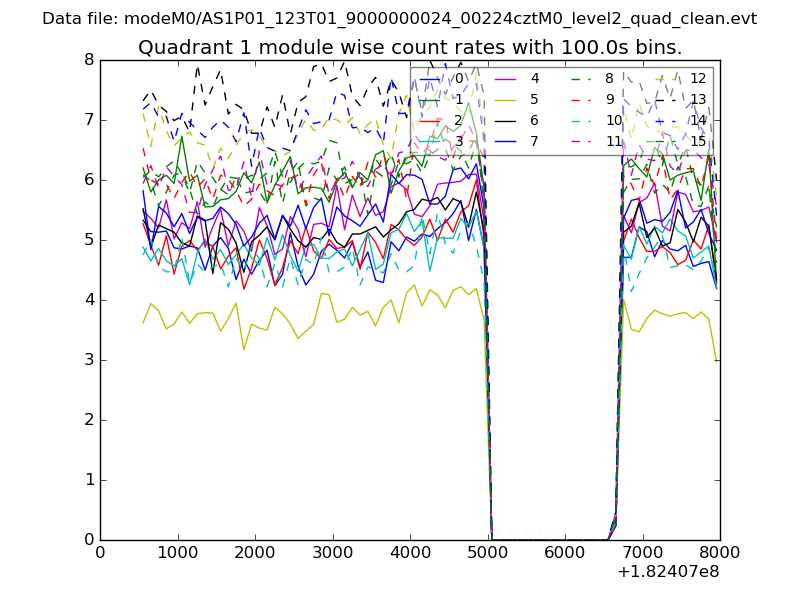

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |

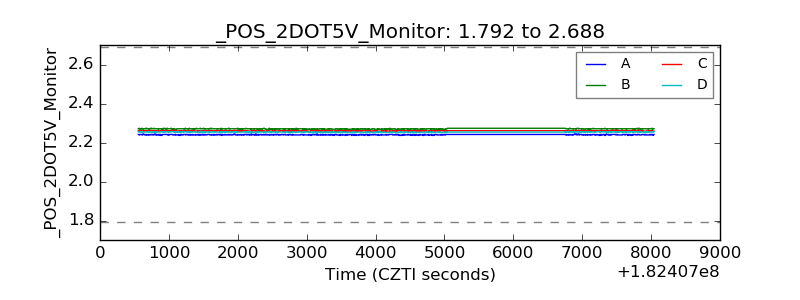

| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

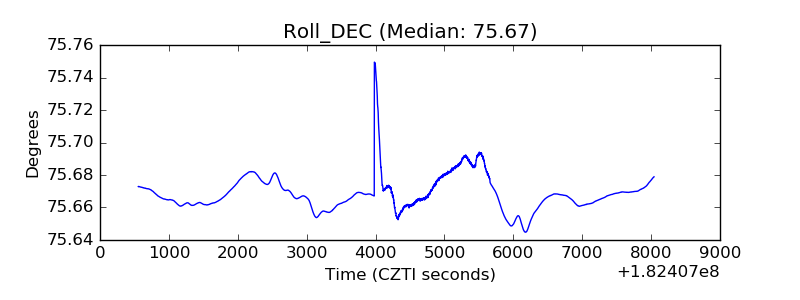

| _Roll_DEC |  |

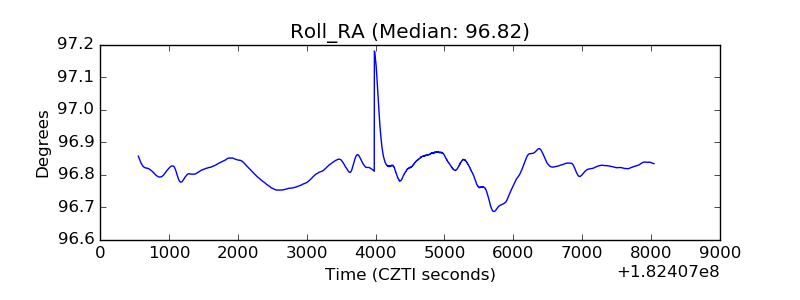

| _Roll_RA |  |
| Veto Counter |  |
