| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_123T01_9000000024_00226cztM0_level2.evt | modeM0/AS1P01_123T01_9000000024_00226cztM0_level2_quad_clean.evt |
| Size (bytes) | 948,473,280 | 81,069,120 |
| Size | 904.5 MB | 77.3 MB |
| Events in quadrant A | 7,012,463 | 518,055 |
| Events in quadrant B | 7,663,402 | 521,965 |
| Events in quadrant C | 6,275,488 | 522,621 |
| Events in quadrant D | 7,400,229 | 498,662 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24837 | 2 |
| B | 0 | 26751 | 1 |
| C | 0 | 22653 | 1 |
| D | 0 | 25977 | 6 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5623 | 57 | 1.013694% |
| B | 5623 | 68 | 1.209319% |
| C | 5623 | 3 | 0.053352% |
| D | 5622 | 95 | 1.689790% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7330 | 5625 | 198 | 198 | 2.70% | 3.52% |  |
| B | 7330 | 5625 | 394 | 394 | 5.38% | 7.00% |  |
| C | 7330 | 5625 | 53 | 53 | 0.72% | 0.94% |  |
| D | 7329 | 5624 | 446 | 446 | 6.09% | 7.93% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 253 | 167540 | 423.91 | 1749 | 1729 | 391.1 |
| A | 12 | 150 | 31253 | 75.48 | 1749 | 1729 | 391.1 |
| A | 11 | 242 | 21046 | 49.39 | 1749 | 1729 | 391.1 |
| B | 7 | 251 | 335033 | 820.31 | 1717 | 1728 | 406.3 |
| B | 7 | 220 | 328704 | 804.73 | 1717 | 1728 | 406.3 |
| B | 5 | 46 | 266667 | 652.05 | 1717 | 1728 | 406.3 |
| C | 9 | 188 | 52612 | 116.63 | 1561 | 1614 | 437.3 |
| C | 2 | 53 | 50894 | 112.7 | 1561 | 1614 | 437.3 |
| C | 1 | 1 | 26225 | 56.28 | 1561 | 1614 | 437.3 |
| D | 1 | 4 | 1344884 | 2878.89 | 1538 | 1584 | 466.6 |
| D | 2 | 85 | 44151 | 91.23 | 1538 | 1584 | 466.6 |
| D | 7 | 38 | 40398 | 83.18 | 1538 | 1584 | 466.6 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

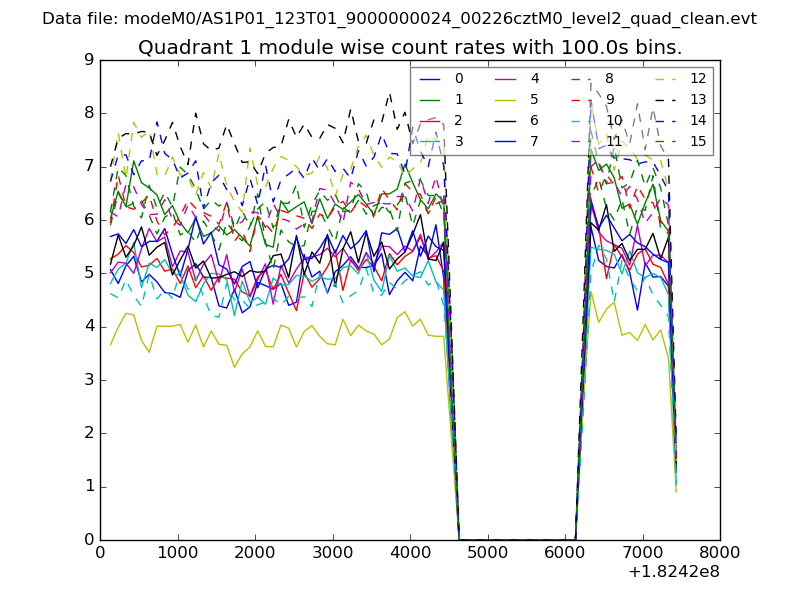

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

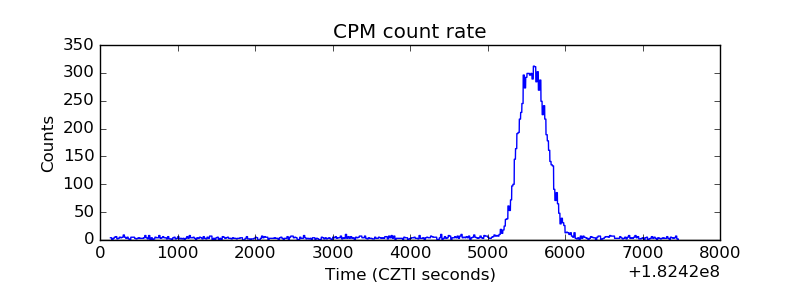

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

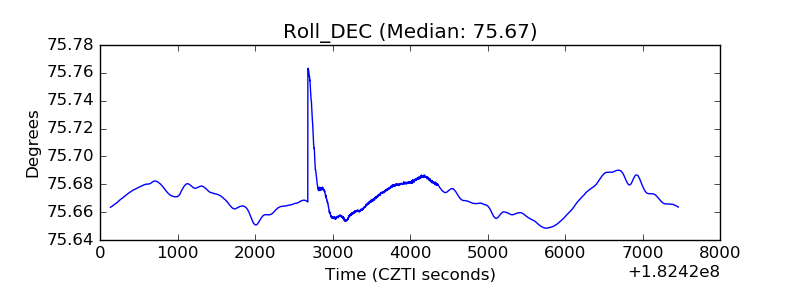

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
