| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_123T01_9000000024_00229cztM0_level2.evt | modeM0/AS1P01_123T01_9000000024_00229cztM0_level2_quad_clean.evt |
| Size (bytes) | 943,272,000 | 80,861,760 |
| Size | 899.6 MB | 77.1 MB |
| Events in quadrant A | 6,486,492 | 530,233 |
| Events in quadrant B | 7,101,215 | 527,388 |
| Events in quadrant C | 6,054,627 | 525,543 |
| Events in quadrant D | 8,568,111 | 488,472 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 110 | 0 |
| B | 0 | 110 | 0 |
| C | 0 | 110 | 0 |
| D | 0 | 110 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23079 | 2 |
| B | 0 | 24934 | 1 |
| C | 0 | 21848 | 1 |
| D | 0 | 29319 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5382 | 2 | 0.037161% |
| B | 5382 | 48 | 0.891862% |
| C | 5382 | 1 | 0.018580% |
| D | 5382 | 318 | 5.908584% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|

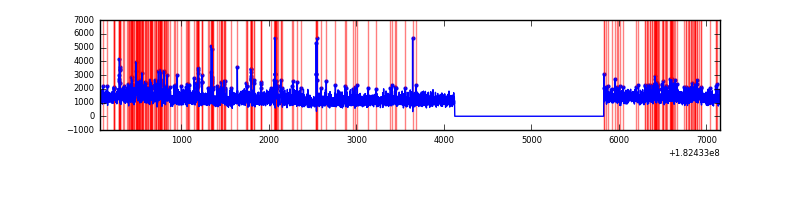

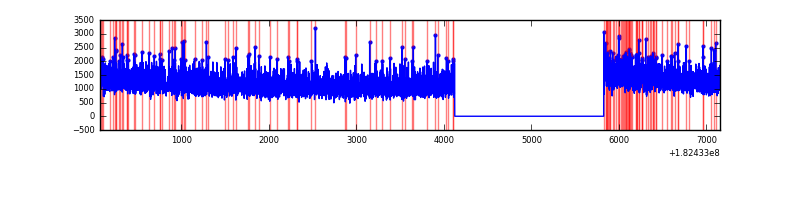

| A | 7087 | 5383 | 131 | 131 | 1.85% | 2.43% |  |
| B | 7087 | 5383 | 288 | 288 | 4.06% | 5.35% |  |
| C | 7087 | 5383 | 49 | 49 | 0.69% | 0.91% |  |

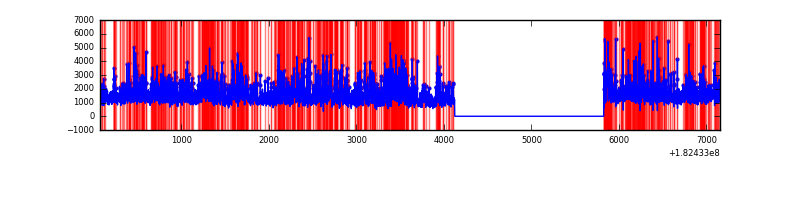

| D | 7087 | 5383 | 1033 | 1033 | 14.58% | 19.19% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 150 | 28786 | 74.48 | 1656 | 1636 | 364.5 |
| A | 0 | 253 | 21866 | 55.5 | 1656 | 1636 | 364.5 |
| A | 12 | 149 | 11819 | 27.94 | 1656 | 1636 | 364.5 |
| B | 7 | 220 | 498982 | 1308.46 | 1630 | 1640 | 380.1 |
| B | 5 | 46 | 166032 | 432.5 | 1630 | 1640 | 380.1 |
| B | 2 | 32 | 94174 | 243.45 | 1630 | 1640 | 380.1 |
| C | 1 | 1 | 69154 | 158.65 | 1521 | 1575 | 426.0 |
| C | 9 | 54 | 8248 | 15.67 | 1521 | 1575 | 426.0 |
| C | 10 | 21 | 5286 | 8.71 | 1521 | 1575 | 426.0 |
| D | 1 | 4 | 2239682 | 5057.82 | 1511 | 1537 | 442.5 |
| D | 14 | 52 | 69129 | 152.75 | 1511 | 1537 | 442.5 |
| D | 0 | 255 | 66423 | 146.63 | 1511 | 1537 | 442.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

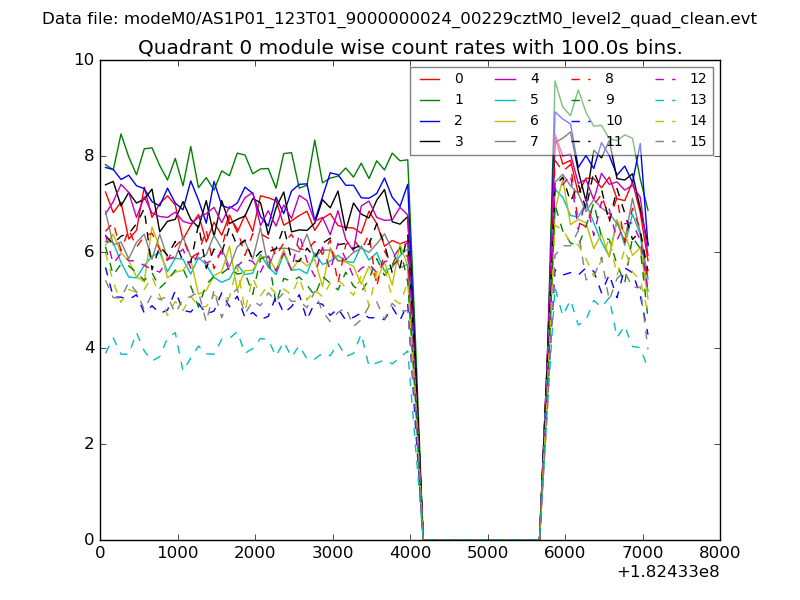

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

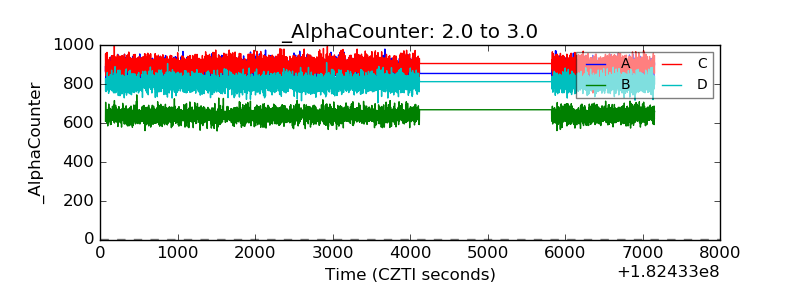

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |

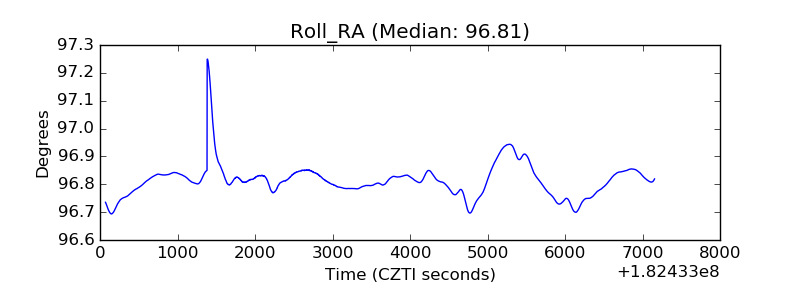

| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

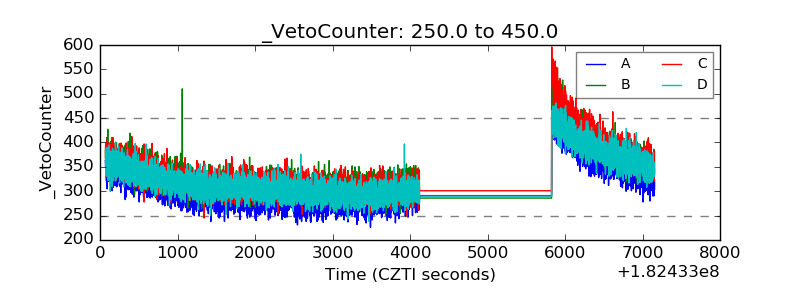

| Veto Counter |  |
