| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_123T01_9000000024_00236cztM0_level2.evt | modeM0/AS1P01_123T01_9000000024_00236cztM0_level2_quad_clean.evt |
| Size (bytes) | 914,918,400 | 83,234,880 |
| Size | 872.5 MB | 79.4 MB |
| Events in quadrant A | 6,737,348 | 525,090 |
| Events in quadrant B | 6,842,435 | 532,384 |
| Events in quadrant C | 6,094,110 | 543,408 |
| Events in quadrant D | 7,645,923 | 511,061 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 120 | 0 |
| B | 0 | 120 | 0 |
| C | 0 | 120 | 0 |
| D | 0 | 120 | 0 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 18 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24170 | 3 |
| B | 0 | 24480 | 2 |
| C | 0 | 22291 | 2 |
| D | 0 | 26872 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5842 | 12 | 0.205409% |
| B | 5842 | 13 | 0.222527% |
| C | 5842 | 2 | 0.034235% |
| D | 5842 | 189 | 3.235193% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7577 | 5843 | 151 | 151 | 1.99% | 2.58% |  |
| B | 7577 | 5843 | 149 | 149 | 1.97% | 2.55% |  |
| C | 7577 | 5843 | 35 | 35 | 0.46% | 0.60% |  |
| D | 7577 | 5843 | 691 | 691 | 9.12% | 11.83% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 12 | 150 | 132953 | 349.42 | 1686 | 1671 | 375.7 |
| A | 5 | 244 | 29346 | 73.66 | 1686 | 1671 | 375.7 |
| A | 15 | 250 | 17331 | 41.68 | 1686 | 1671 | 375.7 |
| B | 7 | 220 | 189598 | 469.65 | 1700 | 1705 | 400.1 |
| B | 5 | 46 | 70999 | 173.21 | 1700 | 1705 | 400.1 |
| B | 2 | 2 | 20067 | 45.9 | 1700 | 1705 | 400.1 |
| C | 10 | 69 | 34406 | 76.91 | 1527 | 1576 | 426.9 |
| C | 5 | 249 | 15918 | 33.6 | 1527 | 1576 | 426.9 |
| C | 0 | 206 | 13349 | 27.58 | 1527 | 1576 | 426.9 |
| D | 1 | 4 | 1539870 | 3377.42 | 1443 | 1496 | 455.5 |
| D | 1 | 5 | 156954 | 341.3 | 1443 | 1496 | 455.5 |
| D | 10 | 154 | 147930 | 321.49 | 1443 | 1496 | 455.5 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

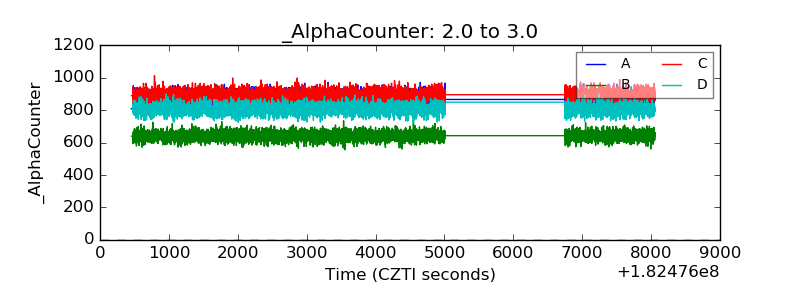

| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

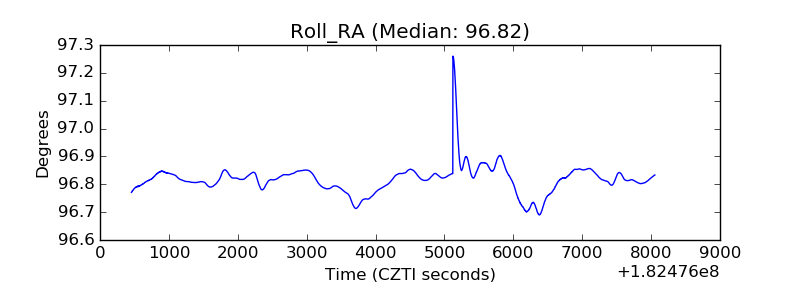

| _Roll_RA |  |
