| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_122T01_9000000026_00244cztM0_level2.evt | modeM0/AS1P01_122T01_9000000026_00244cztM0_level2_quad_clean.evt |
| Size (bytes) | 932,872,320 | 75,101,760 |
| Size | 889.7 MB | 71.6 MB |
| Events in quadrant A | 7,027,986 | 474,741 |
| Events in quadrant B | 7,580,306 | 468,390 |
| Events in quadrant C | 6,030,123 | 477,362 |
| Events in quadrant D | 7,237,431 | 457,211 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24900 | 2 |
| B | 0 | 26599 | 1 |
| C | 0 | 21975 | 1 |
| D | 0 | 25519 | 1 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5667 | 43 | 0.758779% |
| B | 5667 | 268 | 4.729134% |
| C | 5667 | 3 | 0.052938% |
| D | 5667 | 89 | 1.570496% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7372 | 5668 | 256 | 256 | 3.47% | 4.52% |  |
| B | 7372 | 5668 | 524 | 524 | 7.11% | 9.24% |  |
| C | 7372 | 5668 | 42 | 42 | 0.57% | 0.74% |  |
| D | 7372 | 5668 | 400 | 400 | 5.43% | 7.06% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 250 | 352078 | 915.7 | 1717 | 1705 | 382.6 |
| A | 11 | 242 | 12821 | 29.05 | 1717 | 1705 | 382.6 |
| A | 15 | 17 | 9987 | 21.64 | 1717 | 1705 | 382.6 |
| B | 2 | 32 | 1059438 | 2657.61 | 1685 | 1698 | 398.0 |
| B | 10 | 14 | 27548 | 64.95 | 1685 | 1698 | 398.0 |
| B | 4 | 67 | 11561 | 24.78 | 1685 | 1698 | 398.0 |
| C | 9 | 68 | 18825 | 40.62 | 1524 | 1576 | 424.7 |
| C | 1 | 1 | 11003 | 22.2 | 1524 | 1576 | 424.7 |
| C | 9 | 54 | 8335 | 15.91 | 1524 | 1576 | 424.7 |
| D | 1 | 4 | 782795 | 1708.99 | 1457 | 1513 | 457.2 |
| D | 10 | 154 | 450662 | 982.48 | 1457 | 1513 | 457.2 |
| D | 1 | 5 | 137652 | 297.79 | 1457 | 1513 | 457.2 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

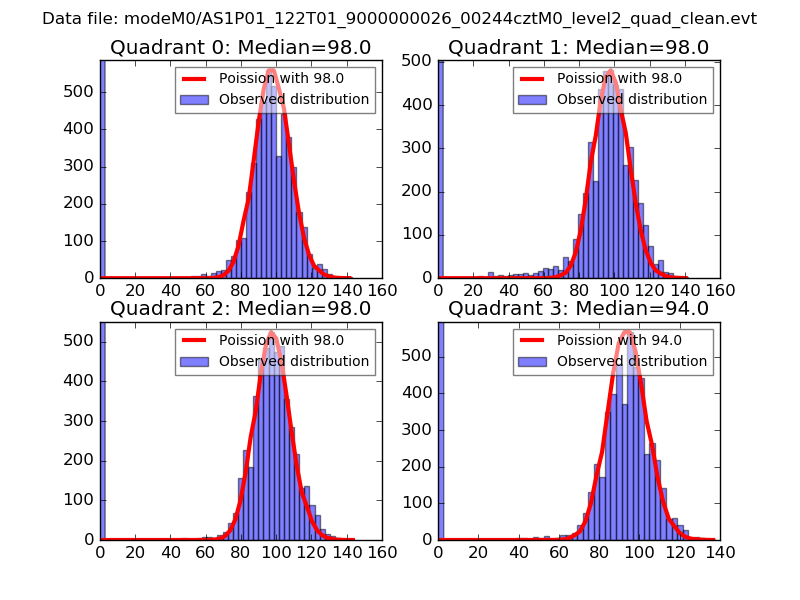

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

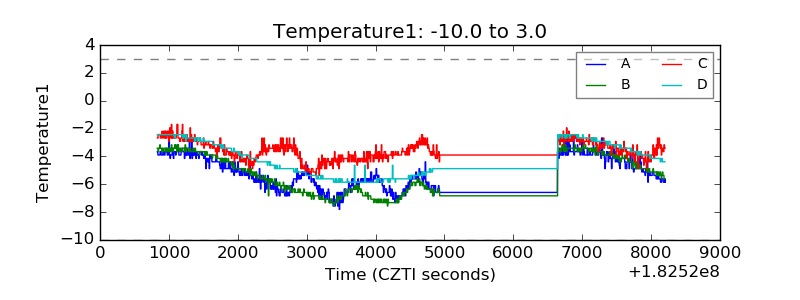

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

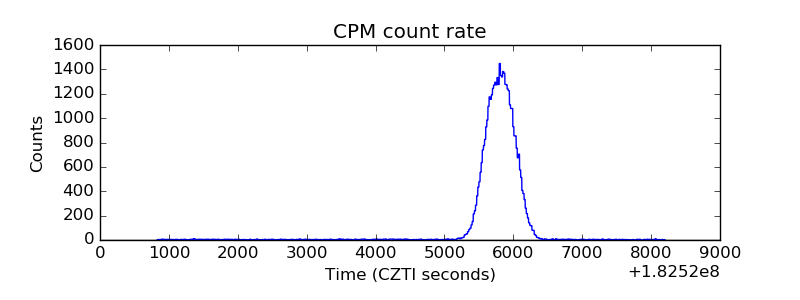

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

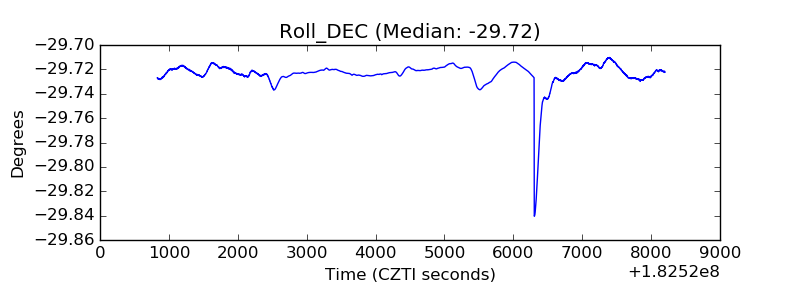

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
