| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_122T02_9000000028_00262cztM0_level2.evt | modeM0/AS1P01_122T02_9000000028_00262cztM0_level2_quad_clean.evt |
| Size (bytes) | 1,023,690,240 | 62,815,680 |
| Size | 976.3 MB | 59.9 MB |
| Events in quadrant A | 6,038,877 | 423,968 |
| Events in quadrant B | 12,762,931 | 283,690 |
| Events in quadrant C | 5,666,833 | 419,091 |
| Events in quadrant D | 6,183,189 | 403,959 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 108 | 0 |
| B | 0 | 108 | 0 |
| C | 0 | 108 | 0 |
| D | 0 | 108 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 21700 | 2 |
| B | 0 | 42129 | 1 |
| C | 0 | 20607 | 1 |
| D | 0 | 22140 | 1 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5283 | 8 | 0.151429% |
| B | 5283 | 3022 | 57.202347% |
| C | 5283 | 4 | 0.075715% |
| D | 5283 | 12 | 0.227144% |

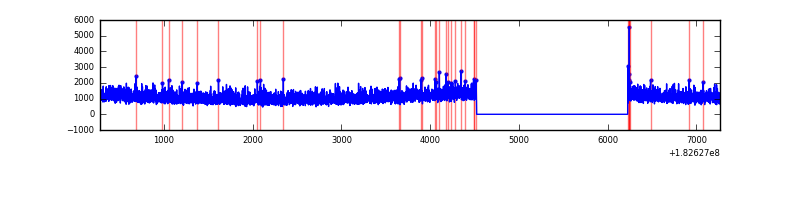

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 6988 | 5284 | 100 | 100 | 1.43% | 1.89% |  |
| B | 6988 | 5283 | 3310 | 3310 | 47.37% | 62.65% |  |
| C | 6988 | 5284 | 33 | 33 | 0.47% | 0.62% |  |
| D | 6988 | 5284 | 133 | 133 | 1.90% | 2.52% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 250 | 27096 | 74.88 | 1544 | 1528 | 341.5 |
| A | 13 | 17 | 22547 | 61.56 | 1544 | 1528 | 341.5 |
| A | 11 | 242 | 10536 | 26.38 | 1544 | 1528 | 341.5 |
| B | 8 | 9 | 8293740 | 31824.11 | 1121 | 1127 | 260.6 |
| B | 0 | 214 | 42684 | 159.48 | 1121 | 1127 | 260.6 |
| B | 8 | 61 | 39537 | 147.4 | 1121 | 1127 | 260.6 |
| C | 3 | 159 | 13987 | 31.34 | 1431 | 1481 | 399.1 |
| C | 9 | 54 | 13903 | 31.13 | 1431 | 1481 | 399.1 |
| C | 2 | 192 | 9496 | 20.08 | 1431 | 1481 | 399.1 |
| D | 10 | 154 | 582088 | 1365.88 | 1361 | 1415 | 425.1 |
| D | 1 | 5 | 159229 | 371.21 | 1361 | 1415 | 425.1 |
| D | 1 | 4 | 94944 | 220.0 | 1361 | 1415 | 425.1 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file

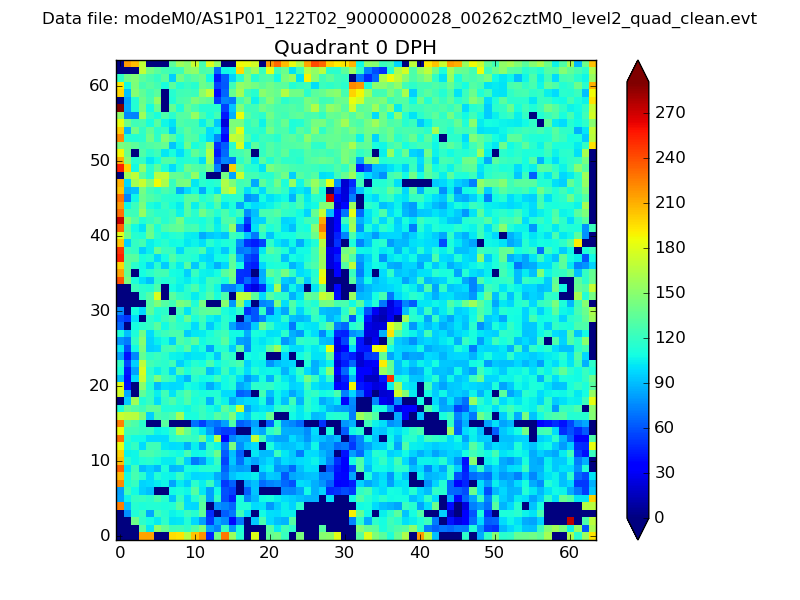

| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|

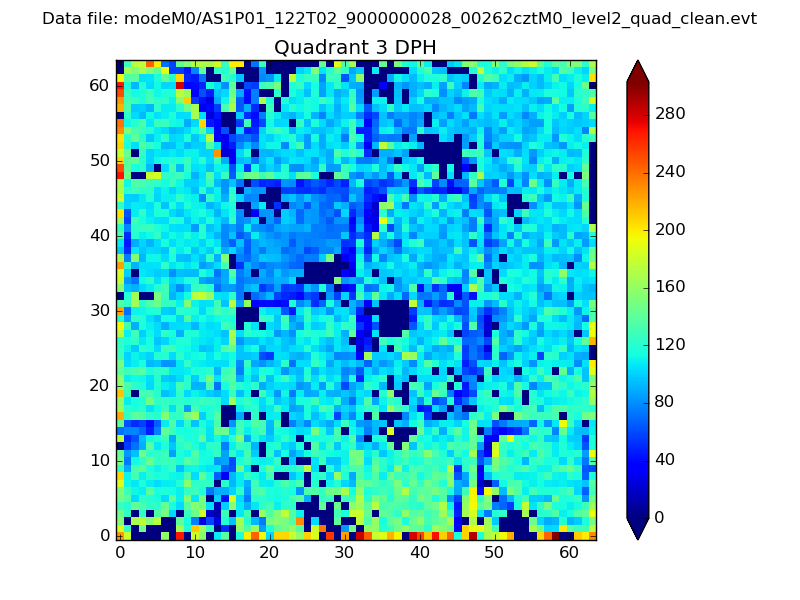

| Quadrant D |  |
 |
Quadrant C |

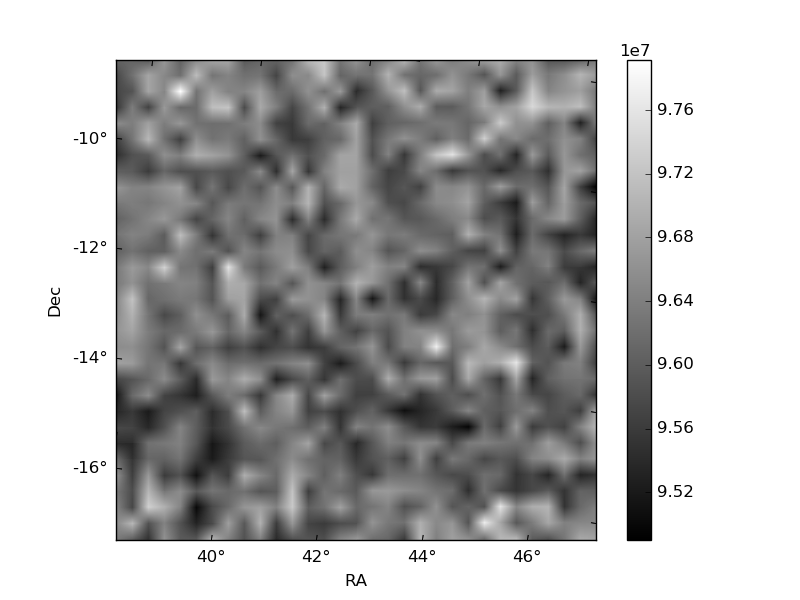

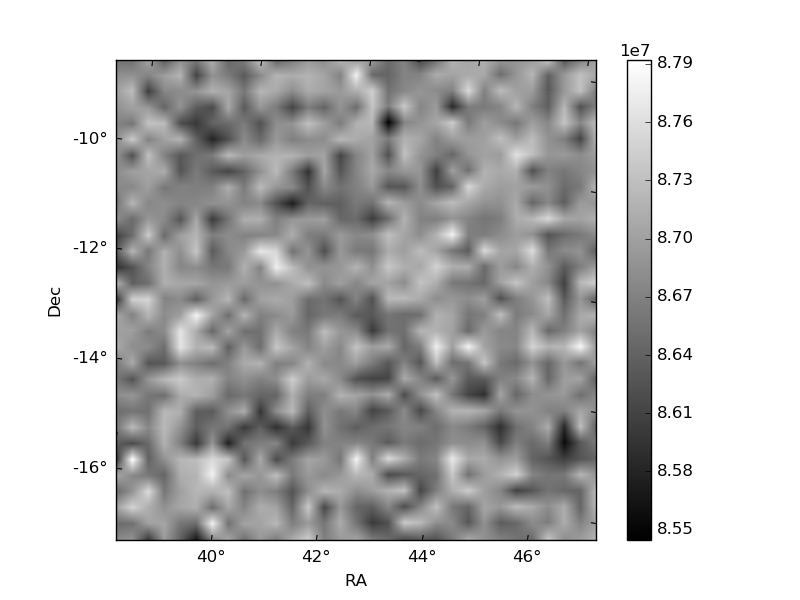

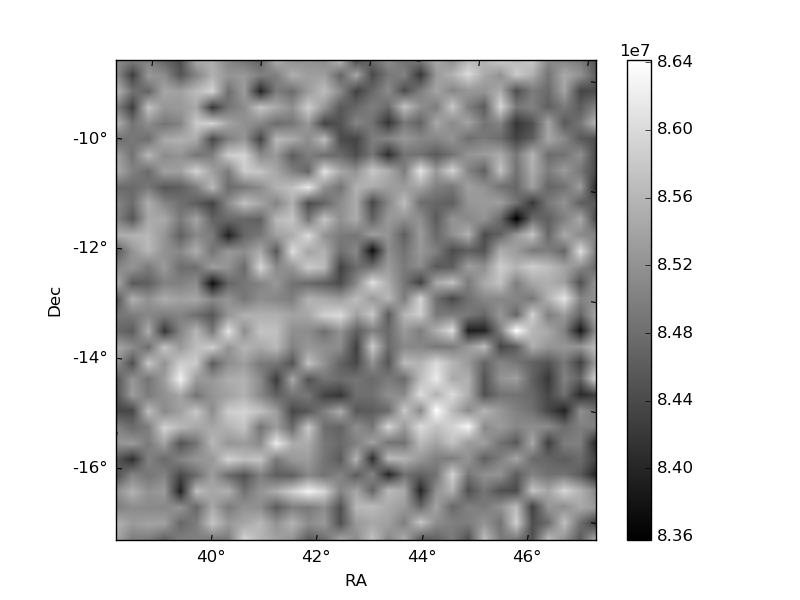

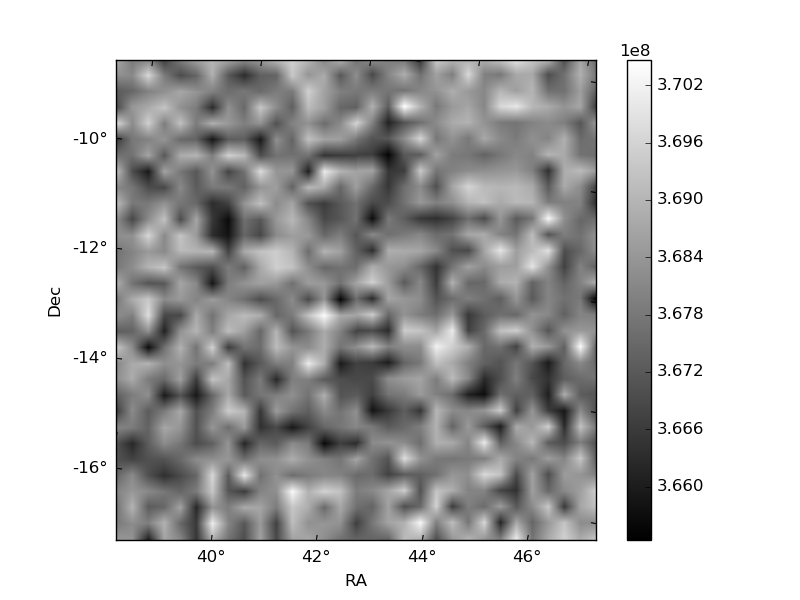

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |

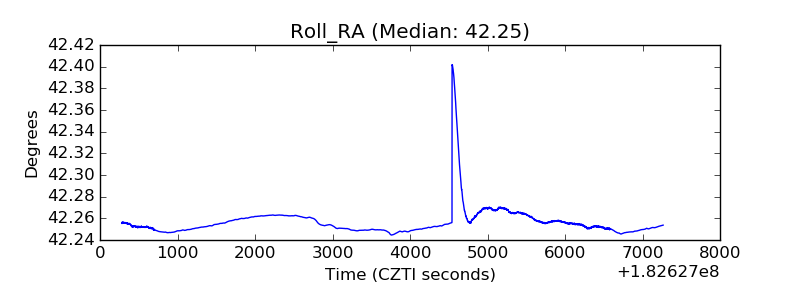

| _Roll_RA |  |
| Veto Counter |  |
