| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_122T02_9000000028_00263cztM0_level2.evt | modeM0/AS1P01_122T02_9000000028_00263cztM0_level2_quad_clean.evt |
| Size (bytes) | 862,637,760 | 65,782,080 |
| Size | 822.7 MB | 62.7 MB |
| Events in quadrant A | 6,427,834 | 402,641 |
| Events in quadrant B | 6,620,074 | 411,785 |
| Events in quadrant C | 6,138,987 | 397,804 |
| Events in quadrant D | 6,563,326 | 385,481 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23088 | 3 |
| B | 0 | 23701 | 2 |
| C | 0 | 22247 | 2 |
| D | 0 | 23474 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5628 | 6 | 0.106610% |
| B | 5628 | 15 | 0.266525% |
| C | 5628 | 11 | 0.195451% |
| D | 5628 | 14 | 0.248756% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7364 | 5629 | 119 | 119 | 1.62% | 2.11% |  |
| B | 7364 | 5629 | 151 | 151 | 2.05% | 2.68% |  |
| C | 7364 | 5629 | 70 | 70 | 0.95% | 1.24% |  |
| D | 7364 | 5629 | 178 | 178 | 2.42% | 3.16% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 250 | 47420 | 127.42 | 1634 | 1622 | 359.4 |
| A | 13 | 17 | 37557 | 99.98 | 1634 | 1622 | 359.4 |
| A | 13 | 160 | 13083 | 31.89 | 1634 | 1622 | 359.4 |
| B | 7 | 220 | 119717 | 307.05 | 1652 | 1660 | 384.5 |
| B | 8 | 54 | 50008 | 125.74 | 1652 | 1660 | 384.5 |
| B | 8 | 9 | 45355 | 113.64 | 1652 | 1660 | 384.5 |
| C | 9 | 54 | 101271 | 233.72 | 1526 | 1582 | 426.5 |
| C | 3 | 159 | 20579 | 44.54 | 1526 | 1582 | 426.5 |
| C | 2 | 192 | 15213 | 31.96 | 1526 | 1582 | 426.5 |
| D | 10 | 154 | 379319 | 830.53 | 1451 | 1508 | 454.9 |
| D | 1 | 4 | 202352 | 441.51 | 1451 | 1508 | 454.9 |
| D | 12 | 196 | 158122 | 344.28 | 1451 | 1508 | 454.9 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

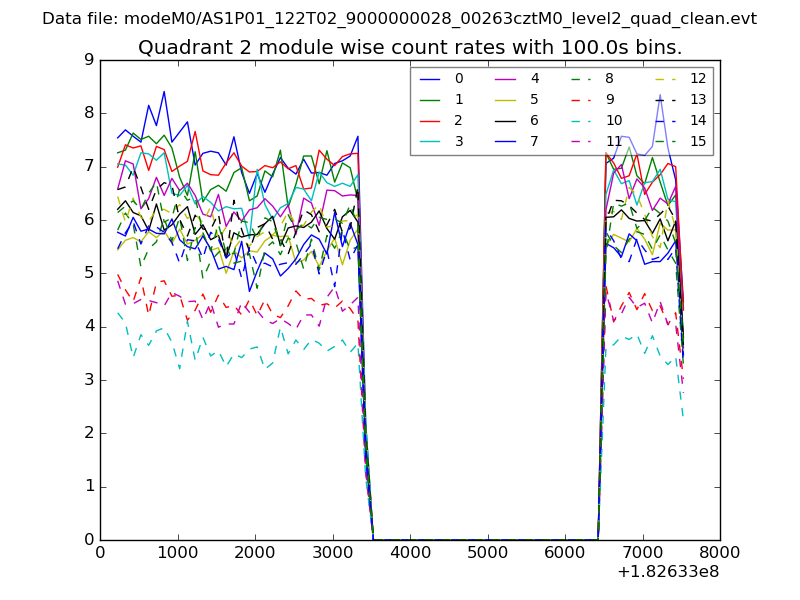

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

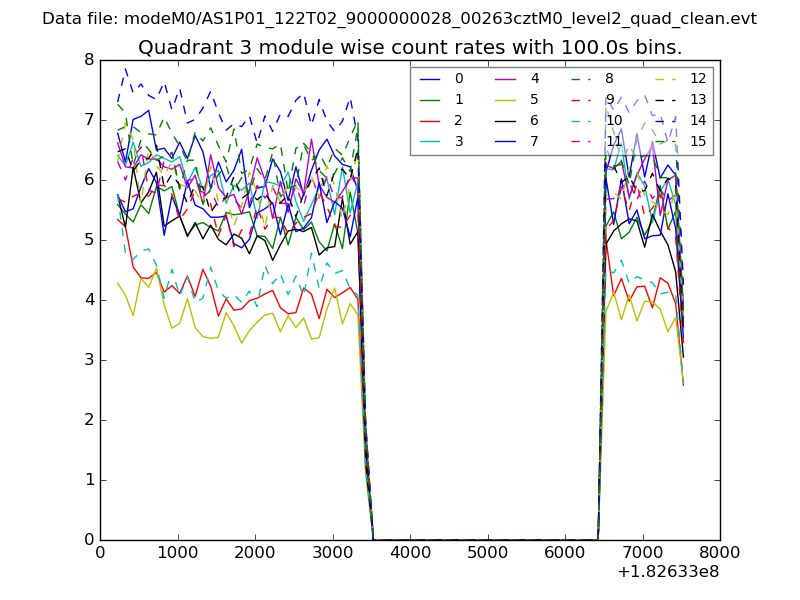

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

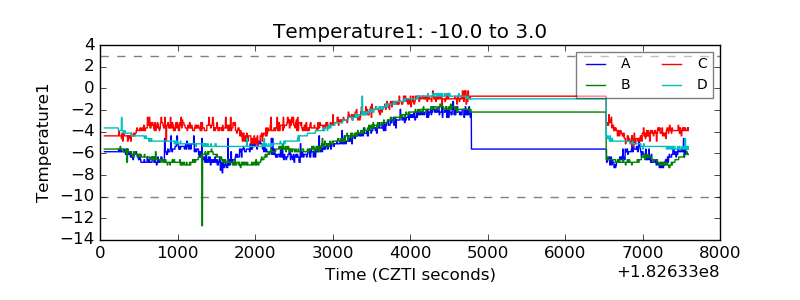

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |

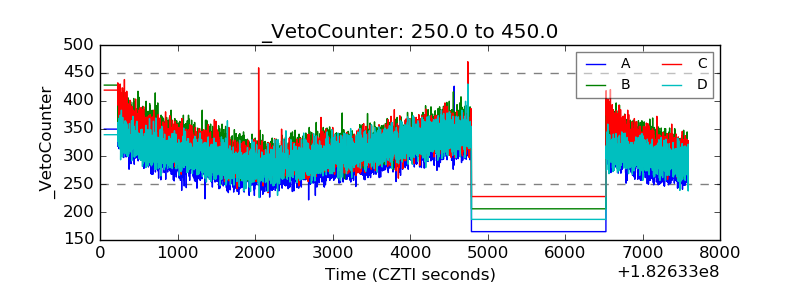

| Veto Counter |  |
