| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_126T01_9000000030_00271cztM0_level2.evt | modeM0/AS1P01_126T01_9000000030_00271cztM0_level2_quad_clean.evt |
| Size (bytes) | 907,341,120 | 52,594,560 |
| Size | 865.3 MB | 50.2 MB |
| Events in quadrant A | 6,940,330 | 298,424 |
| Events in quadrant B | 6,884,313 | 303,092 |
| Events in quadrant C | 6,287,846 | 301,825 |
| Events in quadrant D | 6,990,723 | 293,123 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24624 | 3 |
| B | 0 | 24421 | 2 |
| C | 0 | 22684 | 2 |
| D | 0 | 24778 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 20 | 0 |
| B | 0 | 20 | 0 |
| C | 0 | 20 | 0 |
| D | 0 | 21 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 116 | 0 |
| B | 0 | 116 | 0 |
| C | 0 | 116 | 0 |
| D | 0 | 116 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5655 | 4 | 0.070734% |
| B | 5655 | 13 | 0.229885% |
| C | 5655 | 4 | 0.070734% |
| D | 5655 | 19 | 0.335986% |

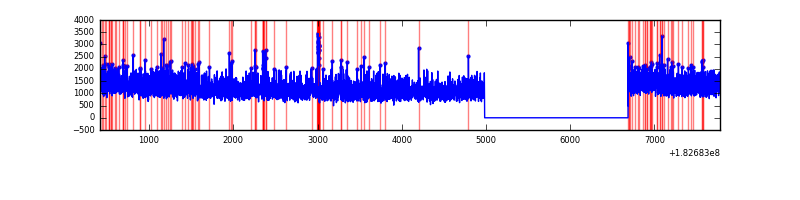

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7360 | 5656 | 172 | 172 | 2.34% | 3.04% |  |
| B | 7360 | 5656 | 133 | 133 | 1.81% | 2.35% |  |
| C | 7360 | 5656 | 72 | 72 | 0.98% | 1.27% |  |
| D | 7360 | 5656 | 226 | 226 | 3.07% | 4.00% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 250 | 12042 | 25.78 | 1787 | 1767 | 398.6 |
| A | 15 | 127 | 7354 | 14.02 | 1787 | 1767 | 398.6 |
| A | 0 | 6 | 5839 | 10.21 | 1787 | 1767 | 398.6 |
| B | 15 | 54 | 50295 | 117.58 | 1761 | 1775 | 412.6 |
| B | 8 | 54 | 48401 | 112.99 | 1761 | 1775 | 412.6 |
| B | 5 | 46 | 31502 | 72.04 | 1761 | 1775 | 412.6 |
| C | 2 | 192 | 13834 | 27.37 | 1593 | 1650 | 445.1 |
| C | 15 | 208 | 9192 | 16.95 | 1593 | 1650 | 445.1 |
| C | 1 | 1 | 7460 | 13.05 | 1593 | 1650 | 445.1 |
| D | 6 | 212 | 273739 | 562.22 | 1550 | 1609 | 484.0 |
| D | 1 | 4 | 261936 | 537.84 | 1550 | 1609 | 484.0 |
| D | 10 | 154 | 177336 | 363.05 | 1550 | 1609 | 484.0 |

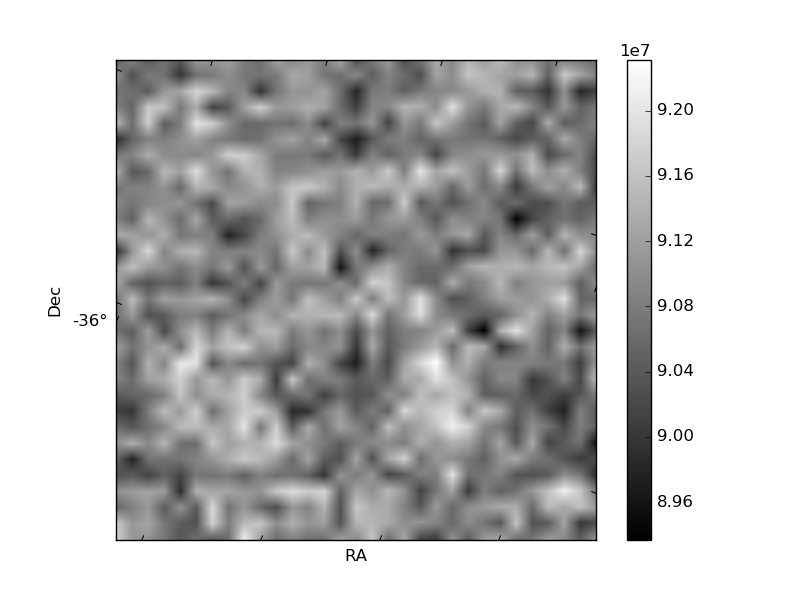

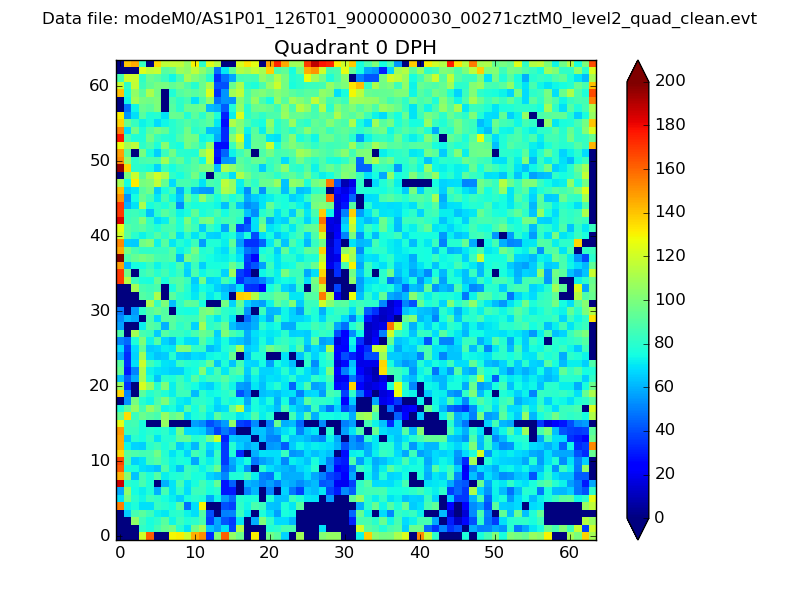

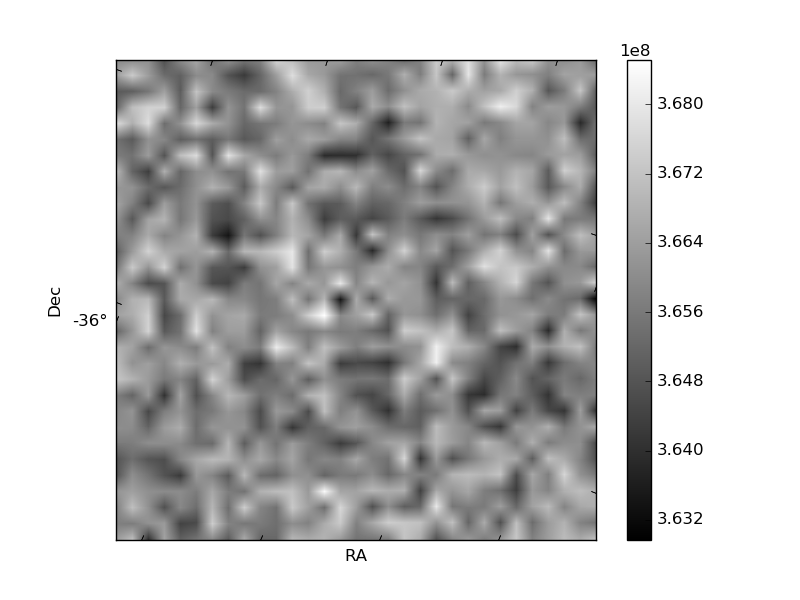

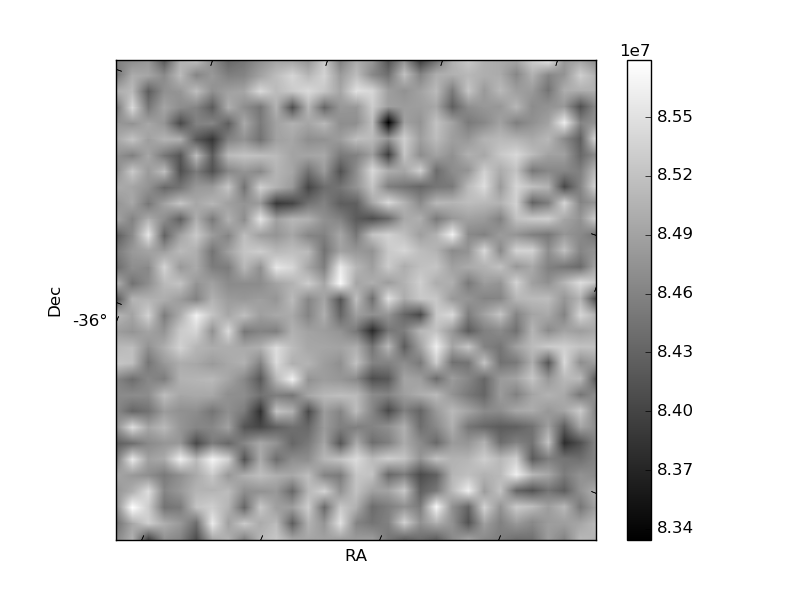

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |

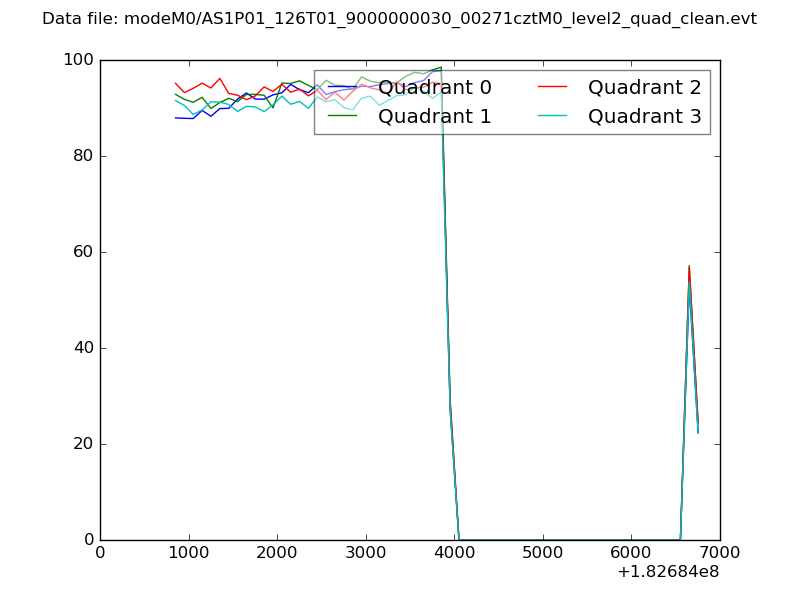

| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |

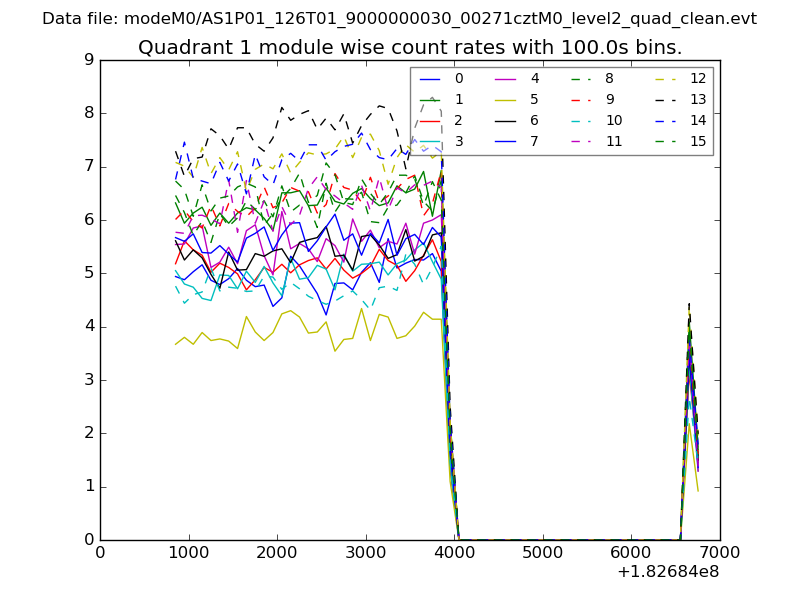

| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |

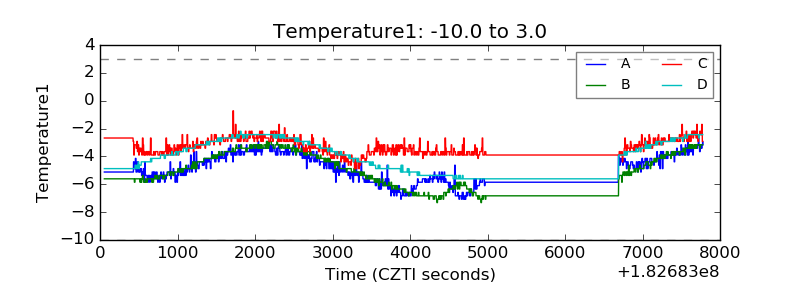

| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
