| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_126T01_9000000030_00278cztM0_level2.evt | modeM0/AS1P01_126T01_9000000030_00278cztM0_level2_quad_clean.evt |
| Size (bytes) | 840,242,880 | 57,360,960 |
| Size | 801.3 MB | 54.7 MB |
| Events in quadrant A | 6,514,331 | 338,966 |
| Events in quadrant B | 6,597,553 | 342,042 |
| Events in quadrant C | 6,277,343 | 329,149 |
| Events in quadrant D | 5,675,944 | 325,793 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 23472 | 3 |
| B | 0 | 23646 | 2 |
| C | 0 | 22757 | 2 |
| D | 0 | 20924 | 2 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 18 | 0 |
| B | 0 | 18 | 0 |
| C | 0 | 18 | 0 |
| D | 0 | 19 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5724 | 3 | 0.052411% |
| B | 5724 | 13 | 0.227114% |
| C | 5724 | 13 | 0.227114% |
| D | 5724 | 4 | 0.069881% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7460 | 5725 | 128 | 128 | 1.72% | 2.24% |  |
| B | 7460 | 5725 | 86 | 86 | 1.15% | 1.50% |  |
| C | 7460 | 5725 | 115 | 115 | 1.54% | 2.01% |  |
| D | 7460 | 5725 | 39 | 39 | 0.52% | 0.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 8 | 65 | 161594 | 442.15 | 1632 | 1620 | 361.8 |
| A | 15 | 17 | 12279 | 29.46 | 1632 | 1620 | 361.8 |
| A | 13 | 17 | 7643 | 16.65 | 1632 | 1620 | 361.8 |
| B | 5 | 176 | 78528 | 196.51 | 1661 | 1671 | 391.1 |
| B | 0 | 85 | 62680 | 155.99 | 1661 | 1671 | 391.1 |
| B | 5 | 46 | 53034 | 131.33 | 1661 | 1671 | 391.1 |
| C | 14 | 48 | 364275 | 868.64 | 1498 | 1552 | 417.6 |
| C | 5 | 251 | 15326 | 32.99 | 1498 | 1552 | 417.6 |
| C | 1 | 1 | 8944 | 17.7 | 1498 | 1552 | 417.6 |
| D | 13 | 216 | 45941 | 99.34 | 1421 | 1473 | 447.7 |
| D | 1 | 7 | 35576 | 76.18 | 1421 | 1473 | 447.7 |
| D | 10 | 154 | 32762 | 69.9 | 1421 | 1473 | 447.7 |
Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

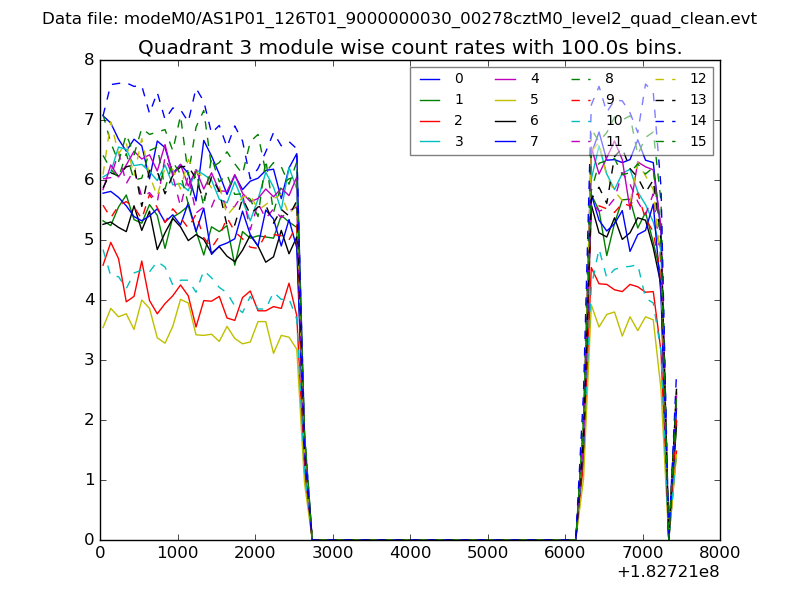

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |

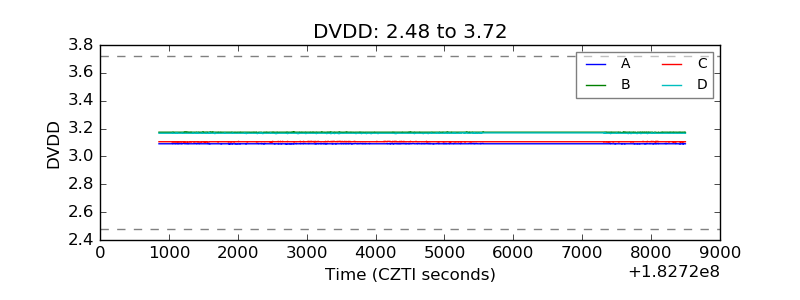

| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |

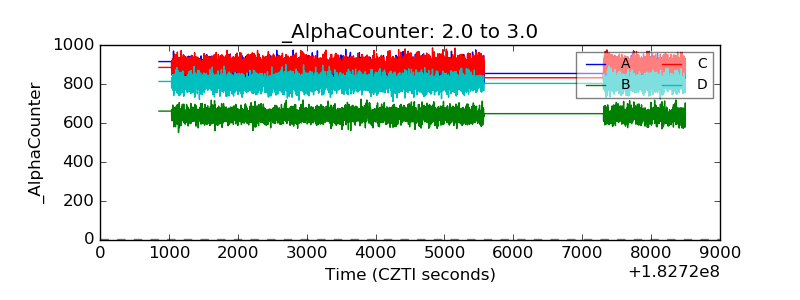

| Alpha Counter |  |
| _CPM_Rate |  |

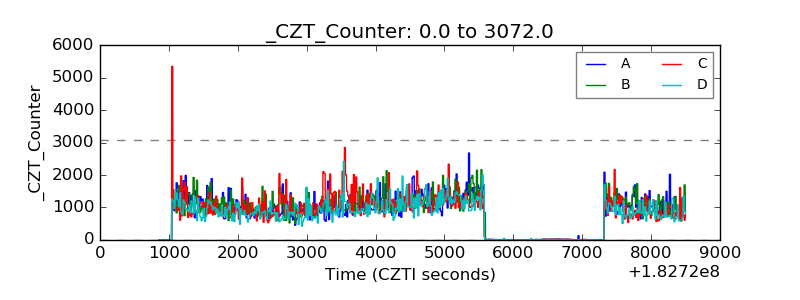

| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |
| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
