| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_126T02_9000000034_00288cztM0_level2.evt | modeM0/AS1P01_126T02_9000000034_00288cztM0_level2_quad_clean.evt |
| Size (bytes) | 984,015,360 | 25,456,320 |
| Size | 938.4 MB | 24.3 MB |
| Events in quadrant A | 9,759,705 | 91,337 |
| Events in quadrant B | 6,935,419 | 97,844 |
| Events in quadrant C | 6,543,235 | 96,743 |
| Events in quadrant D | 6,193,949 | 93,834 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 22 | 0 |
| B | 0 | 22 | 0 |
| C | 0 | 22 | 0 |
| D | 0 | 23 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 32931 | 3 |
| B | 0 | 24547 | 2 |
| C | 0 | 23423 | 2 |
| D | 0 | 22379 | 2 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 112 | 0 |
| B | 0 | 112 | 0 |
| C | 0 | 112 | 0 |
| D | 0 | 112 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5578 | 195 | 3.495877% |
| B | 5578 | 8 | 0.143421% |
| C | 5578 | 4 | 0.071710% |
| D | 5578 | 18 | 0.322696% |
Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.

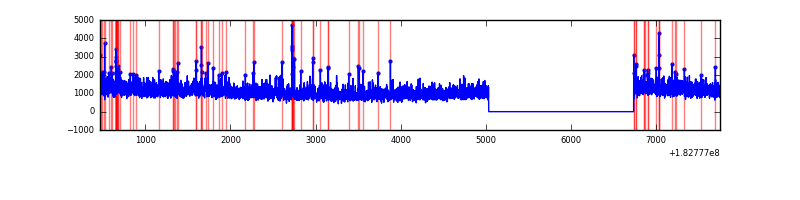

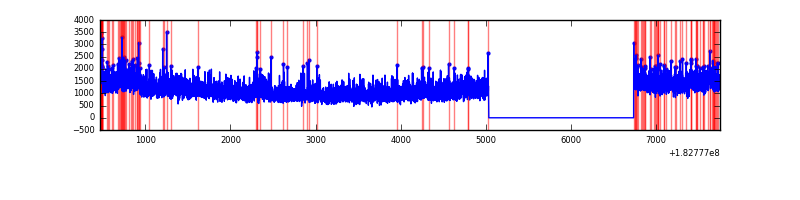

| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7283 | 5579 | 1588 | 1588 | 21.80% | 28.46% |  |
| B | 7283 | 5579 | 126 | 126 | 1.73% | 2.26% |  |
| C | 7283 | 5579 | 127 | 127 | 1.74% | 2.28% |  |
| D | 7283 | 5579 | 86 | 86 | 1.18% | 1.54% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 127 | 2404999 | 6215.72 | 1751 | 1741 | 386.6 |
| A | 12 | 149 | 472246 | 1216.9 | 1751 | 1741 | 386.6 |
| A | 15 | 53 | 64750 | 162.96 | 1751 | 1741 | 386.6 |
| B | 0 | 183 | 91096 | 218.46 | 1745 | 1760 | 408.9 |
| B | 5 | 46 | 62007 | 147.33 | 1745 | 1760 | 408.9 |
| B | 0 | 85 | 27637 | 63.28 | 1745 | 1760 | 408.9 |
| C | 1 | 1 | 184316 | 423.99 | 1548 | 1601 | 430.9 |
| C | 5 | 234 | 178373 | 410.2 | 1548 | 1601 | 430.9 |
| C | 3 | 159 | 67438 | 152.77 | 1548 | 1601 | 430.9 |
| D | 13 | 51 | 123538 | 256.53 | 1521 | 1583 | 475.4 |
| D | 1 | 4 | 87494 | 180.71 | 1521 | 1583 | 475.4 |
| D | 1 | 5 | 59708 | 122.26 | 1521 | 1583 | 475.4 |

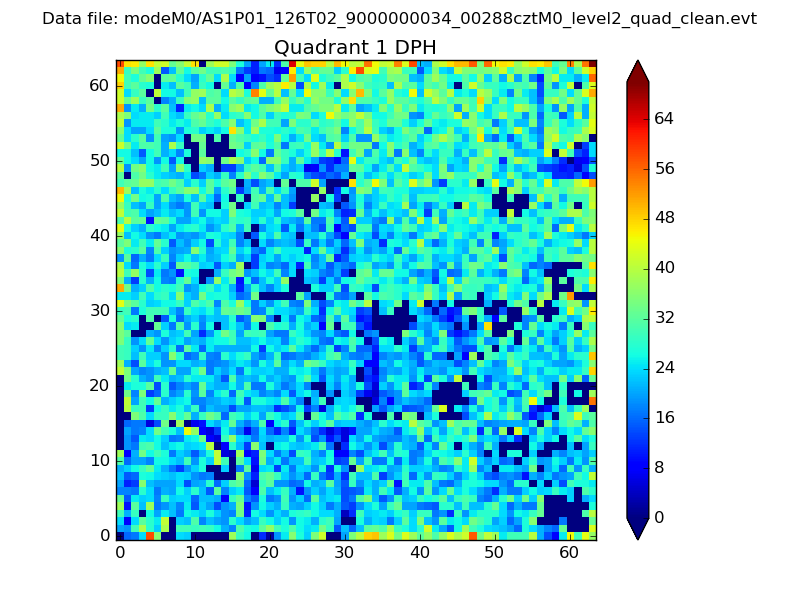

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |

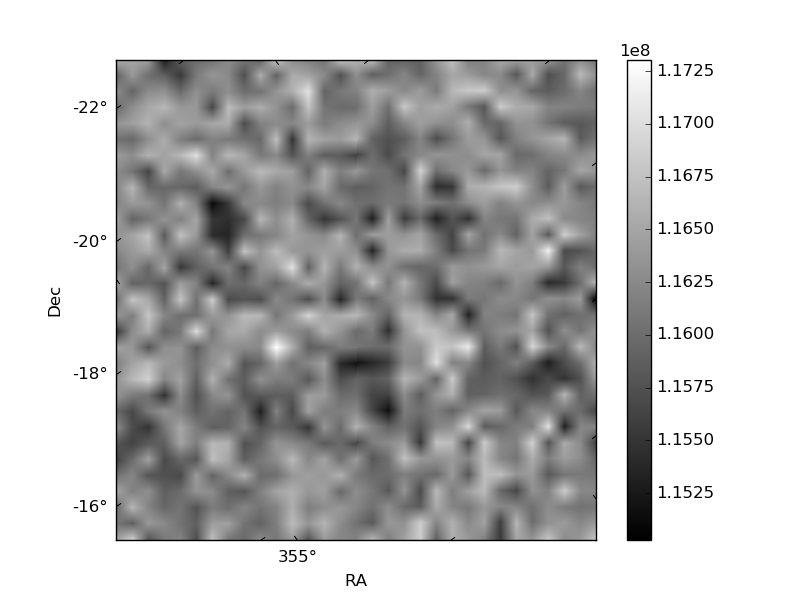

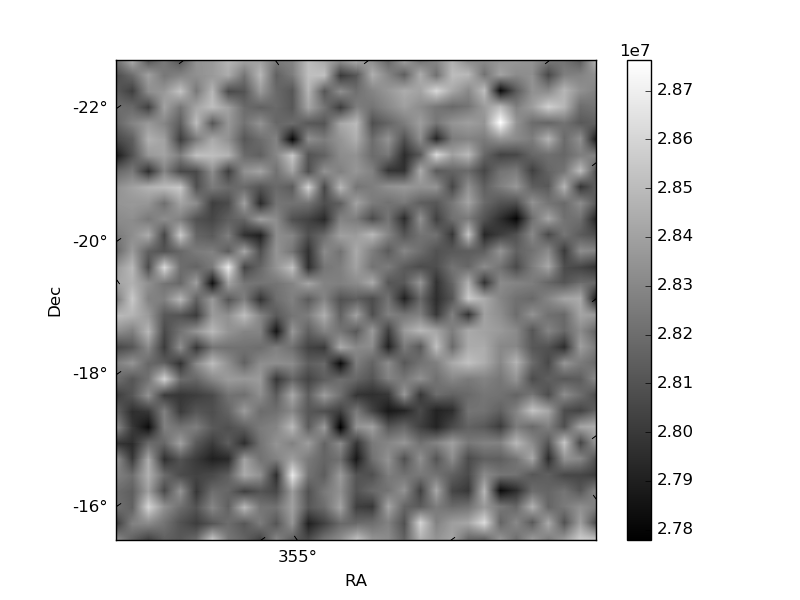

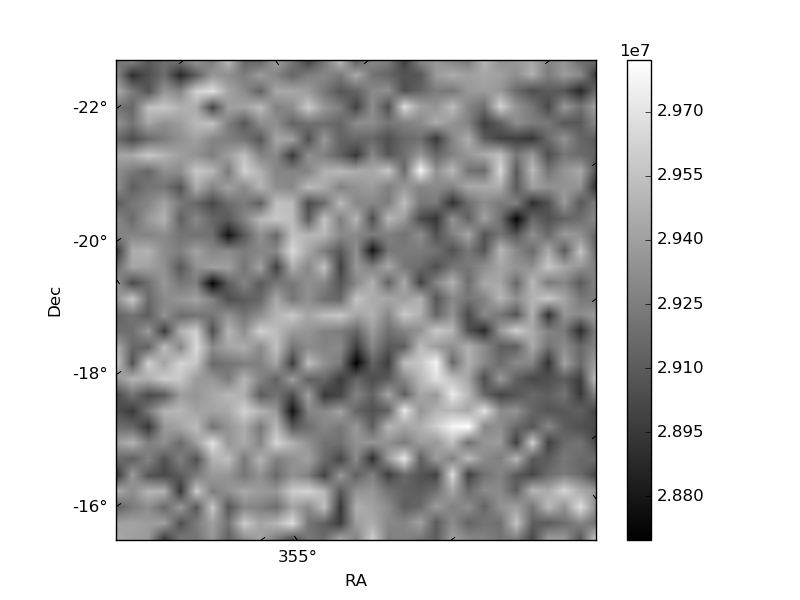

| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |
| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

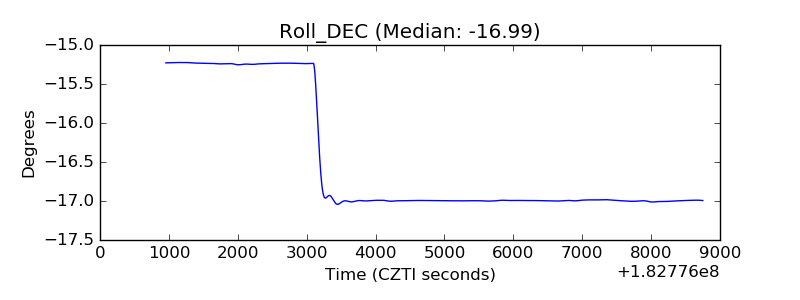

| _Roll_DEC |  |

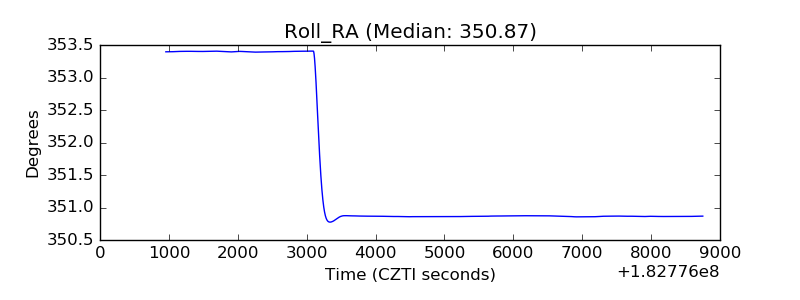

| _Roll_RA |  |
| Veto Counter |  |
