| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_126T02_9000000034_00290cztM0_level2.evt | modeM0/AS1P01_126T02_9000000034_00290cztM0_level2_quad_clean.evt |
| Size (bytes) | 982,517,760 | 16,632,000 |
| Size | 937.0 MB | 15.9 MB |
| Events in quadrant A | 9,870,042 | 24,394 |
| Events in quadrant B | 6,897,554 | 25,490 |
| Events in quadrant C | 6,247,024 | 24,862 |
| Events in quadrant D | 6,359,215 | 24,454 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 17 | 0 |
| B | 0 | 17 | 0 |
| C | 0 | 17 | 0 |
| D | 0 | 17 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 33318 | 2 |
| B | 0 | 24598 | 1 |
| C | 0 | 22678 | 1 |
| D | 0 | 23041 | 1 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 118 | 0 |
| B | 0 | 118 | 0 |
| C | 0 | 118 | 0 |
| D | 0 | 118 | 0 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5763 | 24 | 0.416450% |
| B | 5763 | 5 | 0.086760% |
| C | 5763 | 2 | 0.034704% |
| D | 5763 | 13 | 0.225577% |

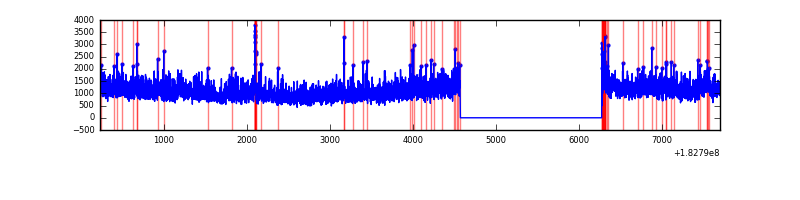

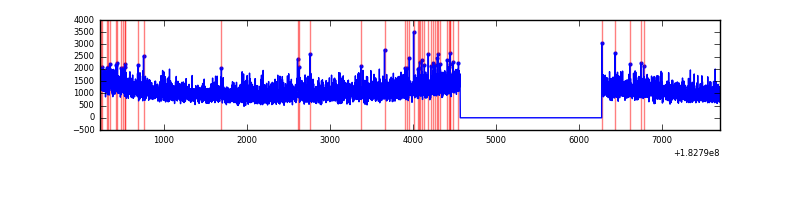

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7469 | 5764 | 1288 | 1288 | 17.24% | 22.35% |  |
| B | 7469 | 5764 | 119 | 119 | 1.59% | 2.06% |  |
| C | 7469 | 5764 | 46 | 46 | 0.62% | 0.80% |  |
| D | 7469 | 5764 | 74 | 74 | 0.99% | 1.28% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 15 | 127 | 3032513 | 7866.16 | 1753 | 1737 | 385.3 |
| A | 15 | 250 | 42006 | 104.52 | 1753 | 1737 | 385.3 |
| A | 11 | 242 | 9183 | 19.33 | 1753 | 1737 | 385.3 |
| B | 0 | 183 | 78742 | 187.89 | 1741 | 1757 | 409.7 |
| B | 0 | 151 | 62146 | 147.38 | 1741 | 1757 | 409.7 |
| B | 0 | 85 | 42752 | 100.05 | 1741 | 1757 | 409.7 |
| C | 1 | 1 | 143343 | 329.58 | 1535 | 1589 | 430.1 |
| C | 3 | 159 | 45858 | 102.93 | 1535 | 1589 | 430.1 |
| C | 14 | 48 | 18413 | 39.12 | 1535 | 1589 | 430.1 |
| D | 13 | 216 | 344950 | 729.7 | 1496 | 1552 | 470.6 |
| D | 10 | 62 | 109473 | 229.33 | 1496 | 1552 | 470.6 |
| D | 13 | 117 | 54012 | 111.47 | 1496 | 1552 | 470.6 |

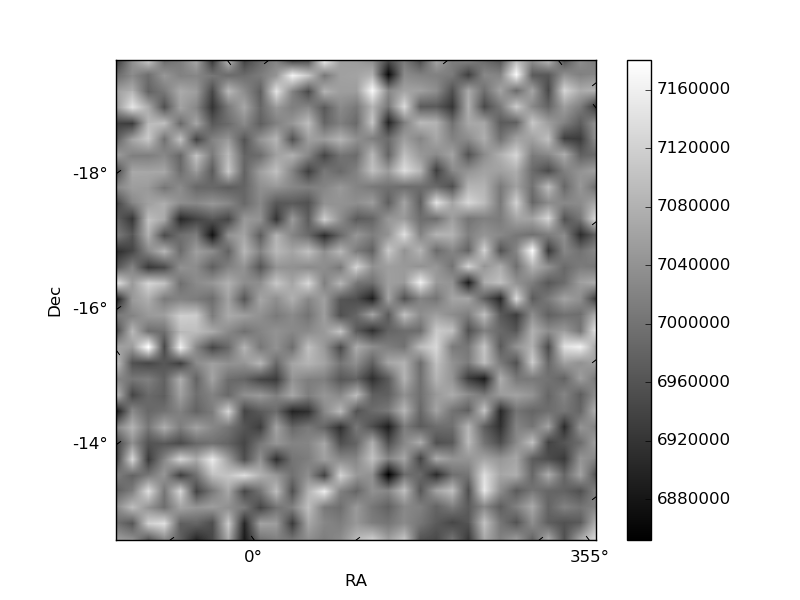

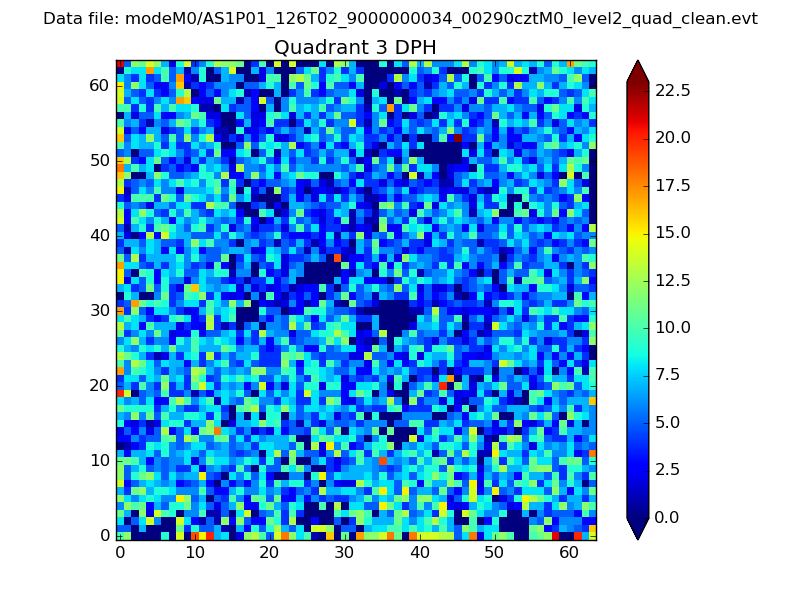

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|
| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|

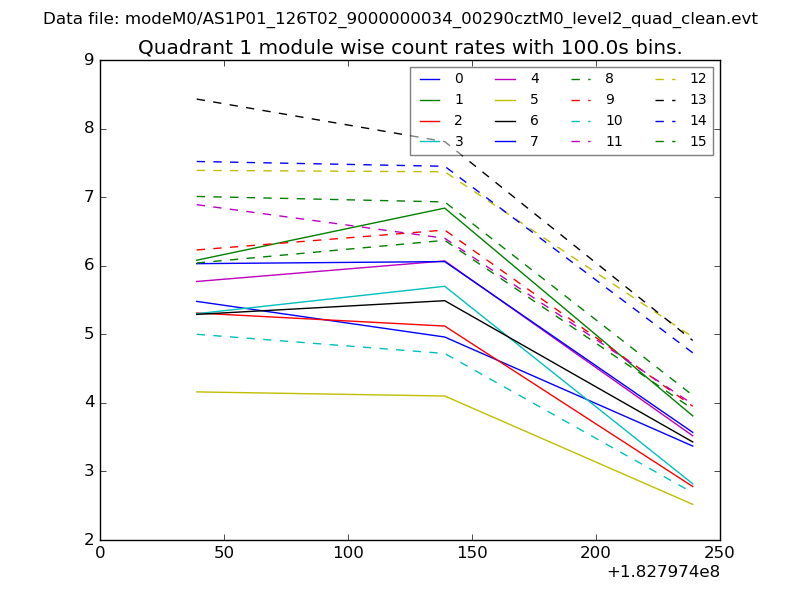

| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |

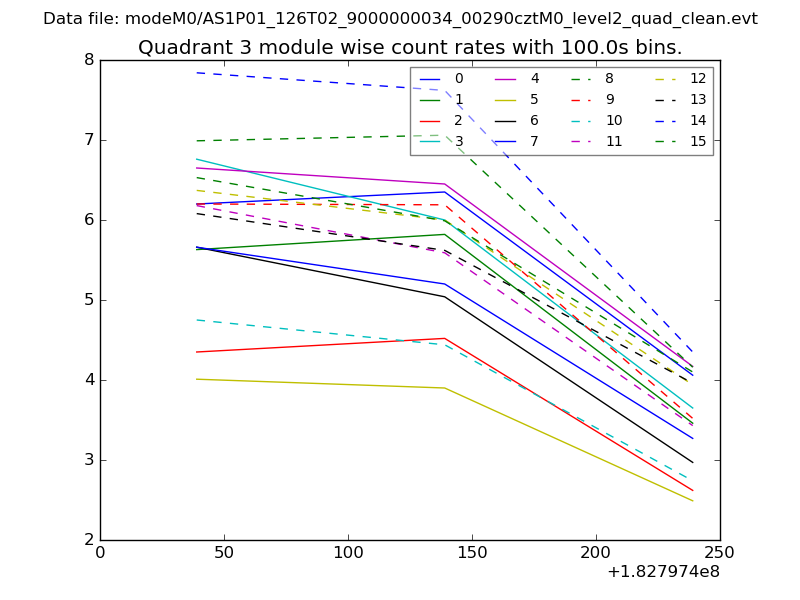

| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
| Parameter | Plot |
|---|---|
| CZT HV Monitor |  |
| D_VDD |  |
| Temperature 1 |  |
| Veto HV Monitor |  |
| Veto LLD |  |
| Alpha Counter |  |

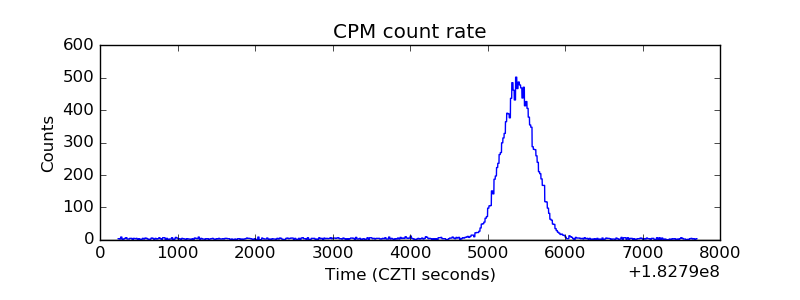

| _CPM_Rate |  |
| CZT Counter |  |
| +2.5 Volts monitor |  |
| +5 Volts monitor |  |
| _ROLL_ROT |  |

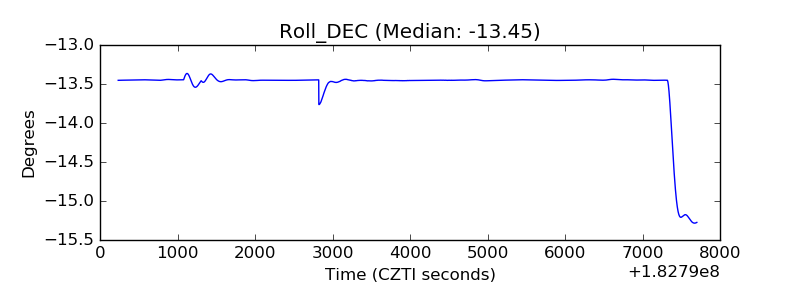

| _Roll_DEC |  |
| _Roll_RA |  |
| Veto Counter |  |
