| Param | Original file | Final file |
|---|---|---|
| Filename | modeM0/AS1P01_126T04_9000000036_00304cztM0_level2.evt | modeM0/AS1P01_126T04_9000000036_00304cztM0_level2_quad_clean.evt |
| Size (bytes) | 872,078,400 | 75,156,480 |
| Size | 831.7 MB | 71.7 MB |
| Events in quadrant A | 6,903,370 | 473,807 |
| Events in quadrant B | 6,917,573 | 481,019 |
| Events in quadrant C | 6,225,446 | 467,765 |
| Events in quadrant D | 5,991,388 | 460,657 |
| Mode M9 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 19 | 0 |
| B | 0 | 19 | 0 |
| C | 0 | 19 | 0 |
| D | 0 | 20 | 0 |
| Mode SS | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 114 | 0 |
| B | 0 | 114 | 0 |
| C | 0 | 114 | 0 |
| D | 0 | 114 | 0 |
| Mode M0 | |||
|---|---|---|---|
| Quadrant | BADHDUFLAG | Total packets | Discarded packets |
| A | 0 | 24480 | 3 |
| B | 0 | 24538 | 2 |
| C | 0 | 22510 | 2 |
| D | 0 | 21816 | 2 |
| Quadrant | Total seconds | Saturated seconds | Saturation percentage |
|---|---|---|---|
| A | 5613 | 3 | 0.053447% |
| B | 5613 | 33 | 0.587921% |
| C | 5613 | 2 | 0.035632% |
| D | 5613 | 3 | 0.053447% |

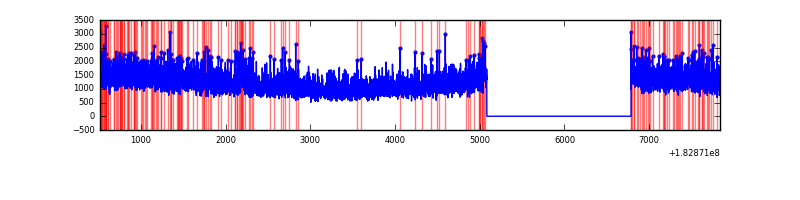

Noise dominated data is calculated using 1-second bins in cleaned event files. If a bin has >2000 counts, and if more than 50% of those come from <1% of pixels, then it is considered to be noise-dominated and hence unusable.
| Quadrant | # 1 sec bins | Bins with >0 counts | Bins with >2000 counts | High rate bins dominated by noise | Noise dominated (total time) | Noise dominated (detector-on time) | Marked lightcurve |
|---|---|---|---|---|---|---|---|
| A | 7318 | 5614 | 185 | 185 | 2.53% | 3.30% |  |
| B | 7318 | 5614 | 142 | 142 | 1.94% | 2.53% |  |
| C | 7318 | 5614 | 39 | 39 | 0.53% | 0.69% |  |
| D | 7318 | 5614 | 38 | 38 | 0.52% | 0.68% |  |
Top three noisy pixels from each quadrant. If the there are fewer than three noisy pixels in the level2.evt file, extra rows are filled as -1
| Pixel properties | Quadrant properties | ||||||
|---|---|---|---|---|---|---|---|
| Quadrant | DetID | PixID | Counts | Sigma | Mean | Median | Sigma |
| A | 0 | 6 | 59289 | 147.94 | 1755 | 1746 | 389.0 |
| A | 15 | 127 | 41400 | 101.95 | 1755 | 1746 | 389.0 |
| A | 12 | 189 | 6148 | 11.32 | 1755 | 1746 | 389.0 |
| B | 4 | 184 | 81854 | 196.37 | 1732 | 1745 | 407.9 |
| B | 0 | 183 | 81142 | 194.63 | 1732 | 1745 | 407.9 |
| B | 0 | 85 | 49923 | 118.1 | 1732 | 1745 | 407.9 |
| C | 2 | 192 | 83087 | 189.95 | 1539 | 1590 | 429.0 |
| C | 1 | 1 | 38474 | 85.97 | 1539 | 1590 | 429.0 |
| C | 9 | 68 | 32651 | 72.4 | 1539 | 1590 | 429.0 |
| D | 13 | 216 | 52866 | 108.09 | 1514 | 1579 | 474.5 |
| D | 13 | 51 | 38970 | 78.8 | 1514 | 1579 | 474.5 |
| D | 6 | 212 | 34777 | 69.96 | 1514 | 1579 | 474.5 |

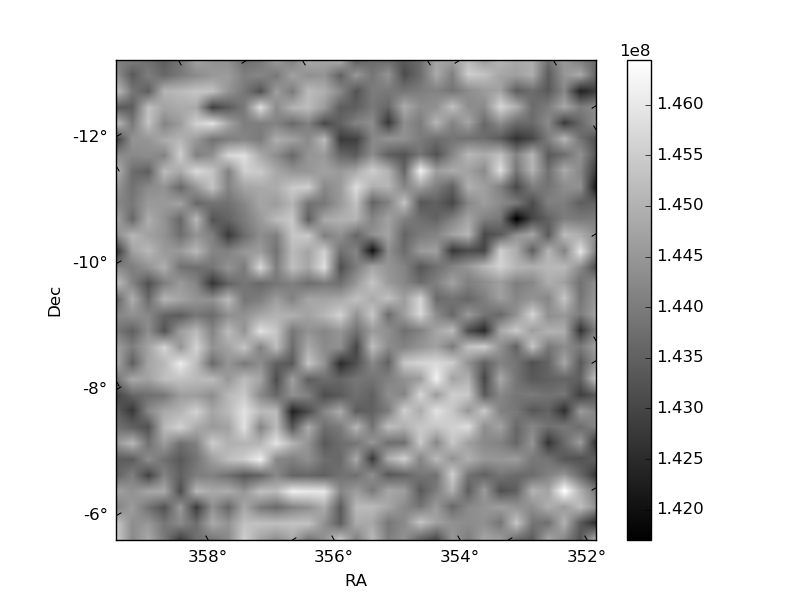

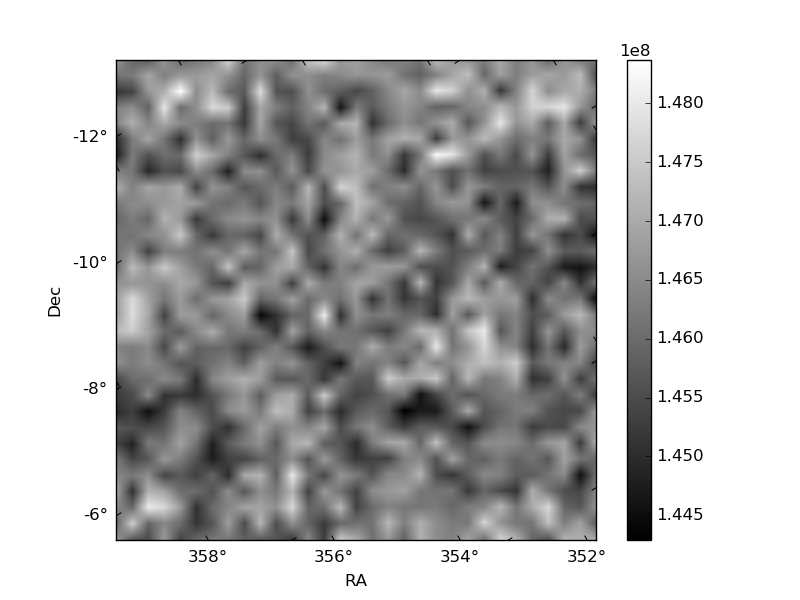

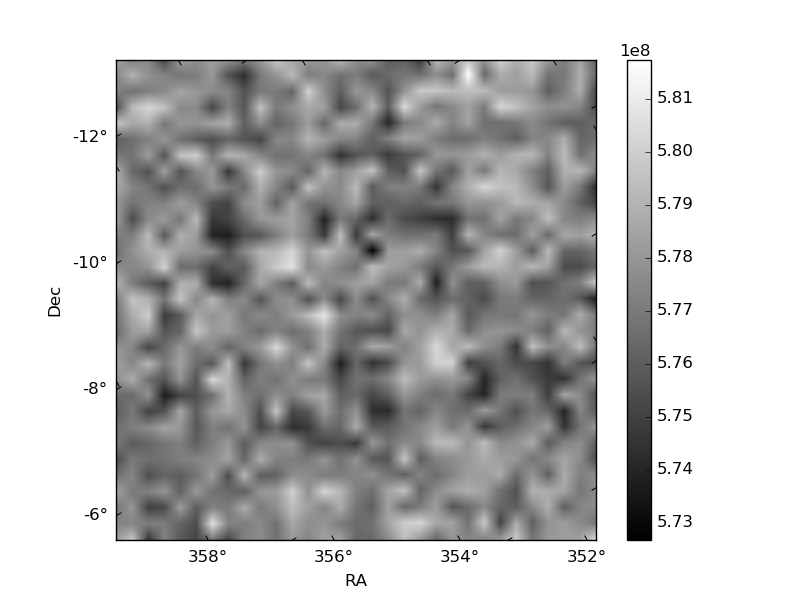

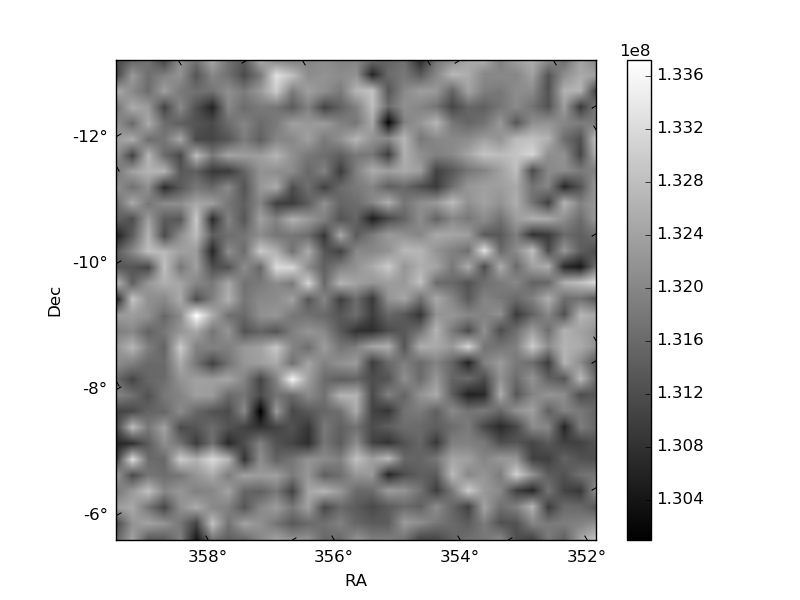

Histogram calculated using DETX and DETY for each event in the final _common_clean file
| Quadrant A |  |
 |
Quadrant B |
|---|---|---|---|
| Quadrant D |  |
 |
Quadrant C |
| Plot type | Count rate plots | Images |
|---|---|---|

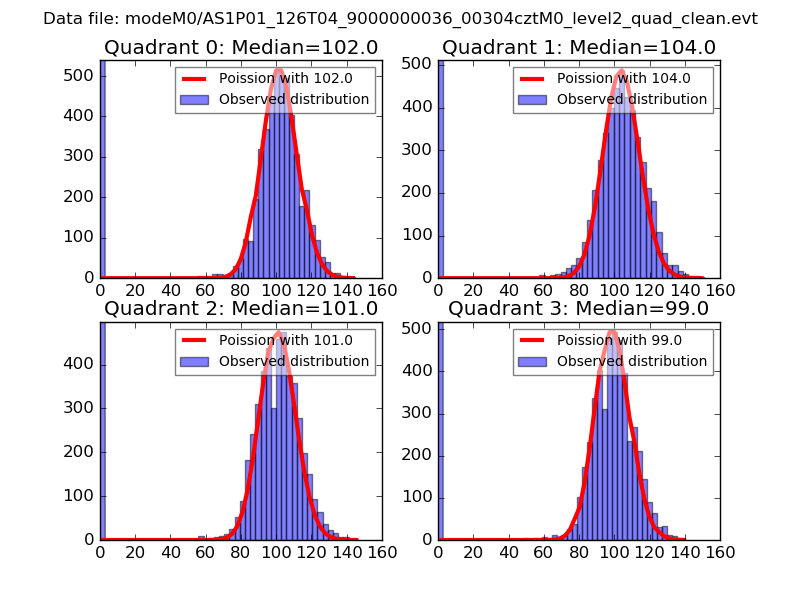

| Comparison with Poisson distribution Blue bars denote a histogram of data divided into 1 sec bins. Red curve is a Poisson curve with rate = median count rate of data. |
 |
 |
| Quadrant-wise count rates Data is divided into 100 sec bins |
 |
|
| Module-wise count rates for Quadrant A Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant B Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant C Data is divided into 100 sec bins |
 |
 |
| Module-wise count rates for Quadrant D Data is divided into 100 sec bins |
 |
 |
